EU Product - AX3000 Wi-Fi 6 PCI Express Adapter WE3000 - PCI-Express - WLAN
Introduction
Bluetooth 5.2 Technology
Equipped with Bluetooth 5.2 technology, offering twice the speed and four times the range of Bluetooth 4.2. Experience stable, multi-device connectivity for game controllers, headphones, and keyboards with minimal latency.
Windows 10/11 64-bit Compatible
The device is usually driver-free on newer Windows 10/11 64-bit systems, while the driver is available for download on the Cudy official website.
Latest Wi-Fi Encryption
With WPA3, the latest Wi-Fi encryption protocol, your network is better protected against brute-force attacks for safer connections.

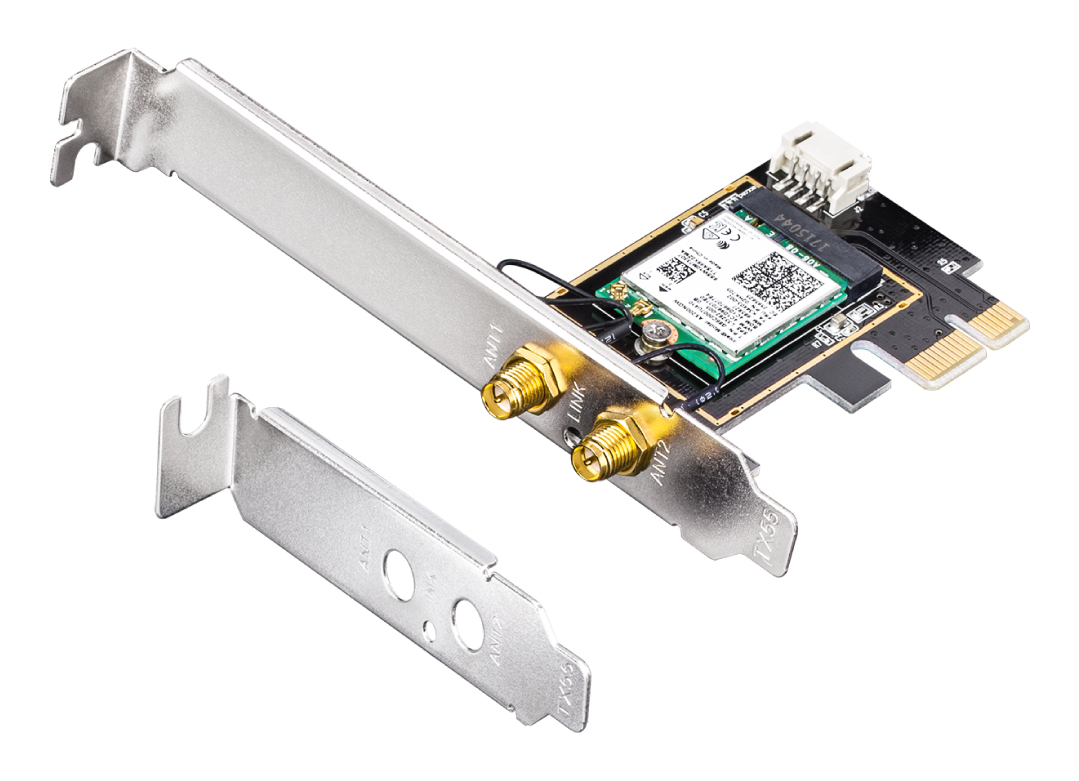

Standard and Lower Brakets Included
Suitable for both standard tower PCs and low-profile HTPC builds. Install the antennas and position them vertically facing your router for the optimal signal quality.
Compatible with Mainstream Motherboards
The Wi-Fi and powering requires a PCI-E 1x, 4x, 8x, or 16x slot on the motherboard. The Bluetooth function requires a USB 9-Pin connector on the motherboard.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Interface | WLAN / Bluetooth |
| Host interface | PCI Express |
| Connectivity technology | Wireless |
| Bandwidth | |
| Maximum data transfer rate | 2402 Mbit/s |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 574,2402 Mbit/s |
| Antenna | |
| Antenna | Yes |
| Technical details | |
| Product colour | Black |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Products per shipping (inner) case | 50 pc(s) |
| Warranty period | 1 year(s) |
| Network | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Security algorithms | WPA3, WPA2, WPA |
| Bluetooth version | 5.2 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Spread spectrum method | OFDMA |
| WLAN data transfer rates supported | 574,2402 Mbit/s |
| LAN controller | Intel AX210 |
| Maximum data transfer rate | 2402 Mbit/s |
| Bluetooth | Yes |
| Mobile network generation | Not supported |
| Design | |
| Product colour | Black |
| Antenna | Yes |
| Internal | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Antenna direction type | Omni-directional |
| Component for | PC |
| Antenna design | External |
| Antenna gain level (max) | 5 dBi |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | No |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 65 mm |
| Depth | 45.5 mm |
| Height | 16 mm |
| Weight | 71 g |
| Package width | 230 mm |
| Package depth | 105 mm |
| Package height | 35 mm |
| Package weight | 197 g |
| Security | |
| Security algorithms | WPA3, WPA2, WPA |
| Packaging data | |
| AC adapter included | No |
| Package width | 230 mm |
| Package depth | 105 mm |
| Package height | 35 mm |
| Package weight | 197 g |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Manual | Yes |
| Packaging content | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Manual | Yes |
| Resource CD | No |
| Bluetooth header cable | Yes |
| Manual languages | Multi |

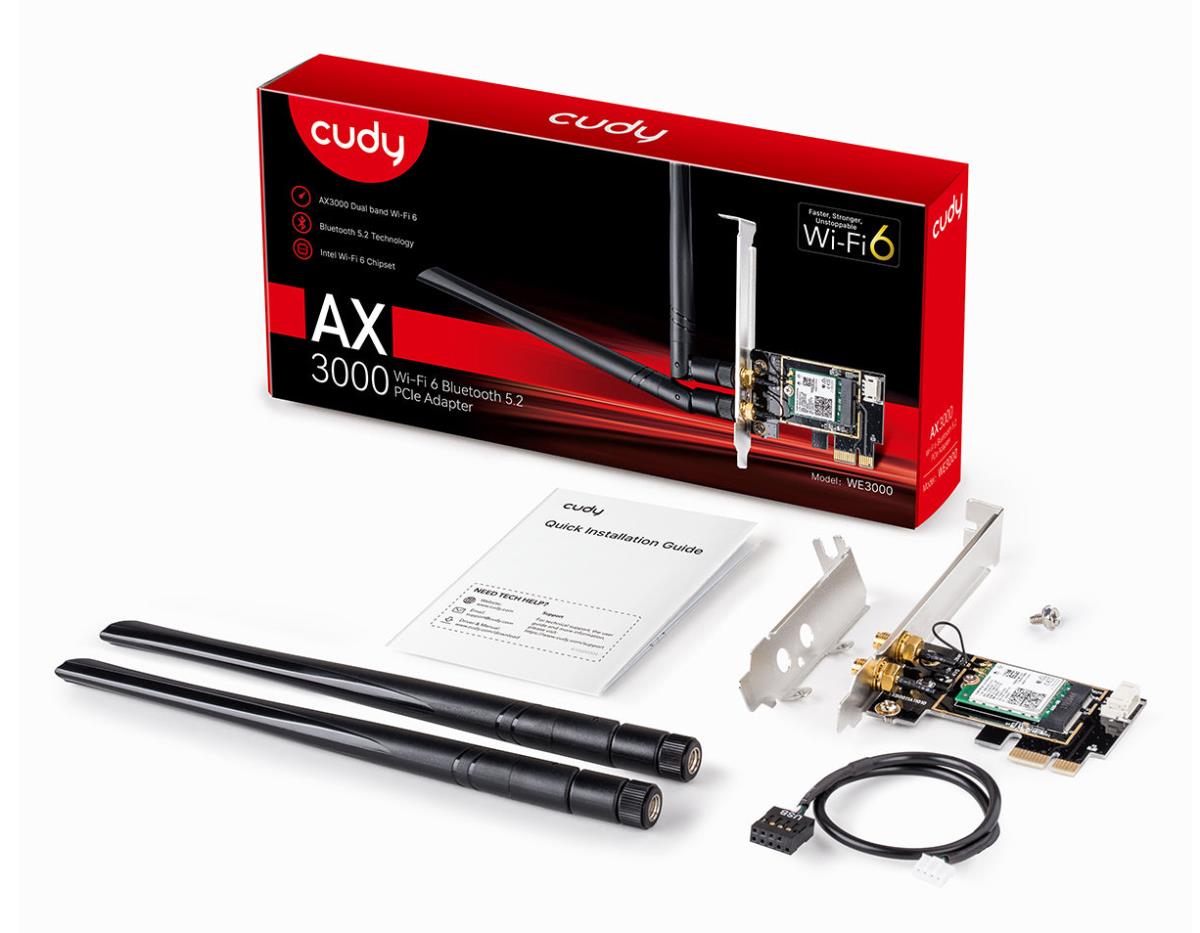

| Packaging content | WE3000 Detachable Antennas Bluetooth to 9-PIN USB Cable Low-Profile Bracket Installation Guide |
| AC adapter included | No |
| Performance | |
| Security algorithms | WPA3, WPA2, WPA |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | No |
| Features | |
| Product languages | Multi |
| Other features | |
| Bluetooth version | 5.2 |
| Manual | Yes |
| Bluetooth | Yes |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Country of origin | China |
| Logistics data | |
| Products per shipping (inner) case | 50 pc(s) |
