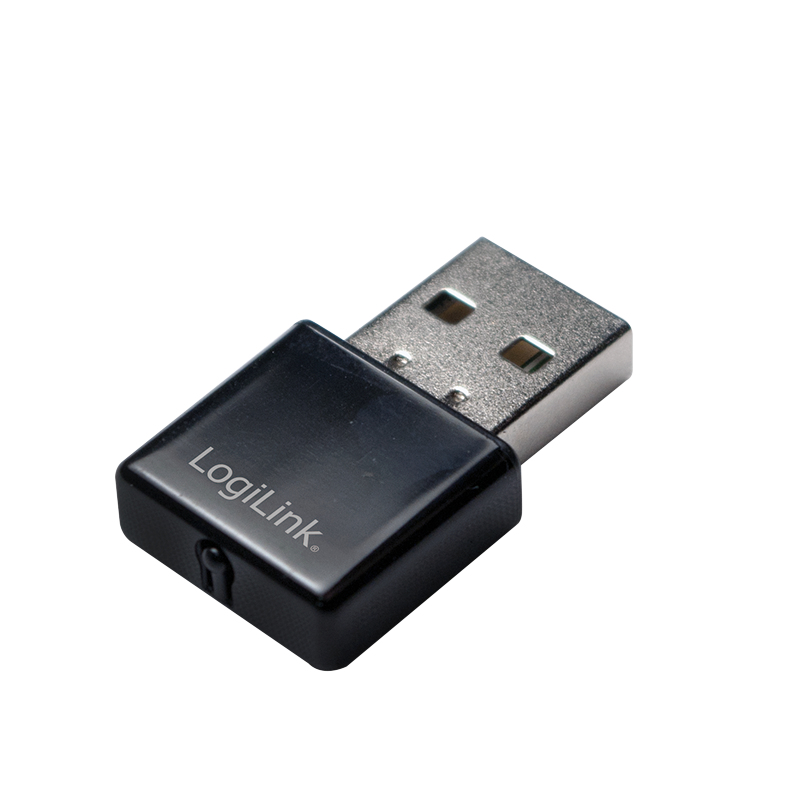

EU Product - W-LAN Micro-Adapter 802.11b/g/n USB 2.0, 300 Mbit/s
Introduction
WLAN USB Adapter from LogiLink with internal antenna. With WEP, WPA and WPA2 encryptionit offers all the options for a secure connection and can be easily configured using WPS and also integrated into the wireless network.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | No |
| USB version | 2.0 |
| Interface | WLAN |
| Host interface | USB |
| Connectivity technology | Wireless |
| Bandwidth | |
| Maximum data transfer rate | 300 Mbit/s |
| Wireless LAN features | |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 11,54,300 Mbit/s |
| Network | |
| WPS push button | Yes |
| Chipset | Realtek RTL8192EU |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| WLAN data transfer rates supported | 11,54,300 Mbit/s |
| Frequency range | 2.4 - 2.4835 GHz |
| Maximum data transfer rate | 300 Mbit/s |
| Antenna | |
| Frequency range | 2.4 - 2.4835 GHz |
| Design | |
| WPS push button | Yes |
| Chipset | Realtek RTL8192EU |
| Internal | No |
| LED indicators | Activity, Link |
| Software | |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Power | |
| Output voltage | 5 V |
| Input current | 0.16 A |
| Indication | |
| LED indicators | Activity, Link |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 60 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS |
| Packaging data | |
| Drivers included | Yes |
| Package width | 173 mm |
| Package depth | 138 mm |
| Package height | 25 mm |
| Quantity per pack | 1 pc(s) |
| Quick installation guide | Yes |
| Manual | Yes |
| Packaging content | |
| Quick installation guide | Yes |
| Manual | Yes |
| Drivers included | Yes |
| Performance | |
| Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Package width | 173 mm |
| Package depth | 138 mm |
| Package height | 25 mm |
| Other features | |
| Chipset | Realtek RTL8192EU |
| Manual | Yes |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 520 mm |
| Master (outer) case length | 366 mm |
| Master (outer) case height | 185 mm |
| Products per master (outer) case | 40 pc(s) |
| Harmonized System (HS) code | 85176990 |
