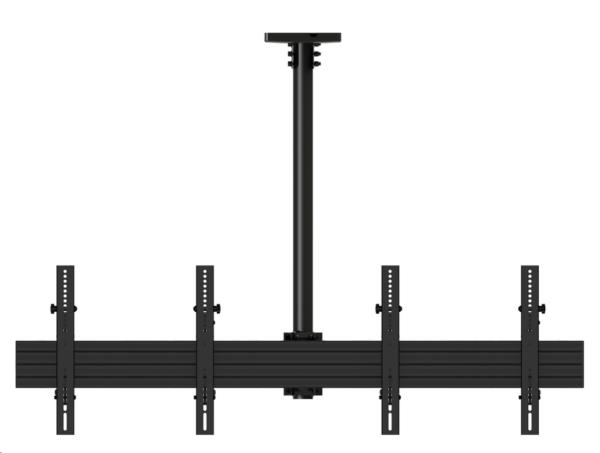

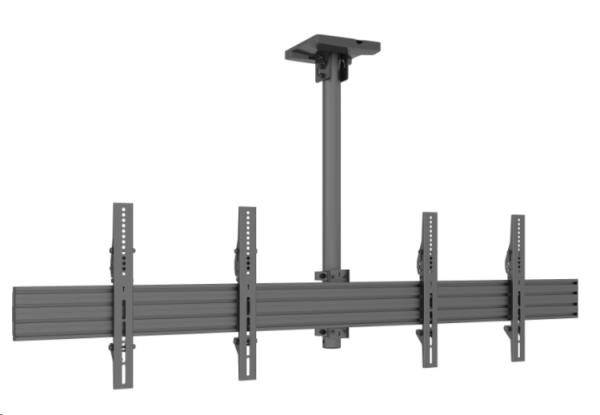

M Menu Board Mount Pro MBC2X1U
Introduction
The M Menuboard Mount Pro MBC2X1U is our 2 screen side by side menuboard system - ready to be installed.
The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.
With its modular construction installers can tailor the MBC2X1U with the clients need in mind. Possibilities to change, update and reconfigure its design and if ideas change over time Pro Series can follow.
The M Menuboard Mount Pro MBC2X1U creates a seamless mounting surface through the aluminum rail. The tilted mounting of the displays allow all displays to be placed side by side and tilted at the same angle with ease creating alignment and true menuboard perfection.
Designed with our Scandinavian heritage in mind Pro Series provides a clean Nordic look where each part and detail is made as simple as can be and still service its function. Possible to use in a variety of environments our Pro Series Menuboards are truly versatile. The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. With included hardware kit a basic installation should not be a hassle.
Multibrackets Pro Series Menuboards is simply ideal for any large screen digital signage application.
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 101.6 cm (40") |
| Maximum weight capacity | 60 kg |
| Panel mounting interface | 100 x 100,600 x 400,800 x 600 |
| Number of displays supported | 2 |
| Mounting type | Ceiling |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 800 x 600 mm |
| Maximum screen size | 165.1 cm (65") |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 580 - 1550 mm |
| Swivel angle | 360° |
| Tilt angle range | 0 - 15° |
| Angle of rotation | 8° |
| Height adjustment type | Manual |
| Cable management | Yes |
| Ceiling mounting tube length (min) | 58 cm |
| Ceiling mounting tube length (max) | 155 cm |
| Tilt adjustment | Yes |
| Design | |
| Housing material | Aluminium, Steel |
| Certification | CE |
| Product colour | Black |
| Weight & dimensions | |
| Width | 3380 mm |
| Depth | 200 mm |
| Height | 2220 mm |
| Weight | 24.3 kg |
| Aluminium content weight | 4.2 kg |
| Steel content weight | 24.3 kg |
| Other metals content weight | 0 g |
| Package width | 200 mm |
| Package depth | 1020 mm |
| Package height | 180 mm |
| Package weight | 25 kg |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 1020 mm |
| Package height | 180 mm |
| Package weight | 25 kg |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Mounting kit | Yes |
| Technical details | |
| Angle of rotation | 8° |
| Number of displays supported | 2 |
| Mounting type | Ceiling |
| Plastic packaging weight | 60 g |
| Paper/cardboard packaging weight | 600 g |
| Metal packaging weight | 0 g |
| Certificates | |
| Certification | CE |
| Logistics data | |
| Shipping (inner) case width | 20 cm |
| Shipping (inner) case length | 102 cm |
| Shipping (inner) case height | 18 cm |
| Shipping (inner) case gross weight | 17.3 kg |
| Products per shipping (inner) case | 1 pc(s) |
