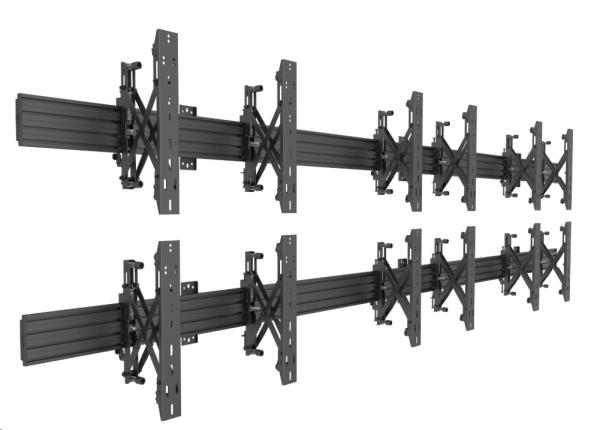

M Wallmount Pro MBW3x2U Push In Pop Out Blac
Introduction
Multibrackets Pro Series M Wallmount Pro MBW3x2U Push In Pop Out Black is our innovative - ready to be installed Single-Display Wallmount.
The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Wallmount Pro MBW3x2U Push In Pop Out Black is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.
With its modular construction installers have vast possibilities to change, create, update and reconfigure its design if ideas change over time, then Pro Series can follow.
Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.
The Pro Series possibilities to extend aluminum rail change brackets and add details by individual choice is vast so that one can tailor each mount to its location and function.
The Pro Series includes hardware so that a basic installation should not be a hassle.
Multibrackets Pro Series Public Wallmounts is ideal for any large screen digital signage wallmount application such as videowalls, menuboards and more.
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 81.3 cm (32") |
| Maximum weight capacity | 180 kg |
| Panel mounting interface | 100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Number of displays supported | 6 |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Maximum screen size | 165.1 cm (65") |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 0 - 10 mm |
| Tilt angle range | -4 - 4° |
| Distance to the wall (min) | 9.3 cm |
| Distance to the wall (max) | 23.5 cm |
| Height adjustment type | Manual |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Design | |
| Housing material | Aluminium, Plastic, Steel |
| Product colour | Black |
| Weight & dimensions | |
| Width | 3490 mm |
| Depth | 235 mm |
| Height | 447 mm |
| Weight | 37.3 kg |
| Aluminium content weight | 15.2 kg |
| Steel content weight | 37.3 kg |
| Other metals content weight | 0 g |
| Package width | 270 mm |
| Package depth | 1040 mm |
| Package height | 178 mm |
| Package weight | 40 kg |
| Package type | Box |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 1040 mm |
| Package height | 178 mm |
| Package weight | 40 kg |
| Package type | Box |
| Technical details | |
| Number of displays supported | 6 |
| Mounting type | Wall |
| Distance to the wall (min) | 9.3 cm |
| Distance to the wall (max) | 23.5 cm |
| Plastic packaging weight | 130 g |
| Paper/cardboard packaging weight | 2.6 kg |
| Metal packaging weight | 0 g |
| Logistics data | |
| Shipping (inner) case width | 35.6 cm |
| Shipping (inner) case length | 105 cm |
| Shipping (inner) case height | 28 cm |
| Shipping (inner) case gross weight | 52 kg |
| Products per shipping (inner) case | 2 pc(s) |
