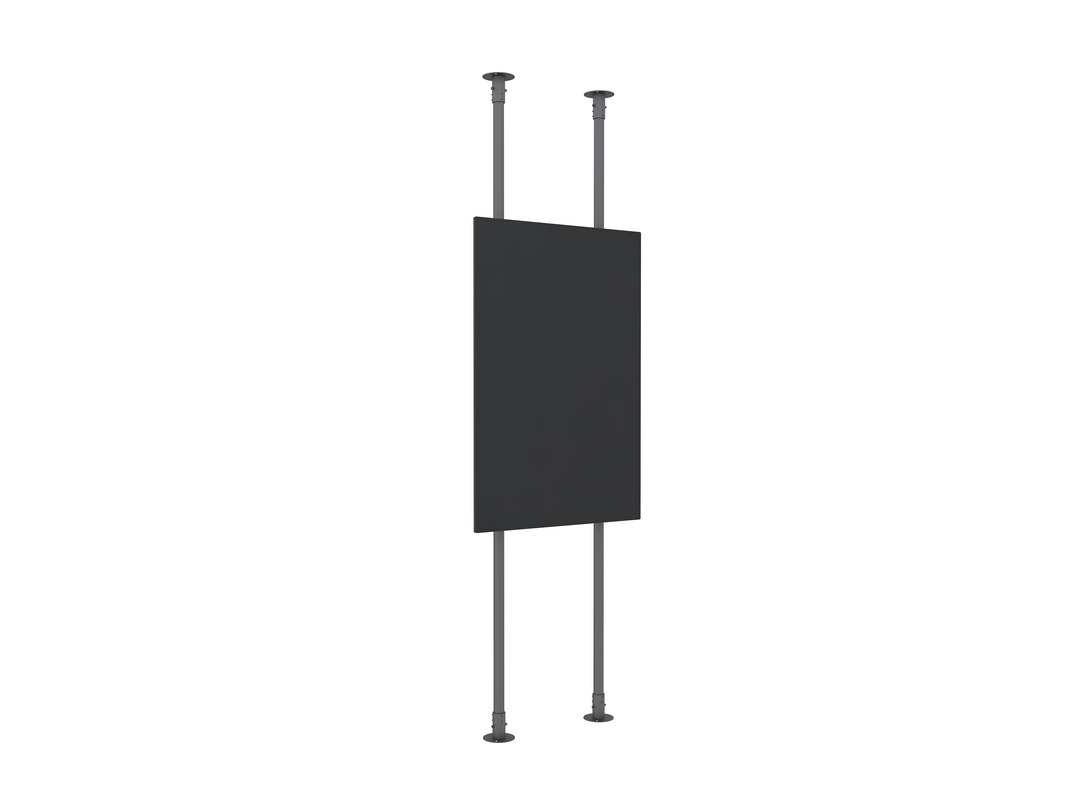

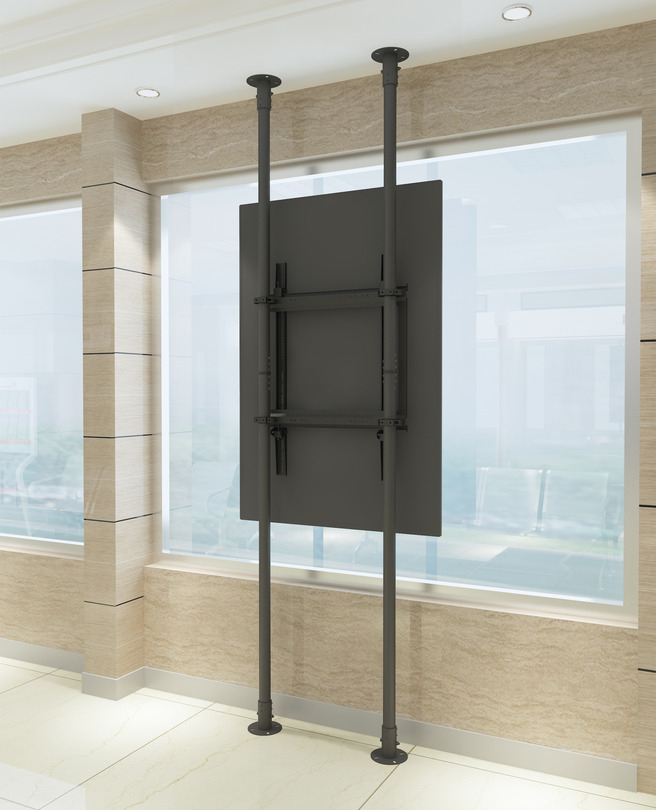

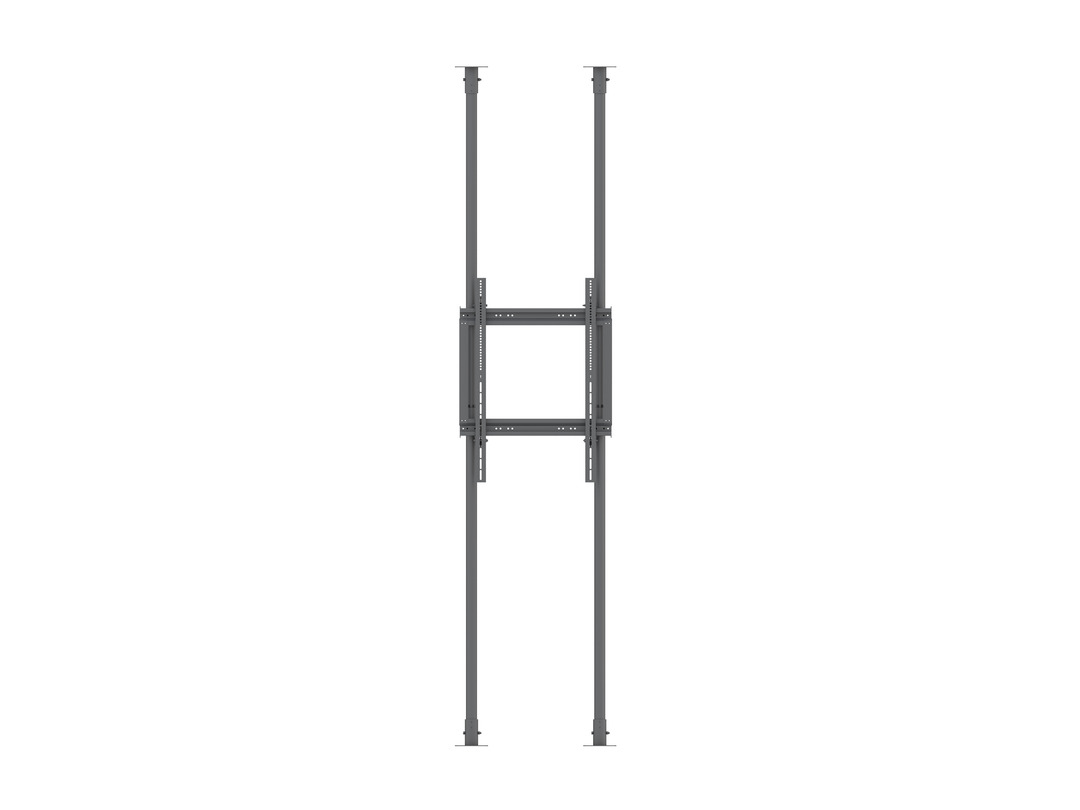

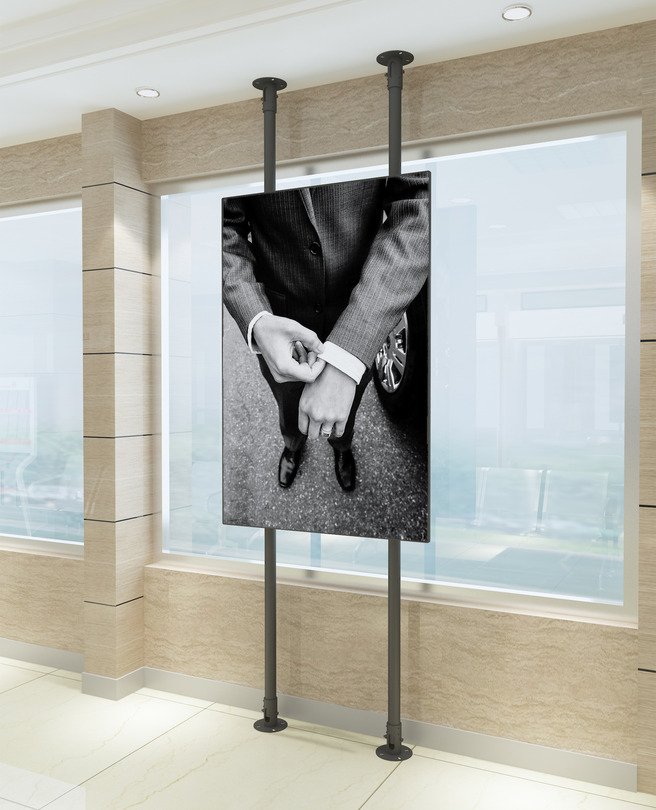

M Floor to Ceiling Mount Pro MBFC2P1UPHD
Introduction
Multibrackets Pro Series M Floor to Ceiling Mount Pro MBFC2P1UHD is a signage solution - ready to be installed.

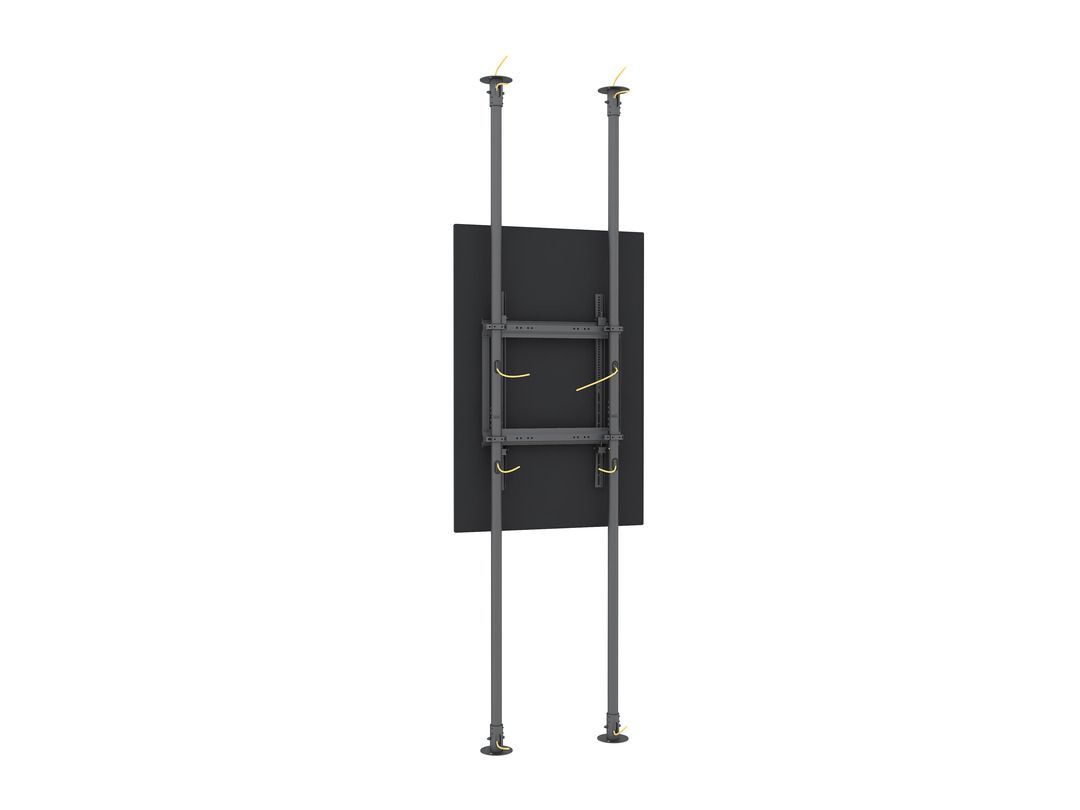

The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.

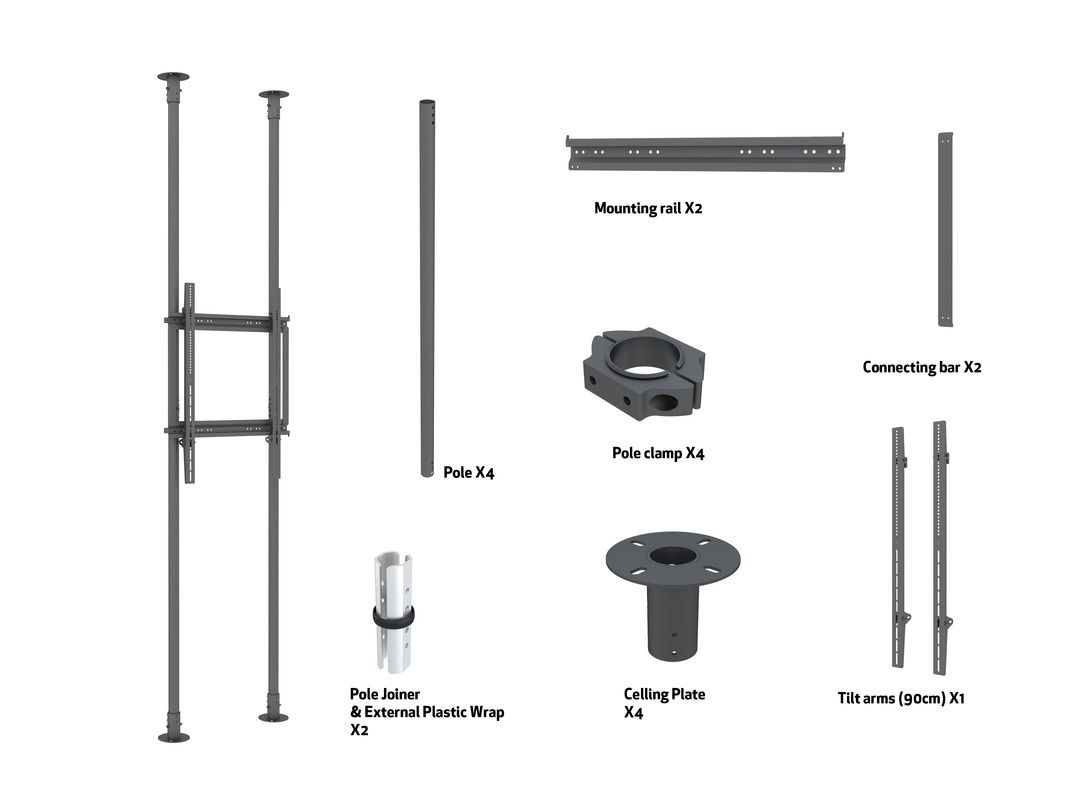

With its modular construction installers can tailor the MBFC2P1UHD with the clients need in mind. Possibilities to change, update and reconfigure its design and if ideas change over time Pro Series can follow.
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 165.1 cm (65") |
| Maximum weight capacity | 80 kg |
| Panel mounting interface | 200 x 200,400 x 400,400 x 600,600 x 800,600 x 900 |
| Number of displays supported | 1 |
| Mounting type | Floor |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 900 mm |
| Maximum screen size | 2.54 m (100") |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 580 - 1550 mm |
| Tilt angle range | 0 - 6° |
| Height adjustment type | Manual |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Design | |
| Type | Fixed floor stand |
| Housing material | Aluminium, Plastic, Steel |
| Certification | CE |
| Product colour | Black |

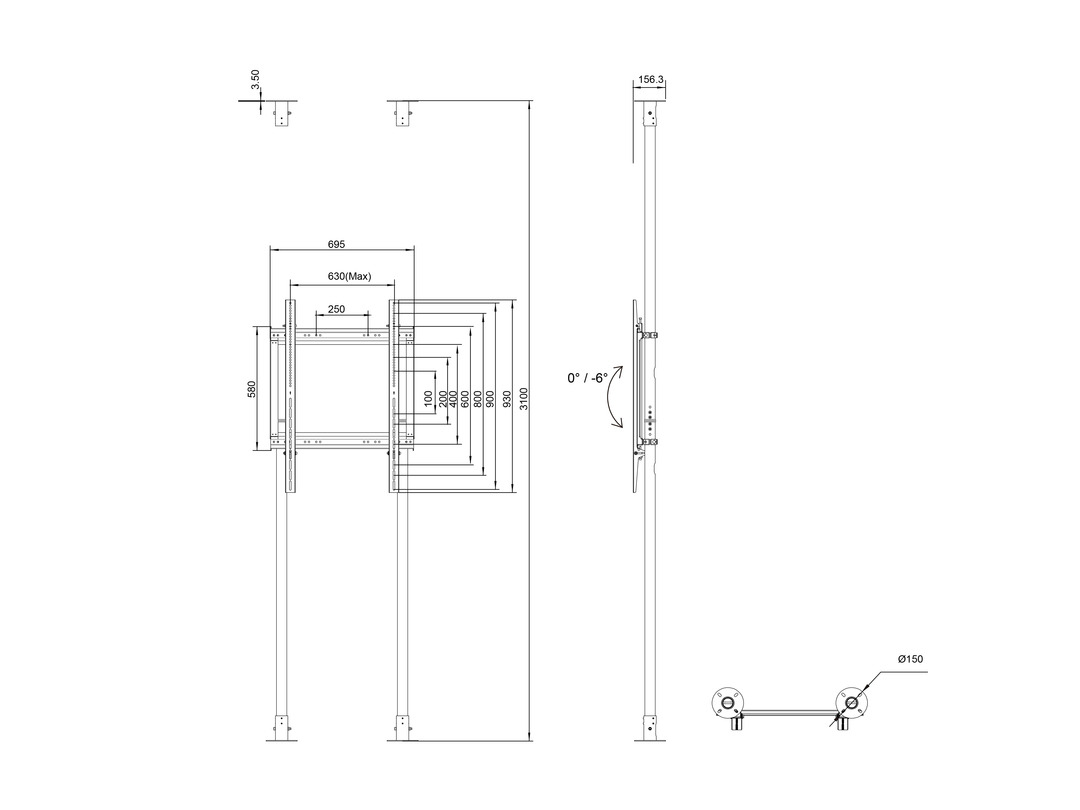

| Weight & dimensions | |
| Width | 695 mm |
| Depth | 156.3 mm |
| Height | 3100 mm |
| Weight | 21.4 kg |
| Aluminium content weight | 0 g |
| Steel content weight | 21.4 kg |
| Other metals content weight | 0 g |
| Package width | 235 mm |
| Package depth | 1535 mm |
| Package height | 140 mm |
| Package weight | 23.1 kg |
| Package type | Box |
| Packaging data | |
| Package width | 235 mm |
| Package depth | 1535 mm |
| Package height | 140 mm |
| Package weight | 23.1 kg |
| Package type | Box |
| Technical details | |
| Number of displays supported | 1 |
| Mounting type | Floor |
| Plastic packaging weight | 110 g |
| Paper/cardboard packaging weight | 1.6 kg |
| Metal packaging weight | 0 g |
| Certificates | |
| Certification | CE |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
