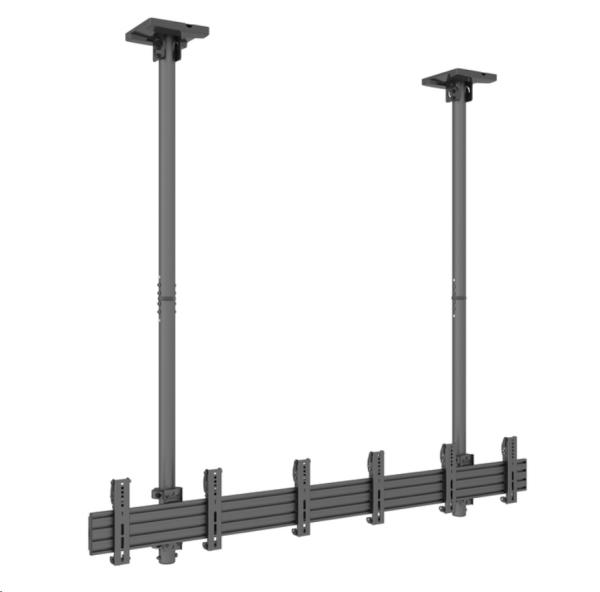

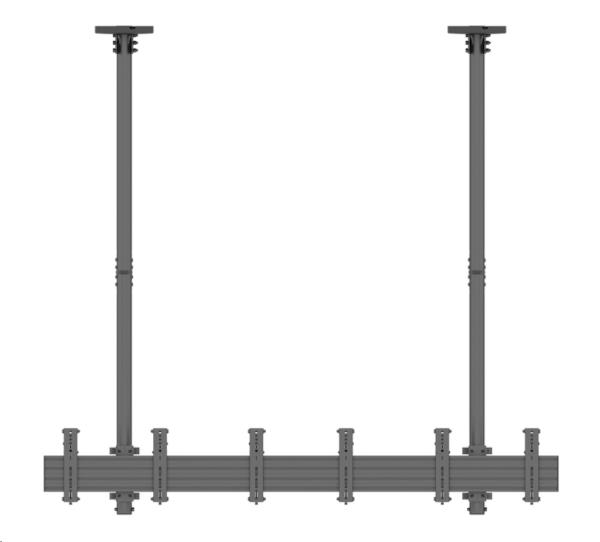

M Ceiling Mount Pro MBC3X1U, VESA 200
Introduction
Multibrackets Pro Series M Ceiling Mount Pro MBC3X1U, VESA 200 is our innovative - ready to be installed Single-Display Ceiling Mount.
The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC3X1U, VESA 200 is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.
With its modular construction installers have vast possibilities to change, update and reconfigure its design if ideas change over time then Pro Series can follow.
Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.
The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so that a basic installation should not be a hassle.
Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 30 kg |
| Minimum screen size | 68.6 cm (27") |
| Maximum weight capacity | 90 kg |
| Panel mounting interface | 75 x 75,100 x 100,100 x 200,200 x 200 |
| Number of displays supported | 3 |
| Mounting type | Ceiling |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Maximum screen size | 81.3 cm (32") |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 580 - 750 mm |
| Tilt angle range | 0 - 15° |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Design | |
| Housing material | Aluminium, Steel |
| Product colour | Black |
| Weight & dimensions | |
| Width | 1075 mm |
| Depth | 145 mm |
| Height | 208 mm |
| Weight | 14.8 kg |
| Aluminium content weight | 4.4 kg |
| Steel content weight | 14.8 kg |
| Other metals content weight | 0 g |
| Package weight | 15.6 kg |
| Packaging data | |
| Package weight | 15.6 kg |
| Packaging content | |
| Mounting kit | Yes |
| Technical details | |
| Number of displays supported | 3 |
| Mounting type | Ceiling |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Plastic packaging weight | 60 g |
| Paper/cardboard packaging weight | 700 g |
| Metal packaging weight | 0 g |
