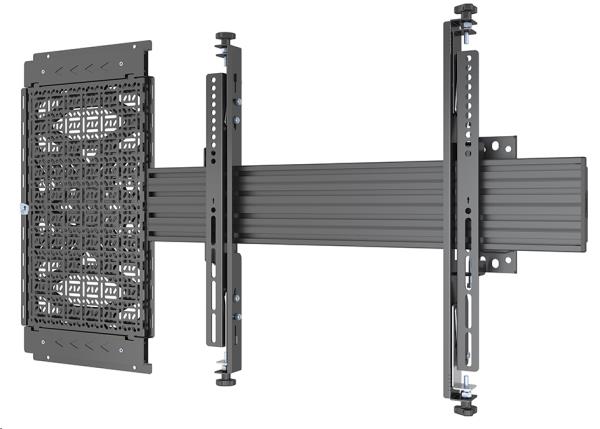

M Pro Series Wallmount MBW1U Media Storage
Introduction
Multibrackets Pro Series solution for integrating a storage tray behind the display. Our M Pro Series Media Storage panel is a component storage slide out panel that facilitates easy access and concealed mounting of AV equipment behind displays. Now AV equipment can be accessed withoth the need to remove the display.
This will simplify accessibility and after service to the equipment by simply slide the storage panel out. Now it’s up to the installer of the decide to best position where to store AV equipment behind the display.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 30 kg |
| Maximum weight capacity | 30 kg |
| Panel mounting interface | 100 x 100,200 x 200,300 x 300,400 x 400,400 x 600,600 x 400 |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Ergonomics | |
| Height adjustment | Yes |
| Tilt angle range | -4 - 4° |
| Tilt adjustment | Yes |
| Design | |
| Housing material | Aluminium, Plastic, Steel |
| Product colour | Black |
| Weight & dimensions | |
| Weight | 9.26 kg |
| Aluminium content weight | 1.4 kg |
| Steel content weight | 9.26 kg |
| Other metals content weight | 0 g |
| Package weight | 10 kg |
| Packaging data | |
| Package weight | 10 kg |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Mounting kit | Yes |
| Technical details | |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Plastic packaging weight | 40 g |
| Paper/cardboard packaging weight | 700 g |
| Metal packaging weight | 0 g |
