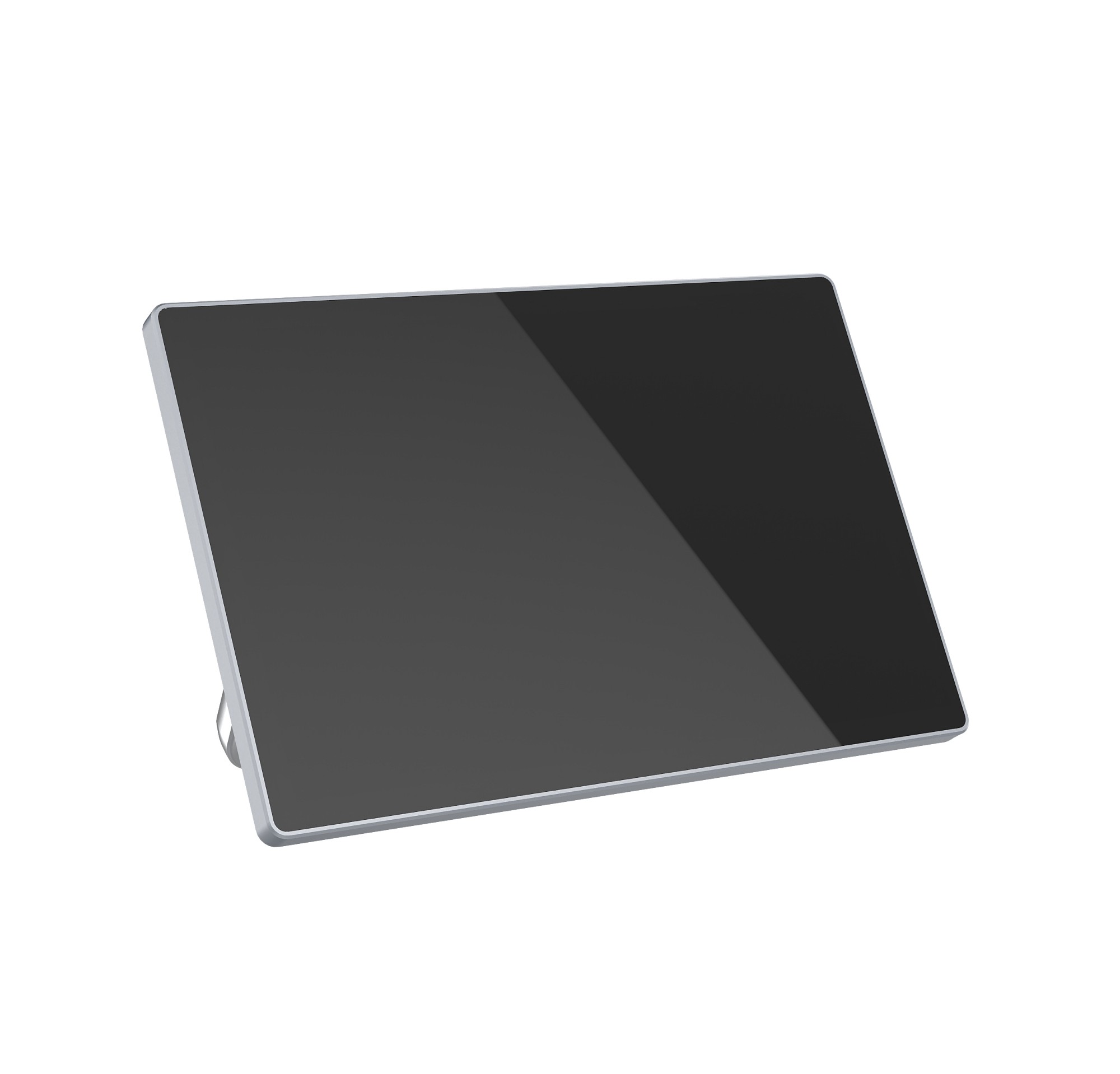

EU Product - Control Touchpad Desktop 10 inch - Touchpad - RS-485
Introduction
This touchpad allows control of any device with commands over TCP IP or RS-485 connections. The programming is done via Lindy Pro Control software, a platform to set up the unit and manage any device with commands in a simple and effective way. In addition is possible to manage the programmed projects from your smartphone or tablet via Lindy Pro Control app downloadable from Google Play Store and Apple Store.
The capacitive touchscreen supports 1280x800 (16:10) resolution, buttons design and background picture are fully customizable from the software to provide always the best solution for any kind of installation.
An adjustable metal bracket is integrated on the rear side to position the unit correctly at the right angle on a desk.
Make control in presentation and conference room systems, board rooms and auditoriums easy and flexible - Manage any room device via LAN or RS-485 connections creating your own design over touchscreen buttons.
Connect the touchpad to a computer's network port and create your projects over Lindy Pro Control software; effective UI Design and Logical Design options can be used to configure the Lindy Control pads and create the best solution for your installation.
Specifications
| Display | |
|---|---|
| Display diagonal | 25.4 cm (10") |
| Display resolution | 1280 x 800 pixels |
| Touchscreen technology | Capacitive |
| Native aspect ratio | 16:10 |
| Performance | |
| Internal memory | 32000 MB |
| RAM capacity | 4000 MB |
| Product colour | Grey |
| Housing material | Aluminium |
| Mean time between failures (MTBF) | 30000 h |
| Operating system installed | Android |
| Operating system version | 11 |
| Ports & interfaces | |
| RJ-45 ports quantity | 1 |
| Power | |
| Power source type | DC |
| Input voltage | 24 V |
| Weight & dimensions | |
| Width | 245.4 mm |
| Depth | 164 mm |
| Height | 27 mm |
| Weight | 887 g |
| Package width | 375 mm |
| Package weight | 1 kg |
| Package height | 65 mm |
| Package depth | 209 mm |
| Package type | Box |
| Packaging data | |
| Package width | 375 mm |
| Package weight | 1 kg |
| Package height | 65 mm |
| Package depth | 209 mm |
| Package type | Box |
| Packaging content | |
| Quick start guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA, REACH, RoHS |
| Other features | |
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA, REACH, RoHS |
