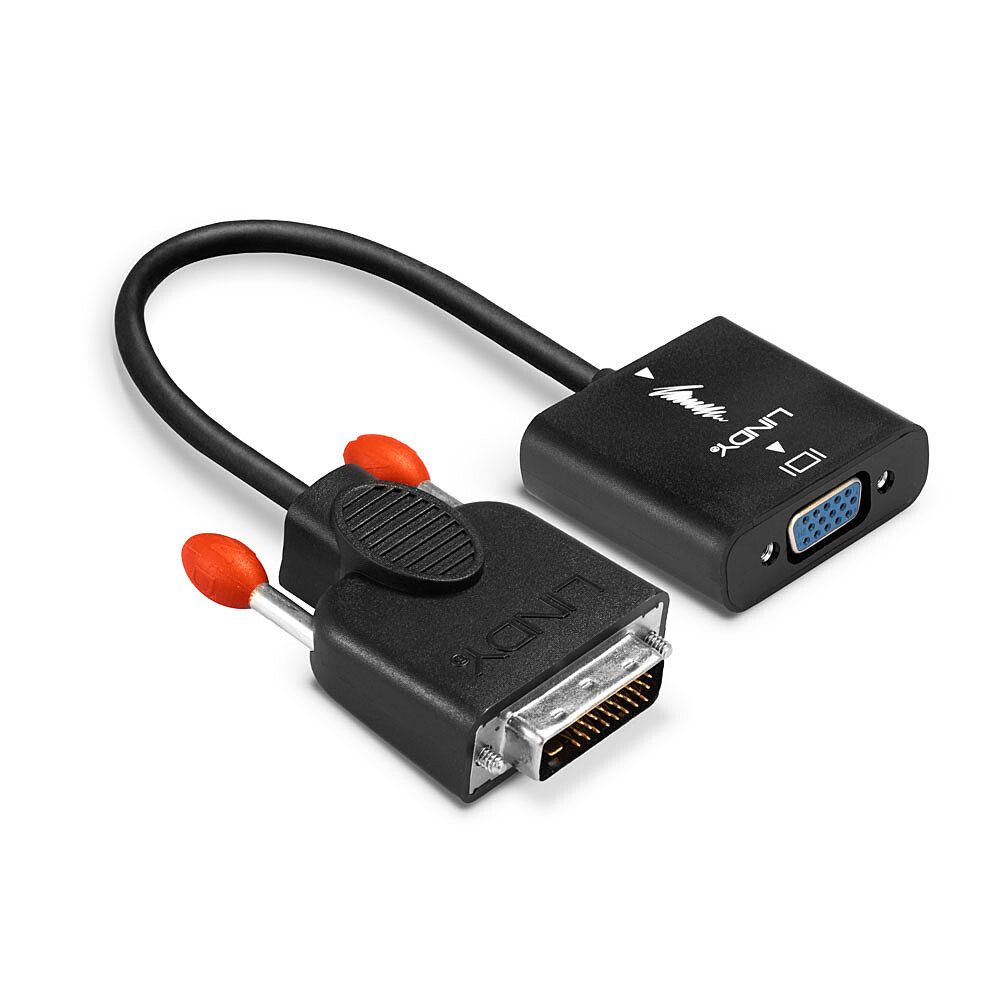

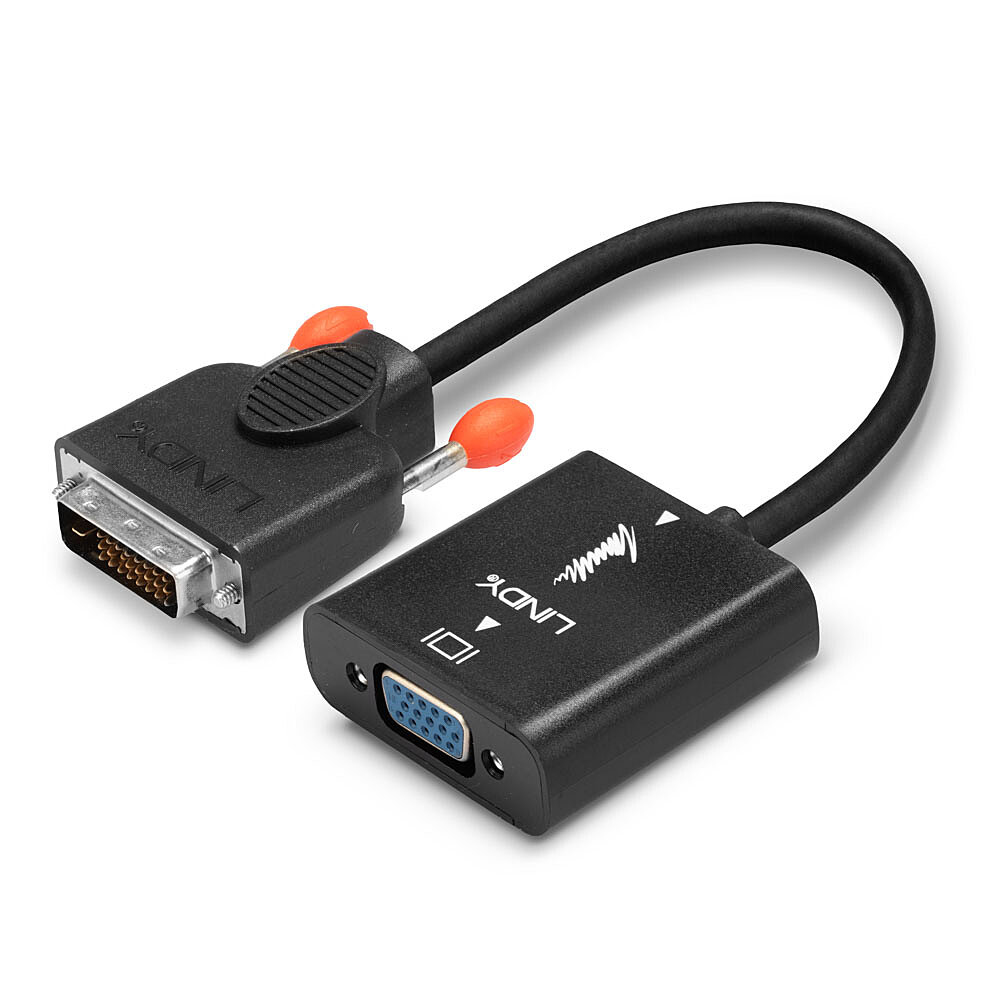

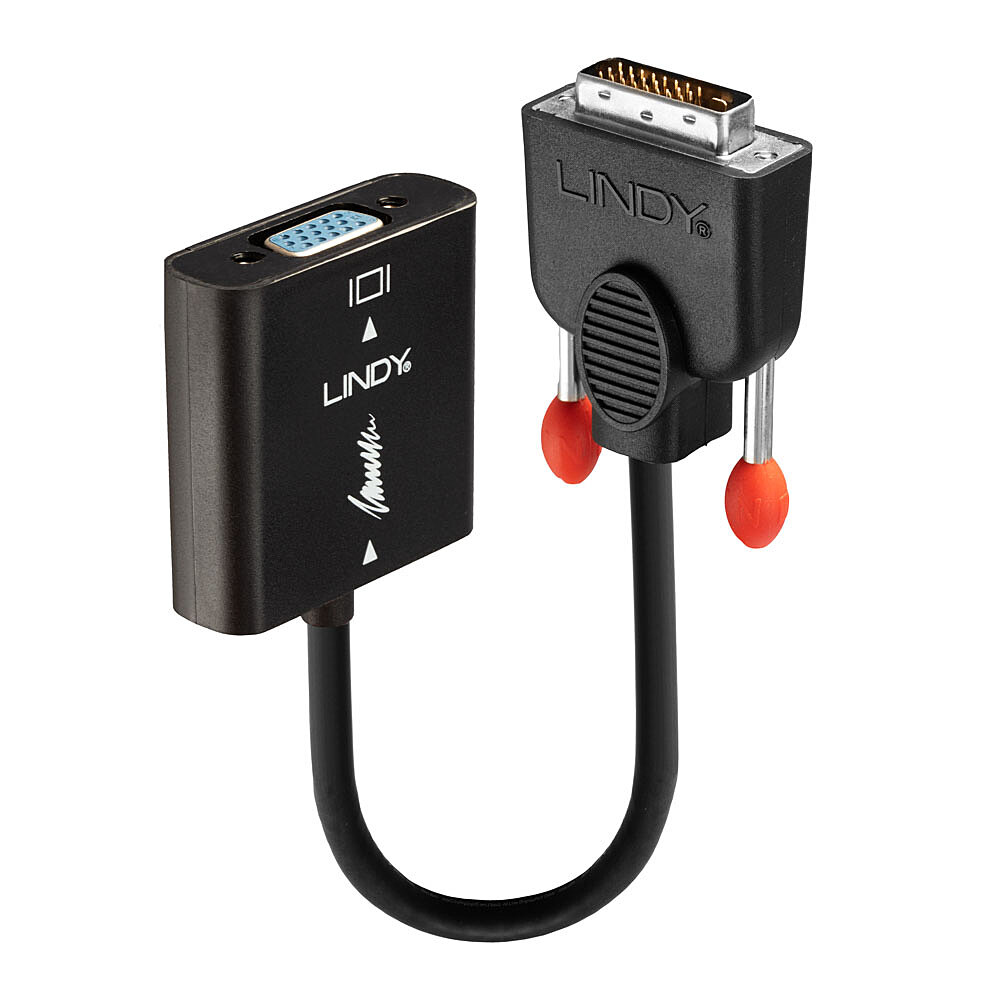

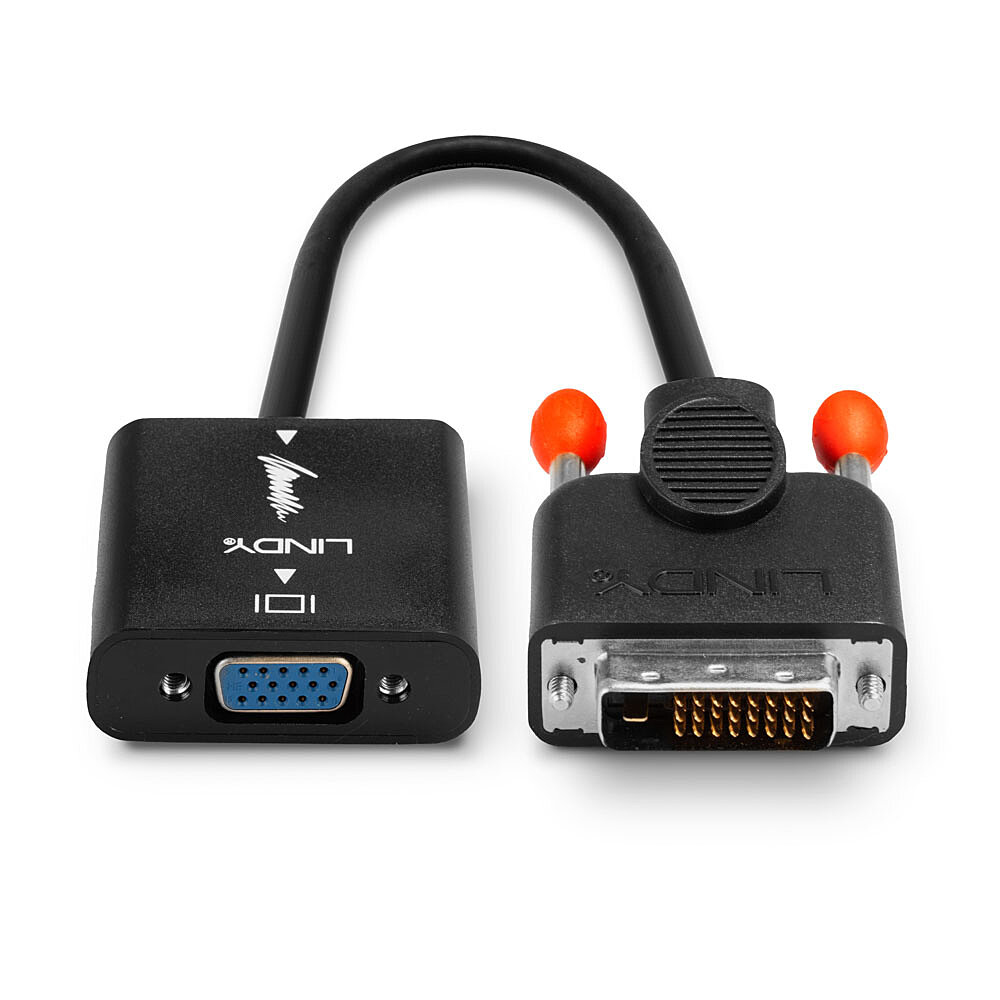

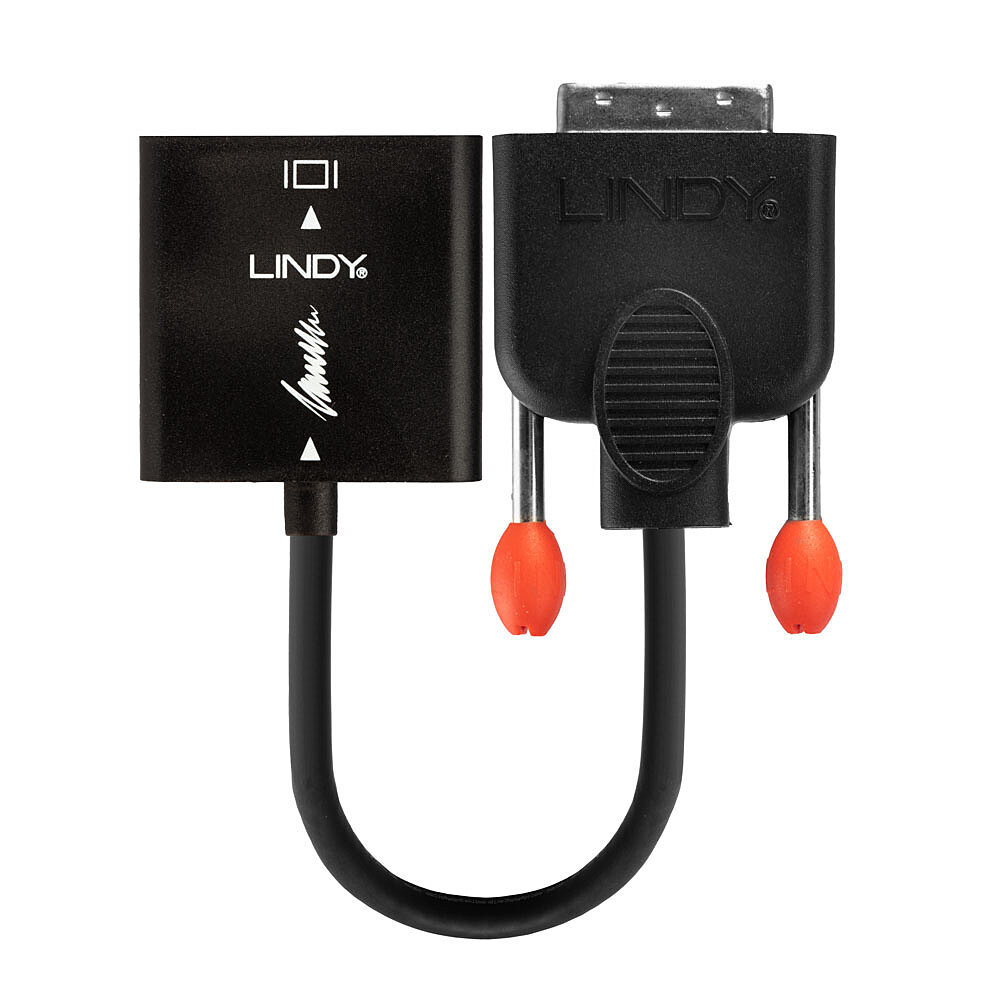

DVI-D TO VGA CONVERTER
Introduction
The Lindy DVI to VGA converter converts signals from a DVI-D equipped source into a VGA signal. It supports resolutions up to 1080p and 1920x1200 for VGA displays. This allows the connection of DVI capable devices, such as PC's, notebooks and ultrabooks, to an older VGA display or projector.
The converter can also be used to add another display to extend the available desktop workspace. It is also ideally suited for travelling due to its compact, lightweight form factor and convenient plug and play installation.
Specifications
| Features | |
|---|---|
| Chipset | CH7101 |
| Product colour | Black |
| Cable length | 0.1 m |
| Connector 1 | DVI-D |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Jacket material | Polyvinyl chloride (PVC) |
| Data transfer rate | 4.95 Gbit/s |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 1080p |
| HDCP | No |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Dual Link DVI | No |
| Bend radius (min) | 5.5 cm |
| Connector housing material | Polyvinyl chloride (PVC) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Weight & dimensions | |
| Cable diameter | 5.5 mm |
| Weight | 62 g |
| Package width | 160 mm |
| Package depth | 160 mm |
| Package height | 20 mm |
| Package weight | 77 g |
| Connector 1 dimensions (WxDxH) | 40 x 52.25 x 16.5 mm |
| Connector 2 dimensions (WxDxH) | 44 x 45 x 15 mm |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 160 mm |
| Package height | 20 mm |
| Package type | Polybag |
| Package weight | 77 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
