Introduction

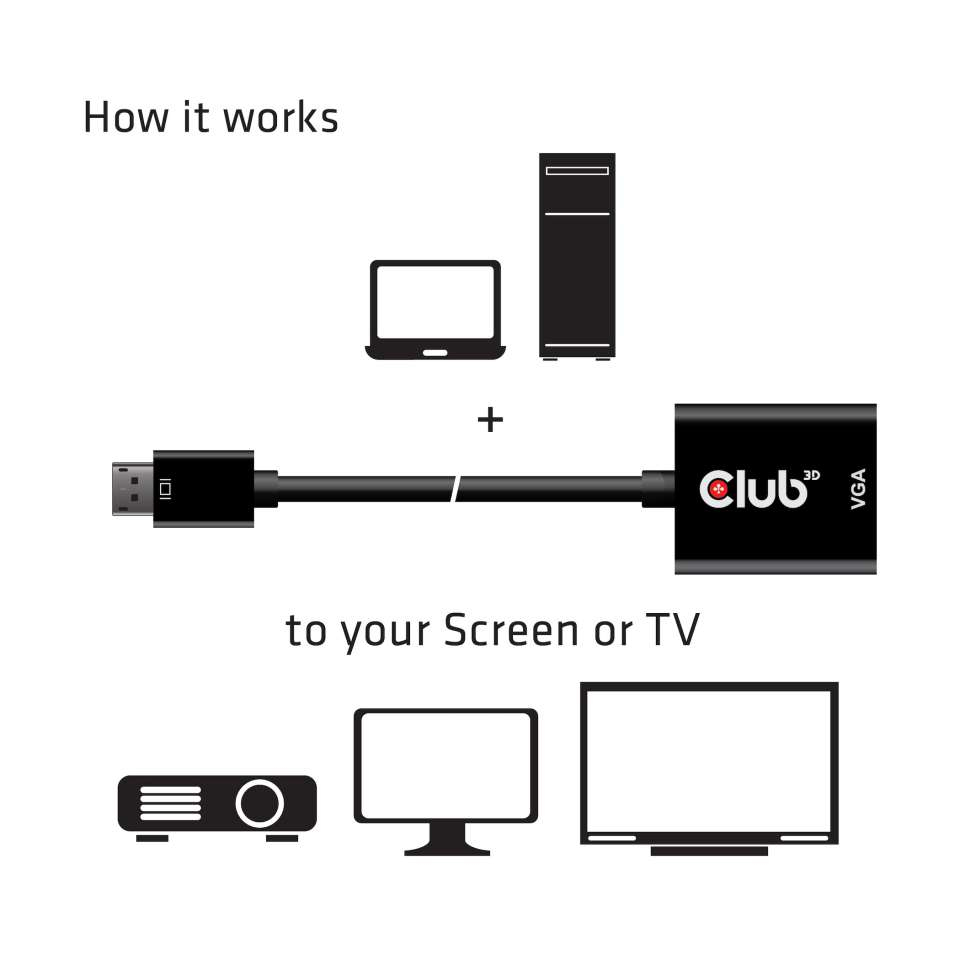

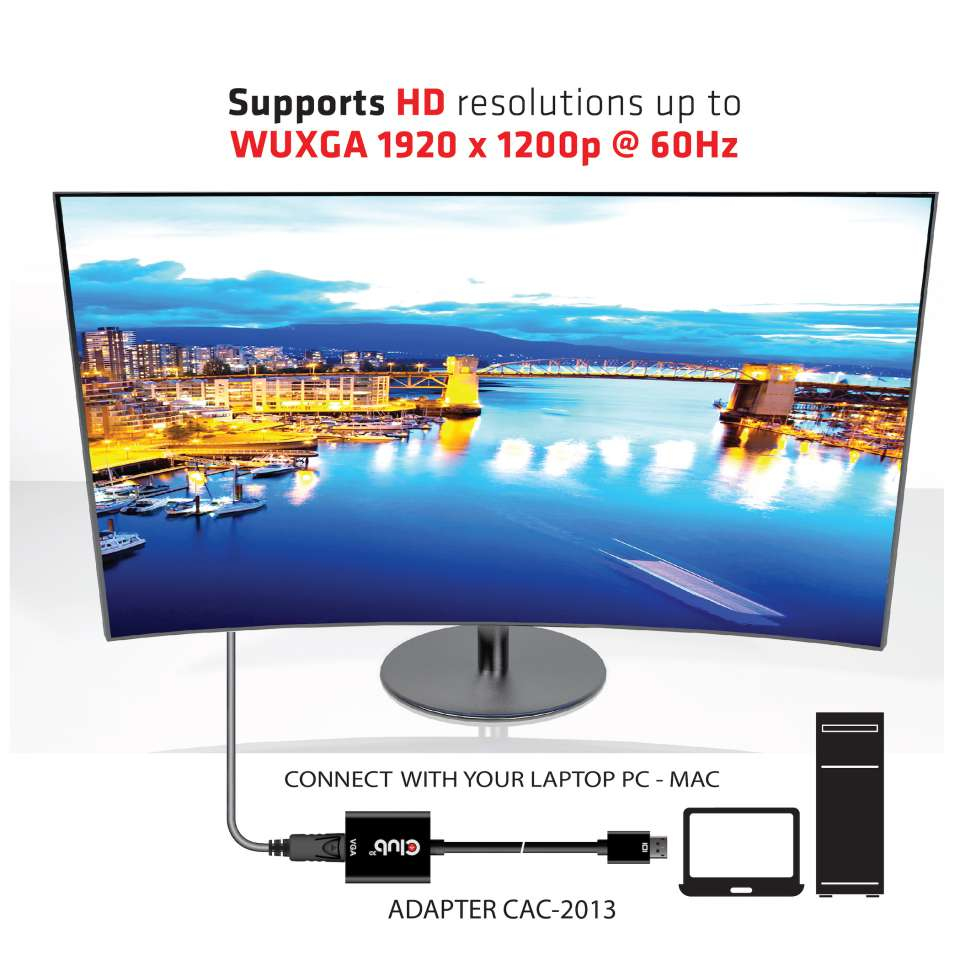

The Club 3D CAC-2013 is an active DisplayPort™ to VGA signal converter. It enables you to connect your analog VGA Televisions, Monitors or Projectors to your Desktop or Laptop with DisplayPort™ output. The adapter offers hassle free plug and play functionality, so no Driver installation needed and it is powered by the DisplayPort™ output. The DisplayPort™ interface in the adapter consists of two main lanes for DP data, AUX channel, HPD signal and power. The VGA output is compliant to VSIS standard and supports up to WUXGA RB timings. Supports resolutions up to WUXGA 1920x1200p @ 60Hz.The adapter works with AMD, Nvidia and Intel Graphic Solutions. Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at support@club-3d.com and it will be our pleasure to assist you.
Specifications
| Features | |
|---|---|
| Converter type | Active video converter |
| Country of origin | China |
| DisplayPort version | 1.1 |
| Product colour | Black |
| Cable length | 0.228 m |
| Connector 1 | Displayport |
| Connector 2 | VGA |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Data transfer rate | 5.4 Gbit/s |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Plug and Play | Yes |
| Windows operating systems supported | Windows 10, Windows 8.1 |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable type | Round cable |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Technical details | |
| Country of origin | China |
| Harmonized System (HS) code | 8544 4290 |
| Plastic packaging weight | 9 g |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Packaging composition | |
| Plastic packaging weight | 9 g |
| Paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Weight & dimensions | |
| Weight | 26 g |
| Package width | 215 mm |
| Package depth | 150 mm |
| Package height | 18 mm |
| Package weight | 35 g |

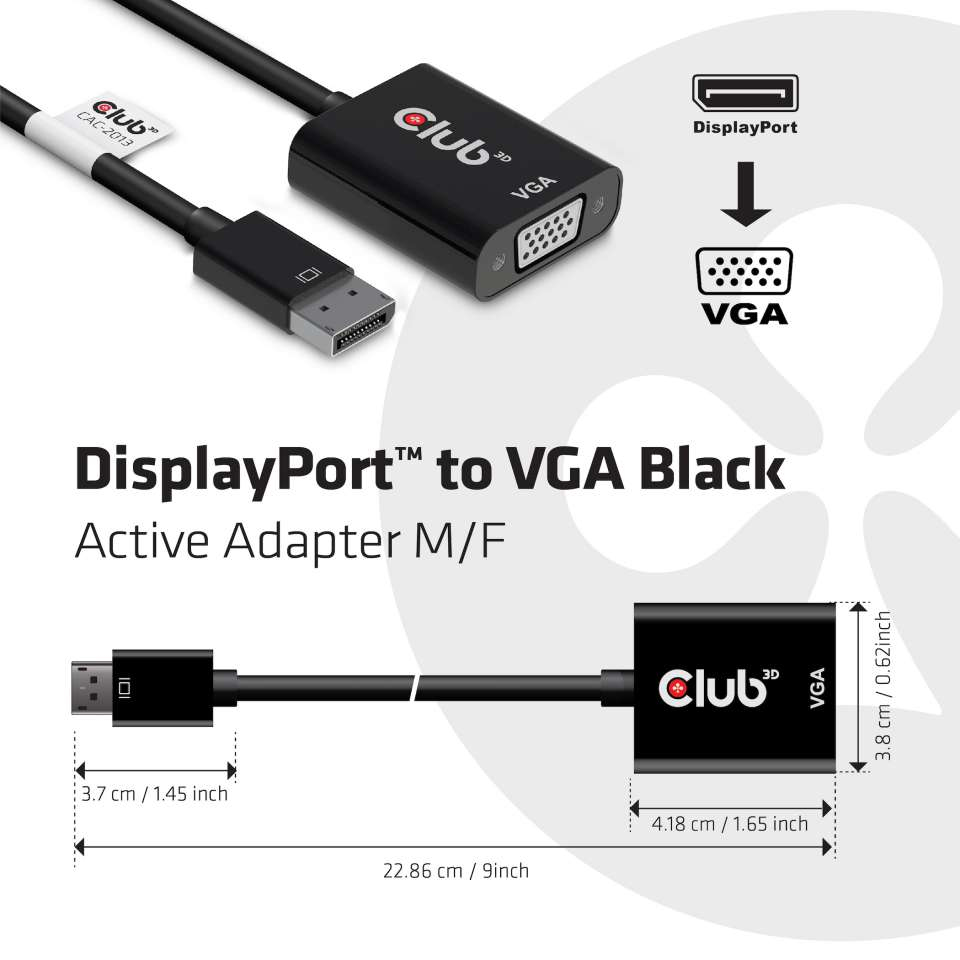

| Connector 1 dimensions (WxDxH) | 37 x 20 x 10 mm |
| Connector 2 dimensions (WxDxH) | 41.8 x 38 x 15.7 mm |
| Packaging data | |
| Package width | 215 mm |
| Package depth | 150 mm |
| Package height | 18 mm |
| Package type | Polybag |
| Package weight | 35 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 8544 4290 |
