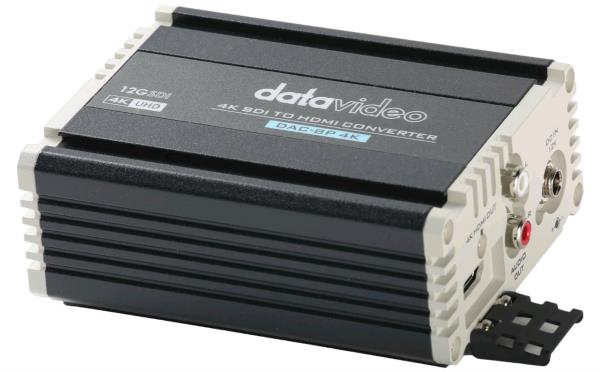

DataVideo DAC-8P 4K
Introduction
DataVideo DAC-8P 4K Passive video converter
Features
- Broadcast Quality 4K SDI to HDMI Converter : The DAC-8P 4K Converter converts 12G-SDI in resolutions up to 4K50/60 to 4K HDMI, it is easy to connect the 4K HDMI signal devices and professional 12G-SDI video equipment.
Featuring SDI input and both an SDI and HDMI output, audio is de-embedded from the SDI input, and available in the HDMI output and analog audio output.
The DAC-8P 4K Converter is useful for a variety of broadcast, professional AV and education applications. - Supports Up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160) : The DAC-8P 4K is broadcast quality converter, and it supports up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160).
The DAC-8P 4K is also very easy to use. It is a plug and play converter, and there is no setting needed from your laptop. - 12G-SDI Input and Loop-Thru Output : In addition to the converted 4K HDMI output, there is a 12G-SDI loop thru for sending a signal to other devices in your workflow.
- Supports SDI Re-clocking : DAC-8P 4K will regenerate the SDI video, and provideo less SDI jitter to improve SDI eye pattern. DAC-8P 4K allows for a long cable transmission.
- Not only a Video Converter, but also an audio de-embedder. : AC-8P 4K provides a video converter from SDI to HDMI, and it also provides you an additional de-embedded 2-channel RCA analog audio output from SDI video to your live production.
- Supports HDMI Deep Color : HDMI Deep Color supports more realistic and stunning of the video. Much better video quality than the regular HDMI video.
- Aluminum appearance design, rugged and durable : Super sturdy and durable. The DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
Specifications
| Features | |
|---|---|
| Converter type | Passive video converter |
| Reclocking | Yes |
| Video | |
| Maximum video resolution | 4096 x 2160 pixels |
| Supported video modes | 720p, 1080i, 1080p |
| Video resolutions | 3840 x 2160,4096 x 2160 pixels |
| Ports & interfaces | |
| Video out | 1x HDMI 2.0 with embedded Audio |
| Video in | 12G-SDI x 1 |
| Audio output | RCA x 2 (Unbalanced Audio L/R) HDMI embedded audio, 24-bit, 8-channel |
| Output interface | HDMI |
| Host interface | SDI |
| Power | |
| Power consumption (typical) | 8.64 W |
| Input voltage | 12 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 85 mm |
| Depth | 112 mm |
| Height | 45 mm |
| Weight | 300 g |
