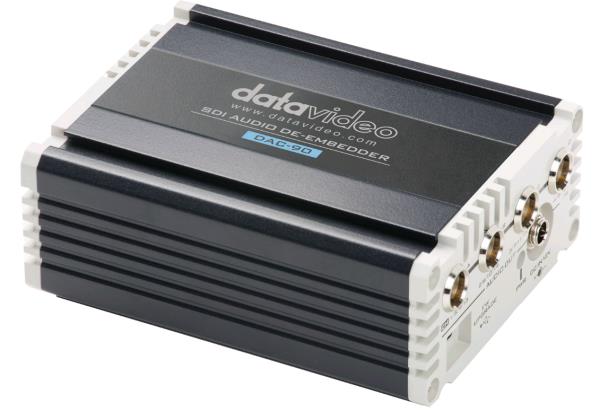

DataVideo DAC-90
Introduction
DataVideo DAC-90 Passive video converter
Features
- De-Embed Audio from SDI Signal : Assignable De-embedded audio signal
- Auto detects video format, support up to 1080P 50/60 : Allows users to de-embed 16 analogue audio signals (4 at a time) from SDI video signal.
- SMPTE and EBU Audio level switchable and Control via DIP Switches : Audio level indicator displayControl via DIP Switches.
- Loop through SDI output : 4 x Analogue Mini XLR Audio outputs
- Aluminum Alloy and Heavy Duty Design : Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
Specifications
| Features | |
|---|---|
| Converter type | Passive video converter |
| Housing material | Aluminium |
| Product colour | Black, White |
| Ports & interfaces | |
| Video out | 3G/HD/SD-SDI x 1 |
| Video in | 3G/HD/SD-SDI x 1 |
| Audio output | Mini XLR (Balanced) x 4 |
| Output interface | SDI |
| Host interface | SDI |
| Power | |
| Operating voltage | 12 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 85 mm |
| Depth | 112 mm |
| Height | 45 mm |
| Weight | 400 g |
