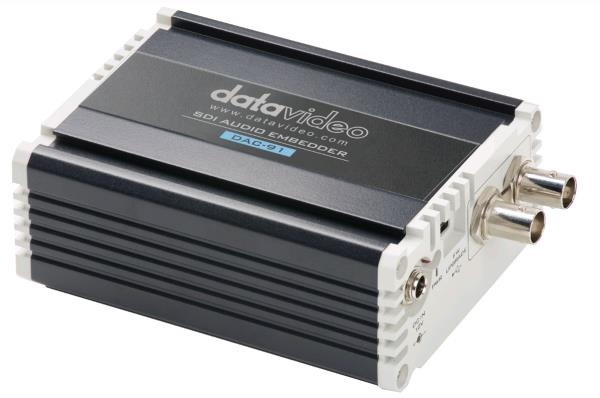

DataVideo DAC-91
Introduction
DataVideo DAC-91 Passive video converter
Features
- Auto detects SD, HD and 3G signals : Allow users to embed 2 channels of analogue audio into SDI video signal.
It features 3G/HD/SD-SDI to support up to 1080p/60 video format, automatically detecting and switching between the different formats and provides mini XLR and RCA audio connectors for inputting analogue audio. - Auto sets compatible formats to embed external sound sources to SDI output : Embed Audio into an SDI Signal
- Supports SMPTE and EBU : Audio level indicator display.Audio level adjustment
- 4 x Analogue Audio inputs (Mini XLR x 2, RCA x 2) : The Audio box also has audio level adjustment by using the built-in DIP switches.
- Aluminum Alloy and Heavy Duty Design : Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
Specifications
| Features | |
|---|---|
| Converter type | Passive video converter |
| Housing material | Aluminium |
| Product colour | Black, White |
| Ports & interfaces | |
| Video out | 3G/HD/SD-SDI x 2 |
| Video in | 3G/HD/SD-SDI x 1 |
| Connector type | Mini XLR (balanced) x 2 ,RCA (unbalanced) x 2 |
| Output interface | SDI |
| Host interface | SDI |
| Power | |
| Input current | 0.5 A |
| Operating voltage | 12 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 85 mm |
| Depth | 112 mm |
| Height | 45 mm |
| Weight | 400 g |
