ADDER XD522-DP-PAIR ADDER EU Product - ADDER XD-522-DP-PAIR KVM extender Transmitter & receiver

*Image accuracy is not guaranteed
Please do not rely on the image for your purchase.

** All heavy items above 25KG will be charged shipping cost as per actual.
Please contact us for a shipping quote before placing order.

EU Product - ADDER XD-522-DP-PAIR KVM extender Transmitter & receiver

Introduction

ADDERLink XD522 is a high performance KVM (Keyboard, Video, Mouse) extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station whilst maintaining the same user desktop experience.

It can transmit either two 1920 x 1200 video streams or one higher resolution video stream (2560 x 1600 WQXGA), digital audio (S/PDIF), analog audio, Hi-Speed USB 2.0 and USB 2.0 (full and low speed) over CATx cables.

Features

  • Plug and play
  • 150 meter extension distance for a single 1920 x 1080 screen
  • 100 meter extension distance for two 1920x 1200 screens or a single high resolution screen to 2560 x 1600
  • Supports Mac Cinema and Thunderbolt Display (2560 x 1440)
  • USB 2.0 Hi-Speed for mass storage devices plus:
  • Keyboard, mouse tablet and touch
  • S/PDIF, and  analog audio

Specifications

  • Hardware compatibility
    • All computers with DisplayPort, USB, audio, RS232 - requirement dependent.
  • DisplayPort interface
    • The system supports DisplayPort 1.1 video resolutions to a maximum of 2560 x1600@60Hz  or two 1920 x1200 screens. The receiver unit supports DisplayPort Dual Mode (DP++) also. DPCP and HDCP are not supported.
  • USB 2.0
    • Supports up to six USB 2.0 devices (low or full speed). The system does not allow non-HID devices on ports marked "A". Isochronous devices are supported (i.e. USB audio or video devices) on the Hi-Speed link only marked "B".
  • Digital stereo audio
  • The system delivers analog stereo audio (Line in, Line out) and supports microphone input and headphones. It also delivers S/PDIF (optical input) via a 3.5mm jack line in connector (mini Toslink).
  • RS232
    • RS232 can be passed between the units to a maximum baud rate of 115K2 via the options port.
  • Software compatibility
    • All known operating systems.
  • Computer connections Transmitter (TX)

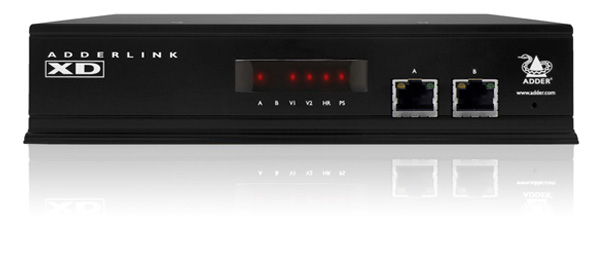

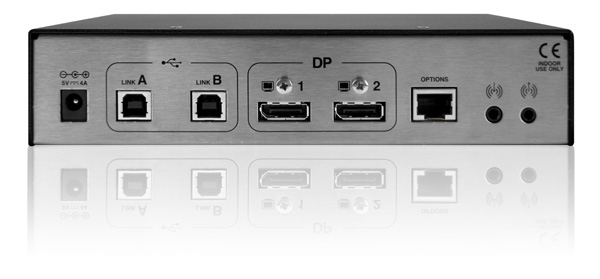

    • DisplayPort x 2, Audio 3.5mm in, Audio 3.5mm out, USB type B x 2 , RS232 10p10c options port.
  • Peripheral connections Receiver (RX)

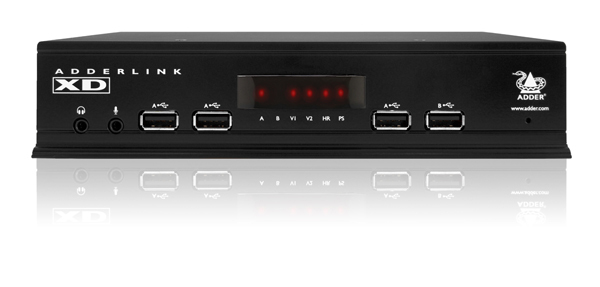

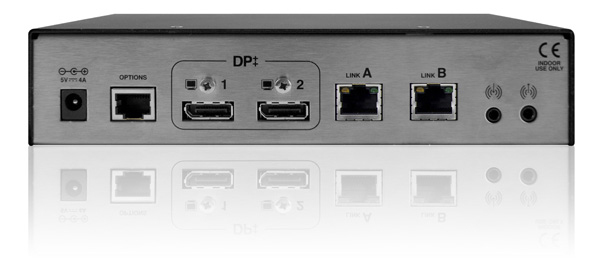

    • DisplayPort ++ x 2,  Audio 3.5mm in,  Audio 3.5mm out, Headphone 3.5mm out, Microphone 3.5mm in,  USB type A x 4, RS232 10p10c options port.
  • Physical design

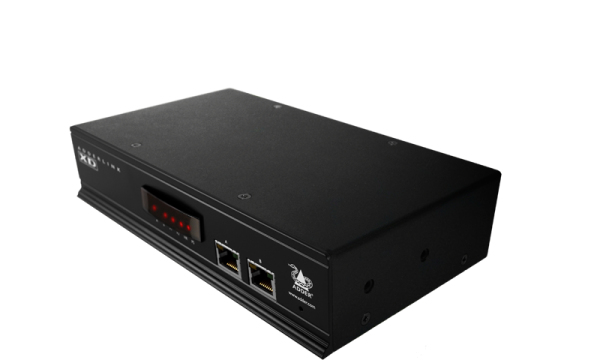

    • 1U compact case, robust metal construction. 198mm/7.92" (w), 44mm/1.76" (h), 120mm/4.8" (d), 0.75kg/1.65lbs.
  • Power
    • 2.5mm DC jack (power adapter included), 100-240VAC 50/60Hz, 0.8A, input to power adapter, 5VDC 20W output from power adapter.
  • Operating temperature
    • 0 to 40ºC / 32 to 104ºF.
  • Approvals
    • CE, FCC
  • Important Extension distance Information
    • Recommended cables are CAT7 shielded foiled twisted pairs:
    • Daetwyler 7702 Flexible patch cable
    • Daetwyler 7120 Bulk cable

  • Resolution Cable Type Patch connections Distance

    • 2560x1600@60Hz or two 1920x1080@60Hz CAT7 Bulk (trunk) 0 100 metres

    • 2560x1600@60Hz CAT7 Patch 2 80 metres

    • 2560x1600@60Hz CAT6a 2 70 metres

    • 2560x1600@60Hz CAT5e 2 60 metres

    • Single 1920x1080@60Hz CAT5e 2 150 metres
