EU Product - Thunderbolt 4 Portable 5-in-1 Hub Smart Power Dockingstation
Introduction

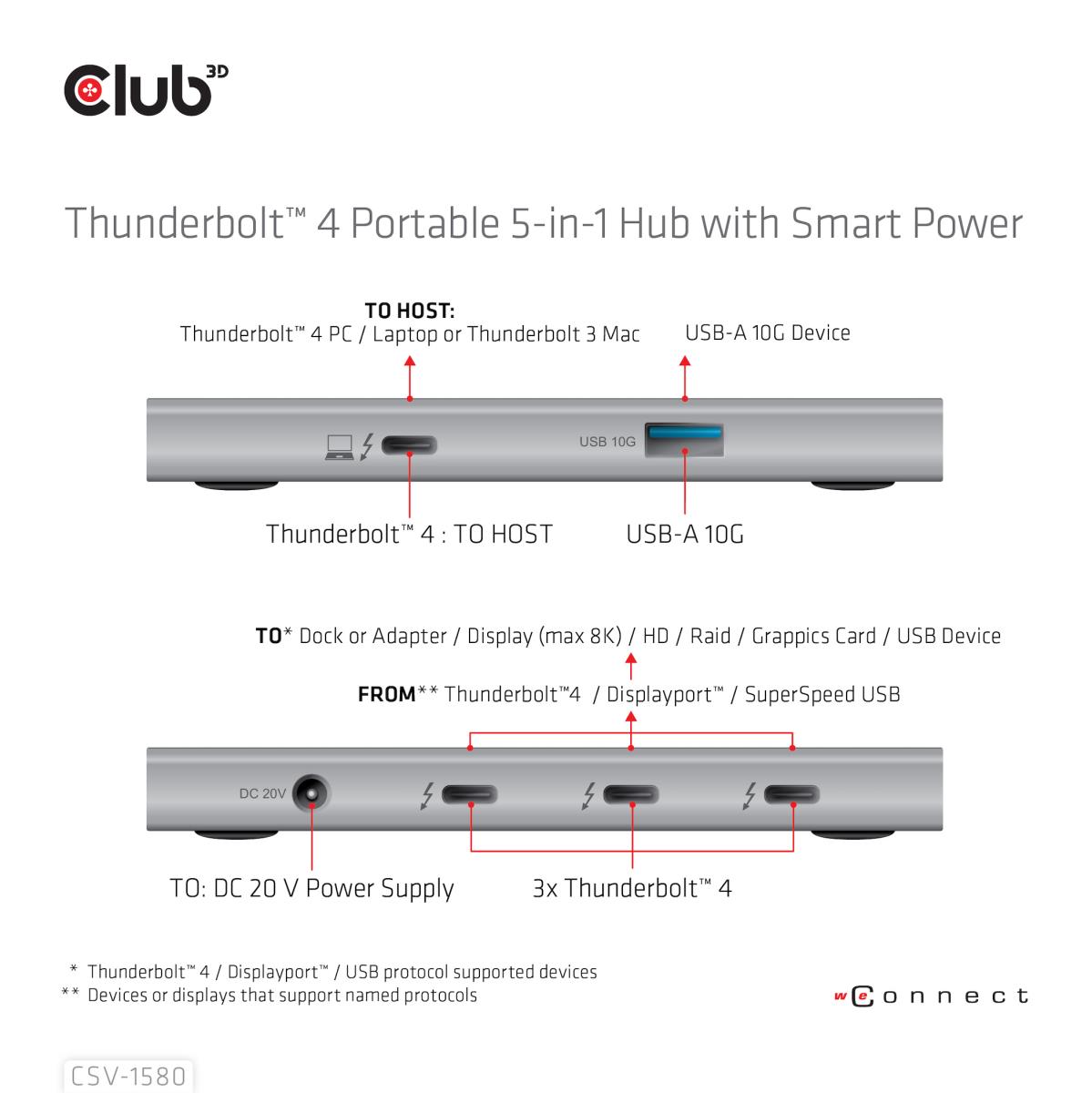

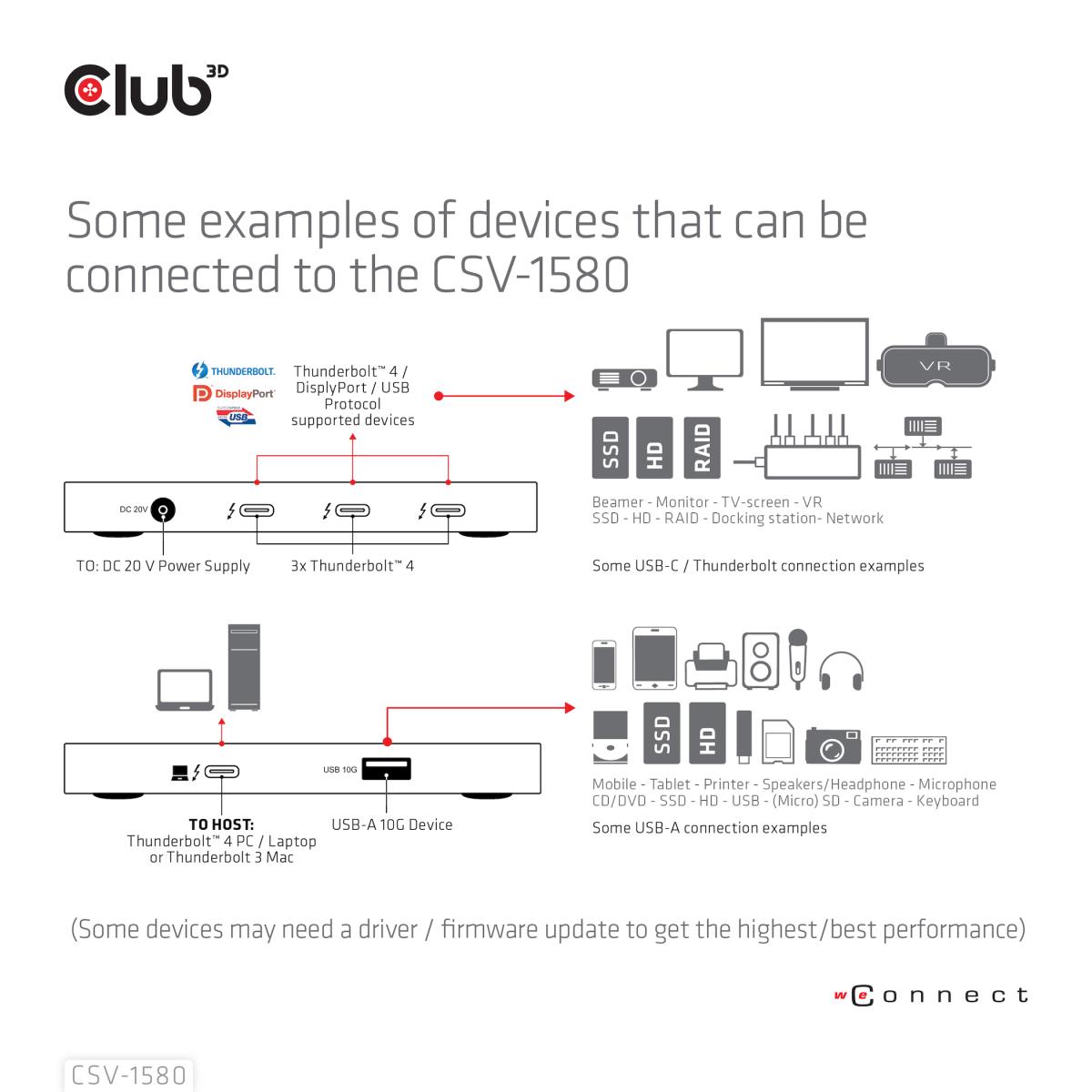

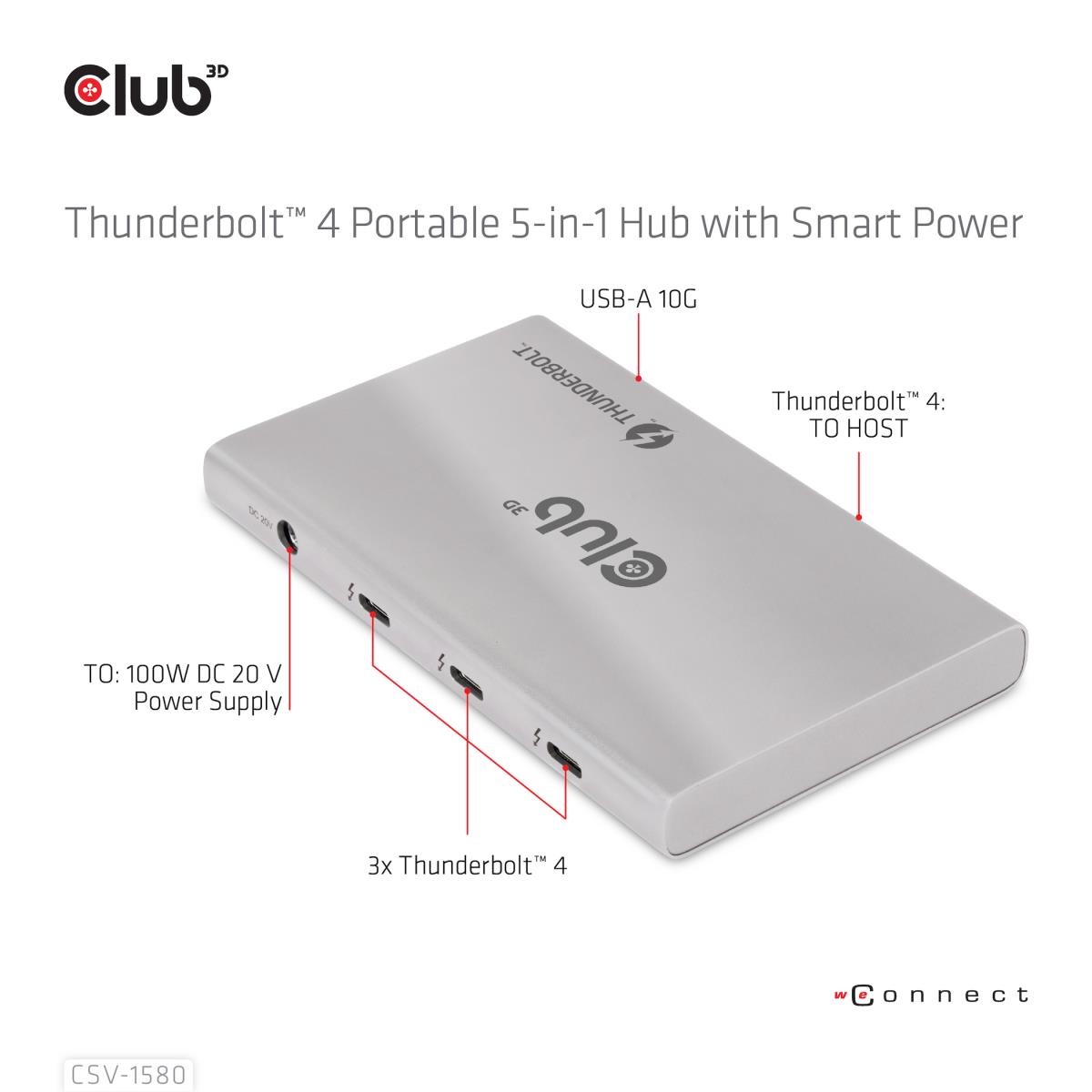

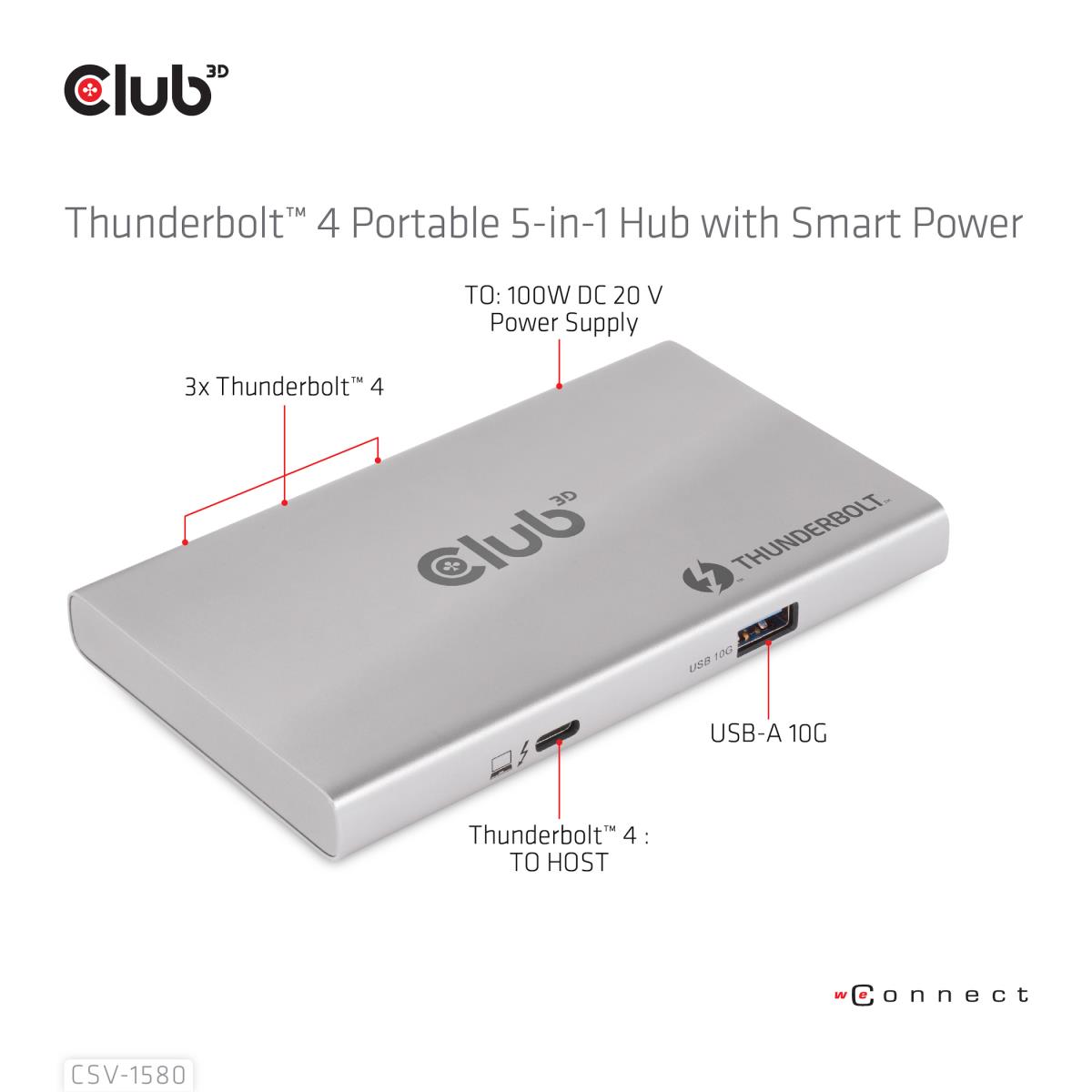

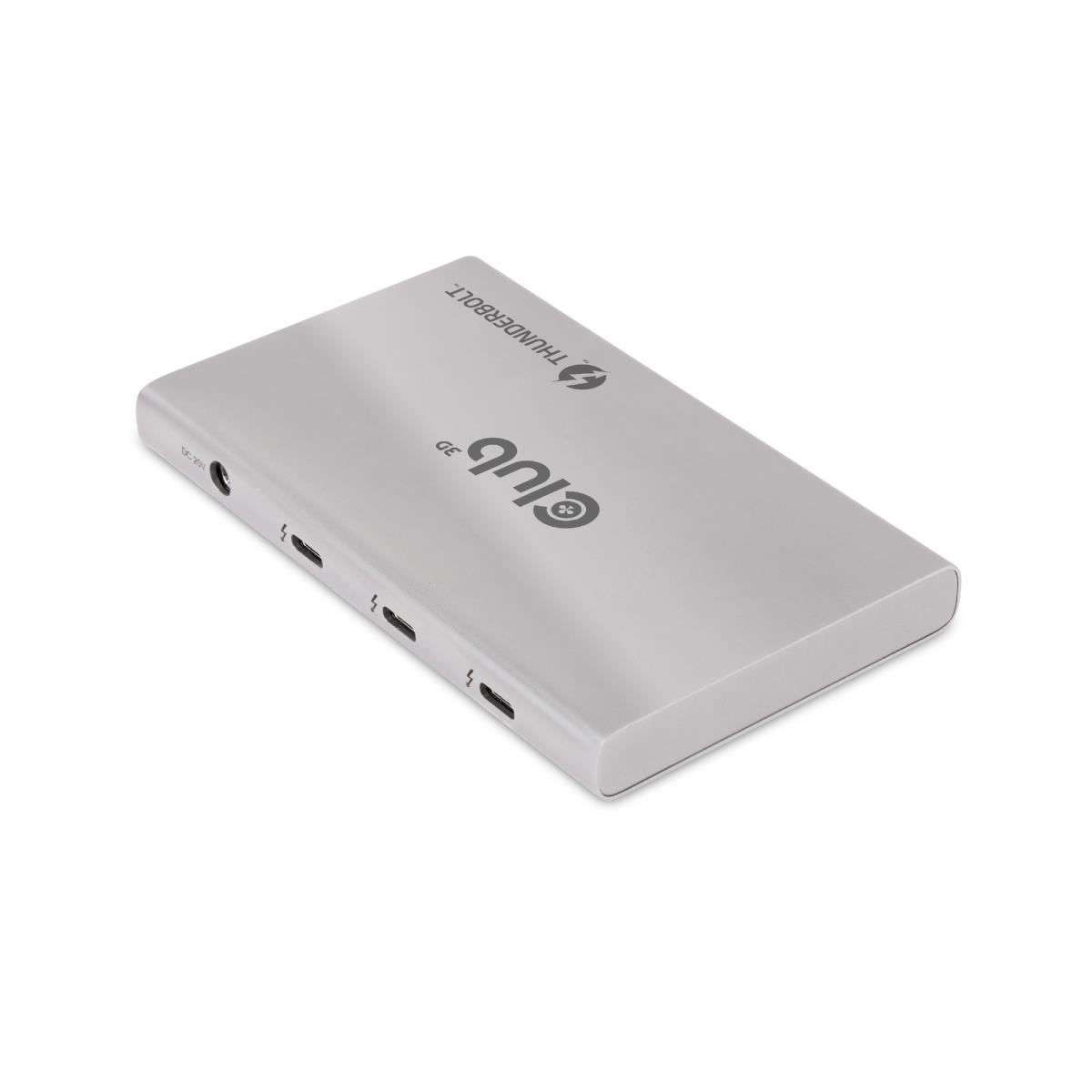

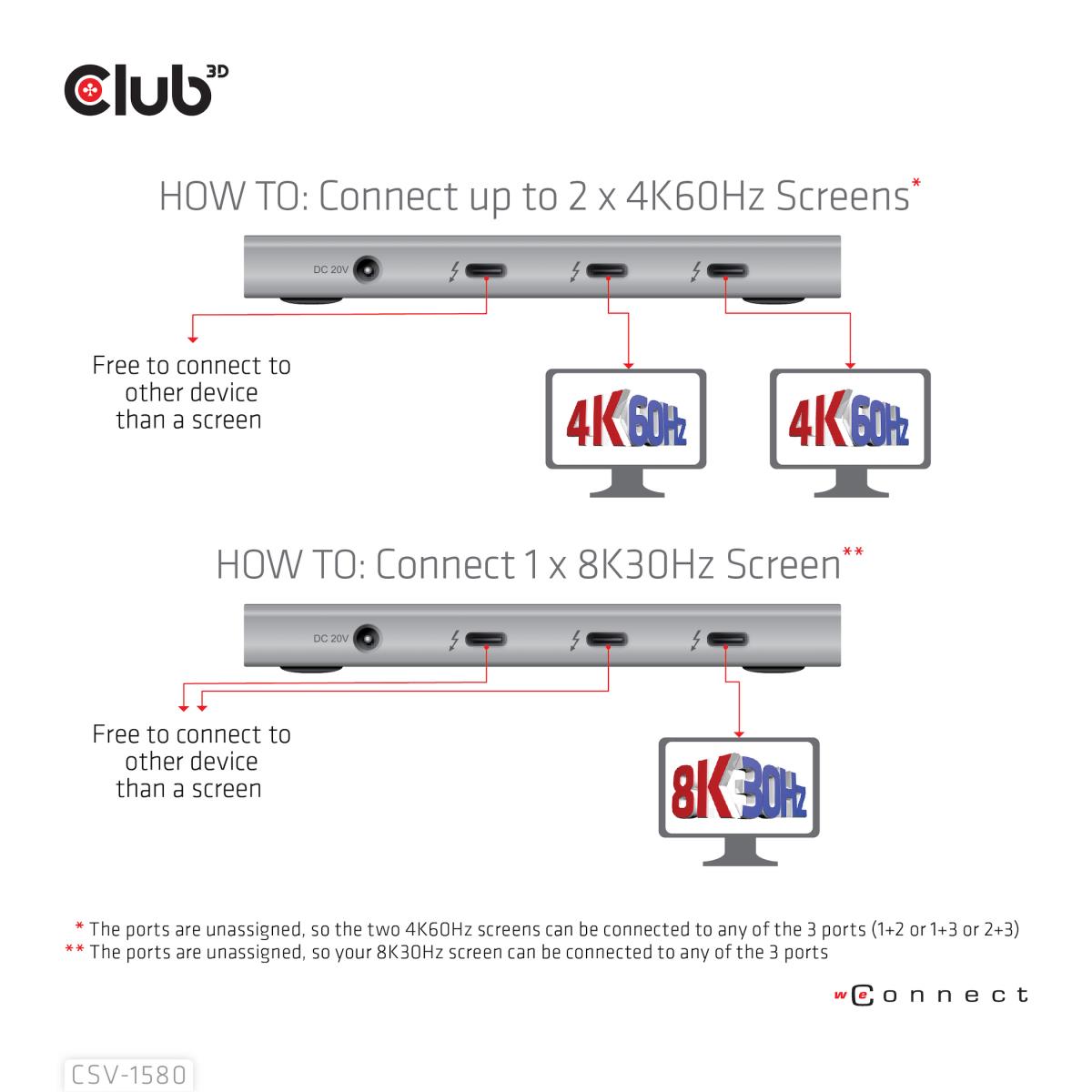

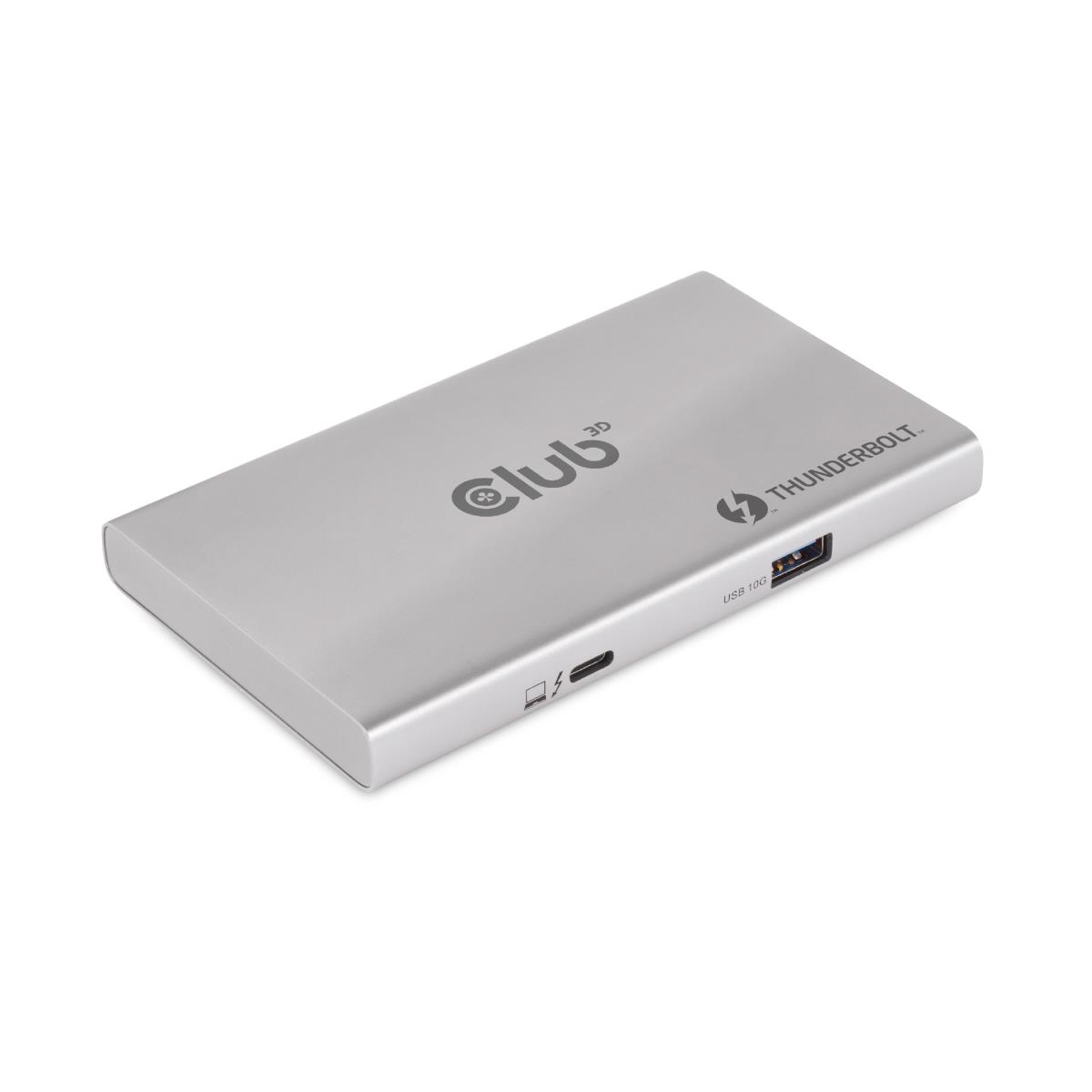

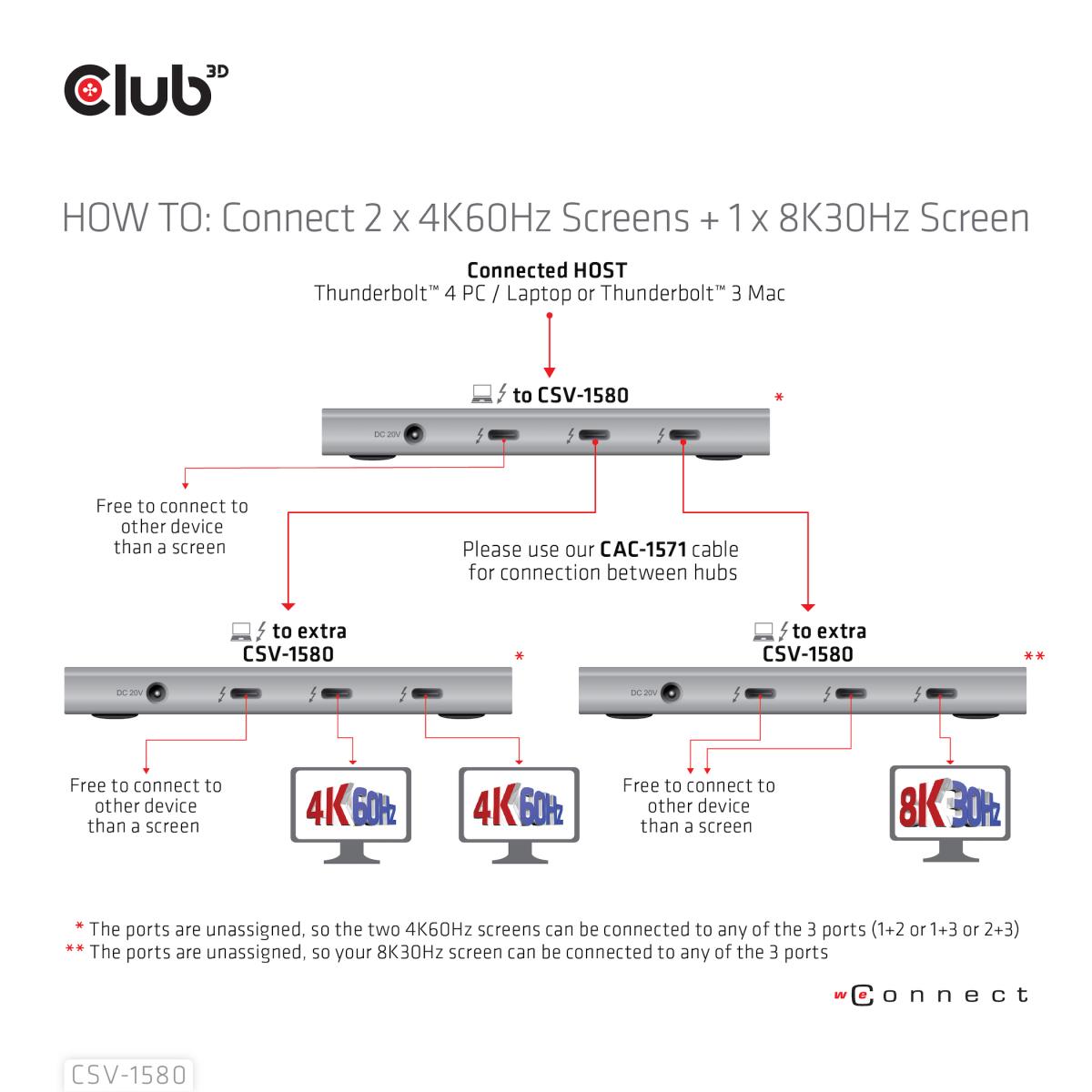

The Club 3D CSV-1580 is a Certified Thunderbolt™ 4 portable Hub which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. For the first time this Thunderbolt™ 4 modern Hub has 3 Thunderbolt™ 4 downstream ports that allow you to cascade Thunderbolt™ 4 devices to one 8K30Hz or two 4K60Hz monitors, it can also easily connect to any USB Type-C device, all while simultaneously charging the PC. Besides, it supports Smart Power function which enables to distribute power according to the power consumption of the connected device, making full use of the external power supply. It is designed for Thunderbolt™ 4 based PCs and Thunderbolt™ 3 based Macs™ utilizing MacOS™ 11 and later versions.
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Host interface | Thunderbolt 4 |
| HDMI ports quantity | 0 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | Yes |
| Connectivity technology | Docking |
| Thunderbolt 4 ports quantity | 4 |
| Network | |
| Ethernet LAN | No |
| Performance | |
| Product colour | Silver |
| Card reader integrated | No |
| Compatibility | OS Support: Windows10™ or above version supported Thunderbolt™ 4 host MacOS™ 11 or above version supported Thunderbolt™ 3 host |
| Plug and Play | Yes |
| Technical details | |
| Product colour | Silver |
| Compatibility | OS Support: Windows10™ or above version supported Thunderbolt™ 4 host MacOS™ 11 or above version supported Thunderbolt™ 3 host |
| Plug and Play | Yes |
| Harmonized System (HS) code | 8473 3020 |
| Plastic packaging weight | 6 g |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | DC |
| Power consumption (max) | 60 W |
| Output voltage | 20 V |
| Output current | 5 A |
| Power supply | 10 W |
| Wireless charging | No |
| Software | |
| Windows operating systems supported | Windows 10 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur |

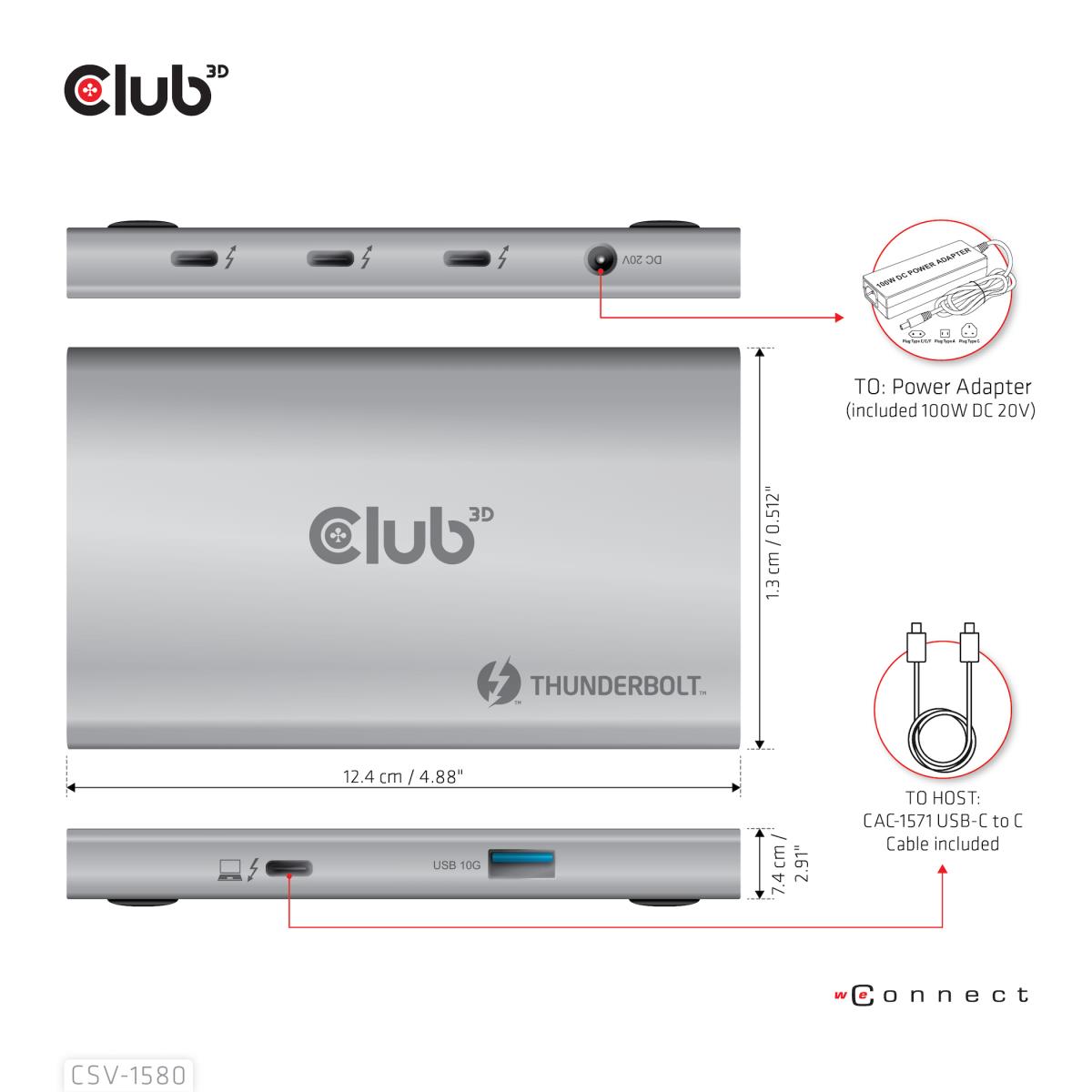

| Weight & dimensions | |
| Weight | 165 g |
| Width | 124 mm |
| Depth | 74 mm |
| Height | 13 mm |
| Package weight | 959 g |
| Package width | 220 mm |
| Package depth | 150 mm |
| Package height | 70 mm |
| Design | |
| Windows operating systems supported | Windows 10 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur |
| Product colour | Silver |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 959 g |
| Package width | 220 mm |
| Package depth | 150 mm |
| Package height | 70 mm |
| Packaging content | |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Features | |
| Packaging languages | English |
| Packaging composition | |
| Plastic packaging weight | 6 g |
| Paper/cardboard packaging weight | 126 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Logistics data | |
| Harmonized System (HS) code | 8473 3020 |
