EU Product - Thunderbolt 4 12-in-1 Dock
Introduction

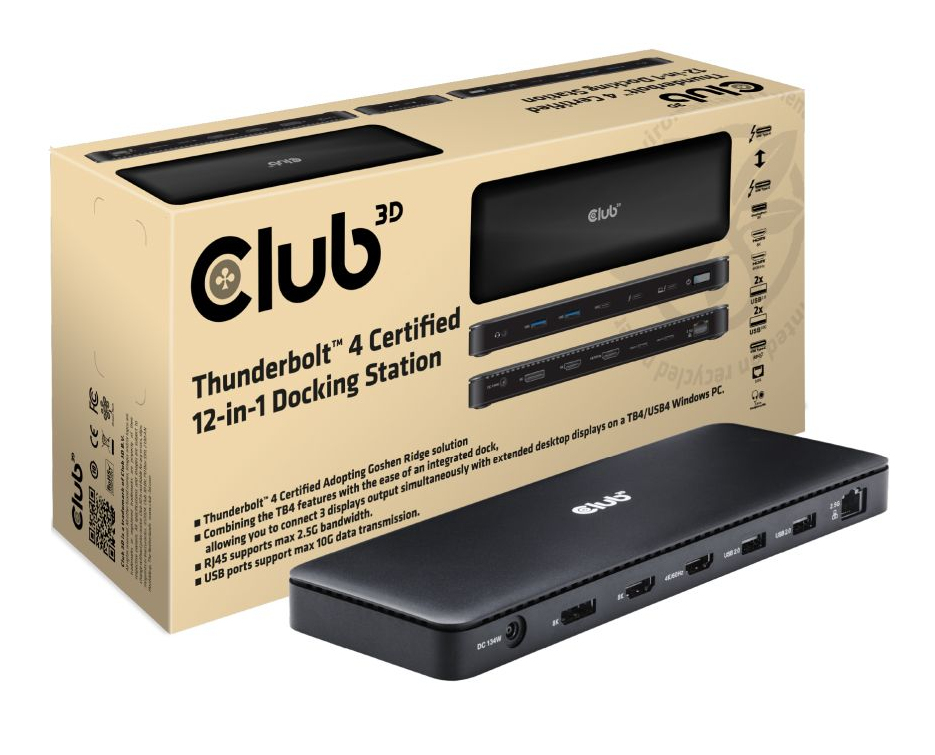

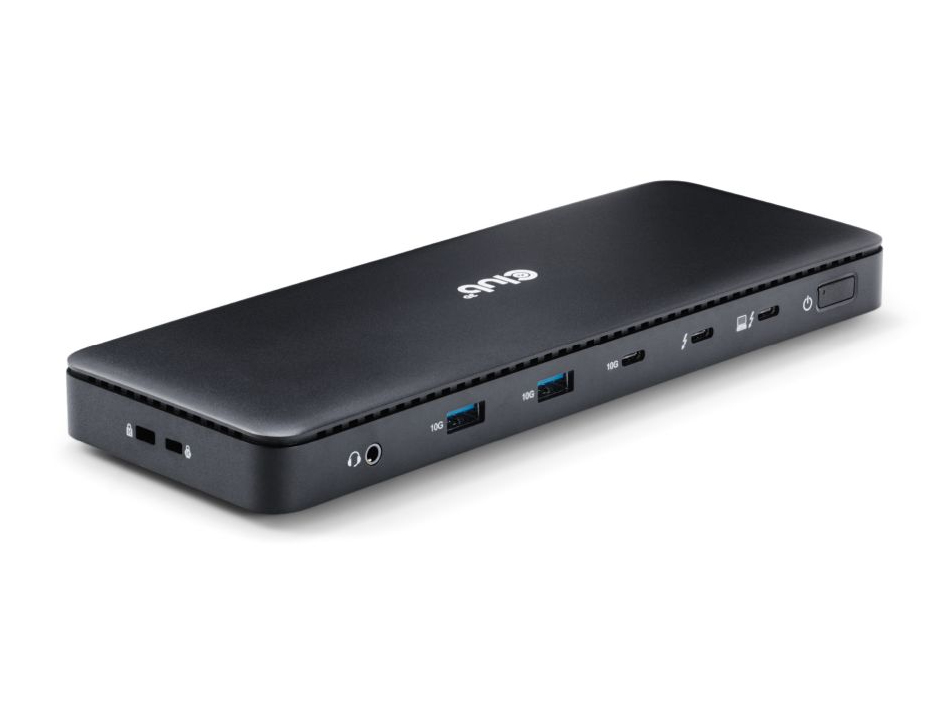

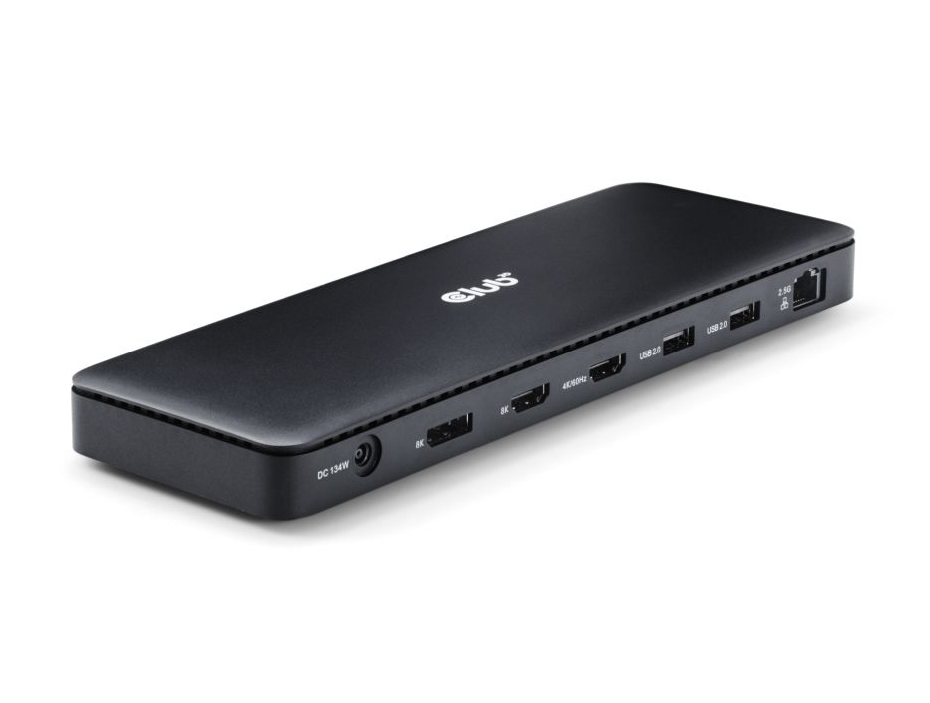

The Club 3D CSV- 1582 is a Certified Thunderbolt™ 4 12-in-1 Docking Station which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. Combining the TB4 features with the ease of an integrated dock, allowing you to output 3 Streams to 3 displays simultaneously with extended desktop displays on a TB4/USB4 Windows PC. Ethernet RJ45 supports max 2.5G bandwidth. USB ports support max 10G data transmission. The dock supports the smart power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. It is designed for Thunderbolt™ 4 based PCs and Thunderbolt™ 3 based Macs utilizing MacOS 11 and later versions
Specifications
| Performance | |
|---|---|
| Basic device type | Universal |
| Product colour | Black |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN data rates | 2500 Mbit/s |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Docking connector type | USB Type-C |
| USB 2.0 ports quantity | 2 |
| Audio output | No |
| HDMI connector type | Full-size |
| HDMI | Yes |
| USB hub | Yes |
| USB Type-C ports quantity | 3 |
| DC-in jack | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| Ethernet LAN data rates | 2500 Mbit/s |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Power | |
| Power consumption (max) | 134 W |
| DC input voltage | 21 V |
| Weight & dimensions | |
| Cable length | 0.8 m |
| Width | 225 mm |
| Depth | 85 mm |
| Height | 22 mm |
| Weight | 392 g |
| Package width | 275 mm |
| Package depth | 125 mm |
| Package height | 77 mm |
| Package weight | 1.17 kg |
| Packaging data | |
| Quantity | 1 |
| Package type | Box |
| Package width | 275 mm |
| Package depth | 125 mm |
| Package height | 77 mm |
| Package weight | 1.17 kg |
| Plastic packaging weight | 4 g |
| Paper/cardboard packaging weight | 147 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Packaging content | |
| Cables included | Thunderbolt |

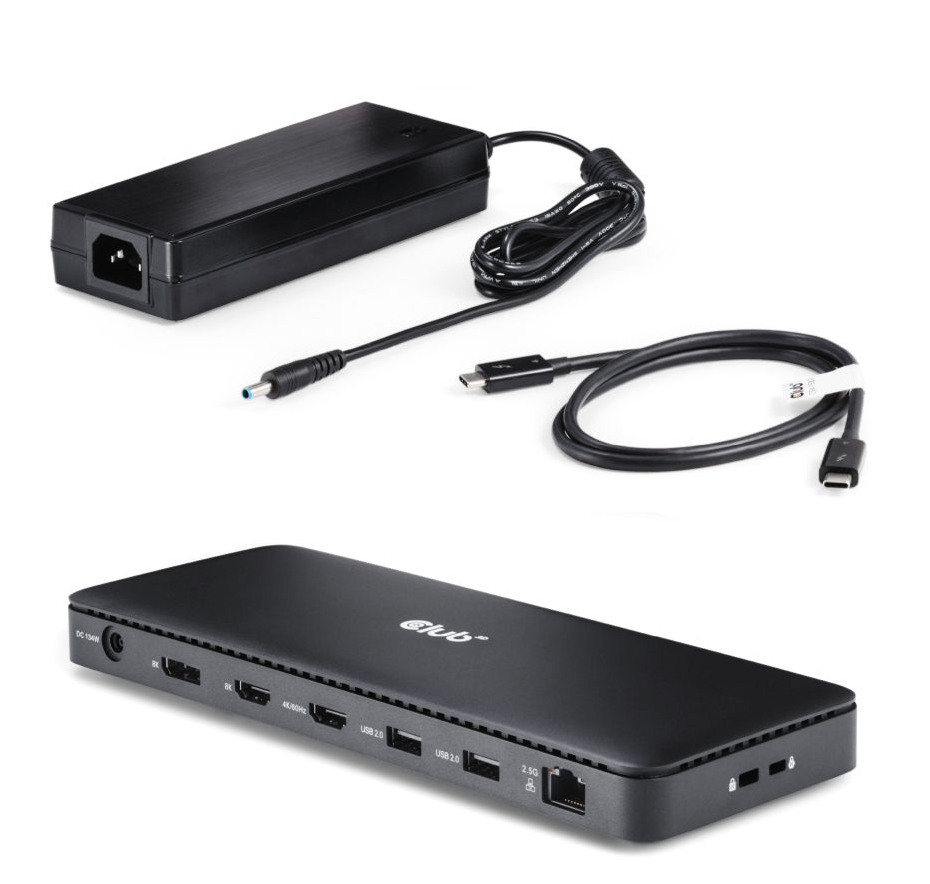

| Adapter included | Yes |
| Design | |
| Product colour | Black |
| Technical details | |
| Quantity | 1 |
| Cables included | Thunderbolt |
| Package type | Box |
| Cable length | 0.8 m |
| Ethernet LAN data rates | 2500 Mbit/s |
| USB hub | Yes |
| Harmonized System (HS) code | 8473 3020 |
| Logistics data | |
| Harmonized System (HS) code | 8473 3020 |
