Introduction

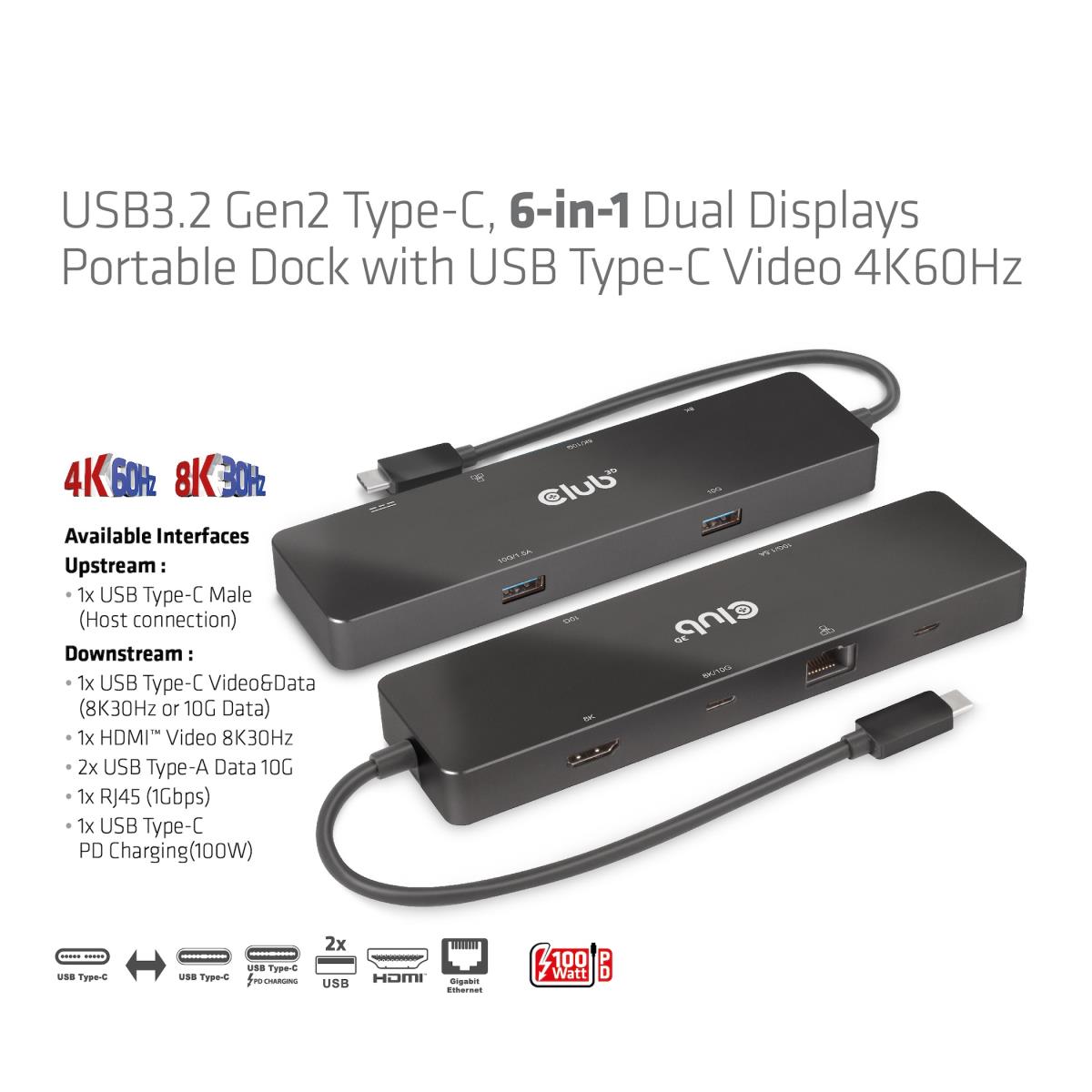

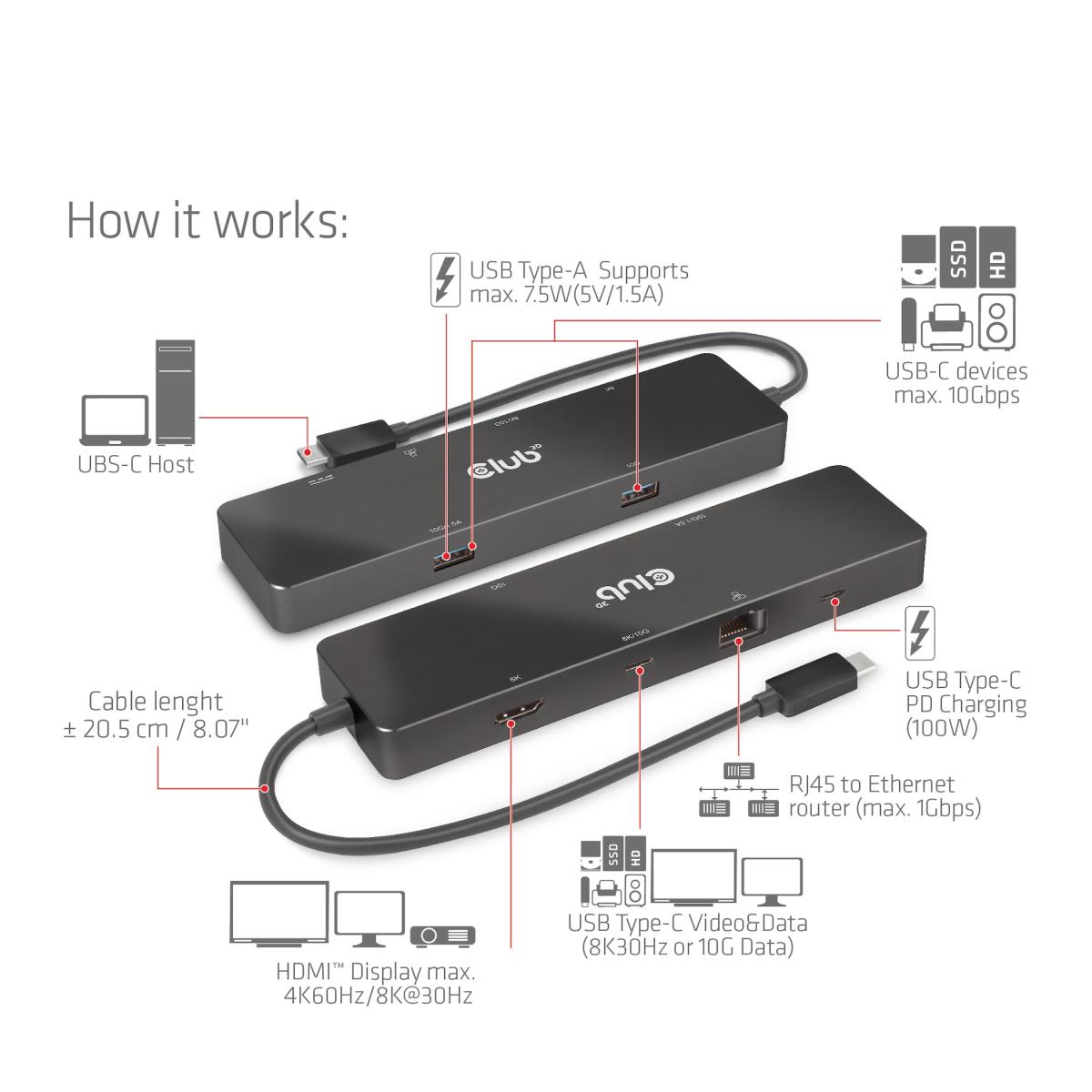

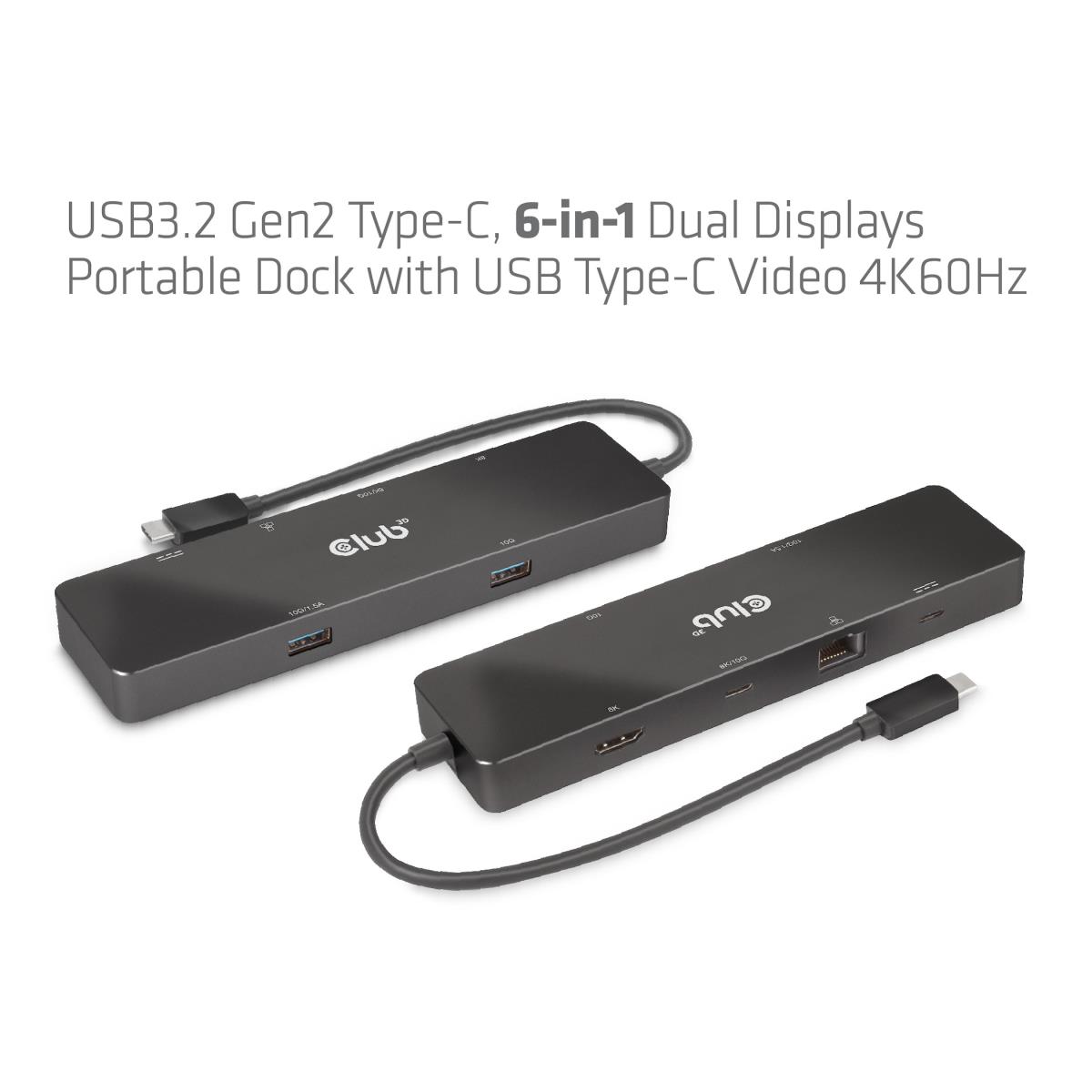

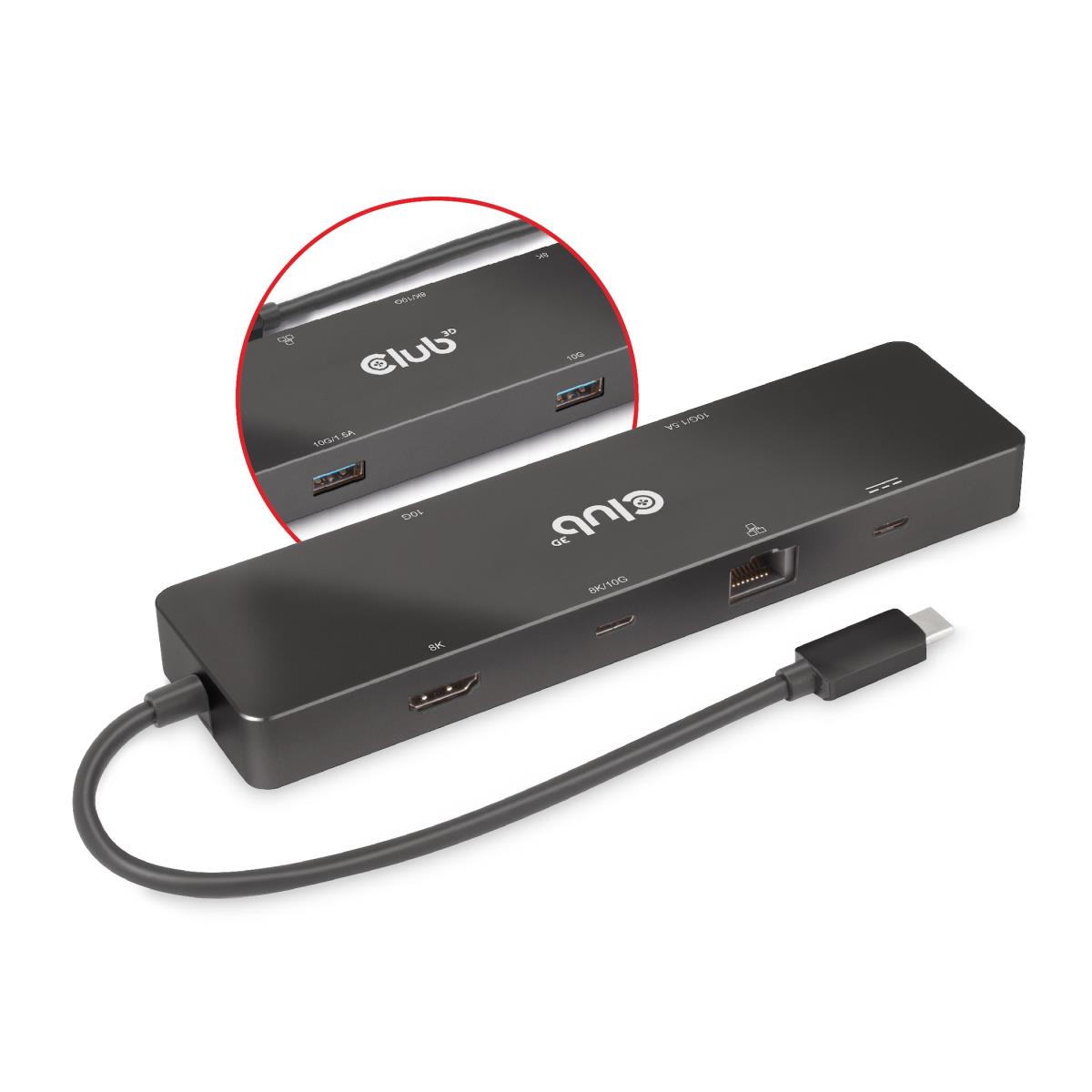

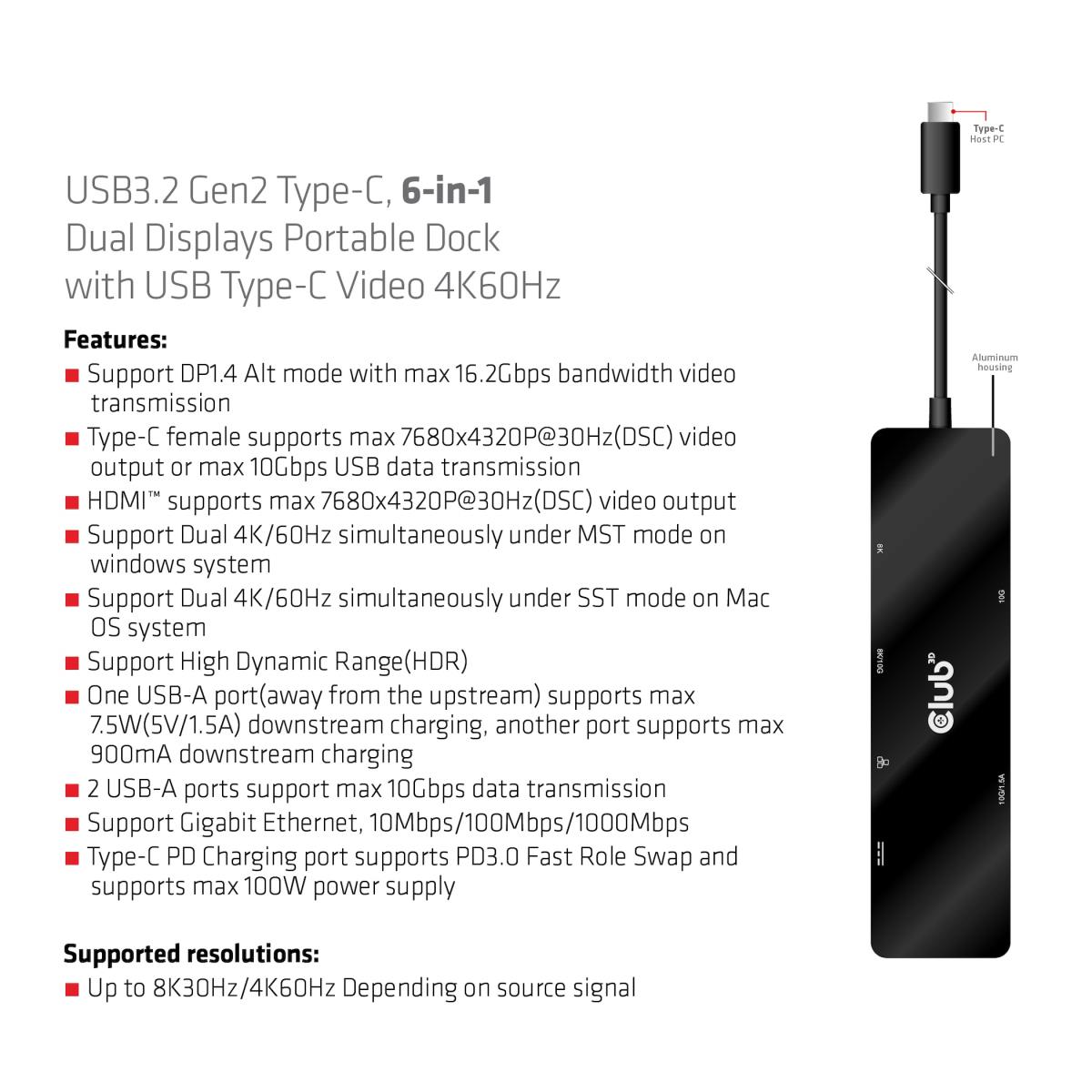

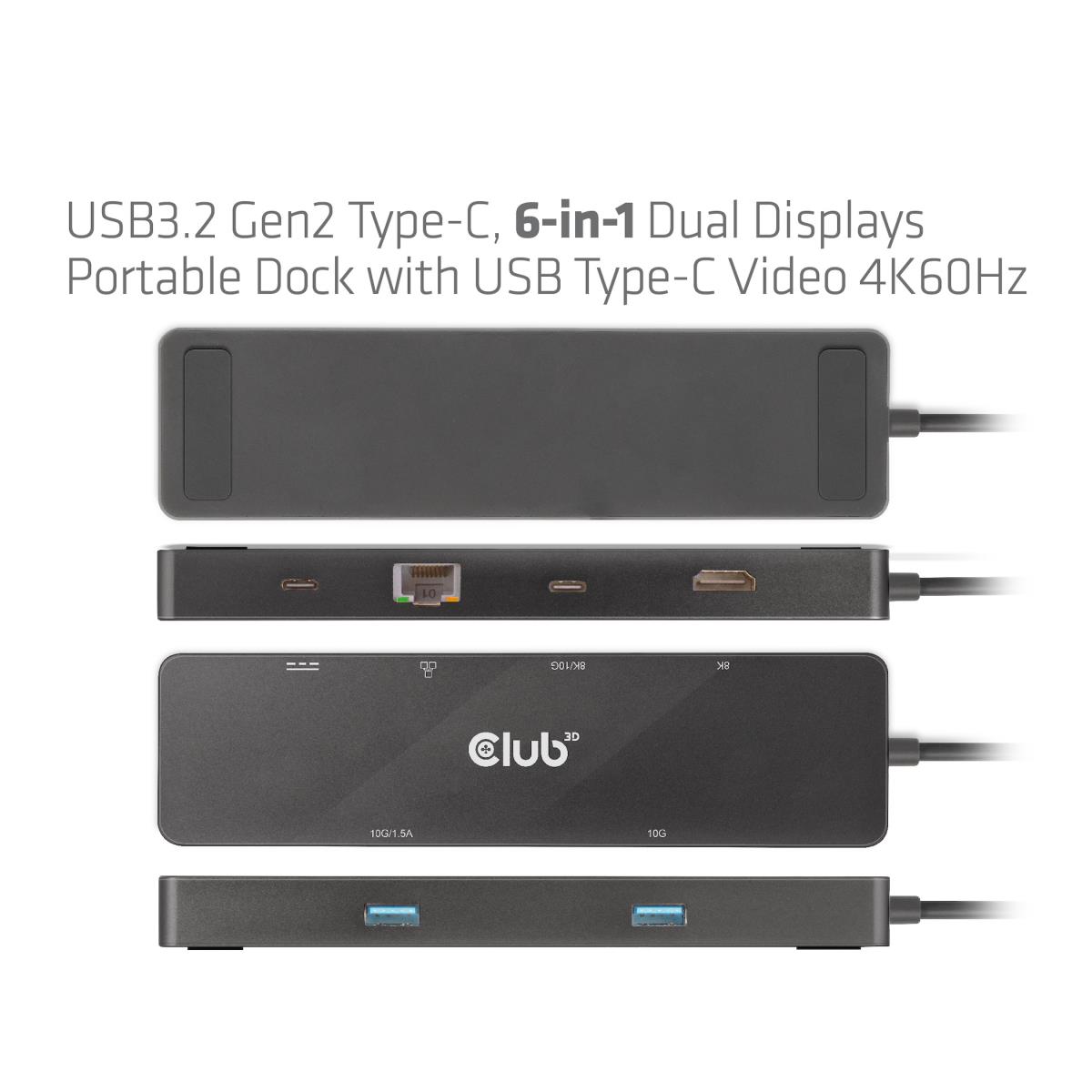

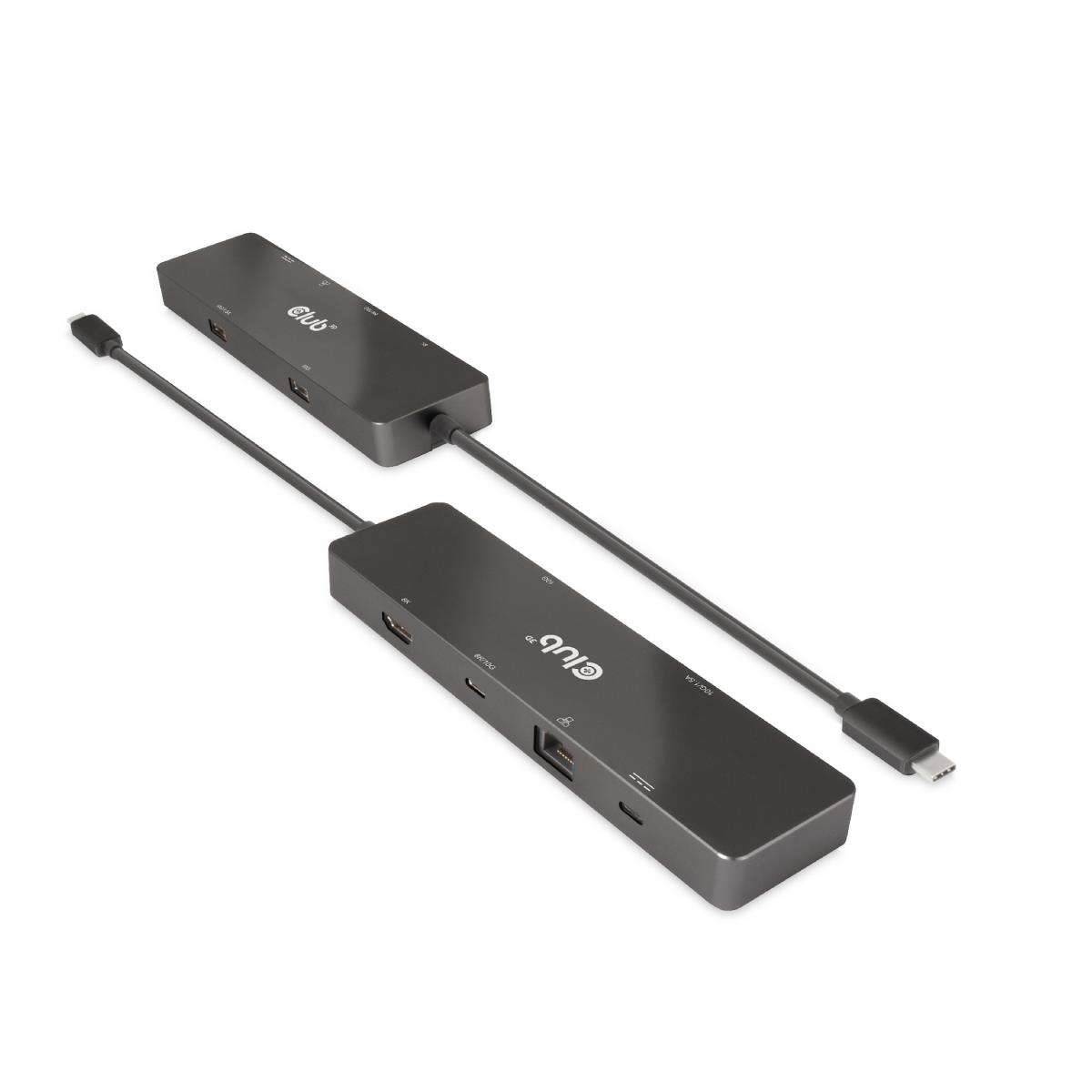

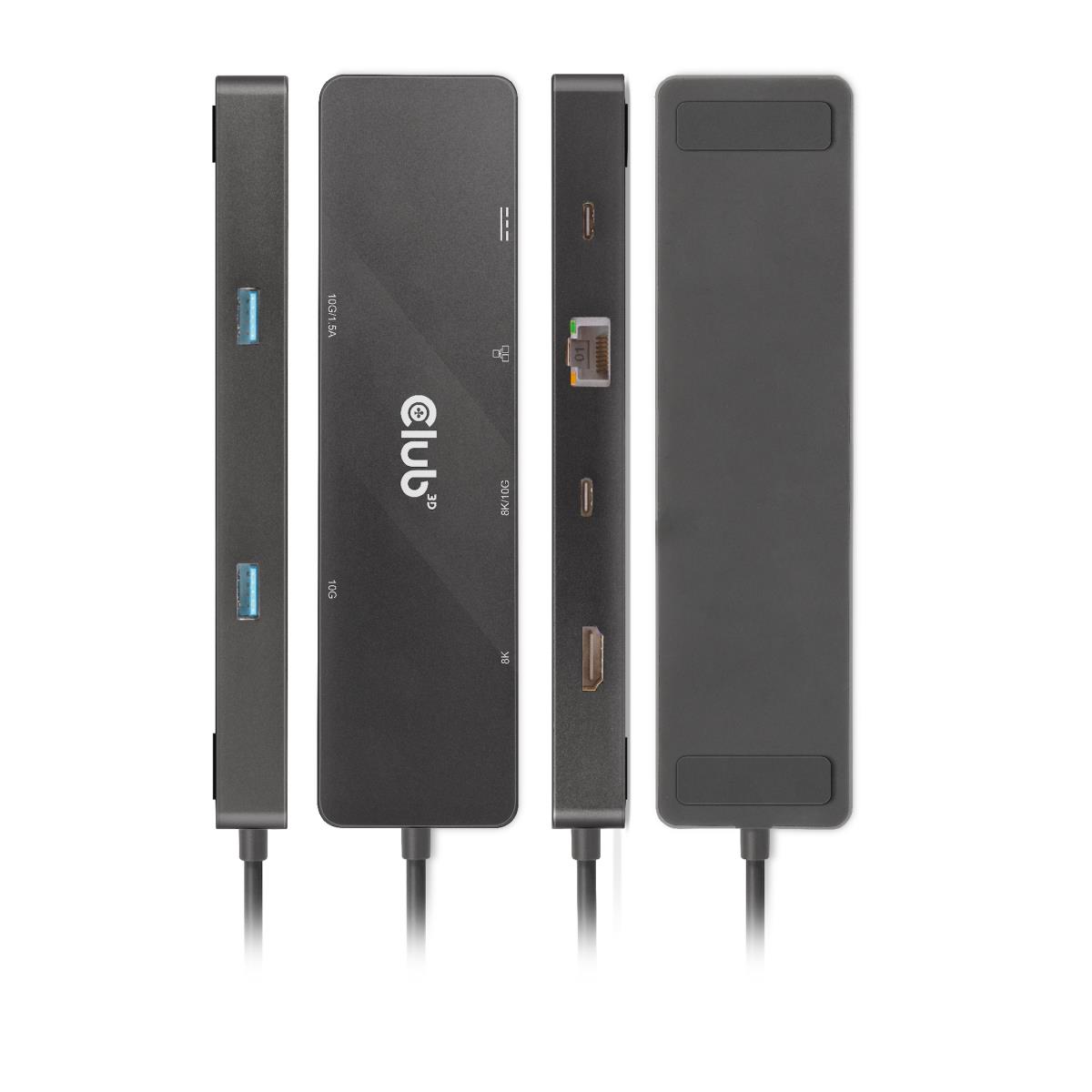

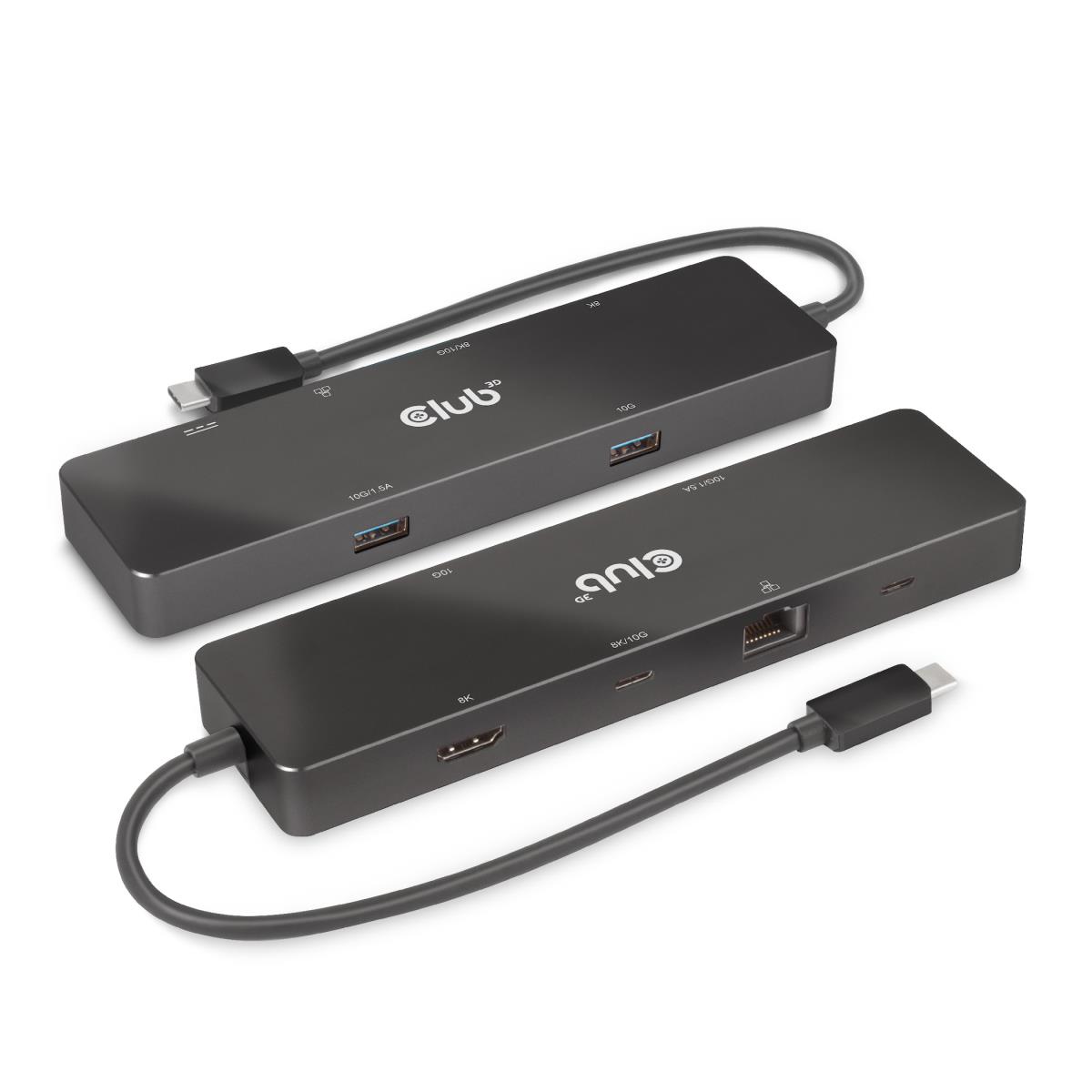

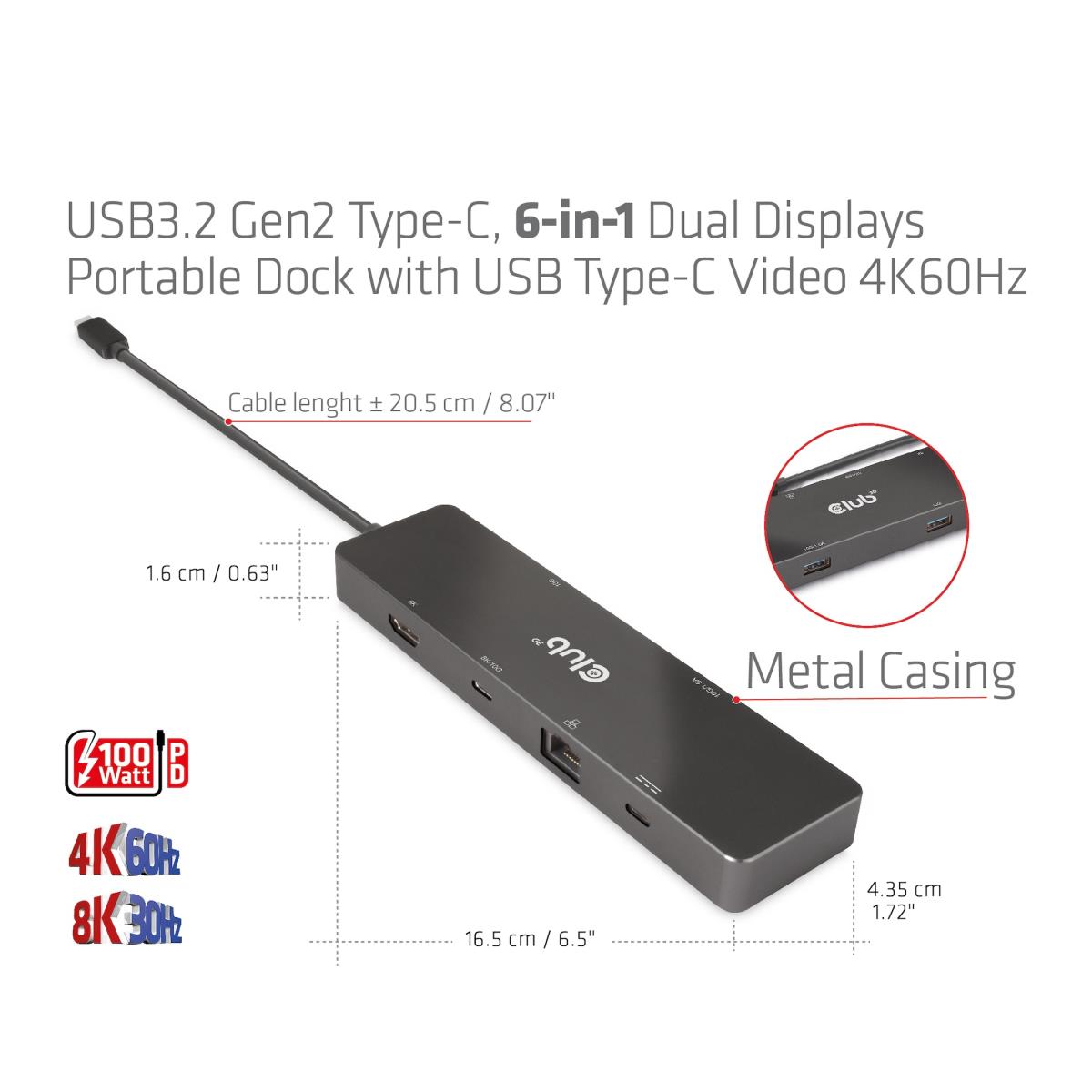

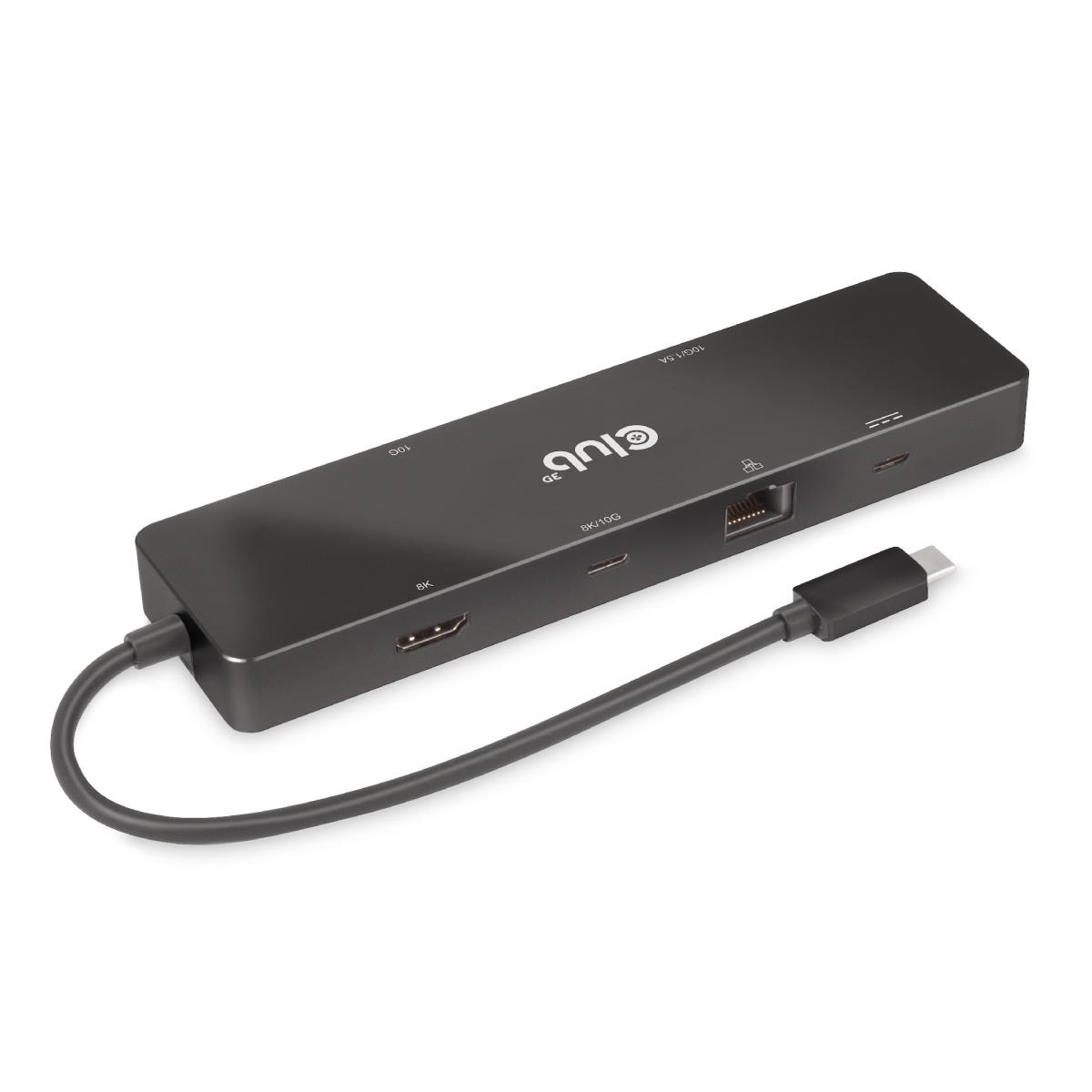

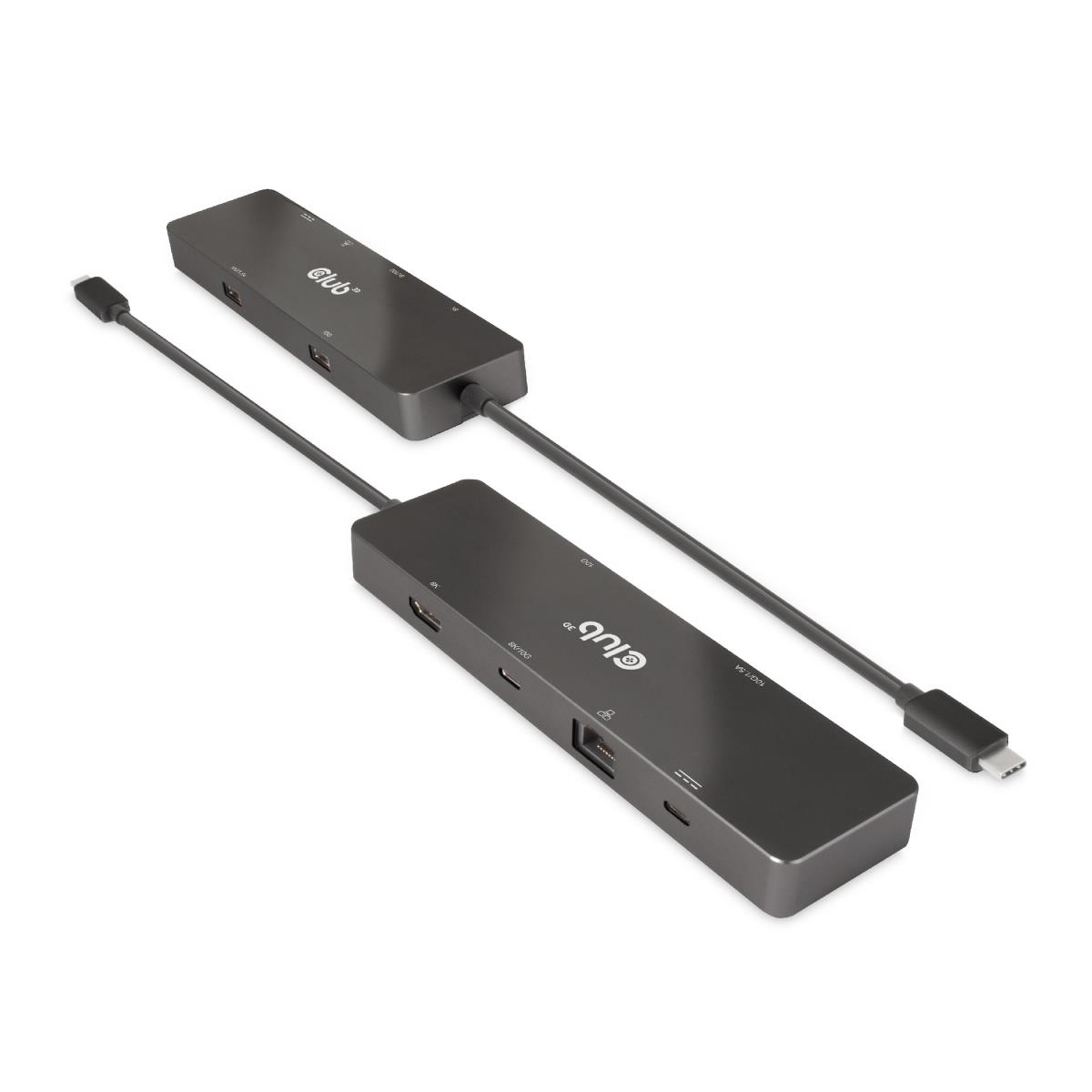

The Club 3D CSV-1584 is a USB3.2 Gen2 Type-C, 6-in-1 Hub with HDMI™ 8K30Hz/4K60Hz,
2xUSB Type-A(10G), Ethernet RJ45(1Gbps) and 2xUSB Type-C, 1x Video4K60Hz or Data(10G)
and 1xPD3.0 charging 100 watt, providing an ideal solution for extending the USB Type-C
port or Thunderbolt host (PC/Laptop/Mobile phone etc.), especially for those host with a

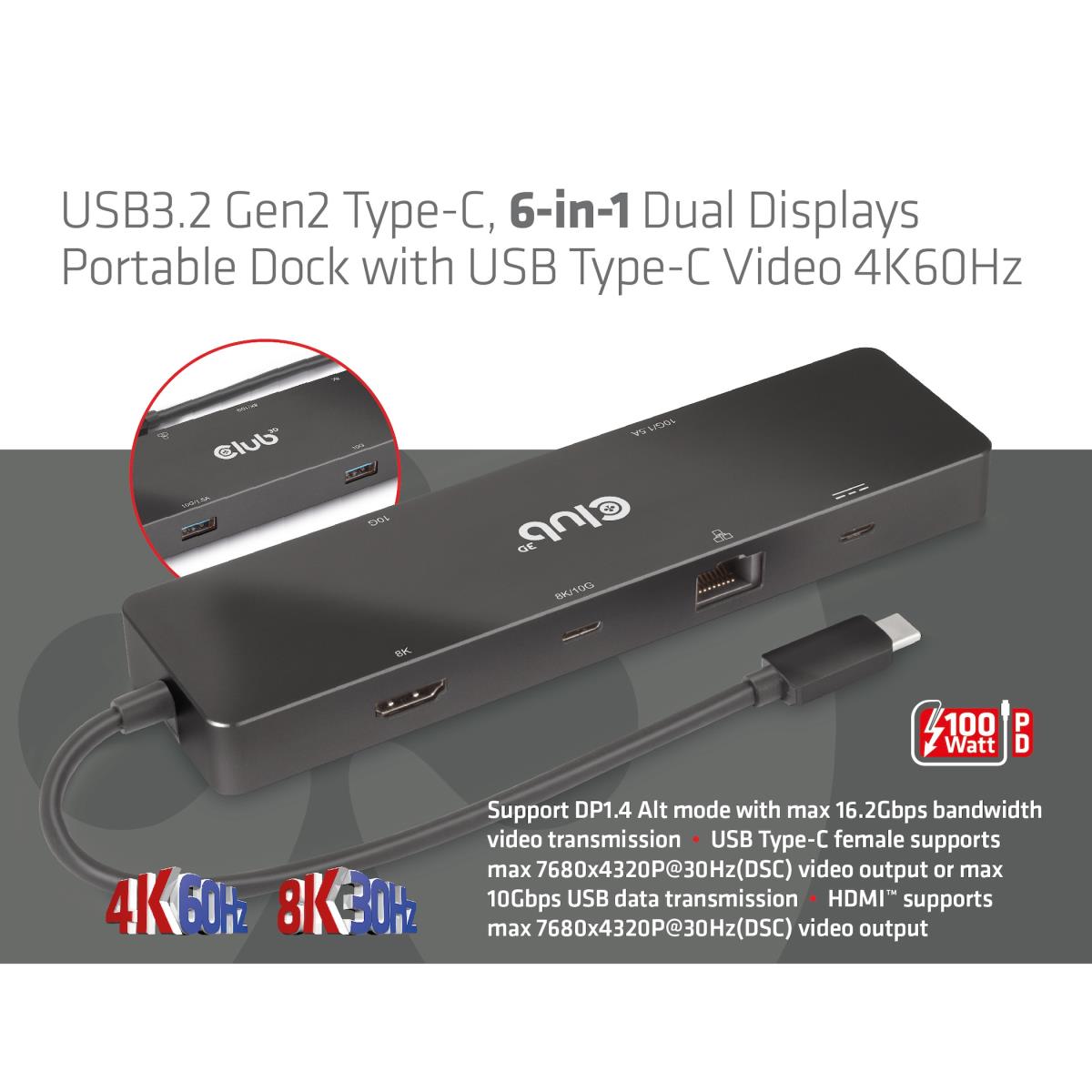

single USB Type-C port. This hub adopts DP1.4 Alt mode supported IC, enabling to output
max single 8K30Hz(DSC) or dual different videos(4K60Hz*2) and the USB Type-C Video port
also supports transfer USB3.2 Gen2 data with max 10Gbps. 2 USB Type-A and USB Type-C
Video ports allow you to connect 3 USB devices simultaneously. Gigabit Ethernet port allow
you to surf on the internet, USB Type-C PD Charging port supports max 100W PD Charging.
It can work on all DP Alt mode supported USB Type-C hosts
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | No |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 100 W |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Product colour | Black |
| Card reader integrated | No |
| Technical details | |
| Product colour | Black |
| Harmonized System (HS) code | 8473 3020 |
| Plastic packaging weight | 0 g |
| Storage | |
| Card reader integrated | No |
| Power | |
| Wireless charging | No |
| Design | |
| Product colour | Black |
| Packaging composition | |
| Plastic packaging weight | 0 g |
| Paper/cardboard packaging weight | 54 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Logistics data | |
| Harmonized System (HS) code | 8473 3020 |
