EU Product - Dockingstation - Usb Typ C Dual DisplayPort*schwarz*
Introduction

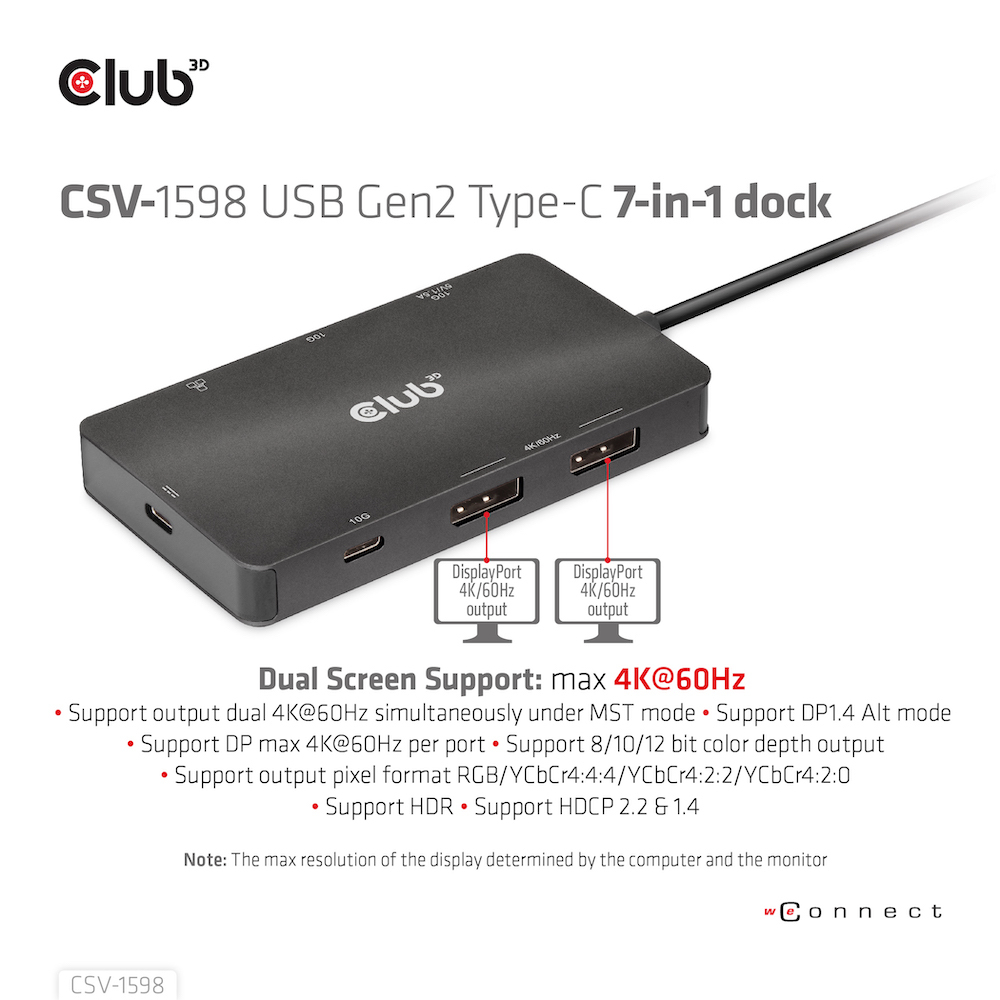

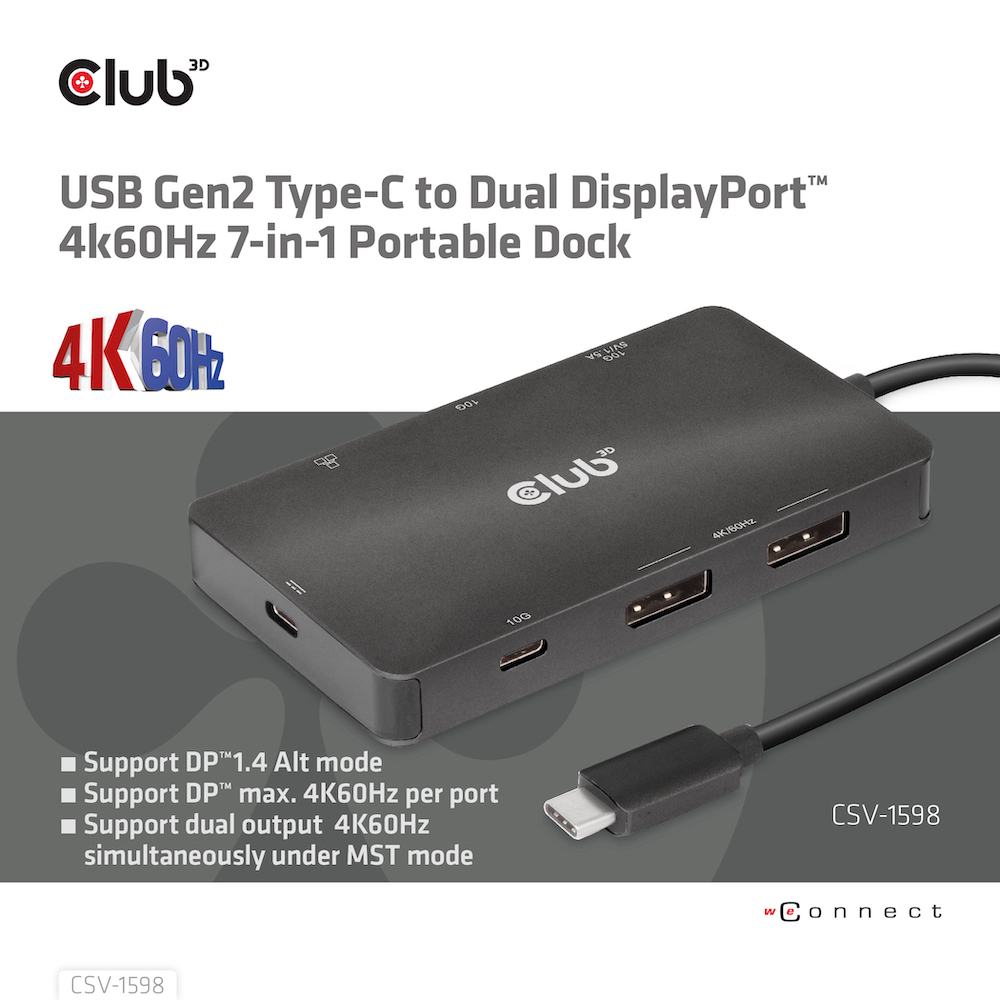

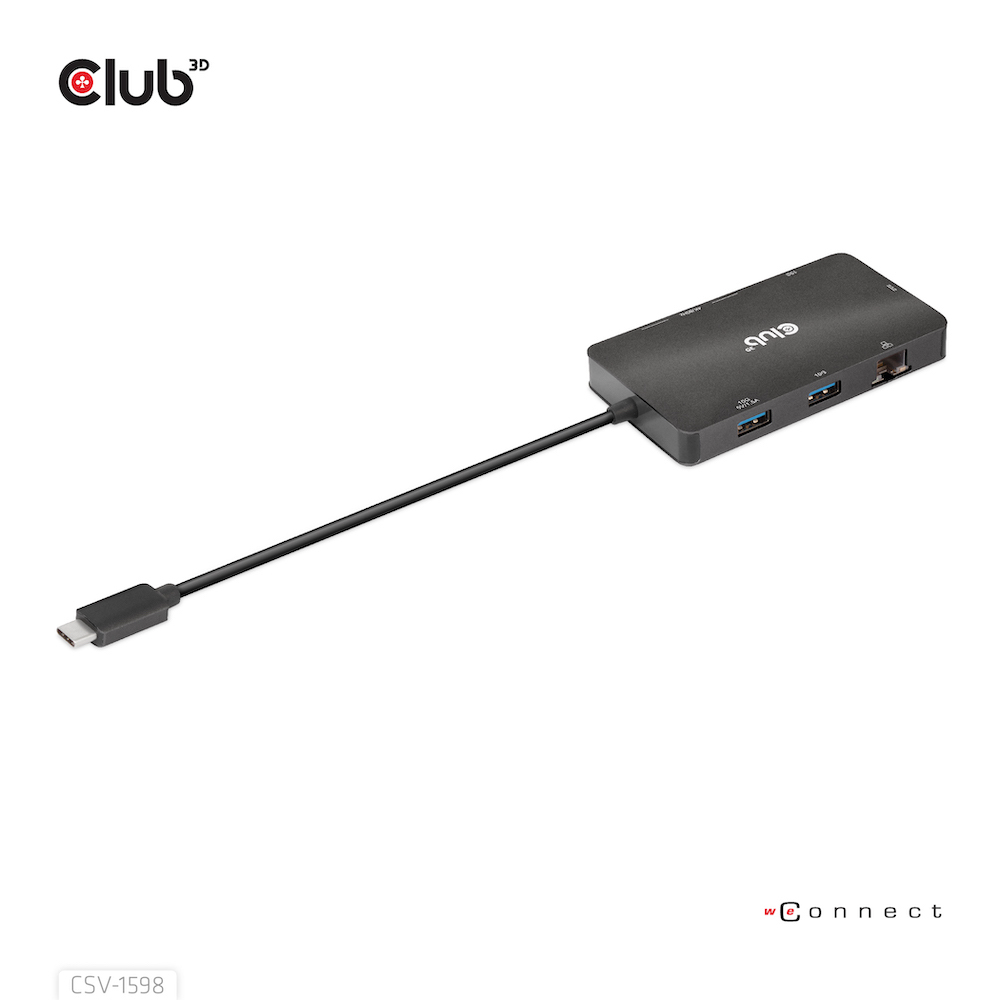

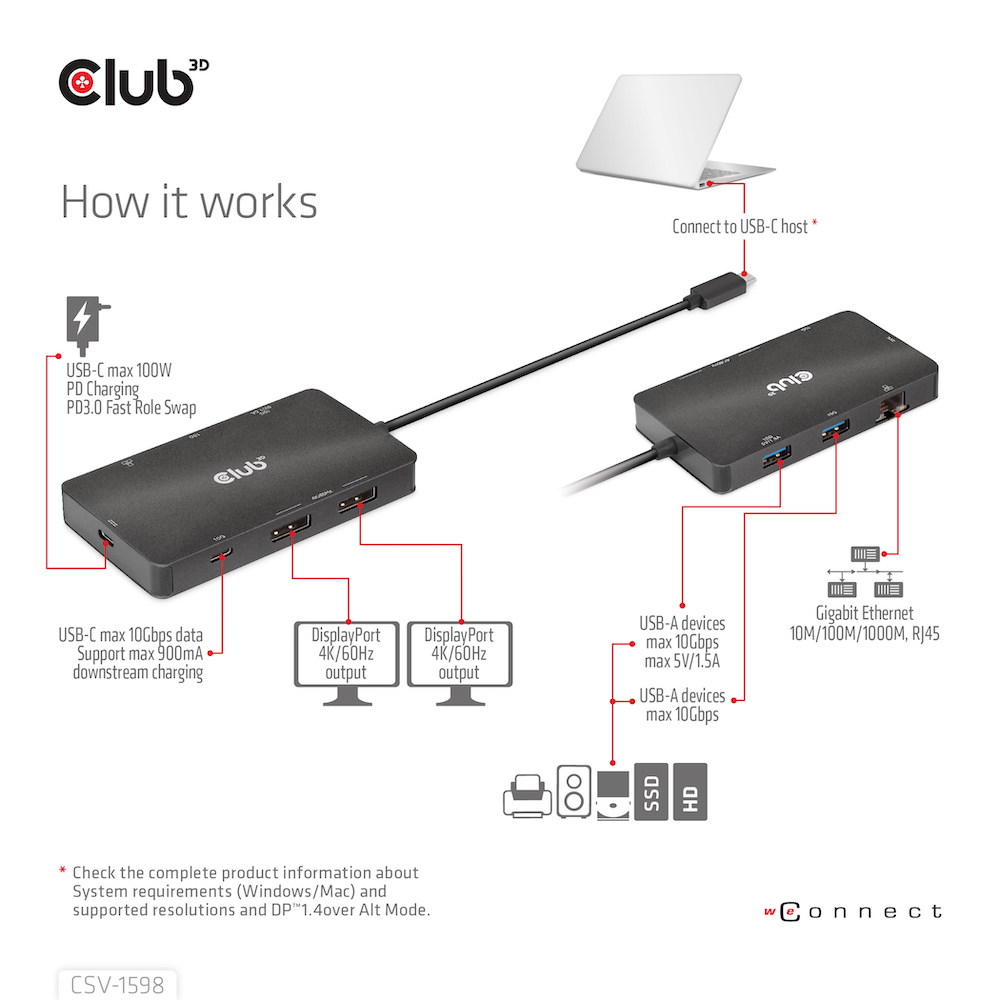

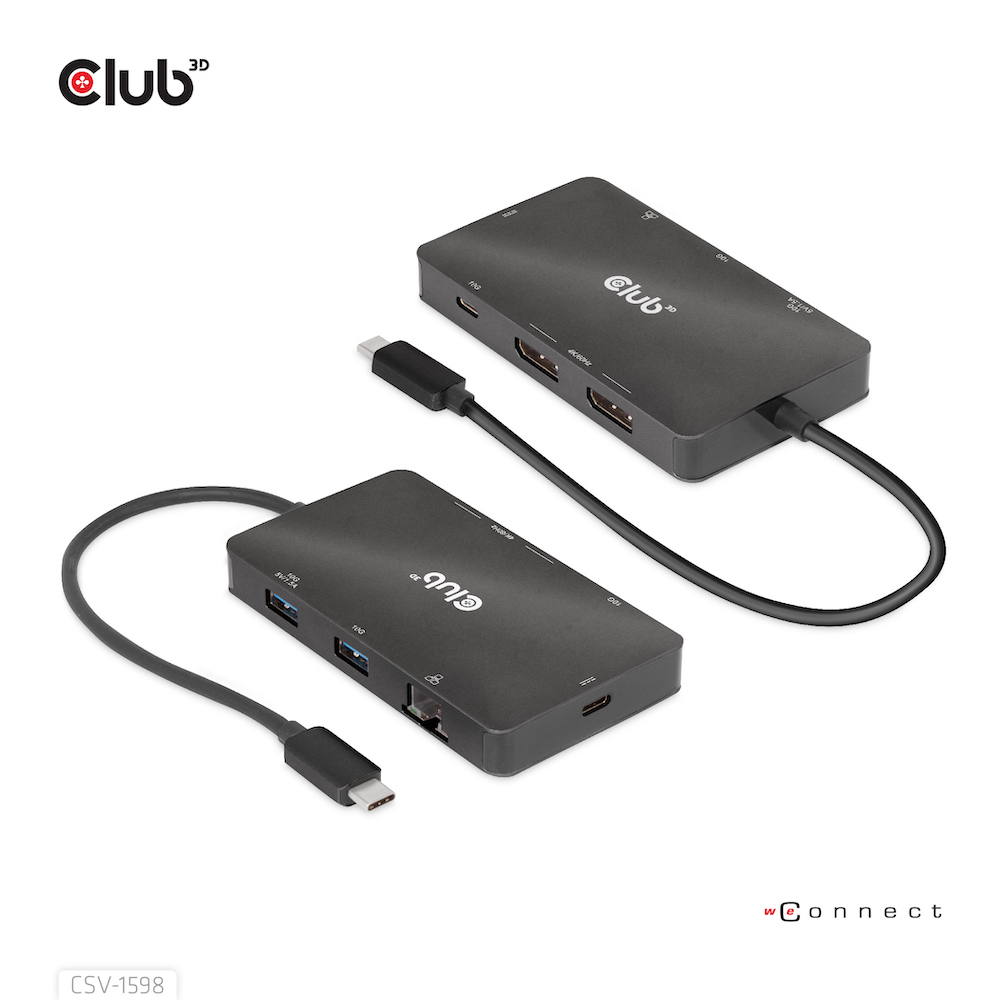

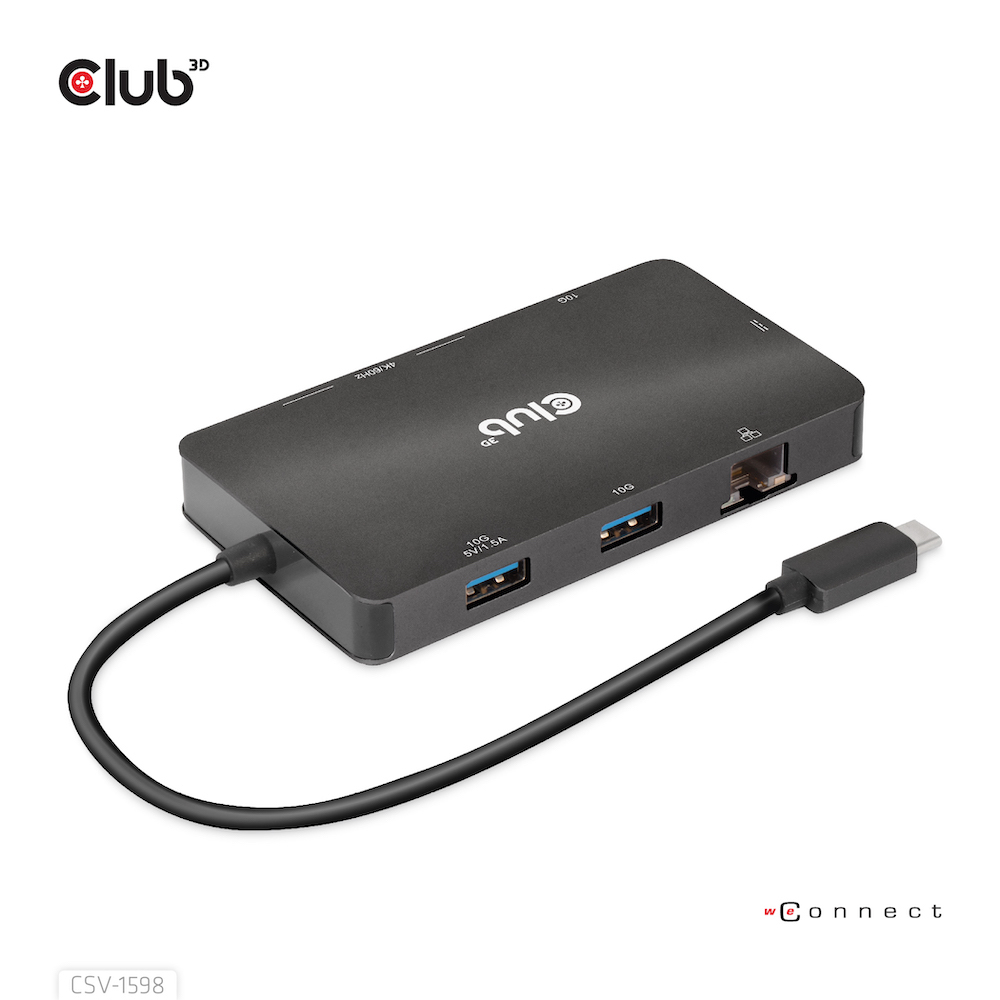

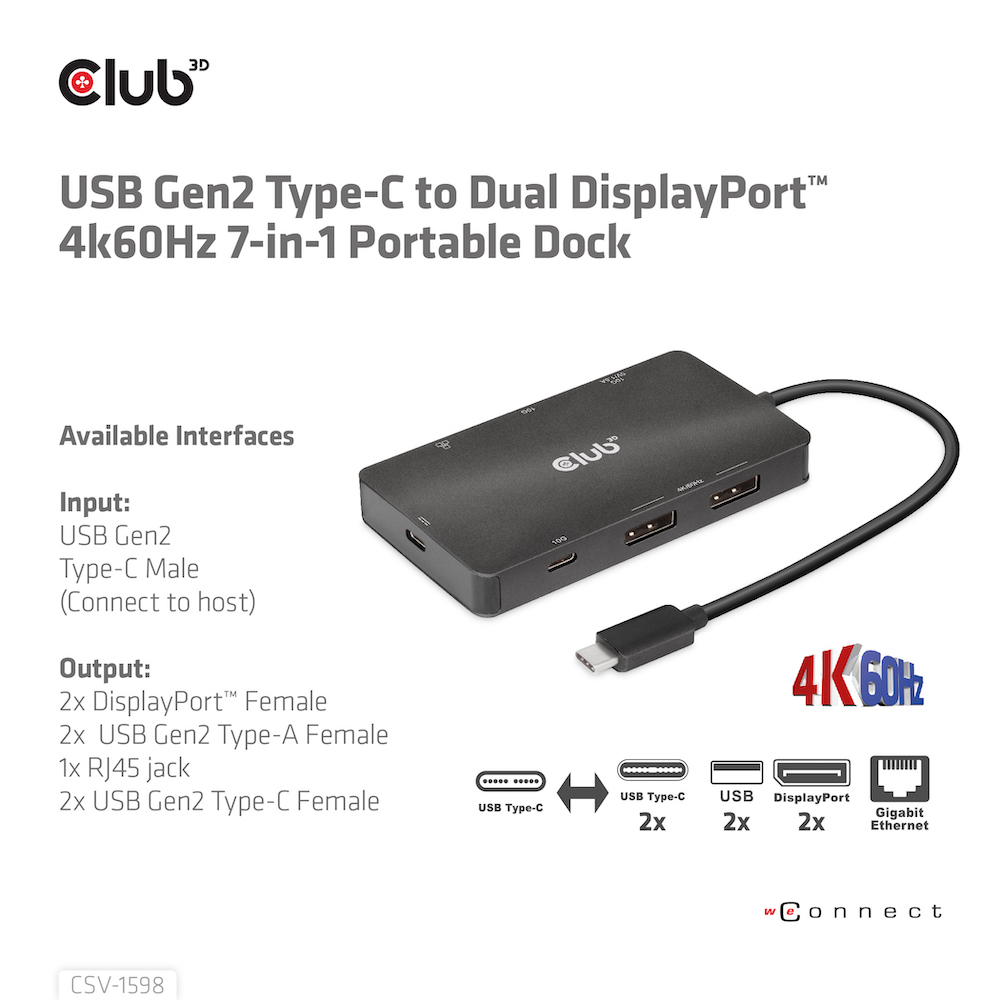

The Club 3D CSV-1598 is a 7-in-1 USB Gen2 Type-C to Dual Display Portable Dock with DP™1.4 Alt mode which provides most advanced, efficient solution to extend a single USB Type-C port to be multiple ports. It integrates video, data and power ports that allows to connect 2 DisplayPort™ 4k60Hz displays simultaneously for enjoying videos on big screen, connect multiple USB devices for data transmission , connect Ethernet source for getting PC to super high speed network. Besides, it has PD charging port which supports max 100W PD charging to support the function of the adapter and charge for the host simultaneously.It can work on all DP™ Alt mode supported USB Type-C host.
Specifications

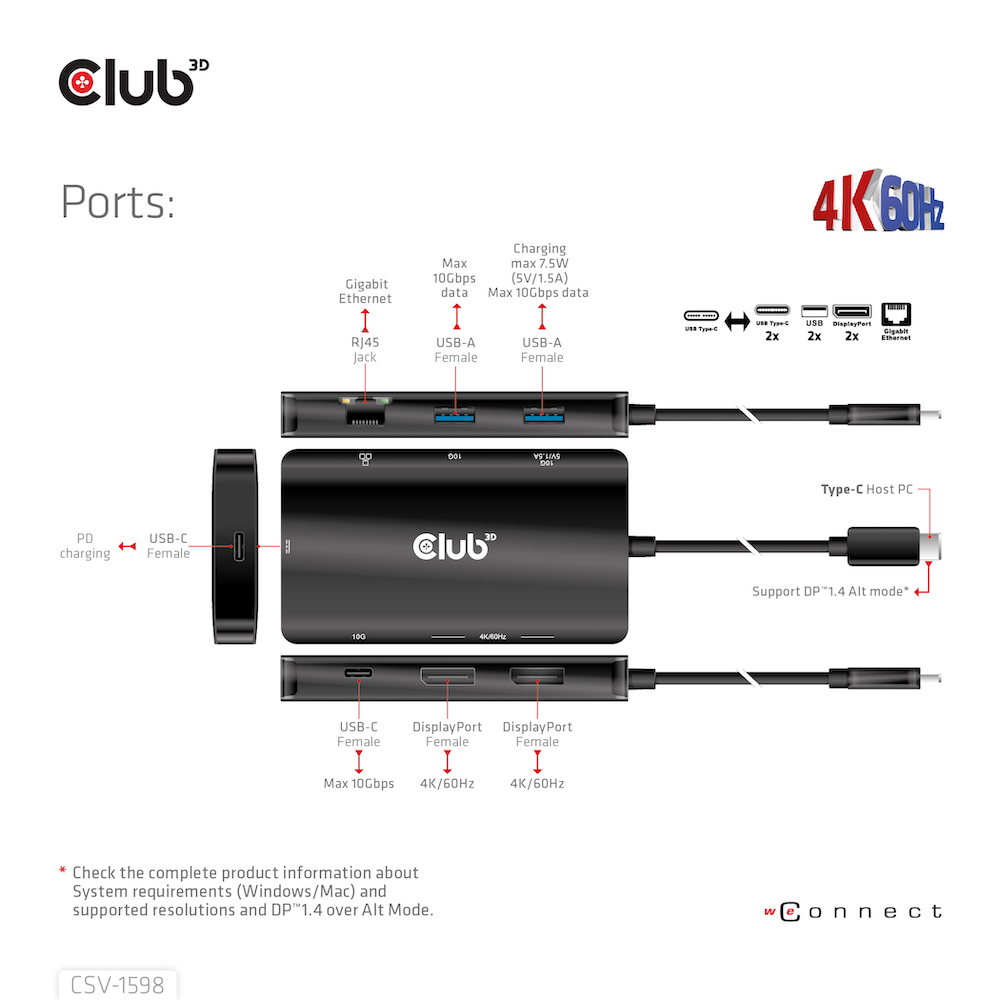

| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 2 |
| DC-in jack | No |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDCP version | 1.4/2.2 |
| HDCP | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Number of displays supported | 2 |
| Product colour | Black |
| Card reader integrated | No |
| Plug and Play | Yes |
| Certification | ROHS, FCC, CE EMI |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| High Dynamic Range (HDR) supported | Yes |

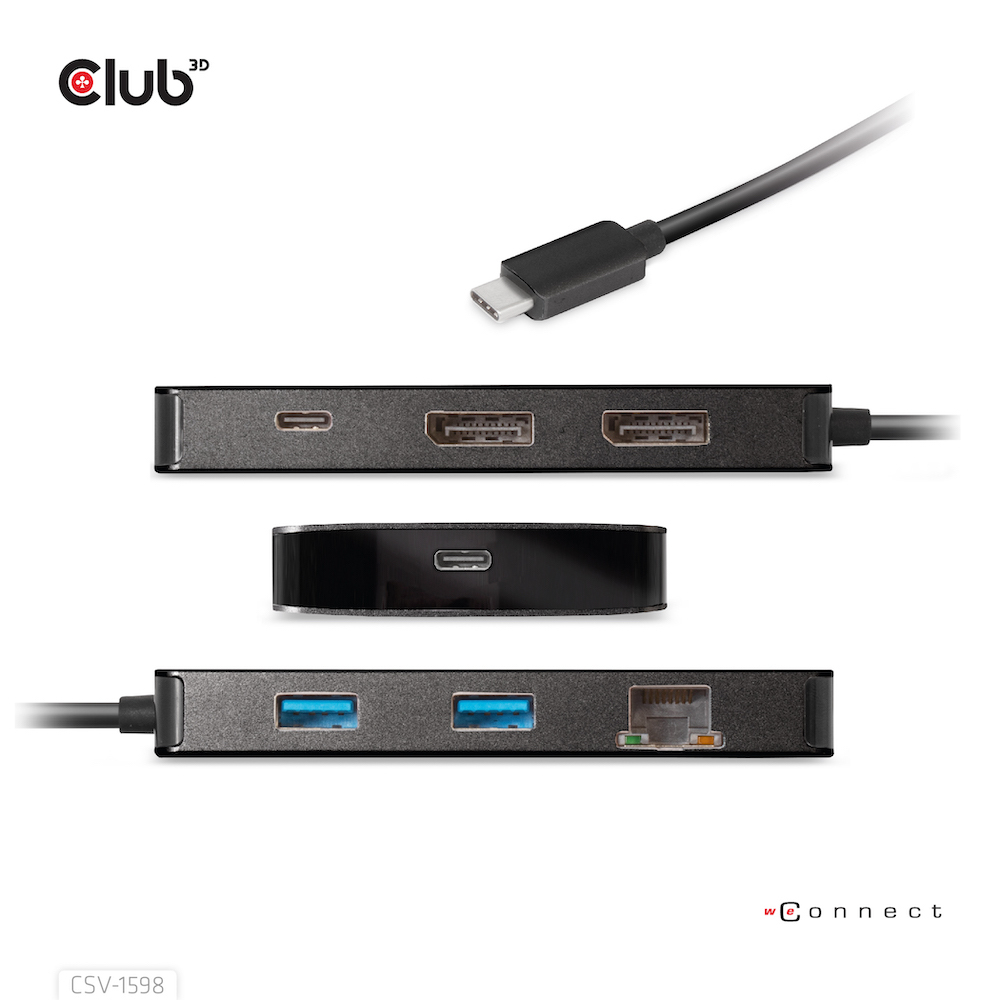

| Hub interfaces | DisplayPort, RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Technical details | |
| Product colour | Black |
| Plug and Play | Yes |
| Cable length | 0.17 m |
| Harmonized System (HS) code | 8473 3020 |
| Plastic packaging weight | 0 g |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power consumption (max) | 7.5 W |
| Output voltage | 5 V |
| Output current | 1.5 A |
| Wireless charging | No |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |

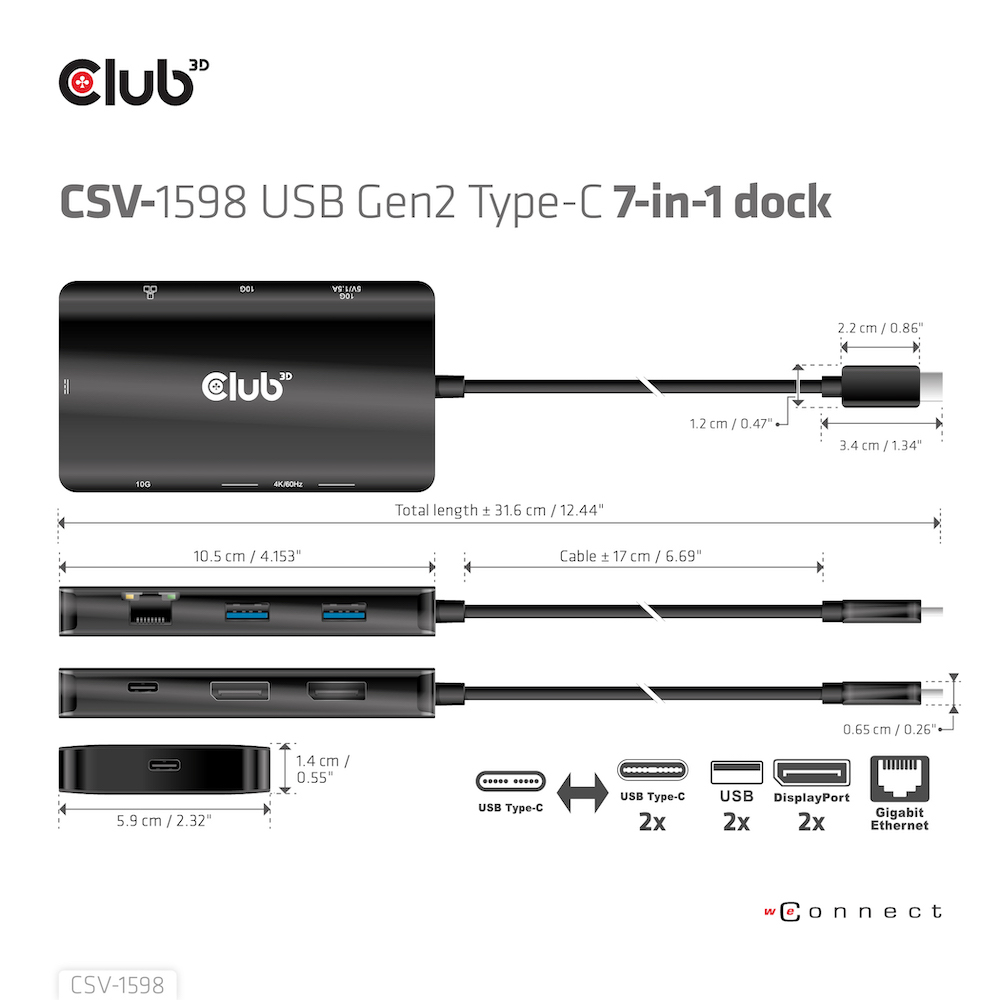

| Weight & dimensions | |
| Weight | 102 g |
| Width | 105 mm |
| Depth | 59 mm |
| Height | 14 mm |
| Package weight | 156 g |
| Package width | 80 mm |
| Package depth | 32 mm |
| Package height | 250 mm |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Product colour | Black |
| Certification | ROHS, FCC, CE EMI |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 156 g |
| Package width | 80 mm |
| Package depth | 32 mm |
| Package height | 250 mm |
| Certificates | |
| Certification | ROHS, FCC, CE EMI |

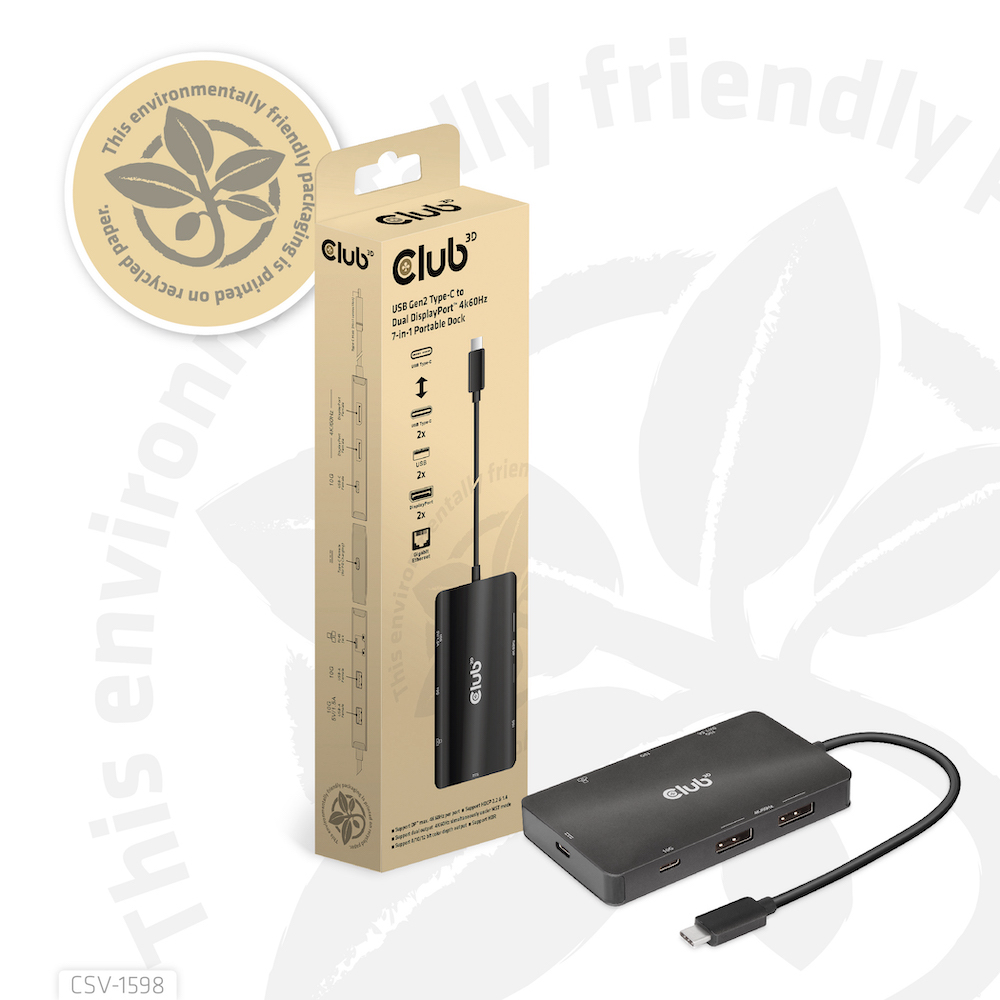

| Packaging composition | |
| Plastic packaging weight | 0 g |
| Paper/cardboard packaging weight | 54 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 8473 3020 |
| Other features | |
| Cable type | Round cable |
| Cable length | 0.17 m |
