EU Product - Pistol grip for Duo Near and Far Range scanning for MT9055 (compatible cradle CD9050-03)

Introduction

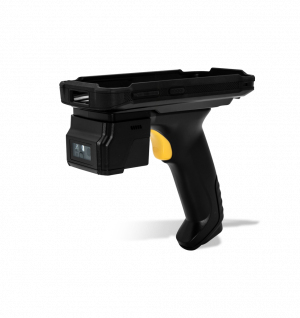

Newland EX90 Pistol Grip Duo Near & Far

Features

• Duo Scanning Technology - The EX90 is designed with advanced Duo technology, which combines two independent scan engines working in tandem to provide efficient near-far barcode scanning. By using two separate scan engines, the EX90 can quickly and seamlessly switch between them based on the distance of the barcode, resulting in faster scanning and improved productivity.
• Compatible Design - The pistol grip is compatible with MT90 Orca 111 and allows for easy attachment to the device, while its lightweight and well-balanced design reduces stress and fatigue during long work sessions.
• Long-range Reading Ability - The EX90 is able to read 1D and 2D barcodes at a distance of up to 9.8 meters.
• lndustrial Durability - Featuring an IP65 sealing, the EX90 is protected against water and dust and withstands 1.2m drops to concrete.
• Long Battery Life - The MT90 III is equipped with a 4500mAh battery that supports the EX90 for up to 12 hours on a single charge.

Specifications

Miscellaneous
Additional Information	Data Capture: Illumination: White LED Aiming : Laser aiming Resolution: 1280x800, monochrome, 30 frame/sec Scan Rate: Up to 30f/s seif-adaption Depth of Field Code128 (15mil): 75mm-2600mm Depth of Field Code128 (100mil): 440mm-9800mm Depth of Field DataMatrix (10mil): 190mm-310mm Depth of Field DataMatrix (55mil): 105mm-3900mm Depth of Field QR Code (10mil): 195mm-250mm Depth of Field QR (55mil): 110mm-3700mm Performance: Scan Angle: Pitch 75°, Skew 45° Physical: User Input: Trigger on pistol grip Environmental Operating Temperature: -20°C to 50°C {-4°F to 122°F) Storage Temperature: -30°c to 70°c {-22°F to 158°F) Humidity: 5% to 95% {non-condensing) Electro Static Discharge (E5D}: ±15kV {air discharge}, ±8kV {direct discharge) Drop: 1.2m IP Rating: IP65 Communication: Host Terminal: MT90 Orca III Host Connection: 8-pin connector Newland EMEA HQ Suggested industries: Logistics Transportation Warehousing
Compatibility	Newland MT90 Orca III Mobile Computers
Physical Characteristics
Weight (Approximate)	230 g
Height	165 mm
Width	160 mm
Depth	82 mm
