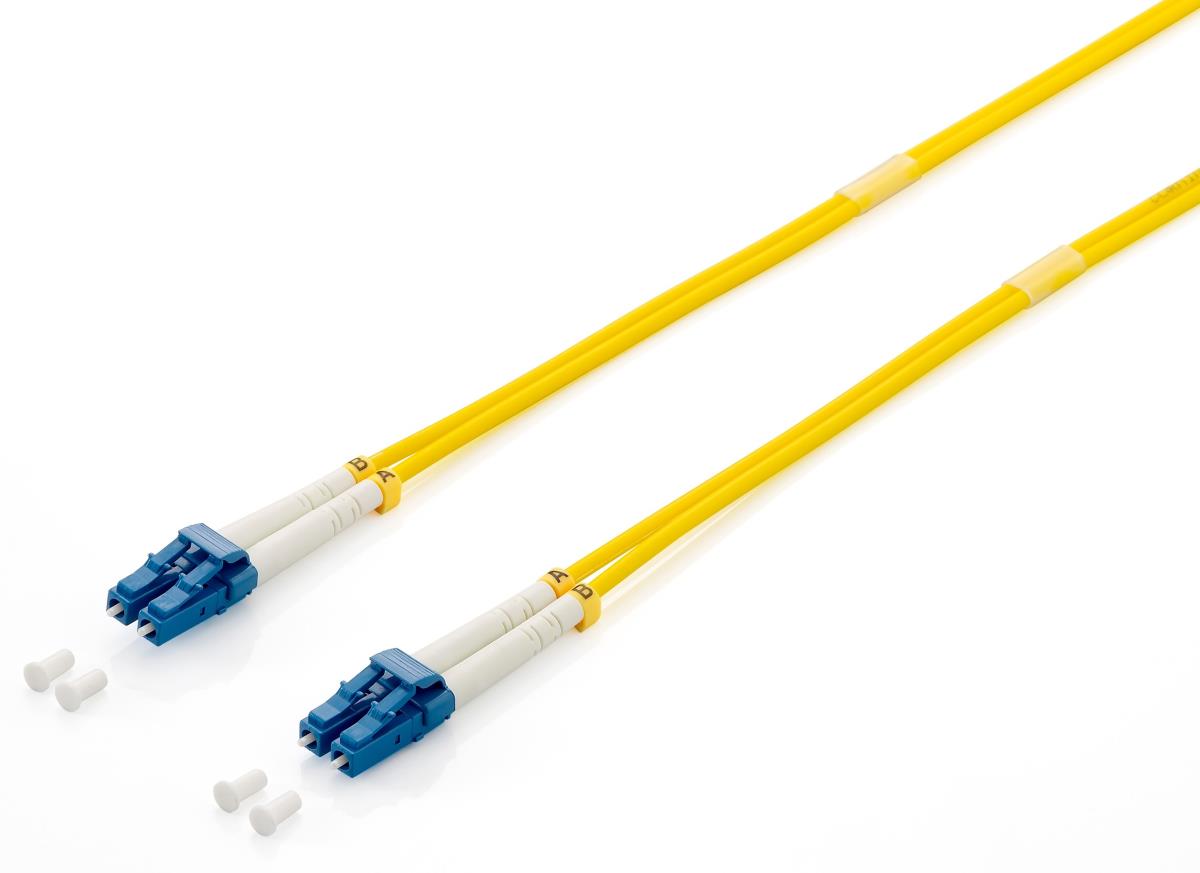

EU Product - Patchkabel LC->LC 2.00m Singlemode Duplex OS2 gelb Polybeutel
Introduction
The equip® Optical Fiber Patch Cord is made of superior materials to ensure an end-face geometry connection with lower return loss and insertion loss. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Specifications
| Technical details | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 2 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Compliance certificates | REACH, RoHS |
| Features | |
| Fibre optic type | OS2 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 2 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Insertion loss | 0.3 dB |
| Harmonized System (HS) code | 85447000 |
| Product colour | Yellow |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Weight & dimensions | |
| Cable length | 2 m |
| Package width | 275 mm |
| Package depth | 12 mm |
| Package height | 175 mm |
| Weight | 27 g |
| Package weight | 36.67 g |
| Packaging data | |
| Package width | 275 mm |
| Package depth | 12 mm |
| Package height | 175 mm |
| Package weight | 36.67 g |
| Logistics data | |
| Harmonized System (HS) code | 85447000 |
