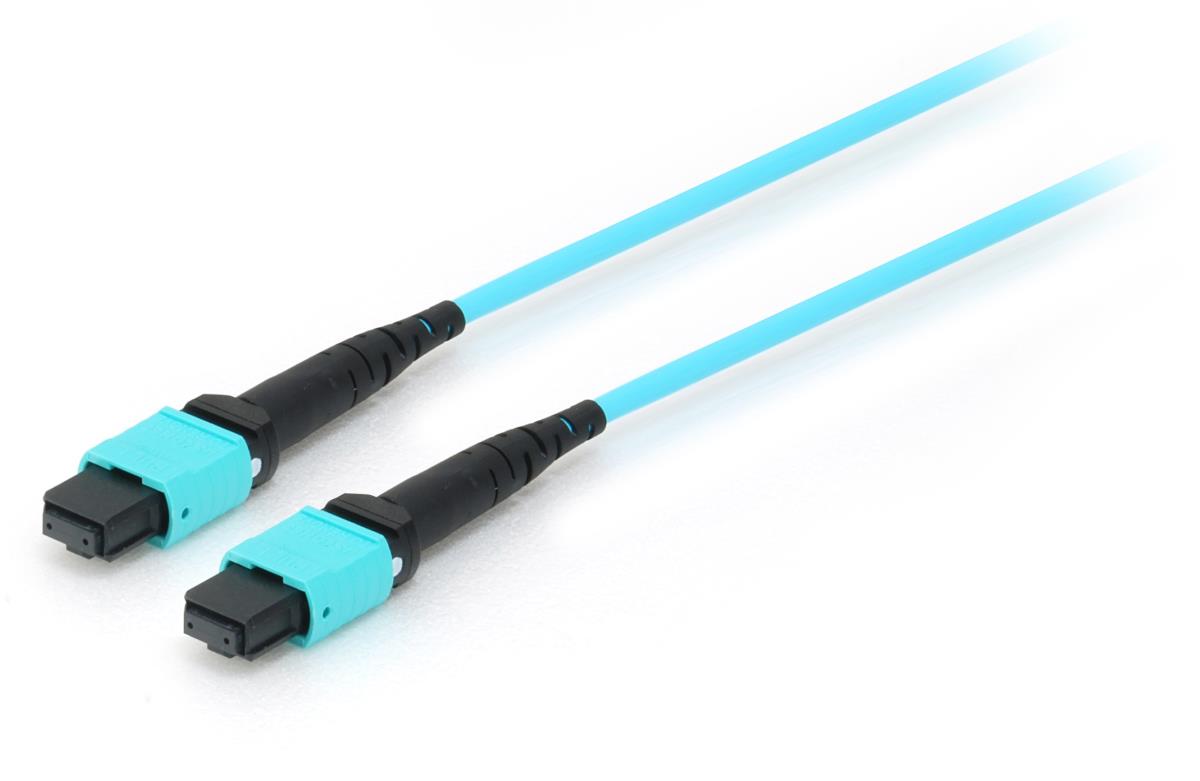

EU Product - Patchkabel MTP->MTP 15.00m Multimode OM4 türkis Polybeutel
Introduction
The equip® MTP/MTP Trunk Fiber Patch Cord OM4 is a pre-terminated optical fiber cabling system, specifically designed to satisfy the increasing demand for high bandwidth and high density in data center network and enterprise building application.
Specifications
| Technical details | |
|---|---|
| Jacket material | Low smoke fire retardant zero halogen (LSFRZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | MTP |
| Connector 2 | MTP |
| Cable length | 15 m |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.5 dB |
| Compliance certificates | REACH, RoHS |
| Features | |
| Fibre optic type | OM4 |
| Jacket material | Low smoke fire retardant zero halogen (LSFRZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | MTP |
| Connector 2 | MTP |
| Cable length | 15 m |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Insertion loss | 0.5 dB |
| Harmonized System (HS) code | 85447000 |
| Product colour | Cyan |
| Connector 2 gender | Female |
| Connector 1 gender | Female |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Weight & dimensions | |
| Cable length | 15 m |
| Package width | 335 mm |
| Package height | 250 mm |
| Weight | 97 g |
| Package weight | 0 g |
| Packaging data | |
| Package width | 335 mm |
| Package height | 250 mm |
| Package weight | 0 g |
| Logistics data | |
| Harmonized System (HS) code | 85447000 |
