50M FIBRE OPTIC HYBRID MINI
Introduction
Lindy's range of Fibre Optic Hybrid Mini DP 1.4 Cable with detachable connectors are the professional solution for extending both Mini DisplayPort and DisplayPort signals over longer distances, with no requirement for additional adapters. Combining the flexibility and high EMI and RFI resistance of fibre optic cable with standard copper cabling, these hybrid cables are ideal for use in critical AV setups or commercial installations.

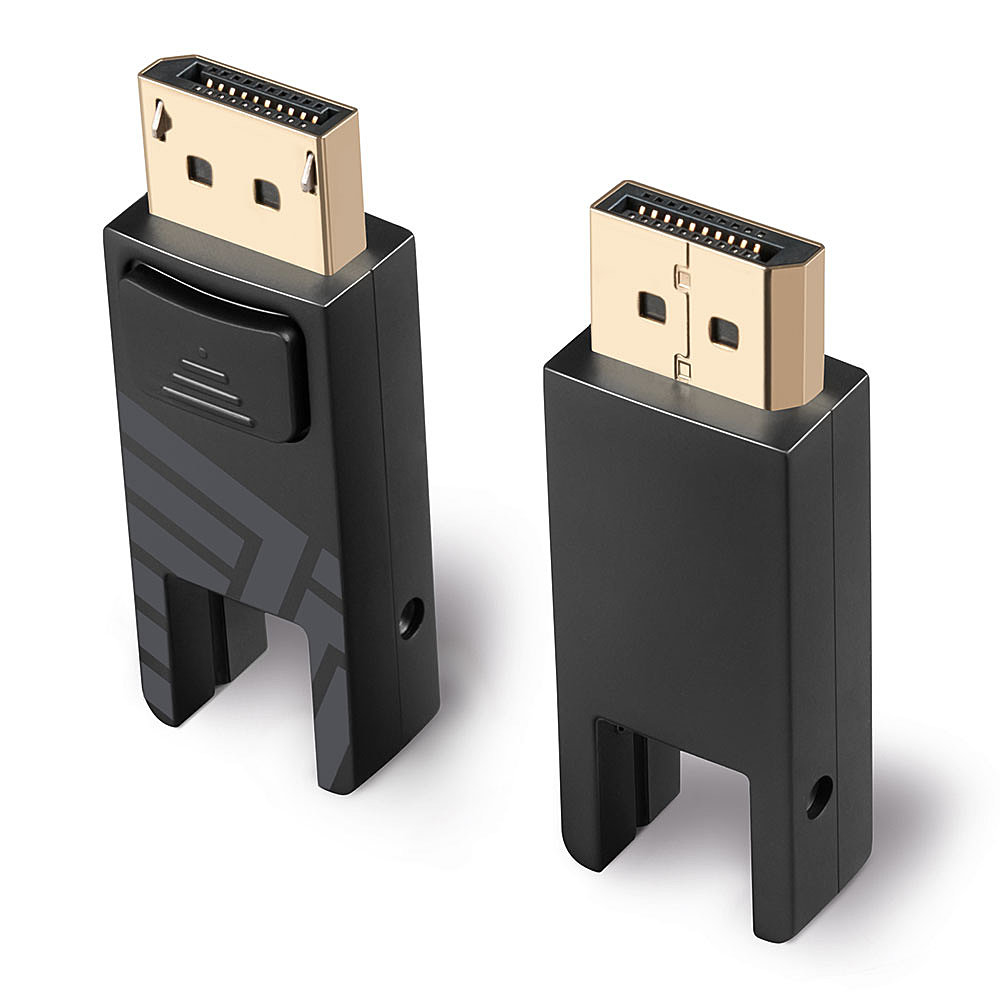

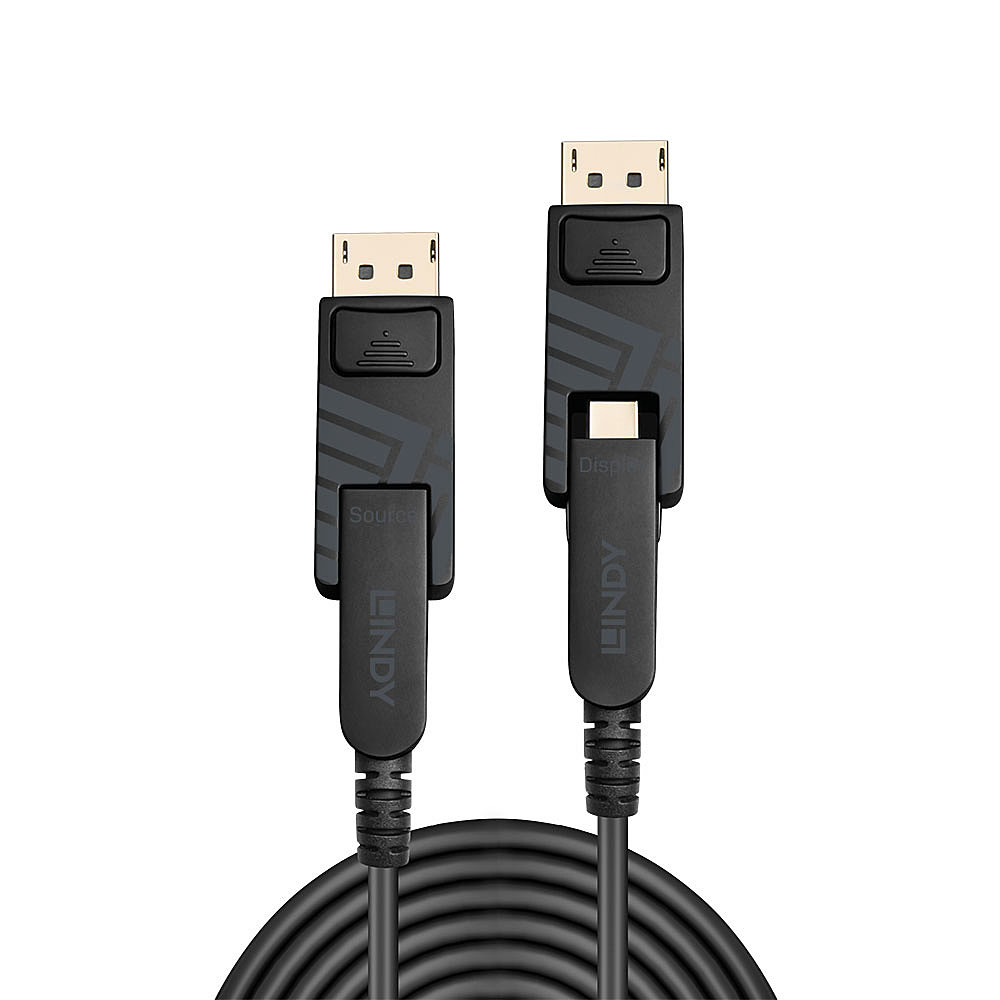

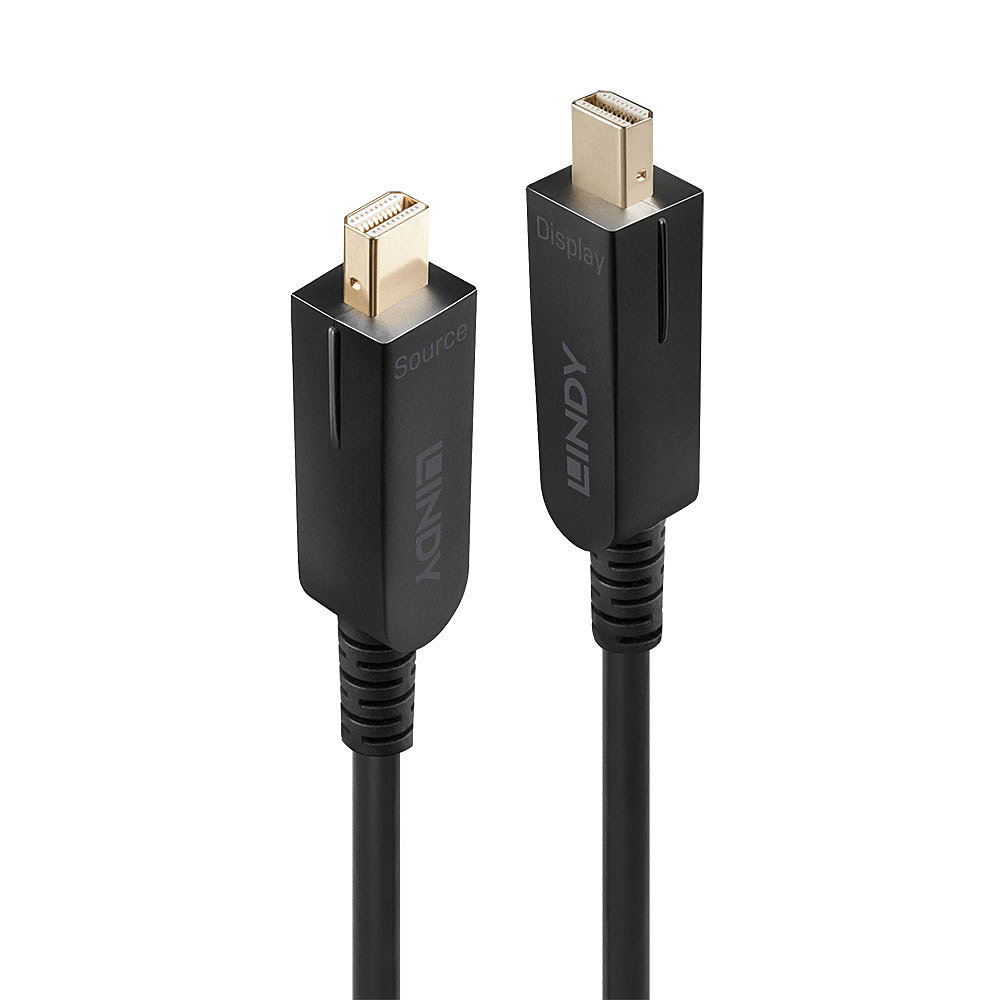

Supplied as a thin cable with a premium metal, narrow Mini DisplayPort connector, this can be installed easily through conduit and other narrow spaces with no damage caused to the internal cable structure, while the detachable DisplayPort connector can be added at the ends of the installation for connection to an even wider variety of displays and devices such as PCs or digital signage. This innovative design allows for a much wider range of connectivity solutions that can be customized freely by the user, including Mini DP to Mini DP, DP to DP or Mini DP to a DP display.
Supporting all the premium features that come with the DP 1.4 specification, these cables can deliver resolutions up to 8K at 60Hz, or 4K at high frame rates of 120Hz, perfect for ensuring the best possible image quality in attention grabbing retail displays, immersive AV installations at events or a responsive, crystal-clear solution in transportation settings. Static and dynamic HDR support ensures a much wider colour gamut, greater contrasts and an enhanced brightness to provide eye-catching content even in outdoor or brightly lit scenarios.
Specifications
| Features | |
|---|---|
| Product colour | Black |
| Cable length | 50 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | Mini DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| DisplayPort version | 1.4 |
| Data transfer rate | 32.4 Gbit/s |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 4096 x 2160, 7680 x 4320 |
| Supported video modes | 2160p, 4320p |
| Certification | CE, FCC, REACH |
| Maximum refresh rate | 120 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Certificates | |
| Certification | CE, FCC, REACH |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Cable diameter | 4.8 mm |
| Packaging data | |
| Cable diameter | 4.8 mm |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
