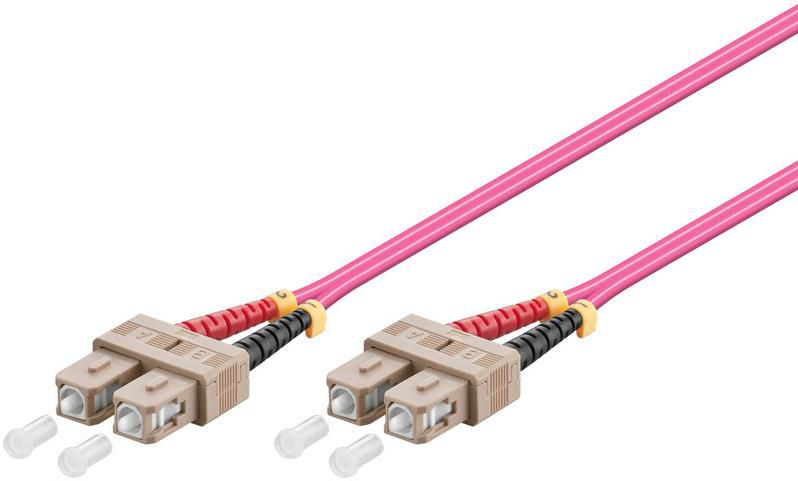

EU Product - SC/UPC-SC/UPC 10m OM4 Fire
Introduction
OM4 patch cords are used to connect high speed and legacy networks like 10/40/100 gigabit ethernet, fast ethernet and ethernet. This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications. Multimode patch cords are manufactured using LSZH cable and conform to Telcordia, EIA TIA or IEC standards.
Specifications
| Features | |
|---|---|
| Fibre optic type | OM4 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | SC |
| Connector 2 | SC |
| Cable length | 10 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Product colour | Pink |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Cable diameter | 2 mm |
| Weight | 200 g |
| Cable length | 10 m |
| Package weight | 250 g |
| Packaging data | |
| Package weight | 250 g |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | SC |
| Connector 2 | SC |
| Cable length | 10 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
