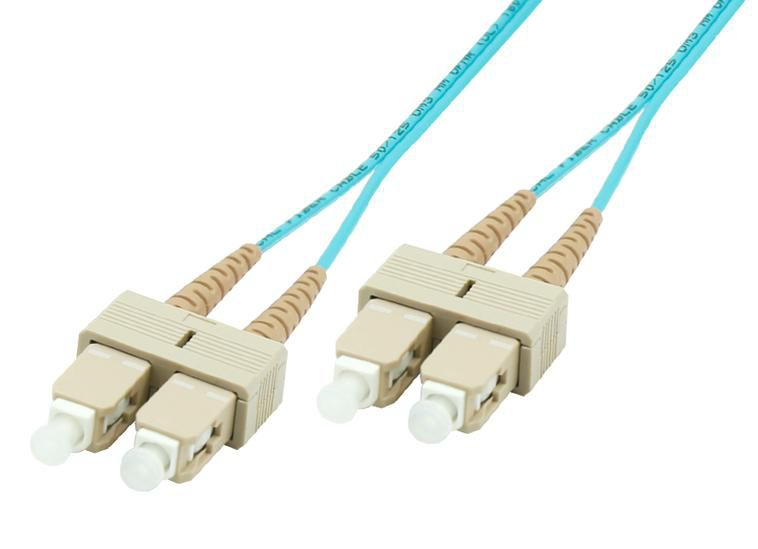

EU Product - SC/UPC-SC/UPC 10m OM3 Fire
Introduction
The 50/125µm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections. The multimode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
Specifications
| Features | |
|---|---|
| Fibre optic type | OM3 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | SC |
| Connector 2 | SC |
| Cable length | 10 m |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Product colour | Blue |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Cable diameter | 2 mm |
| Weight | 78 g |
| Cable length | 10 m |
| Package width | 174 mm |
| Package depth | 172 mm |
| Package height | 27 mm |
| Package weight | 88 g |
| Packaging data | |
| Package width | 174 mm |
| Package depth | 172 mm |
| Package height | 27 mm |
| Package weight | 88 g |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | SC |
| Connector 2 | SC |
| Cable length | 10 m |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Other features | |
| Core / cladding diameter | 50/125 µm |
