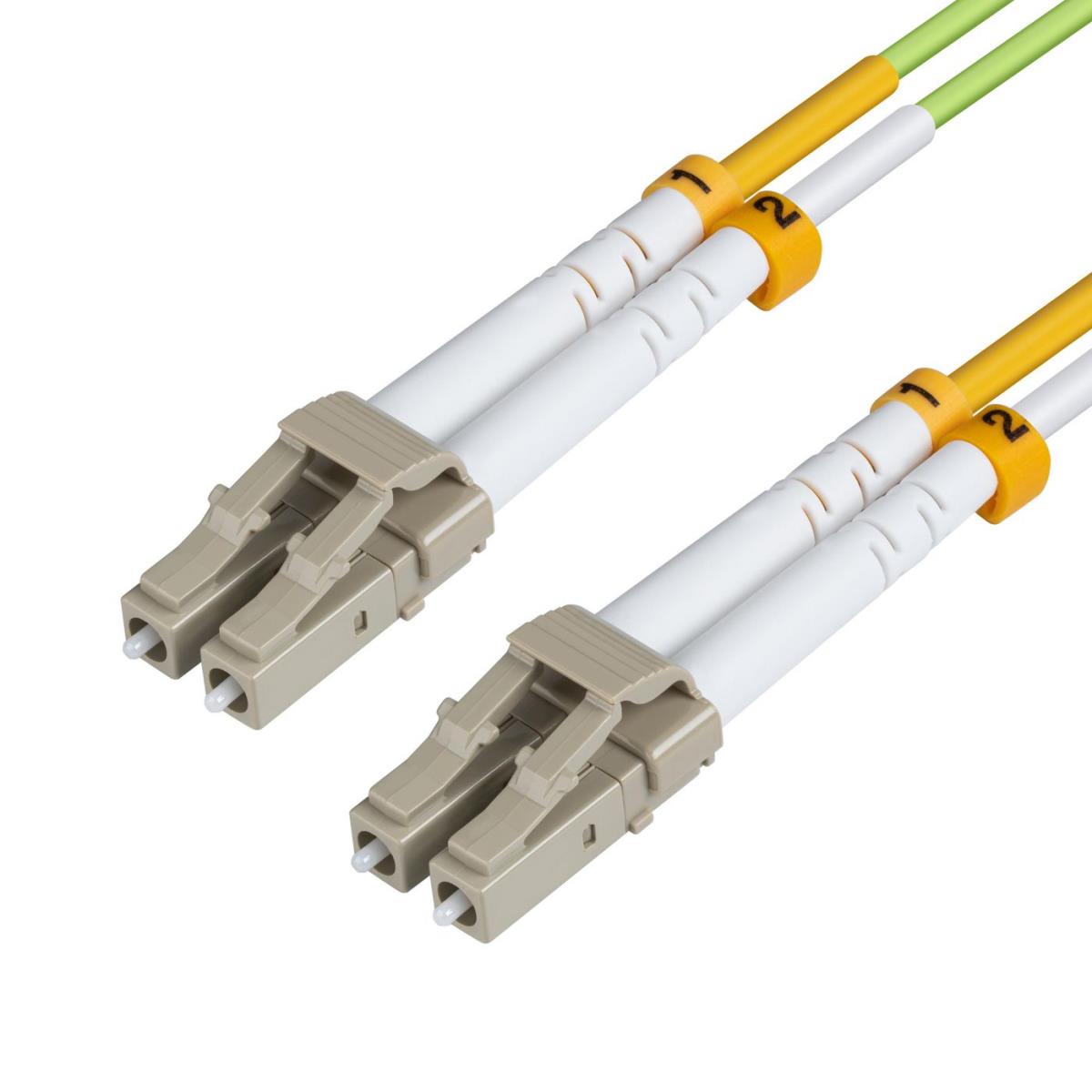

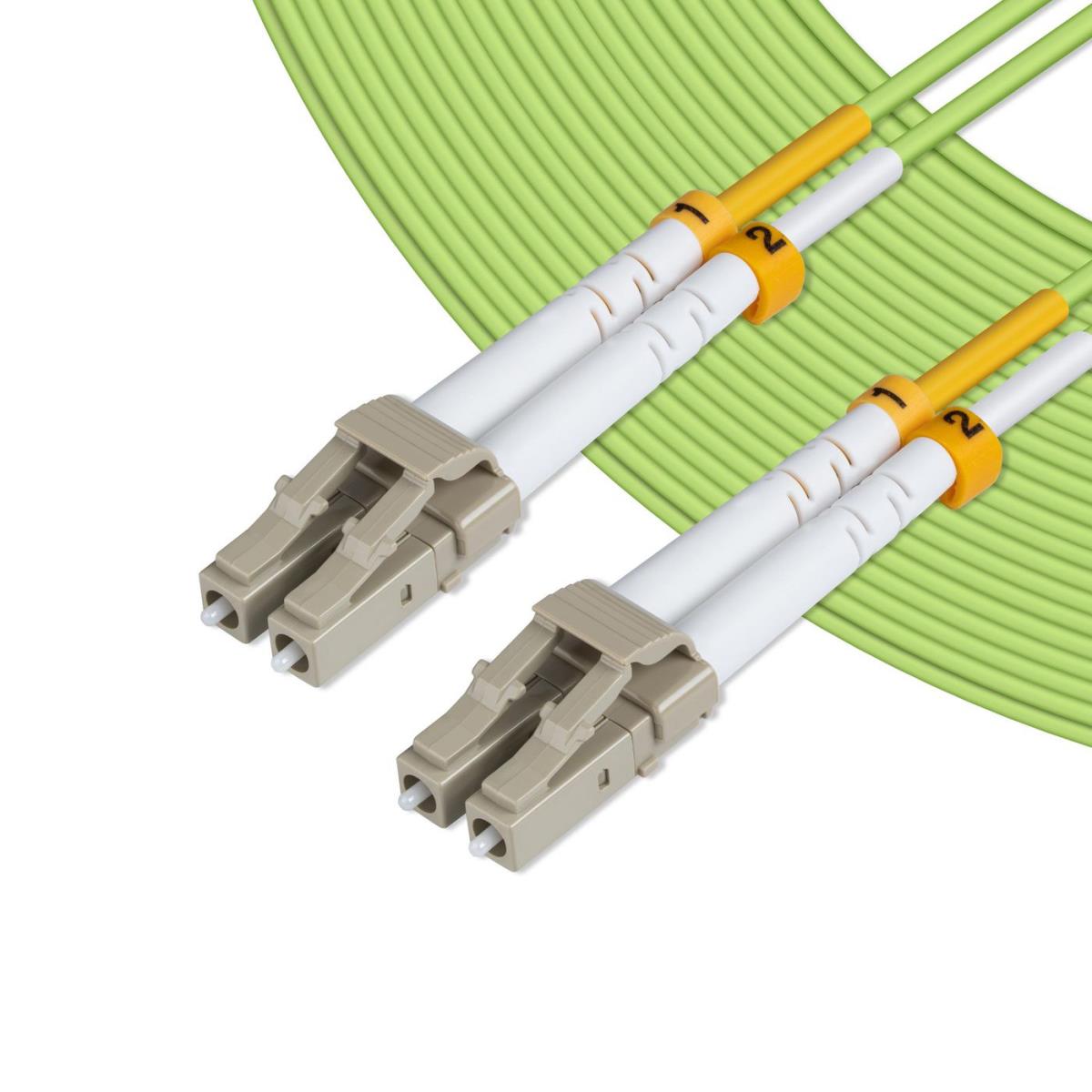

EU Product - LC/UPC-LC/UPC 100m OM5 Fire
Introduction
Due to the demand of the continuously increasing bandwith, the fiber patch cables aslo has updated quality. The latest version is Multimode OM5, also known as WBMMF (WideBrand MultiMode Fiber). This is made to meet the growing bandwith requirements.
Specifications
| Features | |
|---|---|
| Fibre optic type | OM5 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 100 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Product colour | Green |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Cable diameter | 2 mm |
| Weight | 1.5 kg |
| Cable length | 100 m |
| Package weight | 2.5 kg |
| Packaging data | |
| Package weight | 2.5 kg |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 100 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
