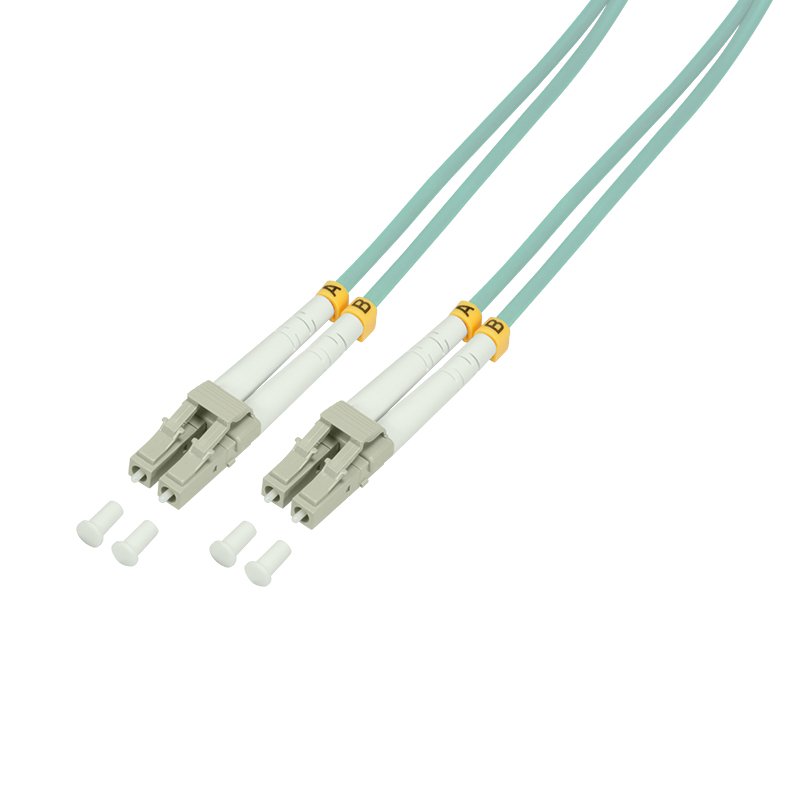

EU Product - Glasfaser Patchkabel OM3 50/125Á LC-LC 2,0m türkis
Introduction
- Duplex Jumper 50/125_ Multimode
- Fiber: I-VH 2G 50/125_ OM3
- Jacket: LSZH, aqua, 3.0 mm Ĝ
- Application: up to 10 Gbit/s / 500 m
- Standard: DIN EN 50173-1 and IEC/ISO 11801
- Quality: Each cable includes a measure protocol
Specifications
| Features | |
|---|---|
| Fibre optic type | OM3 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 2 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Data transfer rate | 10 Gbit/s |
| Product colour | Blue |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Certification | DIN EN 50173-1, IEC/ISO 11801 |
| Harmonized System (HS) code | 85447000 |
| Certificates | |
| Certification | DIN EN 50173-1, IEC/ISO 11801 |
| Weight & dimensions | |
| Weight | 50 g |
| Cable length | 2 m |
| Package width | 180 mm |
| Package depth | 180 mm |
| Packaging data | |
| Package width | 180 mm |
| Package depth | 180 mm |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 2 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Data transmission | |
| Data transfer rate | 10 Gbit/s |
| Logistics data | |
| Harmonized System (HS) code | 85447000 |
