EU Product - endle LC-LC Singlemode
Introduction

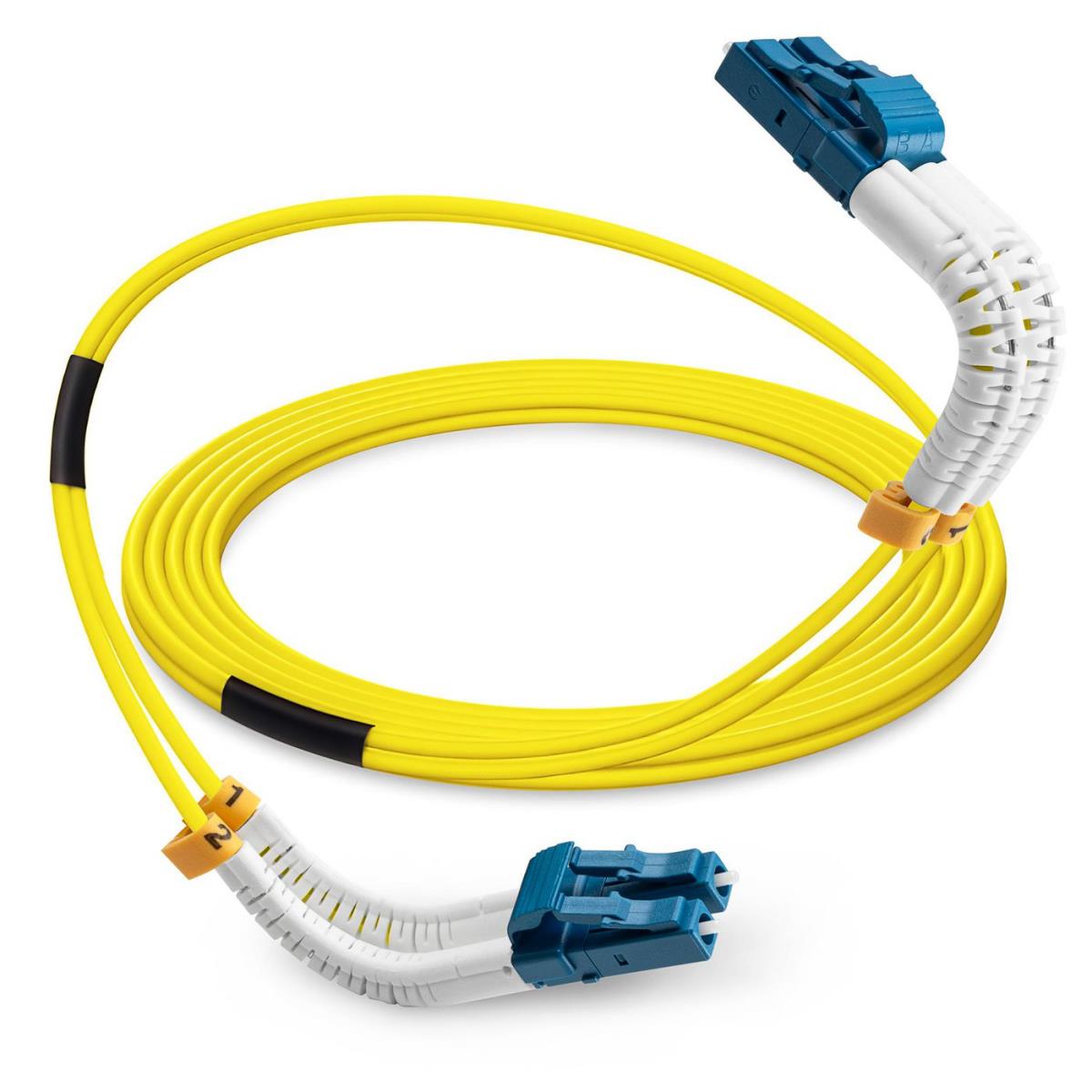

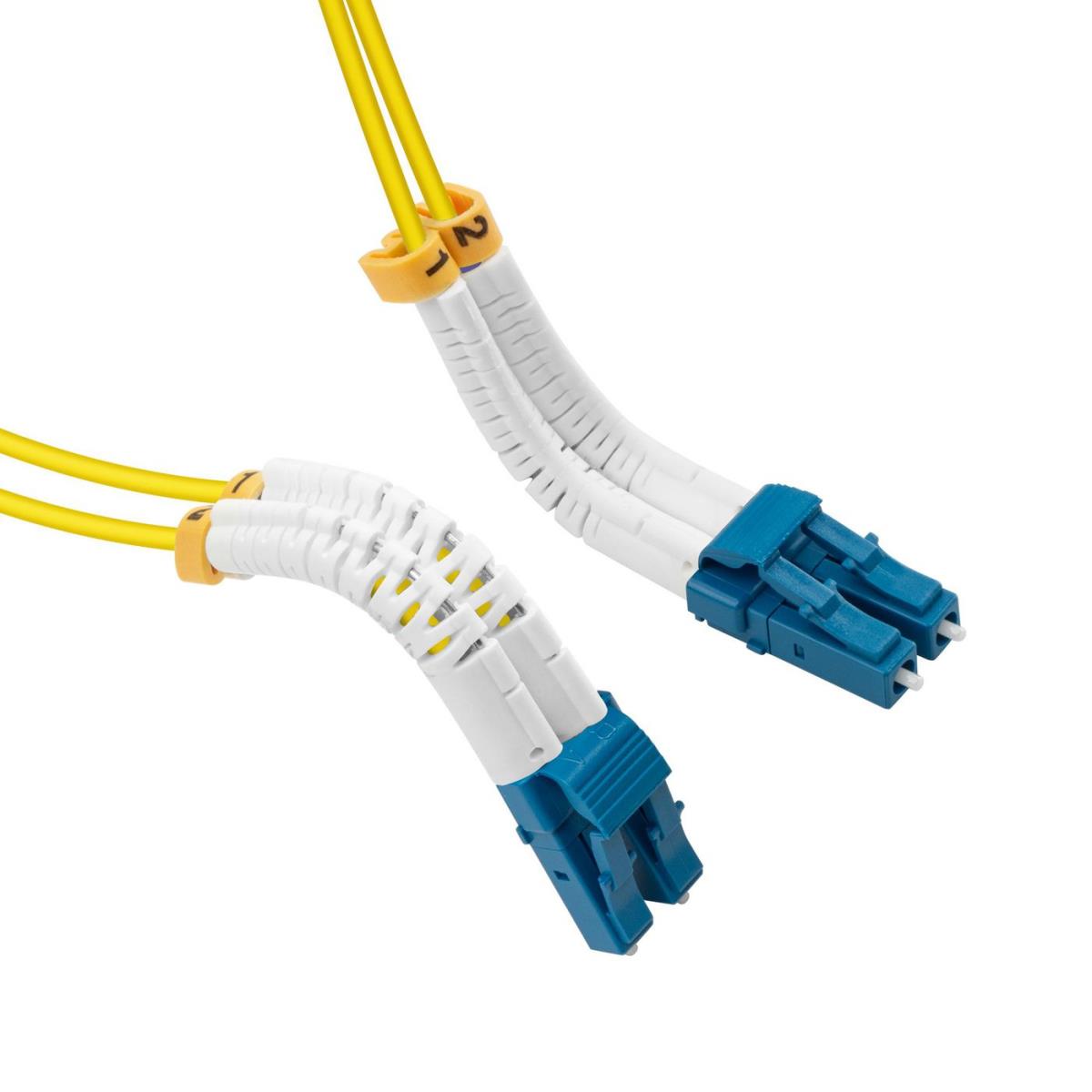

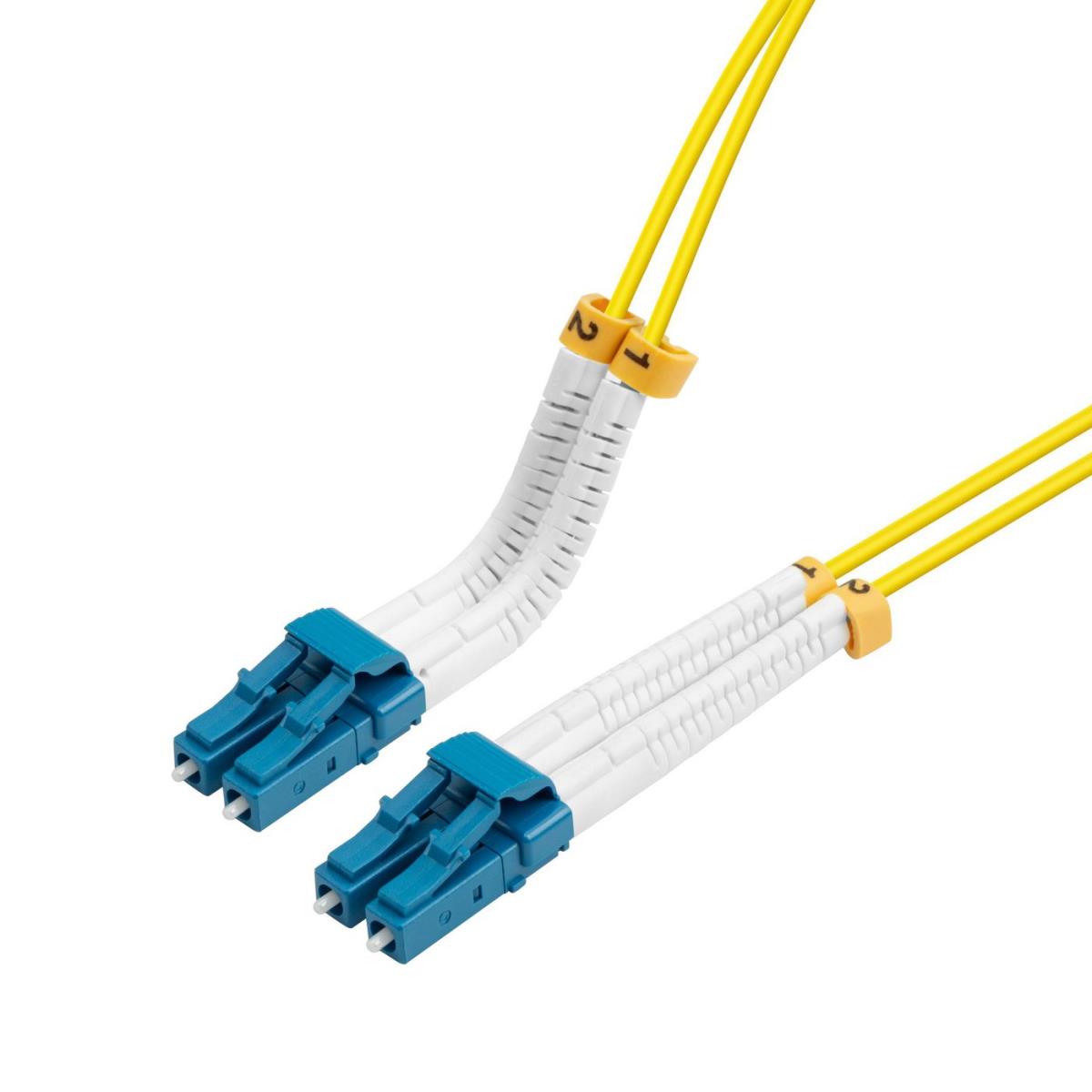

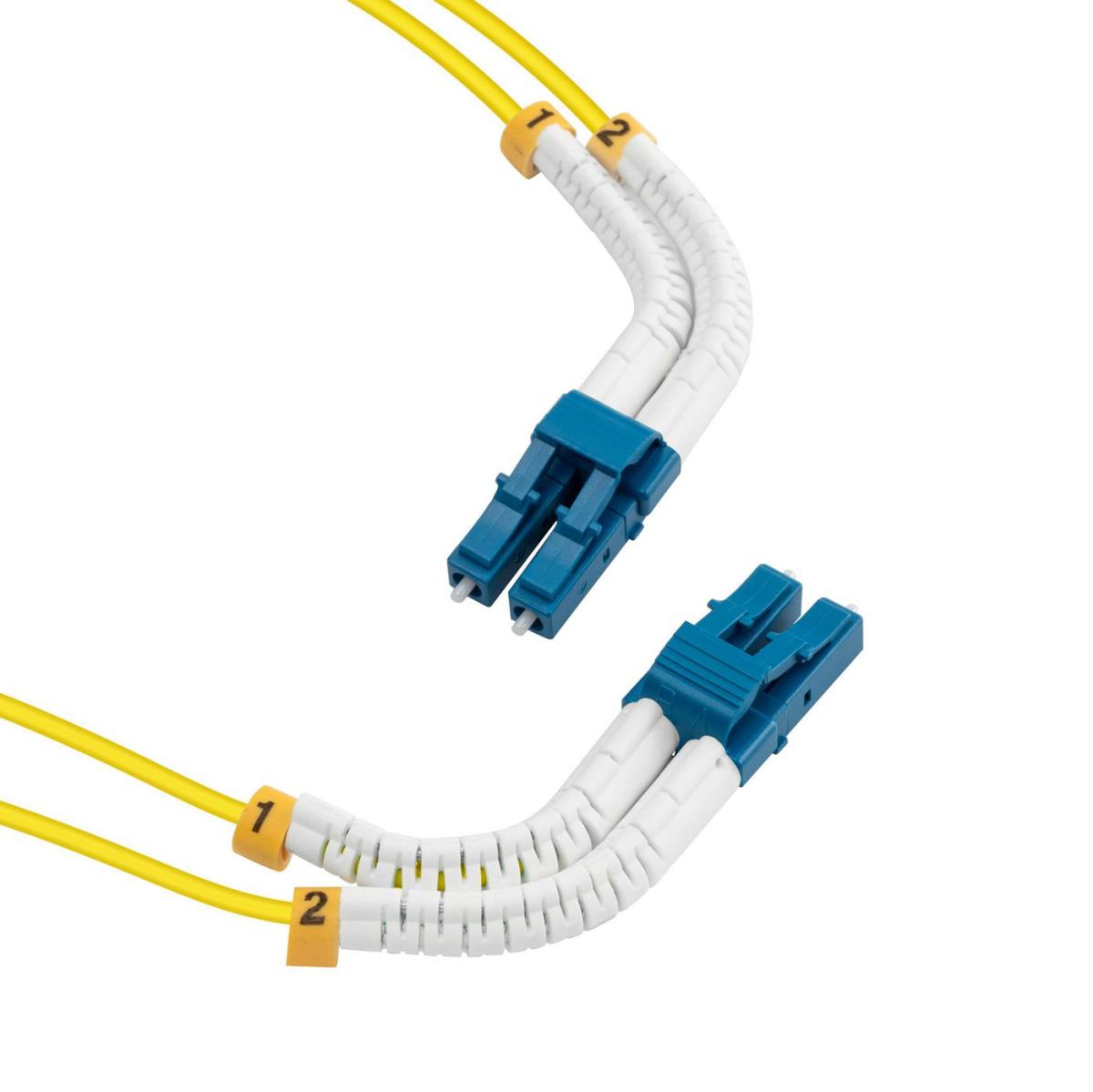

The Lanview Bendable series are designed for versatile cable management, capable of bending and maintaining any angle from straight to 90 degrees. The boot, molded over a single stainless-steel wire, can be easily positioned by hand, with the internal wire ensuring it holds the desired angle or direction.
Specifications
| Features | |
|---|---|
| Compressive strength | 10 |
| Fibre optic type | OS2 |
| Return loss | 50 dB |
| Connector gender | Male/Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 10 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Wavelengths supported | 1310 nm |
| Product colour | Yellow |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector polish type | UPC |
| Plug and Play | Yes |
| Bending radius | 3 cm |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Sustainability | |
| Doesn't contain | Halogen |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Bending radius | 3 cm |
| Cable diameter | 2 mm |
| Weight | 180 g |
| Cable length | 10 m |
| Package width | 180 mm |
| Package depth | 40 mm |
| Package height | 200 mm |
| Package weight | 180 g |
| Packaging data | |
| Package width | 180 mm |
| Package depth | 40 mm |
| Package height | 200 mm |
| Package weight | 180 g |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 10 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Doesn't contain | Halogen |
| Other features | |
| Core / cladding diameter | 9/125 µm |
