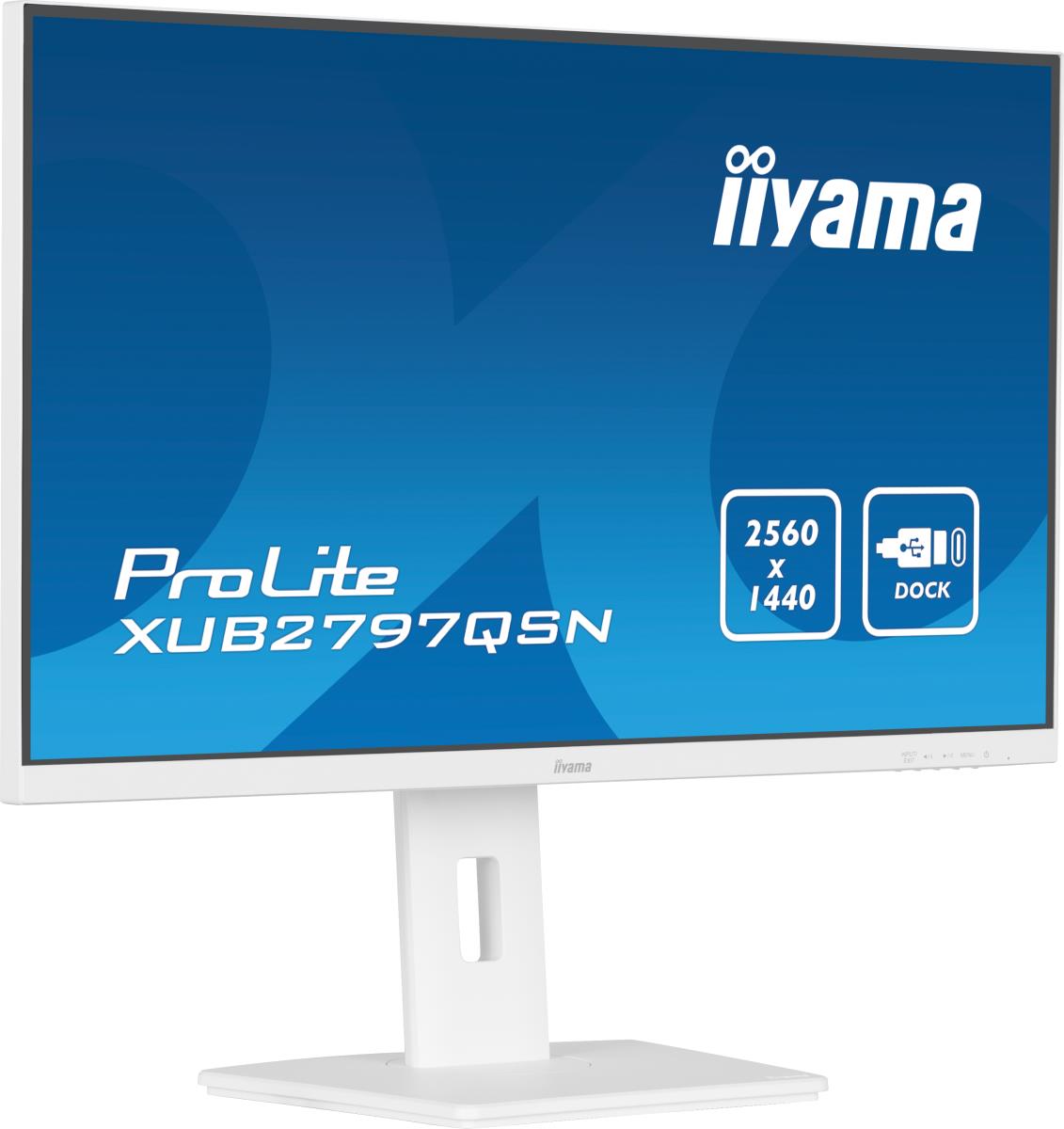

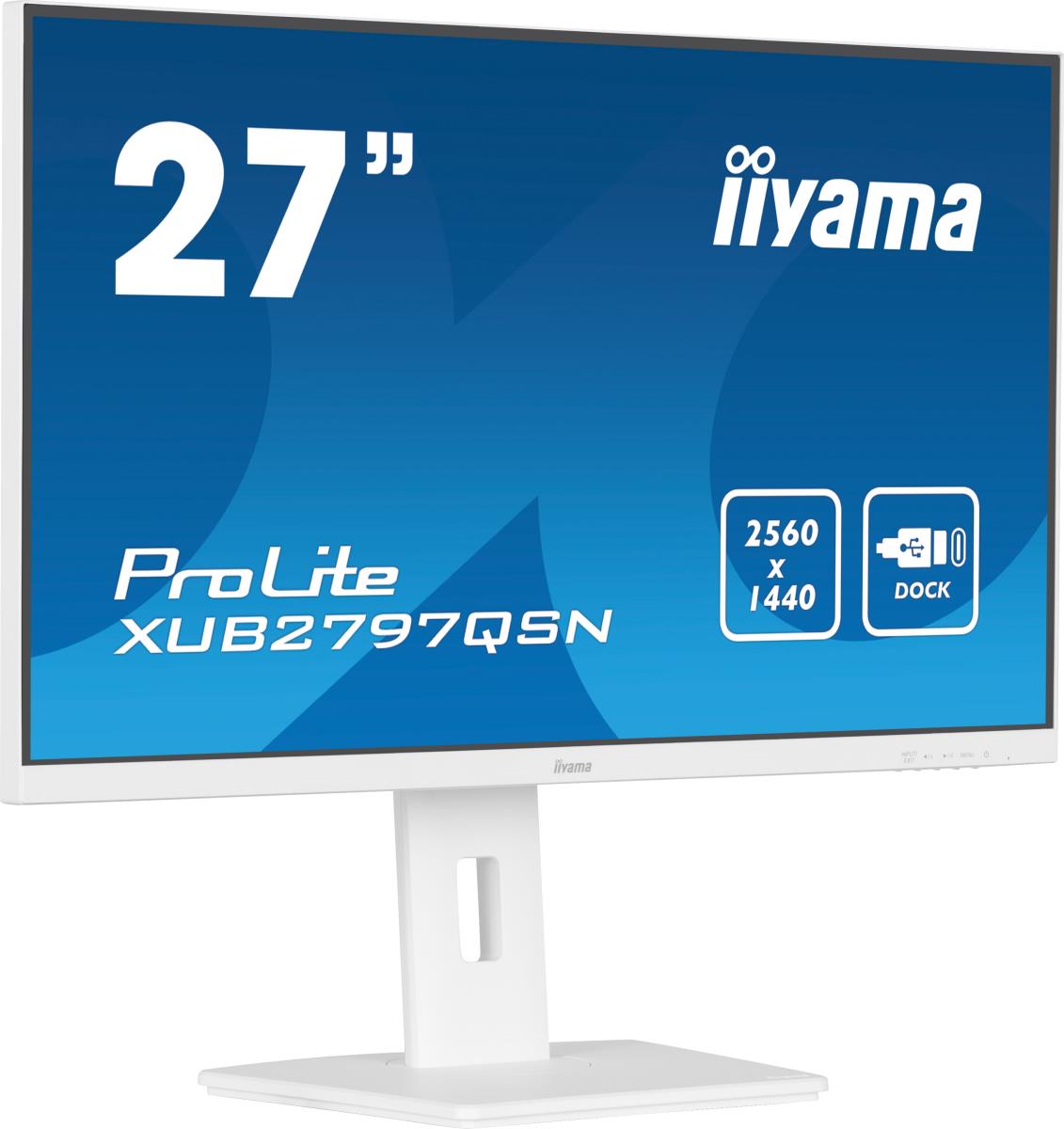

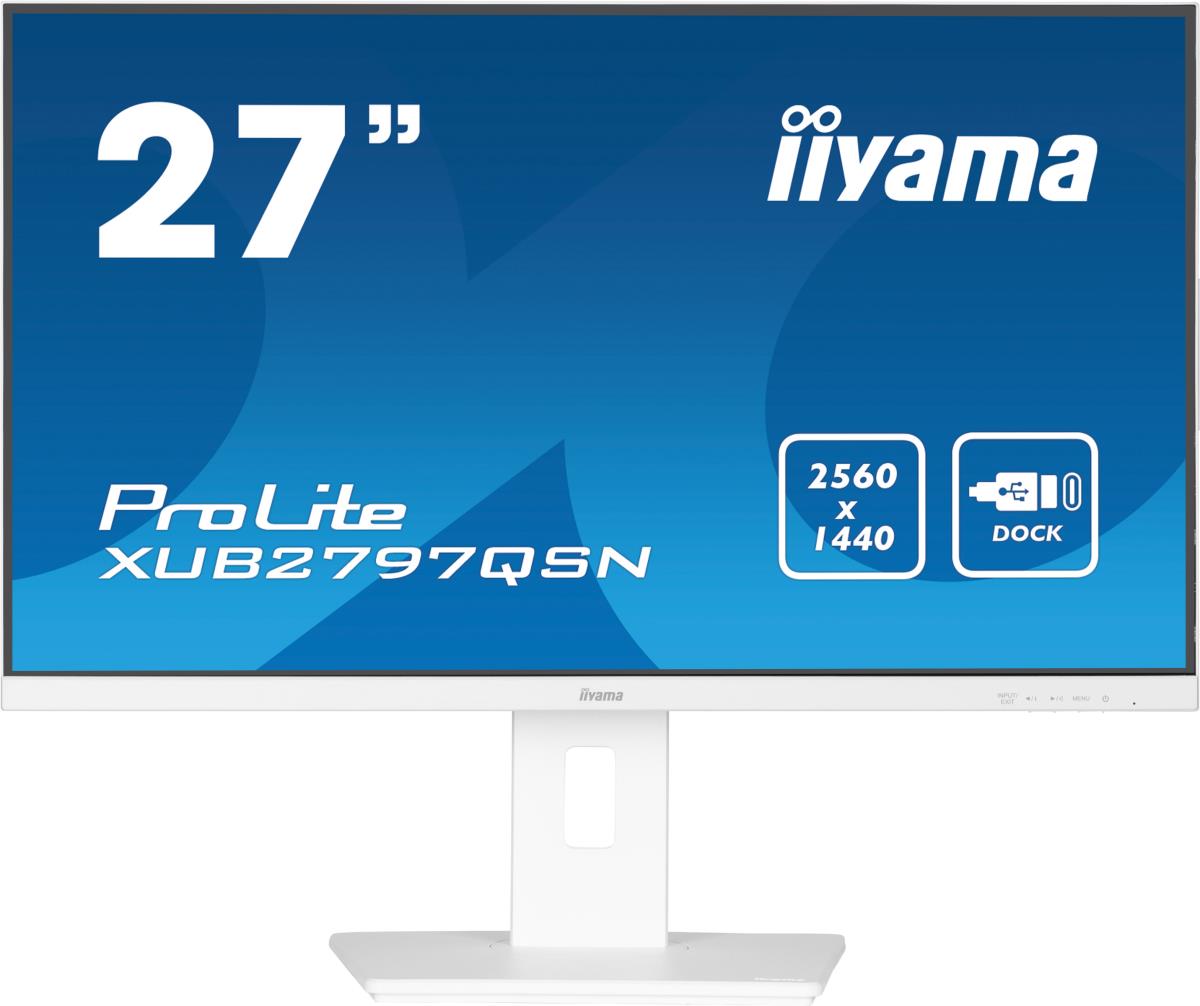

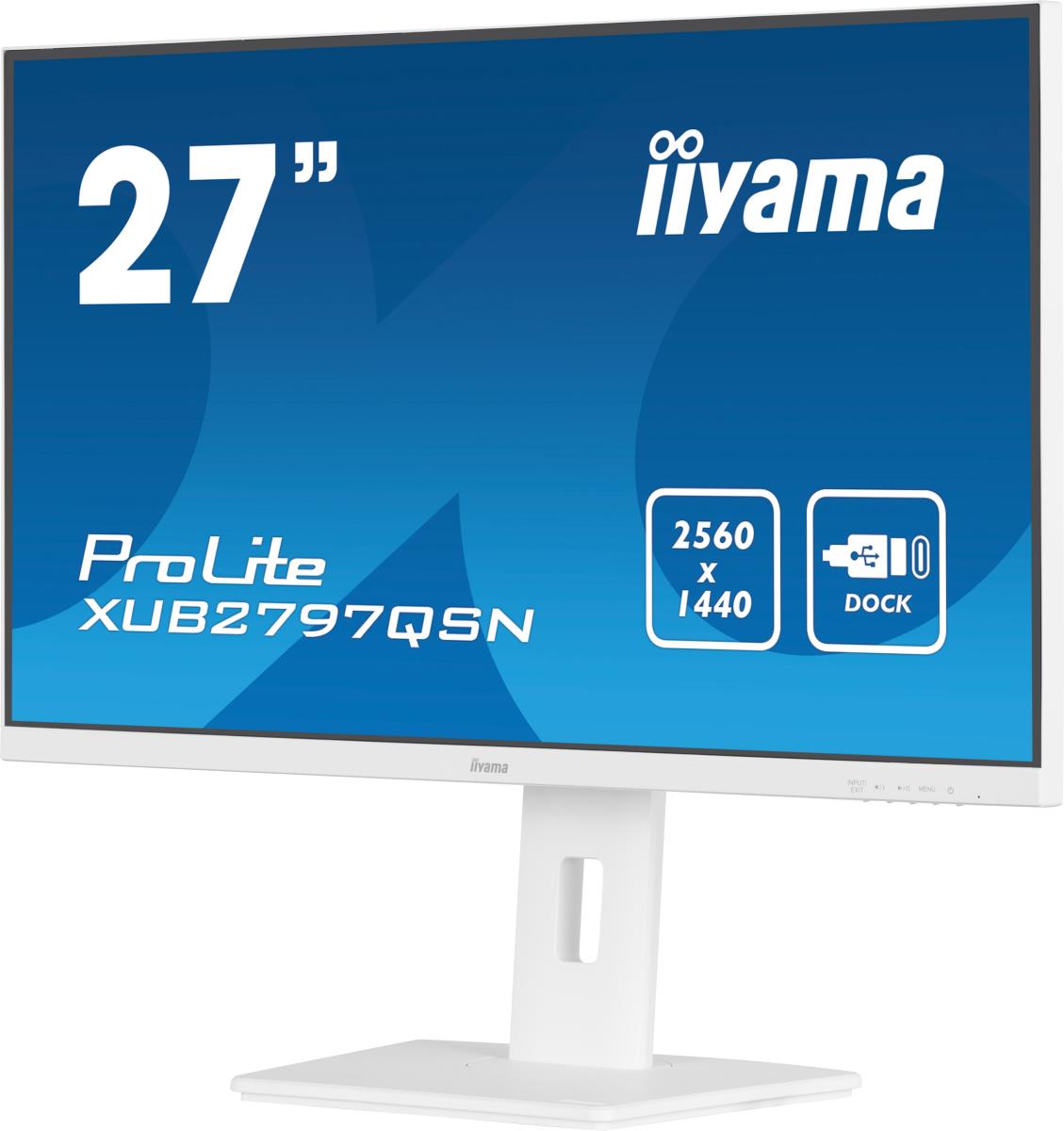

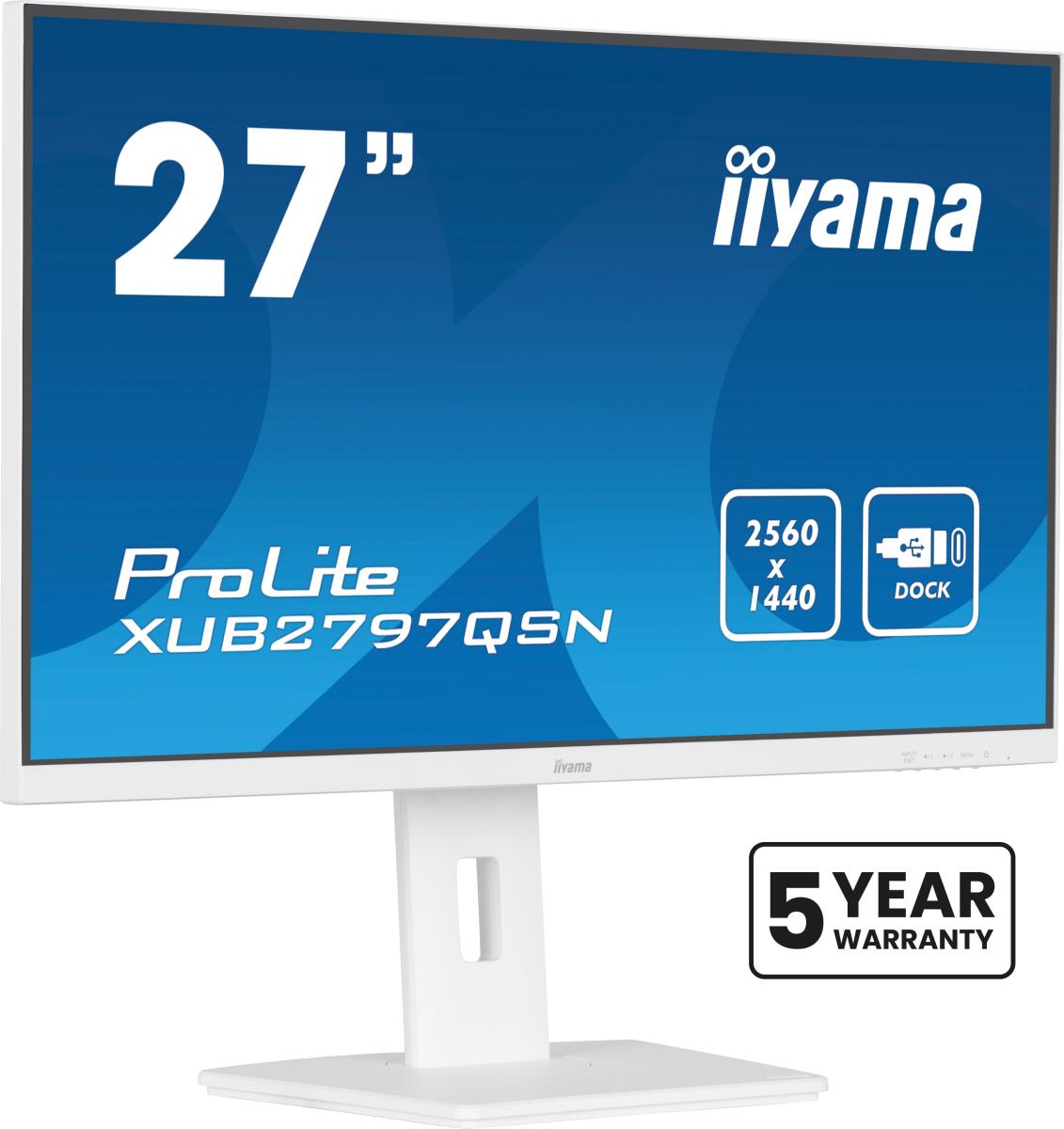

27’’ QHD IPS technology panel with USB-C
Introduction

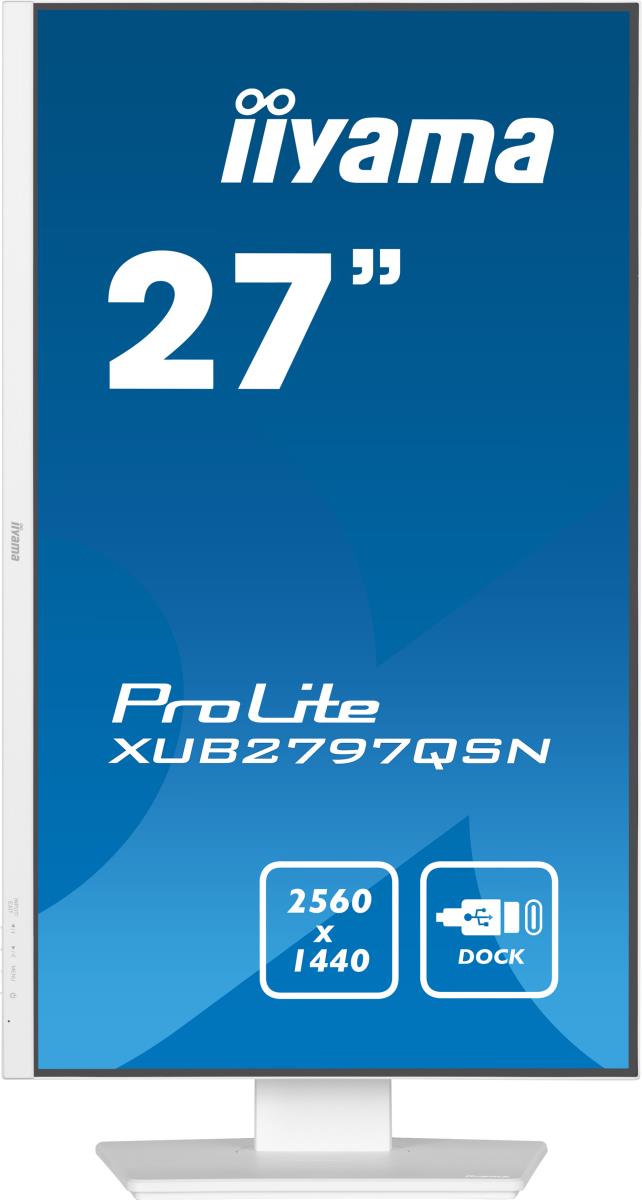

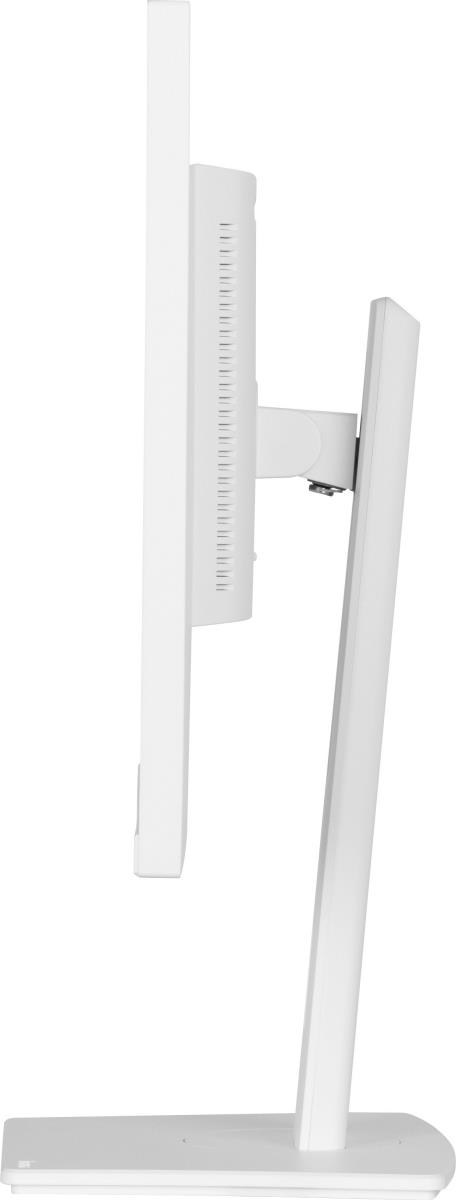

Equipped with a USB-C dock connector, the XUB2797QSN allows you to simplify your workspace by using a single cable to both send signal (audio, video and touch) from your notebook to your monitor whilst providing power and charge to the notebook. Additionally, if your monitor is connected to the Internet with a LAN cable, your notebook will automatically be connected to the network as well. Thanks to a DisplayPort output you can easily extend your desktop by creating a double-monitor set-up. The IPS panel assures rich and accurate colours with wide viewing angles. QHD resolution, high contrast and brightness values mean the monitor provides excellent performance for photographic and web design. The ergonomic stand offers a height adjustment of 150mm and with the tilt and swivel mechanisms you can easily turn the monitor into portrait mode for more comfort while working on large data sheets. Available also without USB-C dock: XUB2797QSU-W2 .
Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 300 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 100 Hz |
| sRGB coverage (typical) | 99% |
| Display surface | Matt |
| HD type | Quad HD |
| Display technology | LED |
| Contrast ratio (dynamic) | 80000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.233 x 0.233 mm |
| Horizontal scan range | 30 - 151 kHz |
| Viewable size, horizontal | 59.7 cm |
| Viewable size, vertical | 33.6 cm |
| Display resolution | 2560 x 1440 pixels |
| Response time | 1 ms |
| Display diagonal | 68.6 cm (27") |
| Contrast ratio (typical) | 1300:1 |
| NTSC coverage (typical) | 72% |
| Touchscreen | No |
| Panel type | IPS |
| Display diagonal (metric) | 68.5 cm |
| Response time (MPRT) | 1 ms |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in camera | No |
| AMD FreeSync | Yes |
| VESA Adaptive Sync support | Yes |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in camera | No |
| Design | |
| Market positioning | Business |
| Product colour | White |
| Camera | |
| Built-in camera | No |

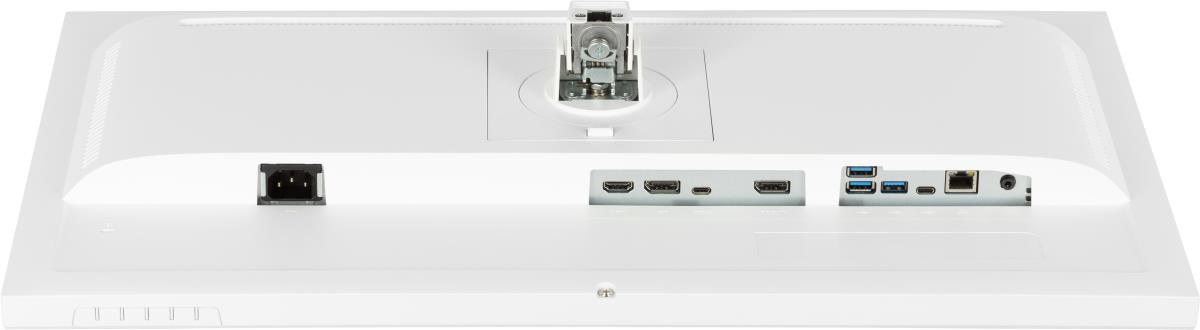

| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-C |
| Headphone out | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| HDMI version | 2.0 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |
| Number of USB Type-C upstream ports quantity | 1 |
| DisplayPort out quantity | 1 |
| DisplayPort out version | 1.4 |
| Number of downstream ports | 4 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Technical details | |
| Height (without stand) | 400.5 mm |
| Depth (without stand) | 209.5 mm |
| Width (without stand) | 613.5 mm |
| Cable lock slot | Yes |
| HDMI | Yes |
| Product colour | White |
| User controls | picture adjust (brightness, contrast, Eco, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, blue light reducer, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellanous 1 (sharp and soft, video mode adjust, opening logo, RGB range), miscellaneous 2 (USB BC, MST, USB, LED, display information, MAC address), input select, audio settings (volume, mute) |
| Sustainability certificates | ErP, TCO, EPEAT Silver |
| Warranty period | 5 year(s) |
| Compliance certificates | CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE |
| Packaging content | quick start guide, safety guide |
| Power supply type | Internal |
| Weight (with stand) | 6.1 kg |
| Touchscreen | No |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Swivelling | Yes |
| Swivel angle range | -60 - 60° |

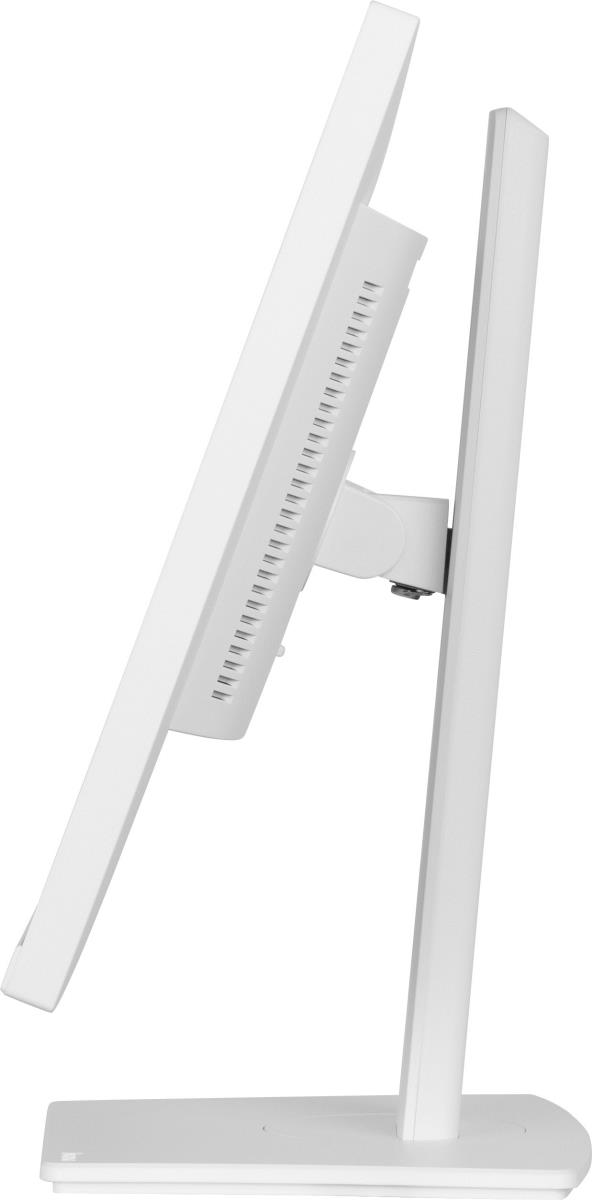

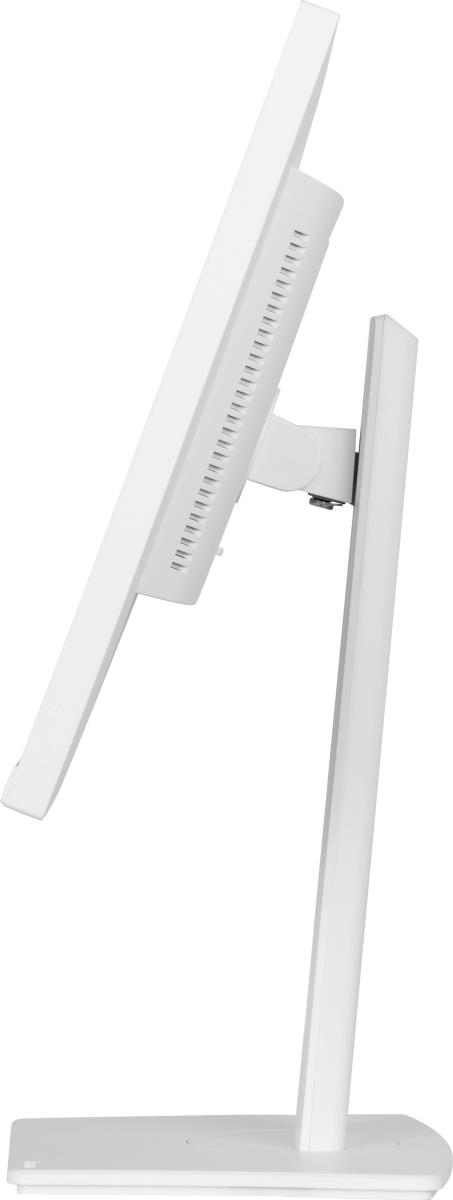

| Tilt angle range | 5 - 23° |
| Pivot | Yes |
| On Screen Display (OSD) | Yes |
| Pivot angle | 0 - 90° |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Power | |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 26 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 21.6 kWh |
| Weight & dimensions | |
| Height (without stand) | 400.5 mm |
| Depth (without stand) | 209.5 mm |
| Width (without stand) | 613.5 mm |
| Width (with stand) | 613.5 mm |
| Depth (with stand) | 209.5 mm |
| Height (with stand) | 550.5 mm |
| Weight (with stand) | 6.1 kg |
| Package width | 679 mm |
| Package depth | 130 mm |
| Package height | 427 mm |
| Package weight | 8.7 kg |
| Width | 613.5 mm |
| Weight | 6.1 kg |
| Depth | 209.5 mm |
| Packaging data | |
| Package width | 679 mm |
| Package depth | 130 mm |
| Package height | 427 mm |
| Package weight | 8.7 kg |
| Package type | Box |
| Cables included | AC, HDMI, DisplayPort, USB Type-C |
| Packaging content | |
| Cables included | AC, HDMI, DisplayPort, USB Type-C |
| Sustainability | |
| Sustainability certificates | ErP, TCO, EPEAT Silver |
| Other features | |
| Packaging content | quick start guide, safety guide |
| Ethernet LAN (RJ-45) ports | 1 |
| User controls | picture adjust (brightness, contrast, Eco, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, blue light reducer, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellanous 1 (sharp and soft, video mode adjust, opening logo, RGB range), miscellaneous 2 (USB BC, MST, USB, LED, display information, MAC address), input select, audio settings (volume, mute) |
| Width | 613.5 mm |
| Weight | 6.1 kg |
| Depth | 209.5 mm |
| Warranty period | 5 year(s) |
| Compliance certificates | CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE |
| Manufacturer warranty | 5 years (for details and eligible countries please check the Warranty section of our website) |
| Control panel | Power, Menu, Adjustment/Volume, Adjustment/Shortcut Menu, Input/Exit |
| Height (without stand) | 400.5 mm |
| Depth (without stand) | 209.5 mm |
| Width (without stand) | 613.5 mm |
| HDMI | Yes |
| USB Power Delivery up to | 65 W |
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| Ethernet LAN | Yes |
| Touchscreen | No |
| USB Power Delivery (USB PD) | Yes |
| Package type | Box |
