EU Product - Switch full managed Extender 5x 1 GbE 4x PoE at 1x SFP EXT1106 - Switch - Amount of ports:
Introduction

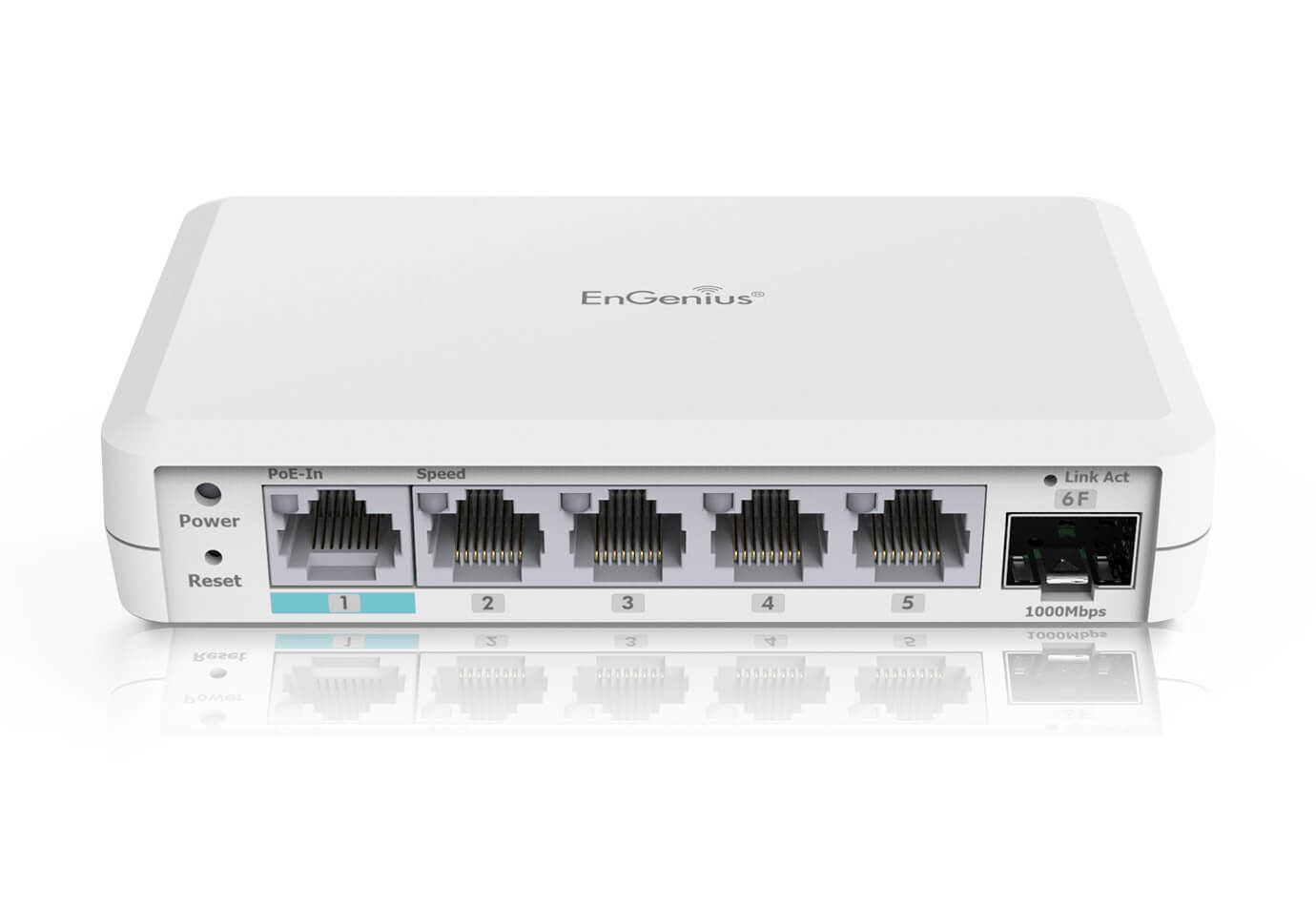

EnGenius Switch Extender, EXT1106 is a reliable 4-Port GE, 1-Port GE PD PoE and 1 SFP switch that takes your network efficiency to the next level. With its optimized Voice-VLAN feature, this switch is perfect for small businesses looking to enhance network performance while reducing expenses. The zero-touch provisioning and easy-to-use cloud-based management provide SMBs with a hassle-free network solution. EnGenius Cloud EXT1106, an 5-Port Gigabit and SFP uplink port switch extender. Select Cloud management option based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance while reducing capital and operating expenses for cost-conscious SMBs.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 1 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | USB |
| USB Type-C ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.1w, IEEE 802.3az, IEEE 802.3u |
| 10G support | No |
| Data transmission | |
| Jumbo frames | 15000 |
| MAC address table | 8000 entries |
| Switching capacity | 12 Gbit/s |
| Jumbo frames support | Yes |
| Number of multicast groups filtered | 8 |
| Security | |
| Access Control List (ACL) | Yes |
| Multicast features | |
| Number of multicast groups filtered | 8 |
| Multicast support | Yes |
| Design | |
| Reset button | Yes |
| Product colour | White |
| LED indicators | Power |
| Performance | |
| Flash memory | 32 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | DC/PoE |
| Power connector | USB |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 73.9 mm |
| Depth | 125 mm |
| Height | 28 mm |
| Packaging data | |
| Package width | 83 mm |
| Package depth | 74 mm |
| Package height | 137 mm |
| Package weight | 240 g |
| Technical details | |
| Product colour | White |
| Memory | |
| Flash memory | 32 MB |
| Indication | |
| LED indicators | Power |
| Logistics data | |
| Master (outer) case width | 462 mm |
| Master (outer) case length | 348 mm |
| Master (outer) case height | 156 mm |
| Master (outer) case gross weight | 6.39 kg |
| Products per master (outer) case | 24 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case net weight | 5.76 kg |
