EU Product - 19" Glasfaser-Space-Box ohne Panel Stahl sw
Introduction

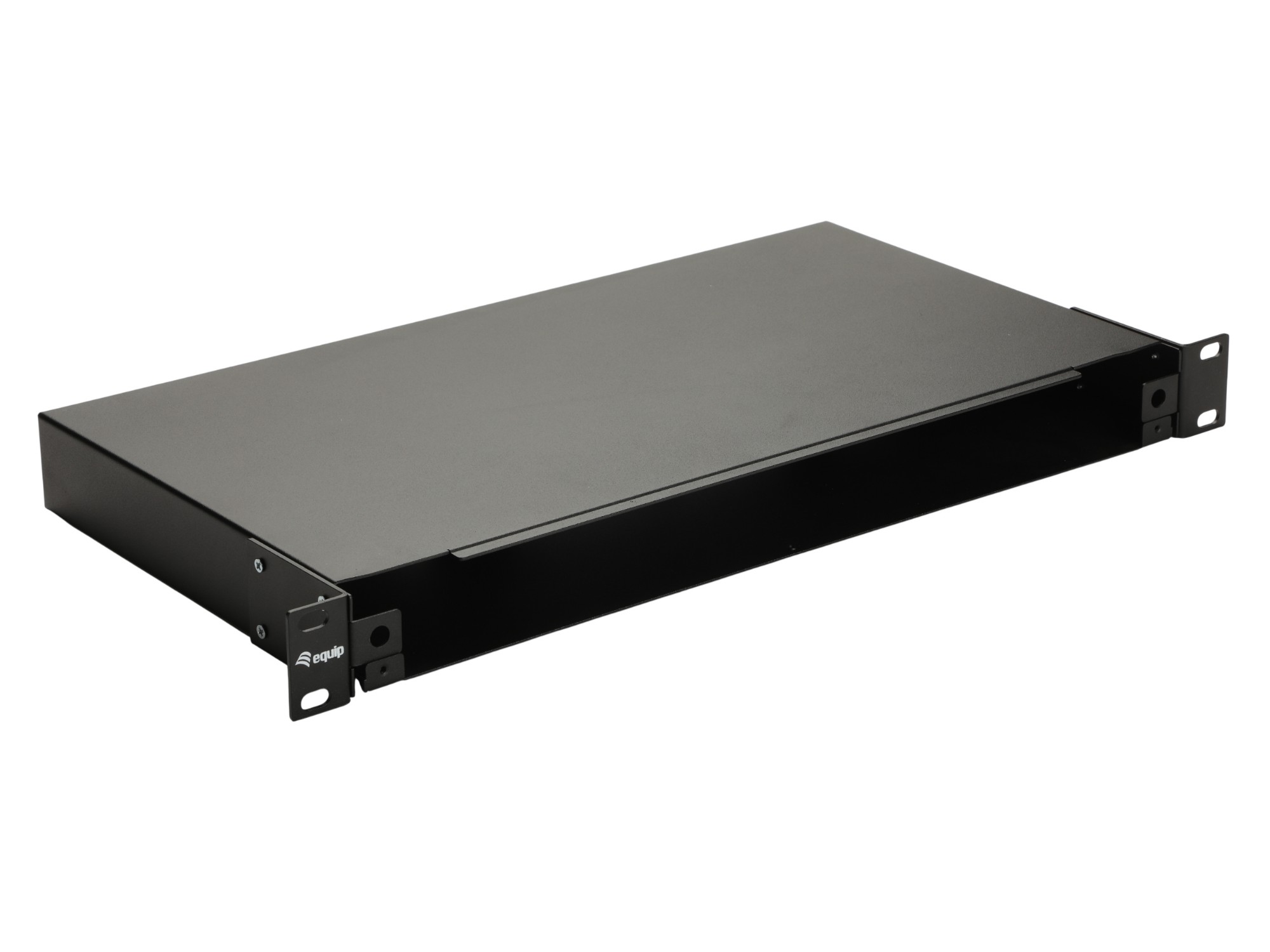

The equip® 337111 is a 19" 1U fiber optic splice box for flexible fiber management in structured cabling. Supplied without a front panel, it accepts compatible adapter panels so you can configure it for up to 48 fibers in single-mode or multimode.
A sliding steel housing gives ample room for splicing, routing, and storage, with a holder for splice cassettes and an extendible base chassis with pigtail fixing punch-outs. The quick-mount feature speeds installation and reconfiguration as the network grows.
M6 screws, cable ties, and cable glands are included; 483 × 243 × 44 mm; finished in black (RAL 9005).
Specifications
| Features | |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Suitable for indoor use | Yes |
| Number of splice trays supported (max) | 1 |
| Number of fibres supported (max) | 48 |
| Compatibility | Equip 337100, 337102 |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 485 mm |
| Depth | 240 mm |
| Height | 43.5 mm |
| Weight | 2.11 kg |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Suitable for indoor use | Yes |
| Technical details | |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case width | 520 mm |
| Master (outer) case length | 295 mm |
| Master (outer) case height | 295 mm |
| Master (outer) case gross weight | 13.1 kg |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case width | 520 mm |
| Master (outer) case length | 295 mm |
| Master (outer) case height | 295 mm |
| Master (outer) case gross weight | 13.1 kg |
