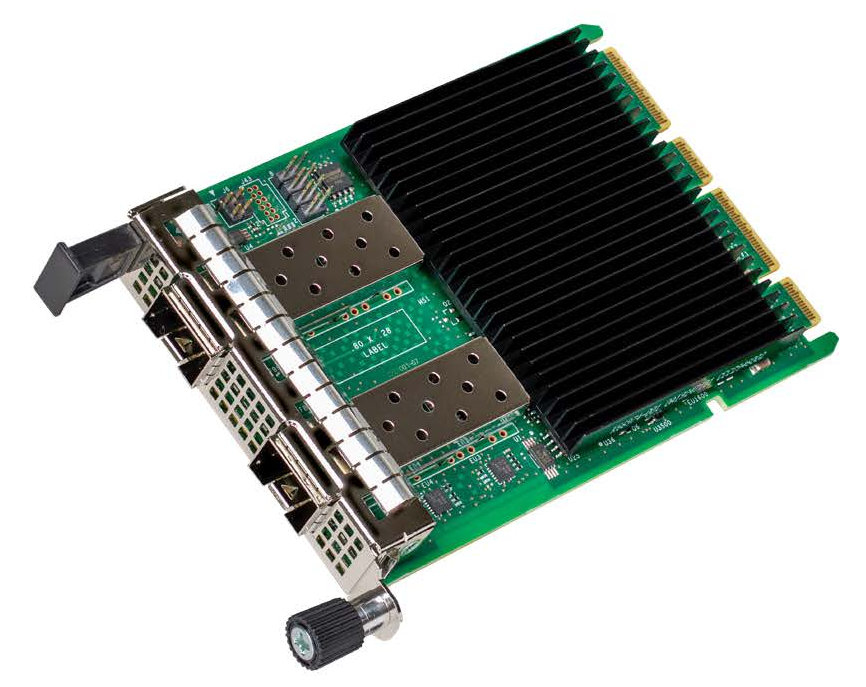

INTEL E810-DA2 25GBE 2-PORT OCP
Introduction
The ThinkSystem Intel E810-DA2 and E810-DA4 10/25GbE SFP28 network adapters improve application efficiency and network performance with innovative and versatile capabilities. With two or four 25GbE SFP28 ports and key performance optimizations, the E810 adapters supports solutions across Cloud, Enterprise, and Communications.
This product guide provides essential presales information to understand the Intel E810 adapters and their key features, specifications and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the E810 adapters and consider their use in IT solutions.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 4.0 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 25000 Mbit/s |
| Network | |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Maximum data transfer rate | 25000 Mbit/s |
| Design | |
| Certification | FCC B UL CE VCCI BSMI RCM KCC |
| Internal | Yes |
| Component for | Server |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 76 mm |
| Depth | 115 mm |
| Certificates | |
| Certification | FCC B UL CE VCCI BSMI RCM KCC |
