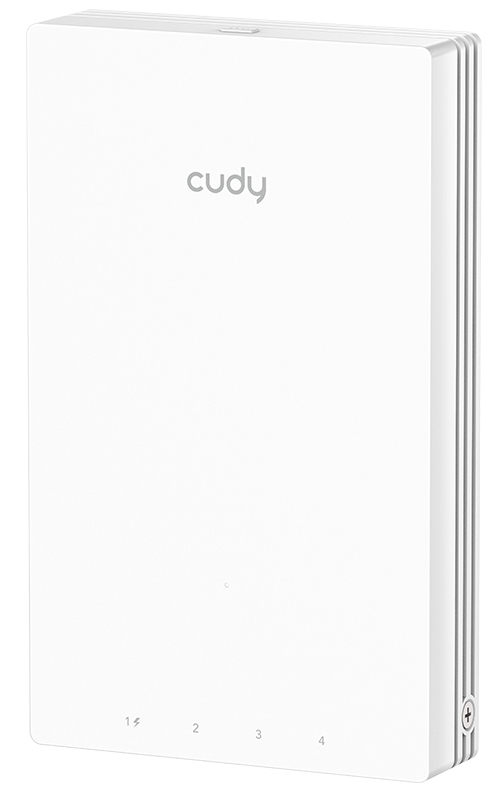

EU Product - AX3000 Gigabit Wall-Plate Wi-Fi 6 Access Point AP3000 Wall - Access Point - 2.4 Gbps
Introduction
Seamless Experiences in Multiple Scenarios
Apartment
Enjoy dedicated, high-speed Wi-Fi in every unit with zero signal overlap. Its sleek, low-profile design blends seamlessly into modern interiors.
Dormitory
Provide secure, high-speed access for each user without cross-room interference or weak zones. Designed to handle multiple users across closely packed rooms.
Hotel
Covers up to 60 m² (650 ft²), delivering fast, secure Wi-Fi in every guest room. Sleek design and easy integration with VoIP, IPTV, and other devices.
Office
Ensure reliable connectivity for each workspace or meeting room. Perfect for flexible, room-based deployments in modern offices.
Soft LED, Smart Control — Built for Modern Hotels
Soft-glow LED Design
The subtle LED indicator provides clear AP status while maintaining a sleek, minimalist design. It ensures visibility without disrupting the room's atmosphere or guest comfort.
Configurable Wi-Fi Control
By enabling Wi-Fi Control via the Cudy management platform, you can easily manage both Wi-Fi and LED simultaneously. (Note: By default, the LED button controls only the LED indicator.)
Effortless Wall-Mount Installation
Fits perfectly in a standard electrical box. It simplifies setup by eliminating the need for complex wiring or additional equipment.
Simplified IT Management
PoE Power Supply, Flexible Deployment
Simplify installation with Power over Ethernet (PoE)—run both data and power over a single cable. Powered via 802.3at/af PoE, and features PoE passthrough support for downstream IP phones or other devices. (Note: To ensure stable operation, use a power source compliant with 802.3at or higher. Insufficient power may cause system reboots.)
Manage Your Network with Cudy APP
With the Cudy Network Management Web/App, you can set up your network in just minutes, then monitor the status and manage it anytime from your phone. Set up the main Cudy Mesh router, then the connected AP will be automatically adapted into its Mesh network, no configuration needed.
Centralized AP Management
Easily manage up to 200 access points with Cudy AP Controller(Model:C200P), enabling efficient batch configuration and firmware updates through a unified interface.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Maximum data transfer rate | 2976 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Syslog | Yes |
| IGMP snooping | Yes |
| Country of origin | China |
| Reset button | Yes |
| Spread spectrum method | OFDMA |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Maximum data transfer rate | 2976 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Flash memory | 128 MB |
| Network | |
| Spread spectrum method | OFDMA |
| Networking standards | IEEE 802.11b, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.3af, IEEE 802.3at |
| Management features | |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Cloud-managed | Yes |
| Software | |
| Bundled software | Cudy Software |
| Memory | |
| Flash memory | 128 MB |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Spread spectrum method | OFDMA |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Maximum data transfer rate | 2976 Mbit/s |
| Bluetooth | No |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Flash memory | 128 MB |
| Security | |
| Number of SSID supported | 8 |
| IGMP snooping | Yes |
| Security algorithms | WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| Parental control | Yes |
| Guest access | Yes |
| Protocols | |
| DHCP server | Yes |
| Ports & interfaces | |
| WAN connection | Ethernet (RJ-45) |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 5 |
| Power | |
| Power consumption (max) | 12 W |
| Power consumption (typical) | 5 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Design | |
| Placement | Wall |
| Country of origin | China |
| Product colour | White |
| Reset button | Yes |
| LED indicators | System |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 3 |
| Antenna direction type | Omni-directional |
| Technical details | |
| Reset button | Yes |
| Products per shipping (inner) case | 30 pc(s) |
| Indication | |
| LED indicators | System |
| Weight & dimensions | |
| Width | 143 mm |
| Depth | 86 mm |
| Weight | 298.6 g |
| Height | 27.6 mm |
| Package width | 152 mm |
| Package depth | 39.5 mm |
| Package height | 90 mm |
| Package weight | 400.5 g |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | No |
| Package width | 152 mm |
| Package depth | 39.5 mm |
| Package height | 90 mm |
| Package weight | 400.5 g |
| Bundled software | Cudy Software |
| AC adapter included | No |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | No |
| Bundled software | Cudy Software |
| AC adapter included | No |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Logistics data | |
| Country of origin | China |
