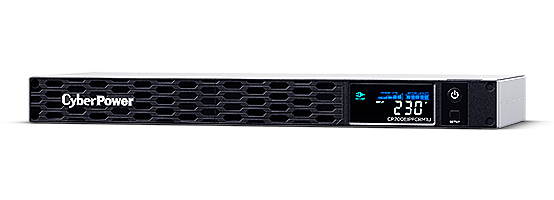

EU Product - CP700EIPFCRM1U Line-Interactive USV - (Offline) UPS - 700 W

Introduction

CyberPower CP700EIPFCRM1U. UPS topology: Line-Interactive, Output power capacity: 0.7 kVA, Output power: 420 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 2 min, Typical backup time at half load: 9.6 min. Form factor: Rackmount, Product colour: Black, Silver, Housing material: Metal. Compliance certificates: CE, RoHS

Specifications

Power
Output frequency regulation	3 Hz
Output power	420 W
Input operation voltage (min)	165 V
Input operation voltage (max)	271 V
Surge energy rating	450 J
Maximum current	10 A
Power factor	0.6
Output power capacity	0.7 kVA
Power Factor Correction (PFC) type	Active
Ports & interfaces
Cable length	1.83 m
Socket circuit breaker	Yes
Serial interface	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	2
Battery
Battery type	RBP0019
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Typical backup time at half load	9.6 min
Typical backup time at full load	2 min
Hot-swap battery	Yes
Rechargeable battery	Yes
Performance
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Pure sine
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Response time	6 ms
LED indicators	Yes
Surge protection	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Pure sine
Output frequency regulation	3 Hz
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Response time	6 ms
Output power	420 W
Input operation voltage (min)	165 V
Input operation voltage (max)	271 V
Surge energy rating	450 J
Maximum current	10 A
Surge protection	Yes
Power factor	0.6
Audible alarm(s)	Yes
Output power capacity	0.7 kVA
Power Factor Correction (PFC) type	Active
Socket circuit breaker	Yes
Input frequency	50/60 Hz
Power source type	AC
Heat dissipation	17 BTU/h
Design
Form factor	Rackmount
LED indicators	Yes
Product colour	Black, Silver
Cable length	1.83 m
Housing material	Metal
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Output frequency	50/60 Hz
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Certificates
Compliance certificates	CE, RoHS
Packaging content
Quick installation guide	Yes
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Package width	530 mm
Package depth	280 mm
Package height	155 mm
Weight	8.3 kg
Width	433 mm
Package weight	9.02 kg
Height	44 mm
Depth	229.7 mm
Packaging data
Quick installation guide	Yes
Package width	530 mm
Package depth	280 mm
Package height	155 mm
Package weight	9.02 kg
Other features
Battery type	RBP0019
Overload protection	Yes
Nominal output voltage	230 V
Nominal input voltage	220-240 V
