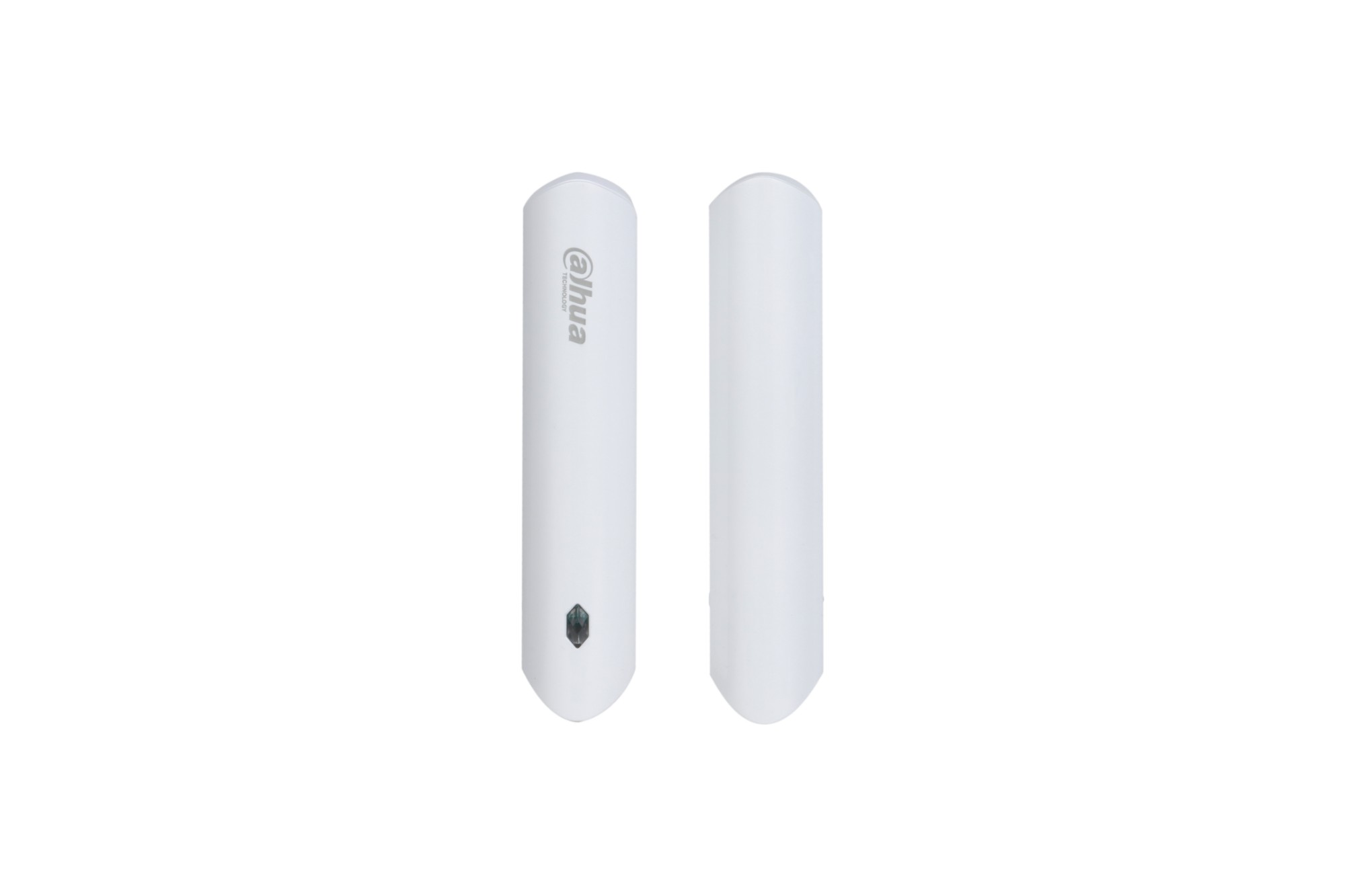

AirShield Wireless Door Detector Plus

Introduction

Wireless Door Detector Plus detects the status of doors and windows, recognizing when they are opening, shocking and tilting. It can connect with wired detectors in one of 3 ways: normally open, normally closed, and pulse. Easy to install and use, all the configurations can be done through the APP.

Specifications

Features
Operating frequency	868 - 868.6 MHz
Product colour	White
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
LED indicators	Alarm
Connectivity technology	Wireless
Transmission distance	1200 m
Tamper protection	Yes
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90%
On/off switch	Yes
Suitable for	Door
Security algorithms	128-bit AES
Power
Battery type	CR123A
Number of batteries supported	1
Weight & dimensions
Width	20.8 mm
Depth	20.3 mm
Height	100.2 mm
Weight	70 g
Package width	98.5 mm
Package depth	27.8 mm
Package height	135 mm
Package weight	115 g
Packaging data
Package width	98.5 mm
Package depth	27.8 mm
Package height	135 mm
Package weight	115 g
Design
Product colour	White
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
LED indicators	Alarm
Performance
Operating frequency	868 - 868.6 MHz
Connectivity technology	Wireless
Technical details
Compliance certificates	CE
Sustainability
Compliance certificates	CE
