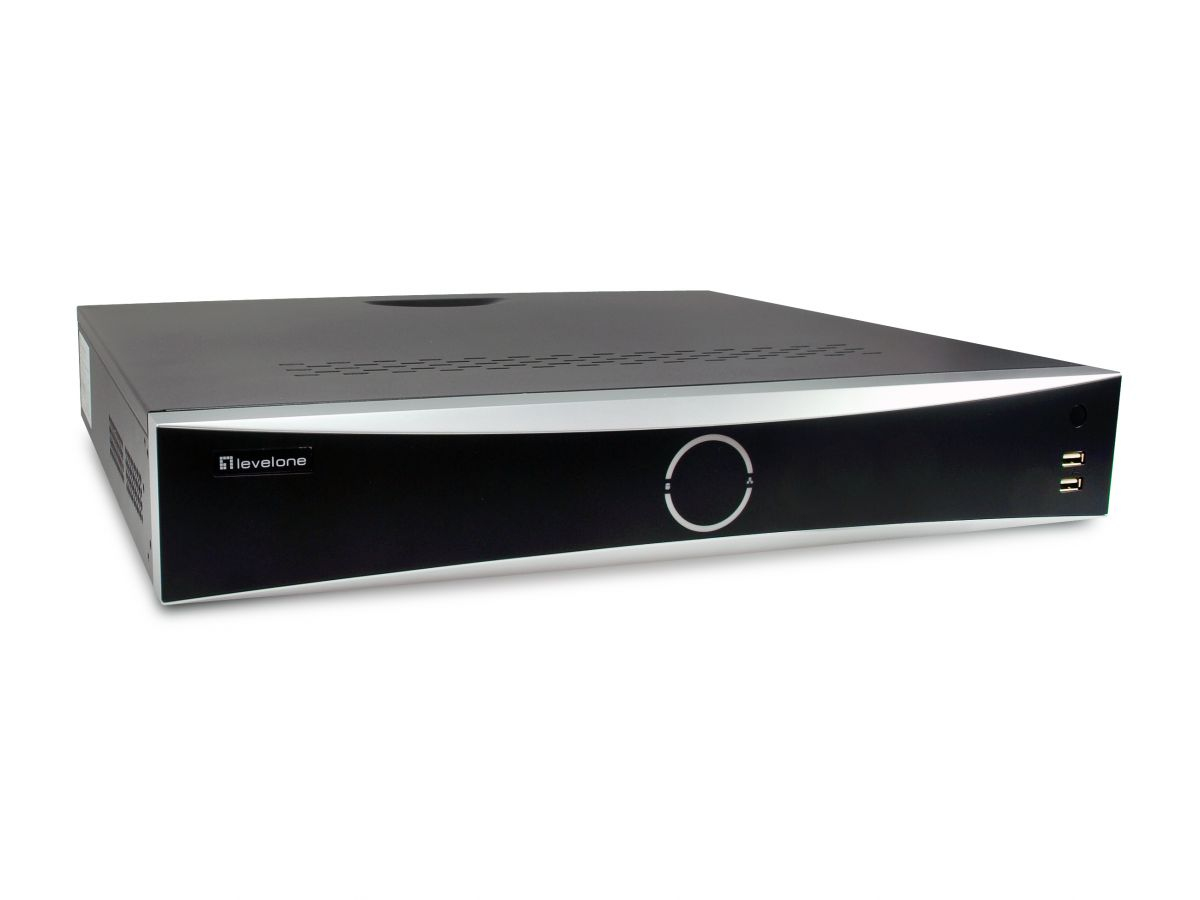

EU Product - LevelOne Netzwerk Videorekorder 32-Kanal/ 4xHDD/12MP/GEMINI
Introduction
The LevelOne NVR-0411 NVR enables live view, recording and playback for up to 32 IP network cameras at the same time, featuring up to 12-megapixel resolution and H.265/H.264+/H.264 video compression. Operation is easy and intuitive via the web browser interface (IE), enabling remote monitoring and functionality. Mobile device operations are also supported (iOS/Android), with remote viewing via the LevelOne NVR app. 4 HDD bays complete the package, with a disk capacity of up to 10TB making the LevelOne NVR-0411 a powerful, smart and cost-effective solution for managing your security network.
The Guarding Vision Central Management System(CMS) software is included for free, with no license fees. The Guarding Vision CMS is capable of managing up to 256 channels, making it suitable for large scale surveillance applications.
Specifications
| Performance | |
|---|---|
| Video input channels | 32 channels |
| Maximum resolution | 4096 x 2160 pixels |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Maximum frame rate | 30 fps |
| Supported resolutions | 2MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QC |
| Video motion detection | Yes |
| Number of simultaneously playbacked channels | 256 channels |
| Output bandwidth | 160 Mbit/s |
| Input bandwidth | 256 Mbit/s |
| Wireless LAN features | |
| Wi-Fi | No |
| Hard drive | |
| Number of HDDs supported | 4 |
| Maximum storage capacity | 10 TB |
| HDD interface | SATA |
| RAID support | No |
| Number of HDDs installed | 0 |
| Storage | |
| Number of HDDs supported | 4 |
| Maximum storage capacity | 10 TB |
| HDD interface | SATA |
| RAID support | No |
| Number of HDDs installed | 0 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 17 |
| Power over Ethernet (PoE) | Yes |
| VGA (D-Sub) output ports | 1 |
| HDMI output | Yes |
| USB 2.0 ports quantity | 2 |
| RS-485 ports | 1 |
| RS-232 interface | Yes |
| eSATA | Yes |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Power over Ethernet (PoE) ports quantity | 16 |
| eSATA ports quantity | 1 |
| RS-232 ports | 1 |
| HDMI ports quantity | 1 |
| Features | |
| Rack mounting | Yes |
| LED indicators | Yes |
| On/off switch | Yes |
| Product colour | Black, Grey |
| Power | |
| Power consumption (typical) | 20 W |
| Power consumption (max) | 200 W |
| Power over Ethernet (PoE) power per port | 16 W |
| System requirements | |
| Browser supported | IE11, Chrome V57, Firefox V52, Safari V12, Edge V889 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Compliance certificates | BIS, CB, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RCM, REACH, RoHS, UKCA, UL, WEEE |
| Weight & dimensions | |
| Width | 445 mm |
| Depth | 400 mm |
| Height | 75 mm |
| Weight | 5 kg |
| Package type | Box |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | AC, SATA |
