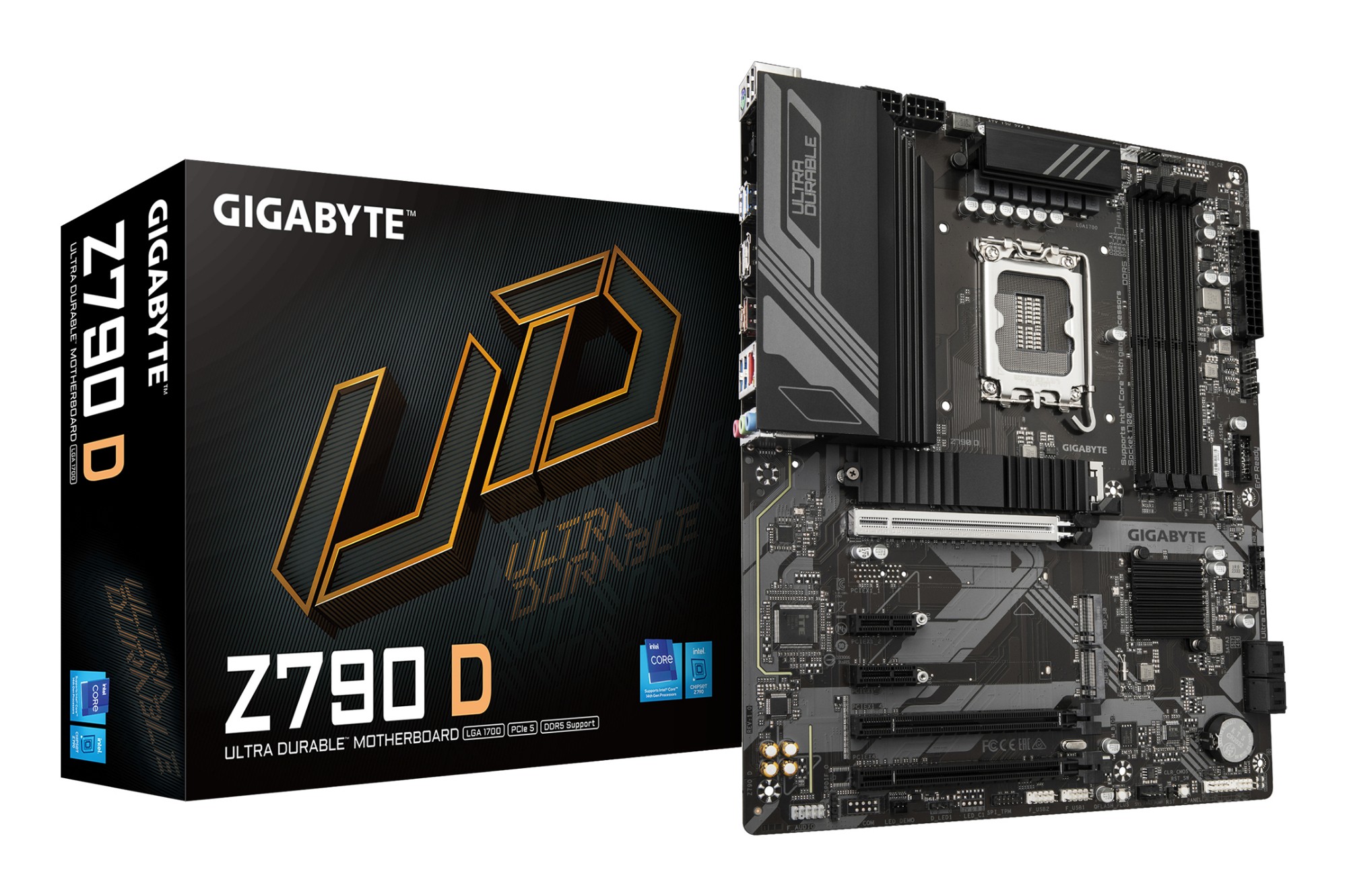

Z790 D GIGABYTE TECH Z790 D Ultra Durable Intel 1700 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, 2x USB-C Port, 2.5GbE LAN, 1x DisplayPort / 1x HDMI Port

Name: Z790 D Ultra Durable Intel 1700 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, 2x USB-C Port, 2.5GbE LAN, 1x DisplayPort / 1x HDMI Port
Brand: GIGABYTE TECH
SKU: 92676643
Price: 140.24 GBP
Availability: InStock
Rating: 4.2 (409 reviews)

Part No:Z790 D

Stock:14 In Stock

EAN Code:4719331861186

£116.87 Excl. VAT

£140.24 Incl. VAT

Price Match
Guarantee

1-2 days delivery

100% Customer
Satisfaction

Secure Payment
Options

We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

Product Description
Customer Reviews

Z790 D Ultra Durable Intel 1700 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, 2x USB-C Port, 2.5GbE LAN, 1x DisplayPort / 1x HDMI Port

Introduction

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	3
Thunderbolt headers	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Total number of SATA connectors	4
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Number of SATA III connectors	4
Number of EATX power connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel Z790 Express
Supported processor sockets	LGA 1700
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Parallel processing technology support	Not supported
HDMI version	2.1
Motherboard form factor	ATX
Component for	PC
Total number of SATA connectors	4
Maximum internal memory supported by processor	192 GB
Warranty period	3 year(s)
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel Z790 Express
RAID levels	0, 1, 5, 10
Supported processor sockets	LGA 1700
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	Intel
Maximum internal memory supported by processor	192 GB
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets	LGA 1700
Maximum number of SMP processors	1
Processor socket	LGA 1700
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	4400,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Maximum internal memory	192 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	7600 MHz
ECC ?ompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2304 pixels
HDCP	Yes
Discrete graphics support	Yes
DirectX version	12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.2
USB connector type	USB Type-A, USB Type-C
USB 2.0 ports quantity	2
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	2.5 Gigabit Ethernet
Features
Power source type	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel Z790 Express
Supported processor sockets	LGA 1700
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Audio chip	Realtek ALC897
Product colour	Brown
Expansion slots
Number of M.2 (M) slots	3
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Video
Maximum resolution	4096 x 2304 pixels
HDCP	Yes
Discrete graphics support	Yes
DirectX version	12.0
Packaging data
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.8 kg
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Height	35 mm
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.8 kg
Width	305 mm
Depth	244 mm
Packaging content
Cables included	SATA
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Antenna included	Yes
Other features
Height	35 mm
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.8 kg
