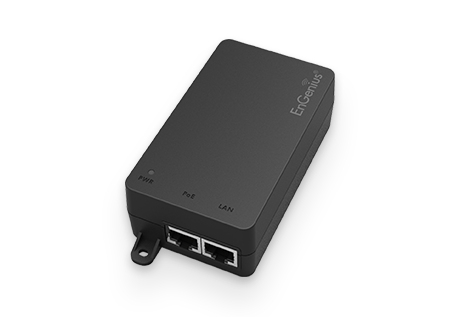

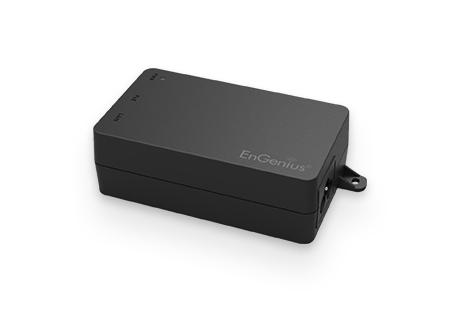

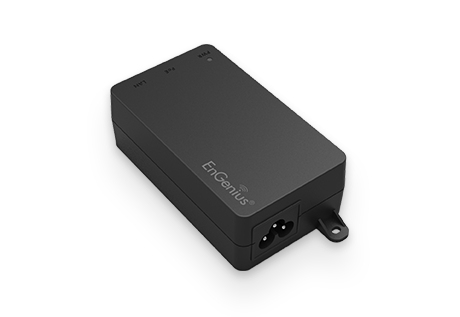

EU Product - Injektor EPA5060XBT PoE 54V 10GbE

Introduction

The EPA5060XBT 10 Gigabit Ethernet IEEE 802.3bt standard Power-over-Ethernet adapter supports high-speed data and up to 60 Watts/54V of power to compliant devices such as APs, IP cameras or VoIP phones to 100 meters away over a single cable. A compact, optimal port design provides easy, precise installation, while built-in power surge protection preserves valuable equipment.

Specifications

Network
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ethernet LAN data rates	10,100,1000,2500,10000 Mbit/s
Ethernet interface type	2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet
Power over Ethernet (PoE) voltage	54 V
Features
Wall mountable	Yes
Product colour	Black
Pin assignment & polarity	Pin4(Vdc+)&Pin5(Vdc+); Pin7(Vdc-)&Pin8(Vdc-); Pin1(Rx+)&Pin2(Rx-); Pin3(Tx+)&Pin6(Tx-)
Power protection features	Over current, Over voltage, Short circuit
LED indicators	Power
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Power
Output power	60 W
Power over Ethernet (PoE) voltage	54 V
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Input current	1.12A @ 120V AC, 0.75A @ 240V AC
Surge protection voltage	4 kV
Certificates
Compliance certificates	CB, CE, Federal Communications Commission (FCC), UL
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Weight	198 g
Width	100 mm
Depth	58.4 mm
Height	33.4 mm
Package weight	315 g
Package depth	52 mm
Package width	123 mm
Package height	152 mm
Packaging data
Package weight	315 g
Package depth	52 mm
Package width	123 mm
Package height	152 mm
Technical details
Package width	123 mm
Package height	152 mm
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Input current	1.12A @ 120V AC, 0.75A @ 240V AC
Ethernet LAN data rates	10,100,1000,2500,10000 Mbit/s
Ethernet interface type	2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet
Warranty period	1 year(s)
Compliance certificates	CB, CE, Federal Communications Commission (FCC), UL
Indication
LED indicators	Power
Logistics data
Master (outer) case width	270 mm
Master (outer) case length	520 mm
Master (outer) case height	350 mm
Master (outer) case gross weight	13.5 kg
Products per master (outer) case	40 pc(s)
Warranty period	1 year(s)
