EU Product - Switch full managed Layer 2+ 8x 1 GbE PoE Budget 110W at 2x - Switch - 0.1 Gbps
Introduction

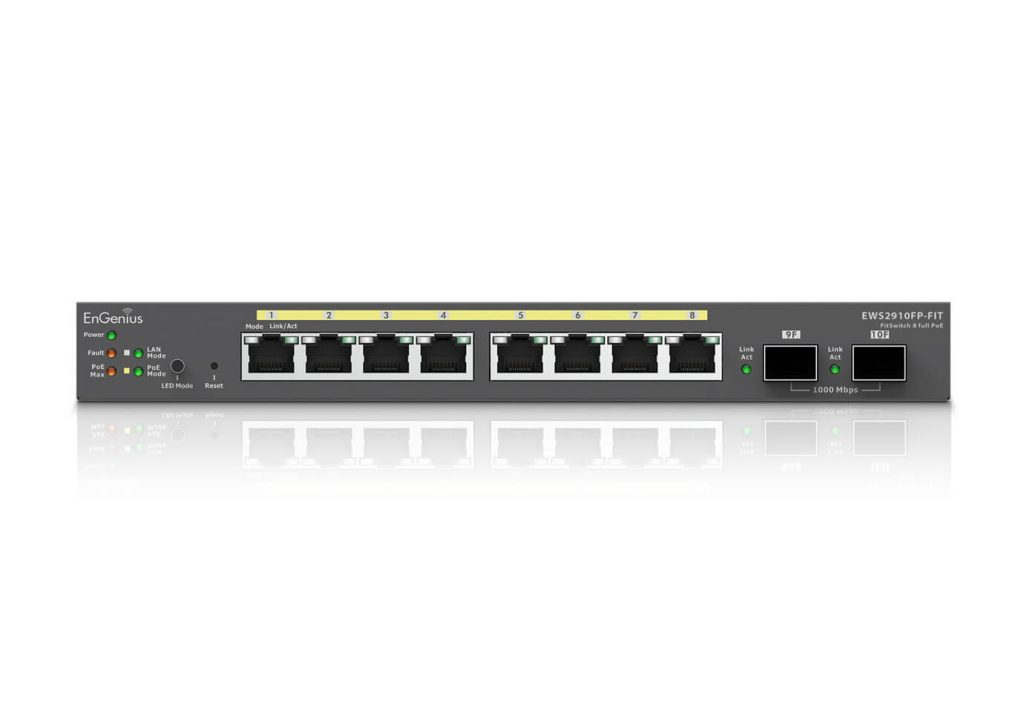

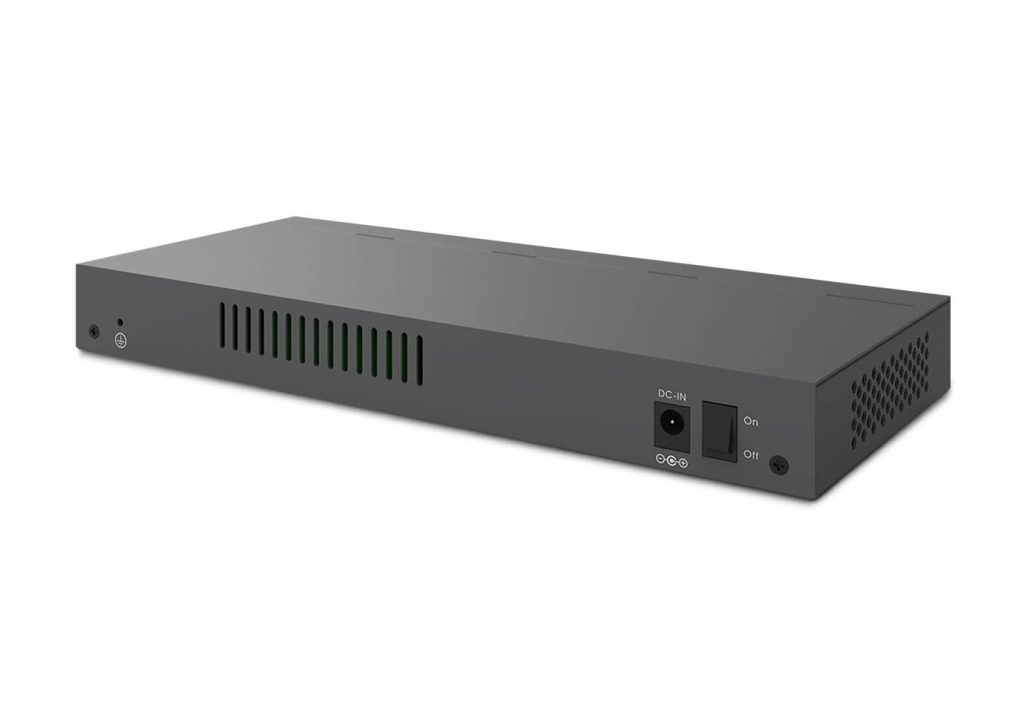

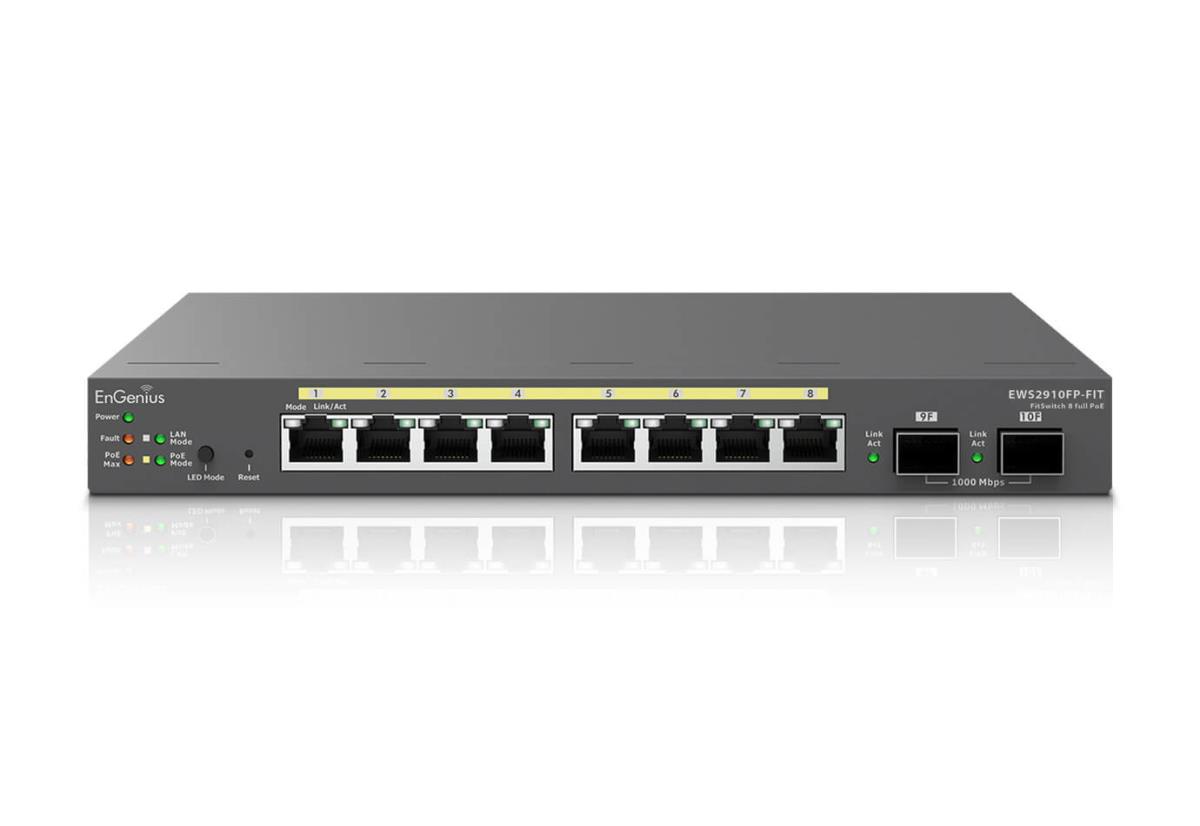

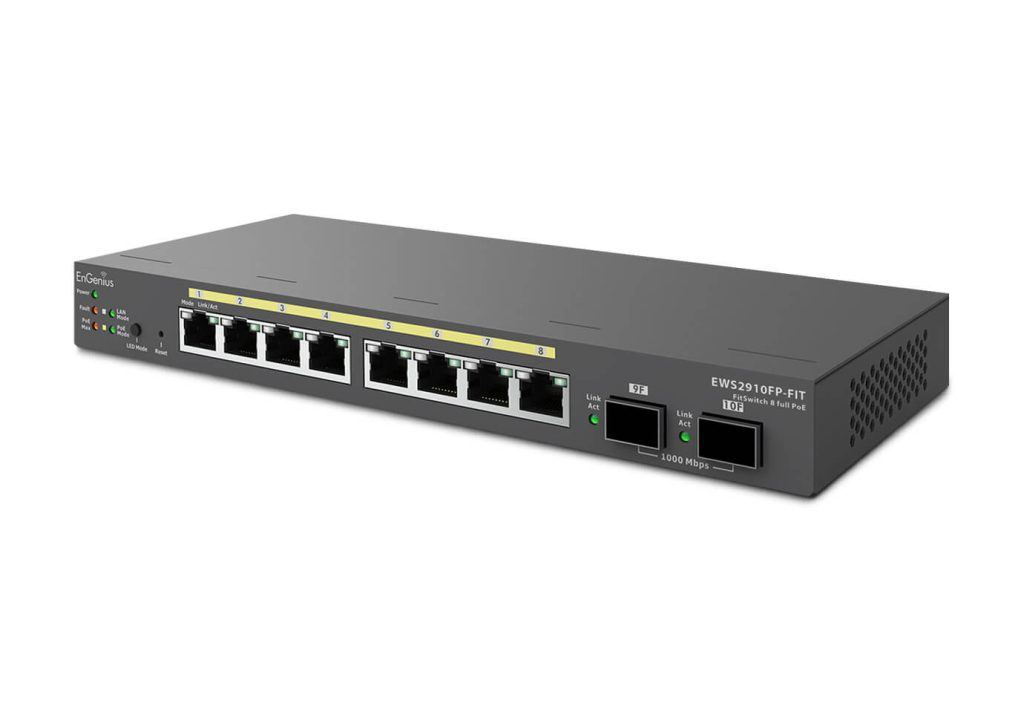

EnGenius Fit Gigabit 8-Port 110W PoE+ Switch with 2 SFP Ports
EnGenius Fit Layer 2+ Switch, EWS2910FP-FIT, offers 8 Gigabit PoE+ ports, 2 Gigabit SFP uplink ports, and a 110W budget. It provides zero-touch provisioning, centralized cloud management, and supports EnGenius FitXpress (cloud-managed), FitController (on-premises), or standalone management options. With advanced security features and Voice-VLAN, it maximizes network efficiency and reduces costs for SMBs..
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP snooping, DHCP relay |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNTP |
| Design | |
| Product colour | Grey |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 110 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 105 mm |
| Depth | 240 mm |
| Height | 27 mm |
| Weight | 620 g |
| Packaging data | |
| Package width | 395 mm |
| Package depth | 310 mm |
| Package height | 102 mm |
| Package weight | 2.75 kg |
| Technical details | |
| Product colour | Grey |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Logistics data | |
| Master (outer) case width | 351 mm |
| Master (outer) case length | 452 mm |
| Master (outer) case height | 298 mm |
| Master (outer) case gross weight | 8.93 kg |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case net weight | 27.4 kg |
