Introduction

BenQ only uses high-quality glass lenses to minimize chromatic aberration, ensuring long-term image quality in brilliant clarity. Also Designed for presentations with vivid colors. In this mode, boosted brightness matches PC and notebook display.

Projector Type

Model

MW560

Display/Picture

Brightness In Lumens

4000

Display Resolution

WXGA 1280 x 800

Image Contrast

20000:1

Picture Size

60"~150"

Colour Support

1,07 billion

Aspect Ratio

16:10

Projection Lens

Zoom Ratio

1.1X

Throw Ratio

1.55~1.7 (87" ±3% @ 2.9m)

Lamp

Lamp Lifetime

Normal : 6000 hr
Economic : 10000 hr
SmartEco : 10000 hr
LampSave : 15000hr

Adjustment Function

Keystoning

+/- 40 degrees

General

Speakers

1 x Speaker

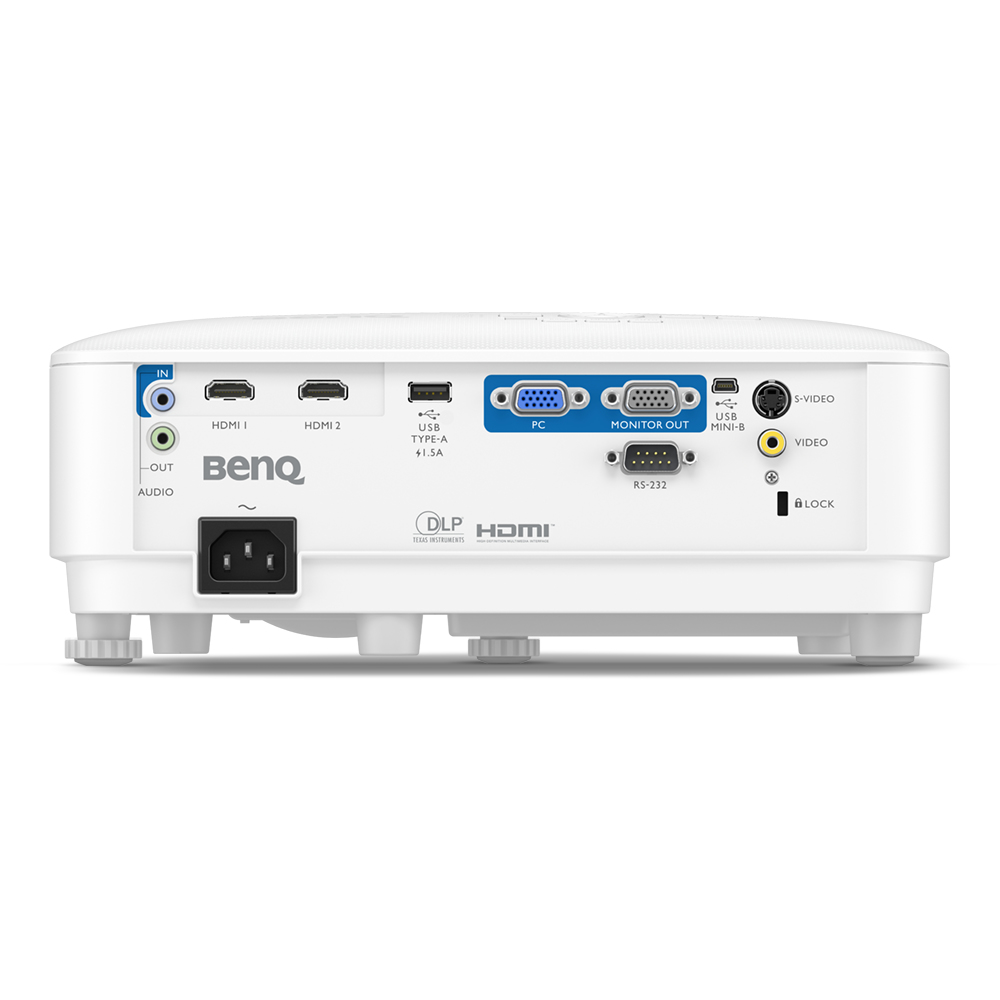

Connections

Audio Input/Output

1 x Audio in (mini jack)
1 x Audio out (mini jack)

Signal Interface

1 x Composite Video (RCA)

USB Capabilities

1 x USB TypeA-1
1 x USB Type mini B

HDMI

2 x HDMI

S-Video

1 x S-Video

VGA

2 x VGA

Power

Power Supply Voltage

100 ~ 240V AC

Power Consumption

Max : 280W
Normal : 260W

Dimensions

Width

296 mm (11.65 inches)

Height

120 mm (4.72 inches)

Depth

221 mm (8.70 inches)
