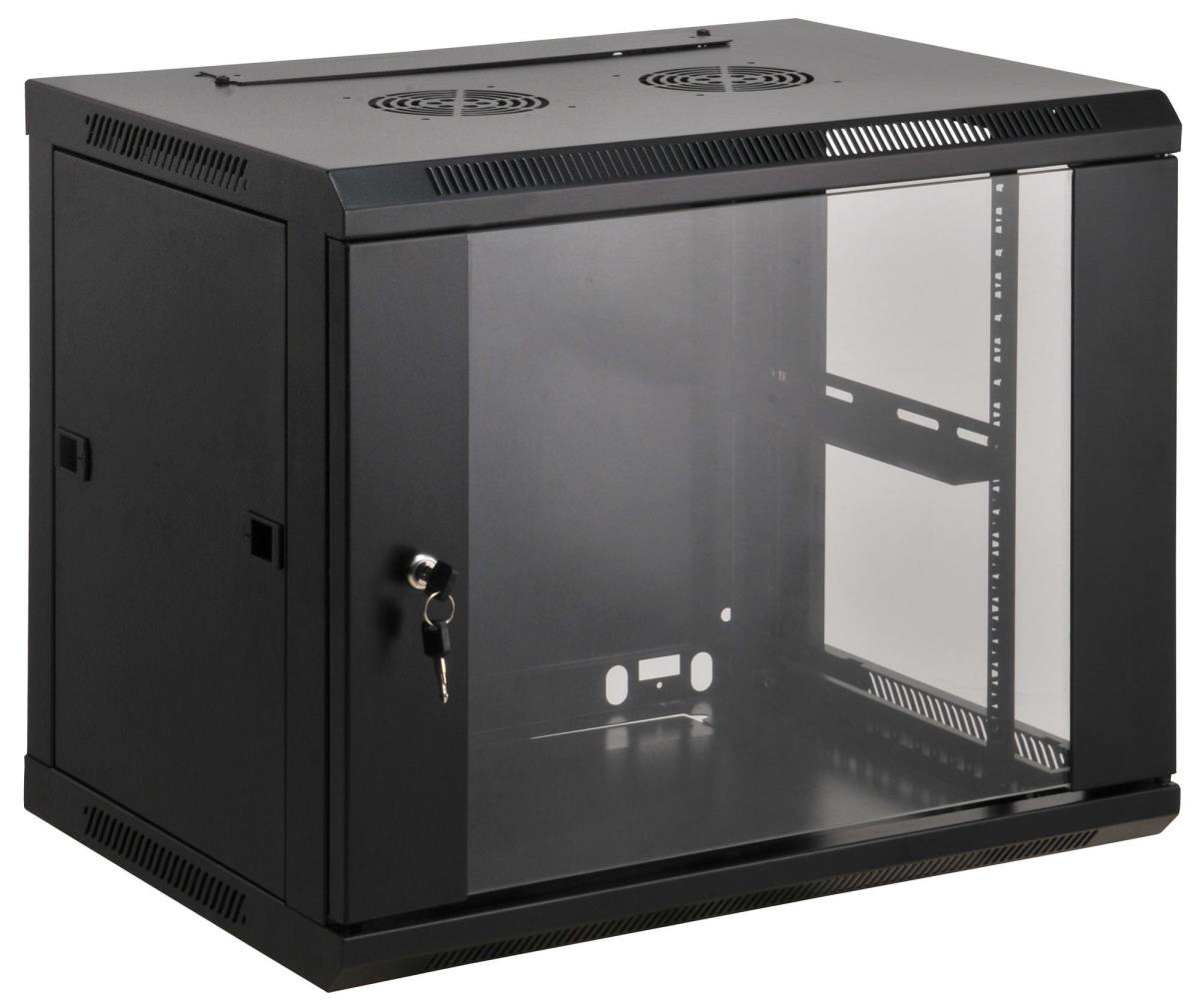

NETWORK CABINET WALL MOUNT 9U-
Introduction
The Intellinet Network Solutions wall mount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flat-pack version. In terms of housing, you can choose from among the extra-compact 10? cabinets and numerous 19? versions, with installation depths that range from 300 to 600 mm. Heights from 6 to 20 units in black (RAL9005) or (RAL7021) & grey (RAL7035).
We offer you a solution for every need.
Various options include:
Removable side panels (some lockable).
Tempered/Toughened glass doors.
Double Section, making cabling and component exchange simple.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Frame type | Closed |
| Rack capacity | 9U |
| Removable side panels | Yes |
| Front door construction | Glass |
| Type | Wall mounted rack |
| Side panels included | Yes |
| Maximum weight capacity | 60 kg |
| Product colour | Black |
| Certification | ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7 |
| Weight & dimensions | |
| Width | 600 mm |
| Depth | 600 mm |
| Height | 500 mm |
| Weight | 21.5 kg |
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 60 kg |
| Technical details | |
| Type | Wall mounted rack |
| Size (imperial) | 48.3 cm (19") |
| Side panels included | Yes |
| Rack capacity | 9U |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7 |
| Packaging content | |
| Side panels included | Yes |
