DP USB HDBT2.0 EXTENDER
Introduction

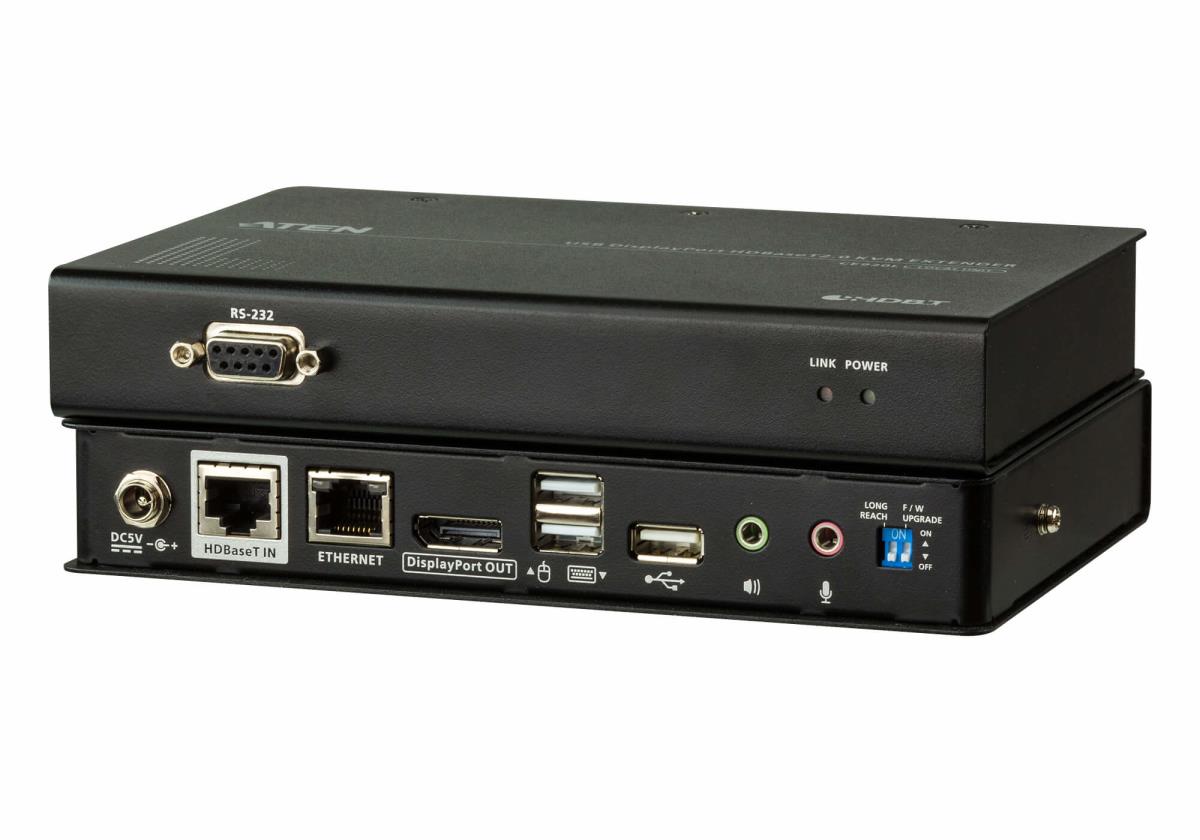

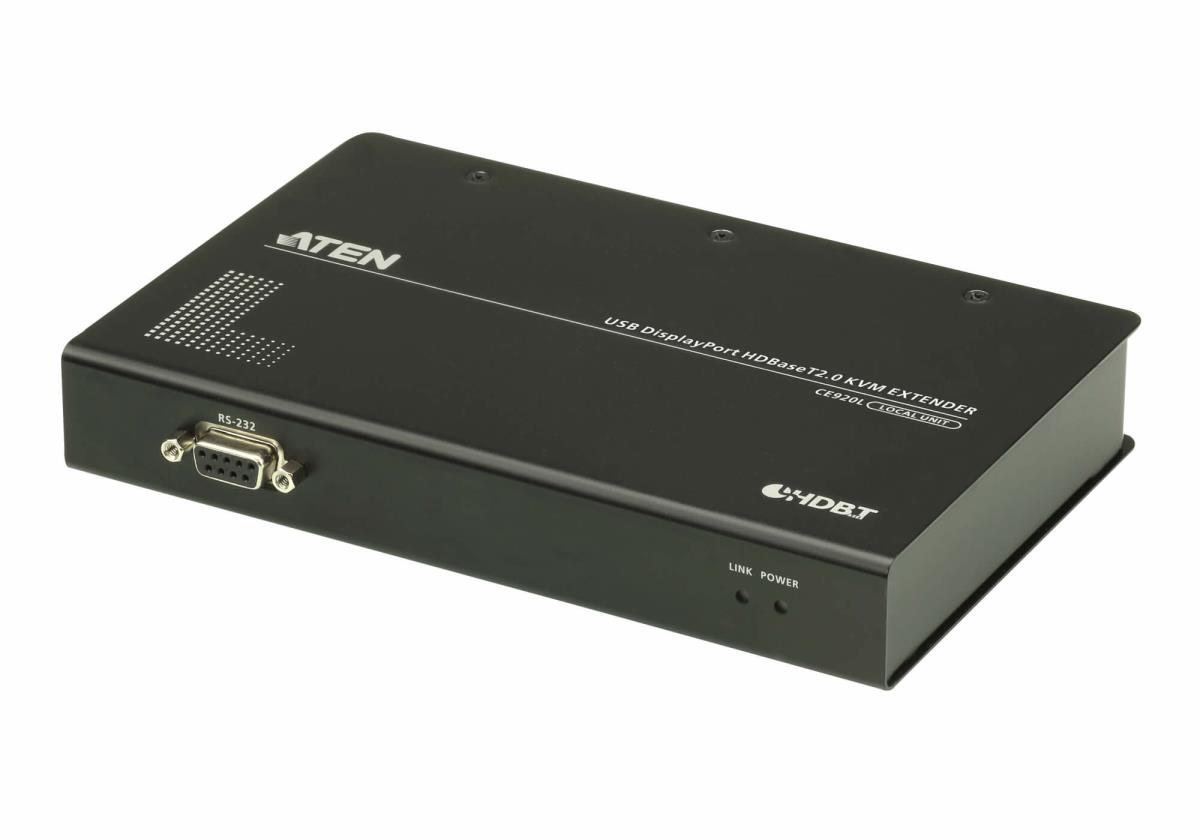

The ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, Ethernet*, and RS-232 signals up to 100 meters using a single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE920 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
Note: The CE920-AT supports Ethernet function and the CE920-ATA does not.
Specifications
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 150 m |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum digital resolution | 4096 x 2160 pixels |
| Product colour | Black |
| Material | Metal |
| Certification | RoHS |
| USB 2.0 ports quantity | 4 |
| USB data transfer rates | 480 Mbit/s |
| LED indicators | Yes |
| Transmitter | |
| Transmitter video port type | DisplayPort |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | DisplayPort |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 4 |
| USB data transfer rates | 480 Mbit/s |
| Power | |
| AC adapter output voltage | 5 V |
| Power consumption (transmitter) (max) | 3.99 W |
| Power consumption (receiver) (max) | 6.74 W |
| Weight & dimensions | |
| Transmitter width | 18.2 cm |
| Transmitter depth | 12.2 cm |
| Transmitter height | 2.87 cm |
| Transmitter weight | 630 g |
| Receiver width | 18.2 cm |
| Receiver depth | 12.2 cm |
| Receiver height | 2.87 cm |
| Receiver weight | 640 g |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | DisplayPort |
| Manual | Yes |
| Mounting bracket(s) included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging data | |
| AC adapter included | Yes |
| Cables included | DisplayPort |
| Manual | Yes |
