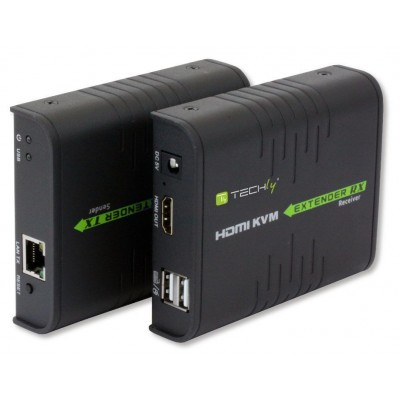

EU Product - HDMI KVM Extender über Netzwerkkabel, 120m
Introduction
This HDMI KVM extender transmits HDMI signal up to 120 meters via network cable, and the resolution supported is up to 1080p@60Hz. It allows access to a computer system from a remote console by USB connectors(USB keyboard and mouse).
Specifications
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 120 m |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Maximum digital resolution | 1920 x 1080 pixels |
| Product colour | Black |
| Material | Aluminium |
| USB 2.0 ports quantity | 2 |
| Transmitter | |
| Transmitter video port type | HDMI |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | HDMI |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Power | |
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Power consumption (transmitter) (max) | 3.5 W |
| Power consumption (receiver) (max) | 3.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Transmitter width | 8.95 cm |
| Transmitter depth | 11 cm |
| Transmitter height | 2.63 cm |
| Transmitter weight | 160 g |
| Receiver width | 8.95 cm |
| Receiver depth | 11 cm |
| Receiver height | 2.63 cm |
| Receiver weight | 170 g |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
