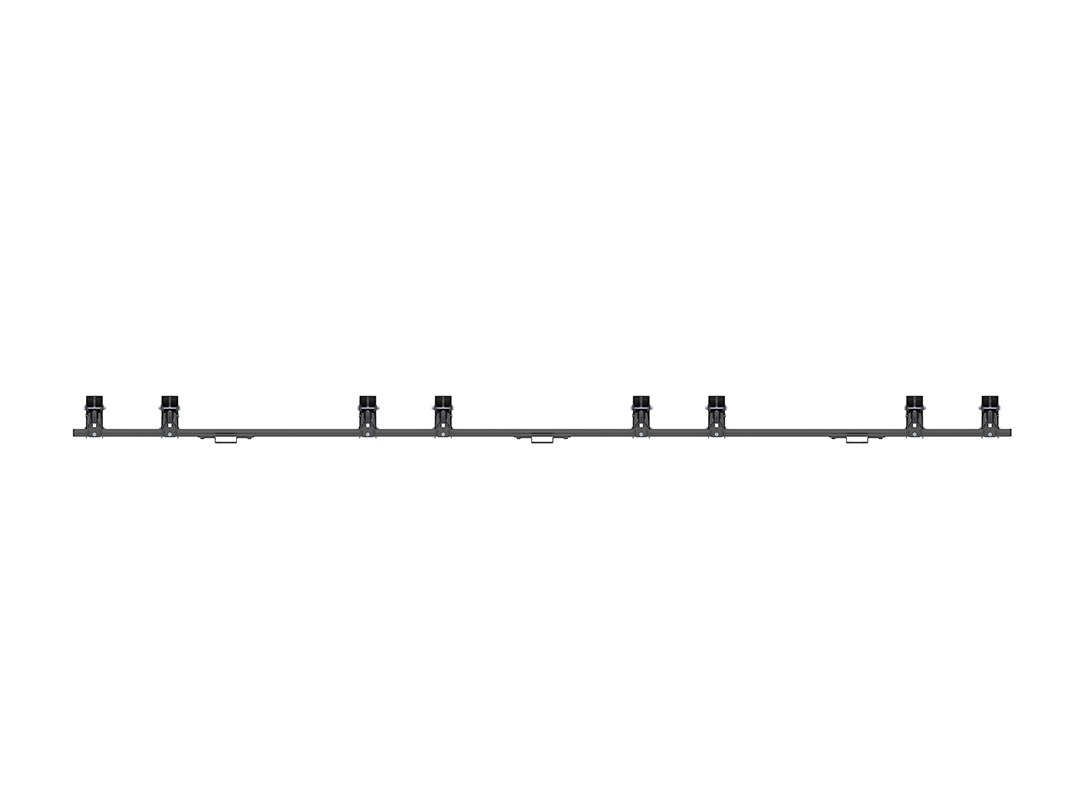

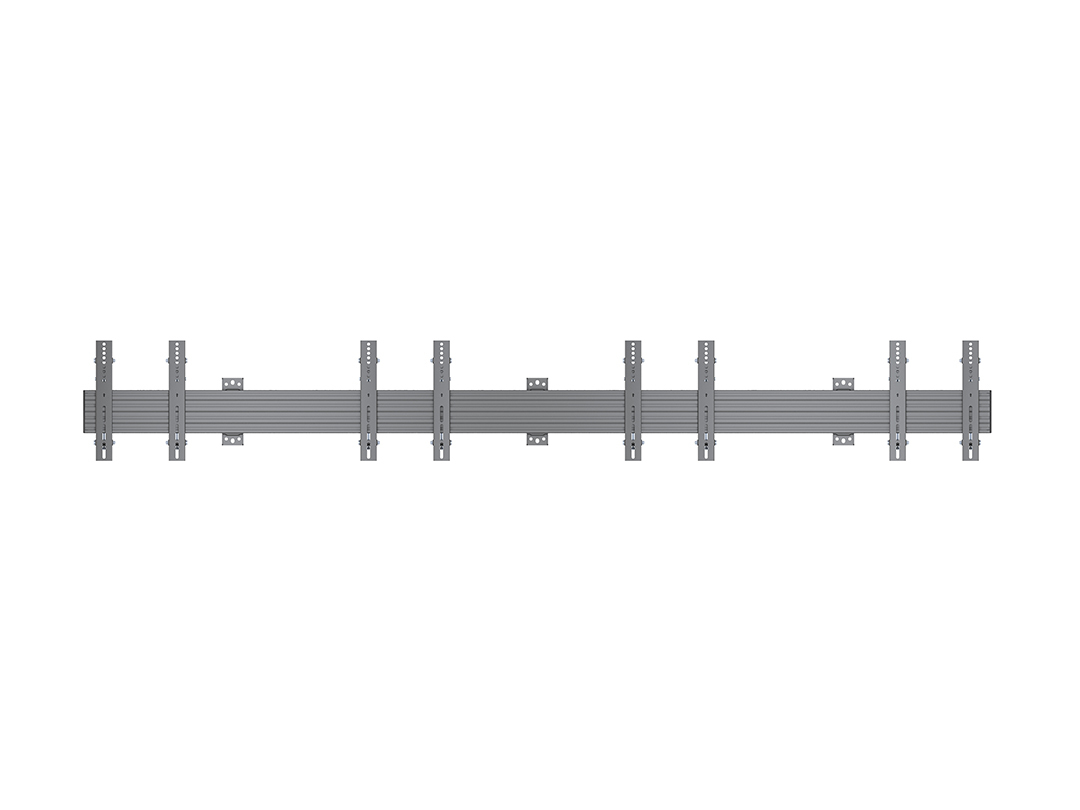

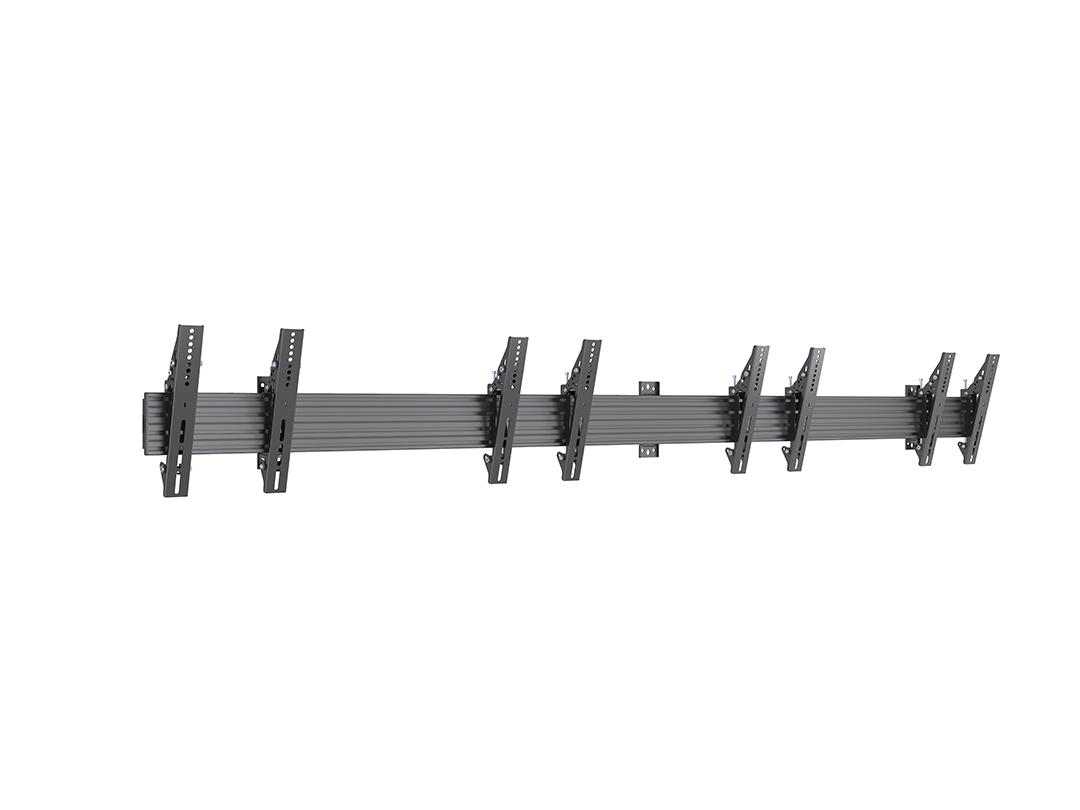

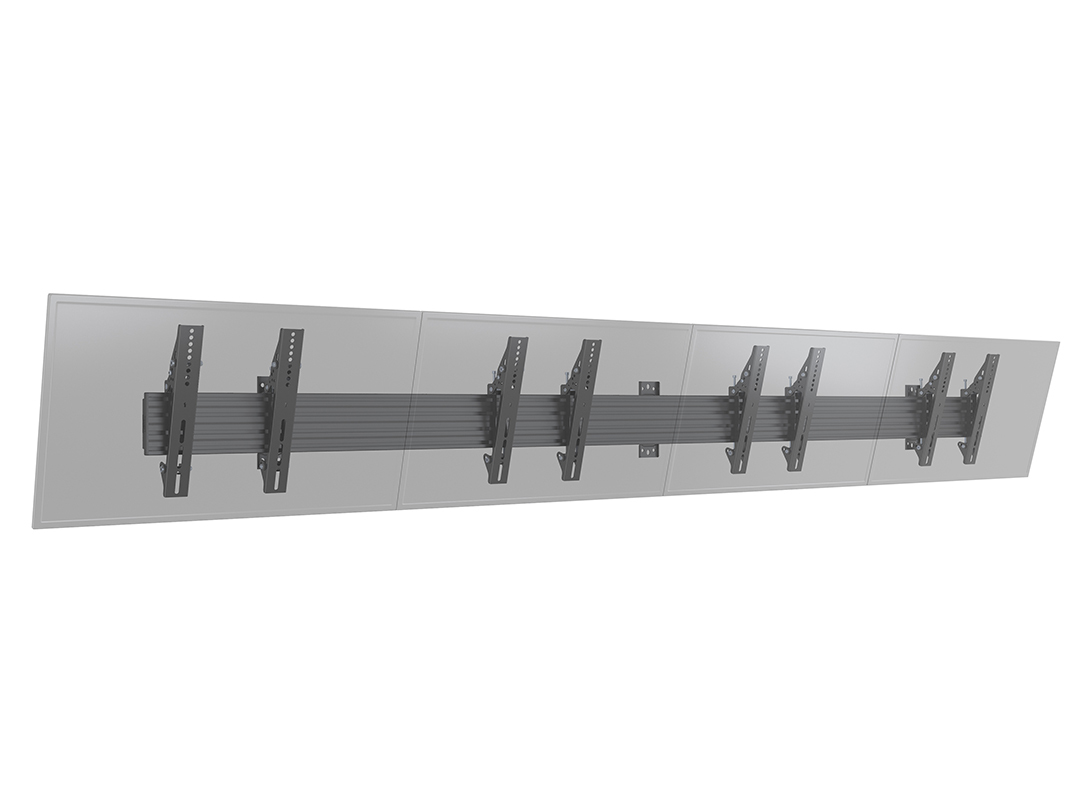

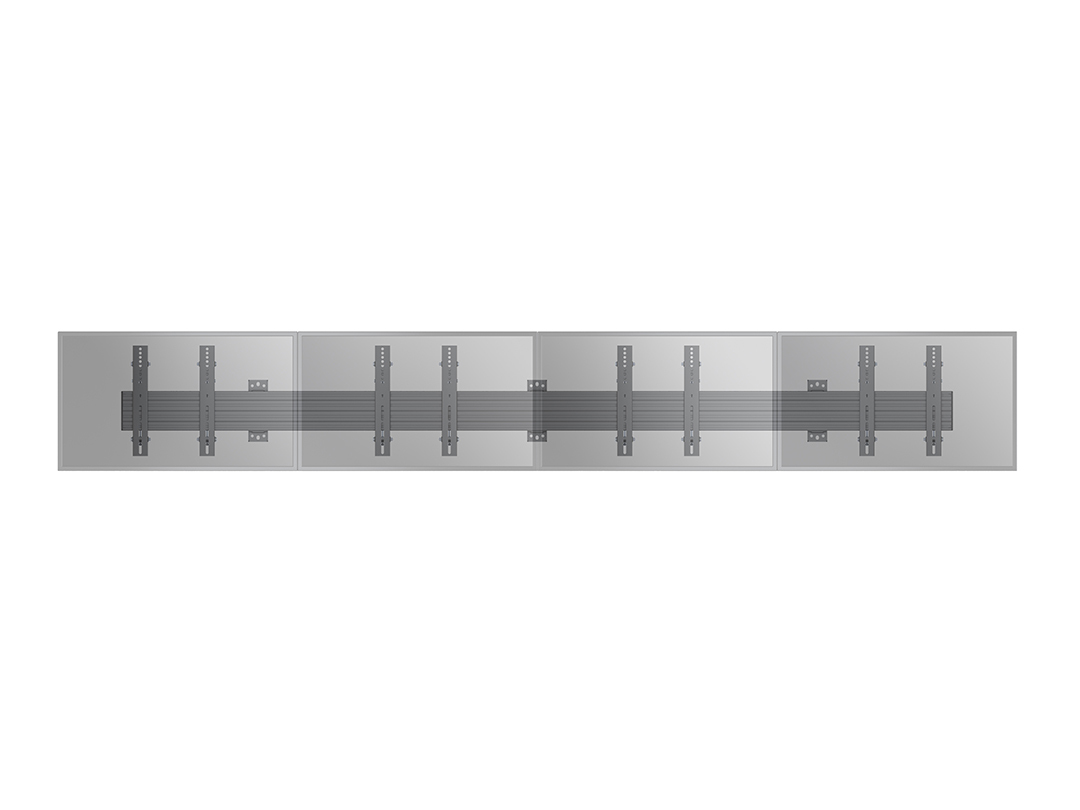

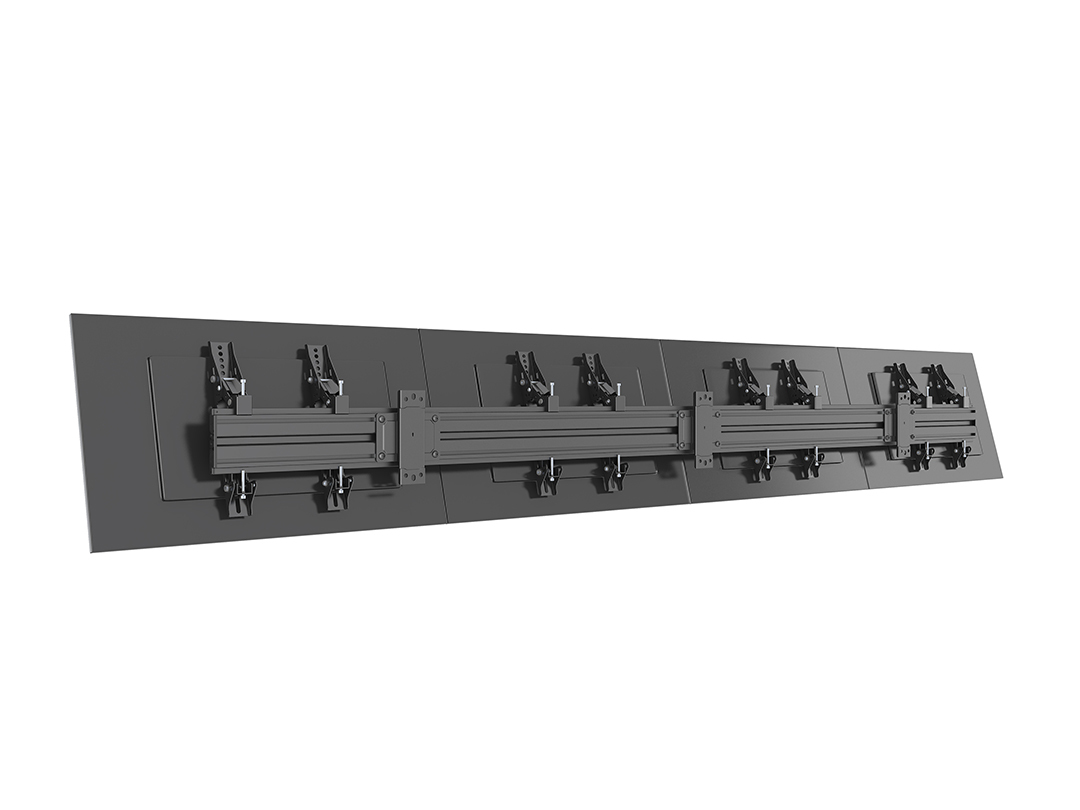

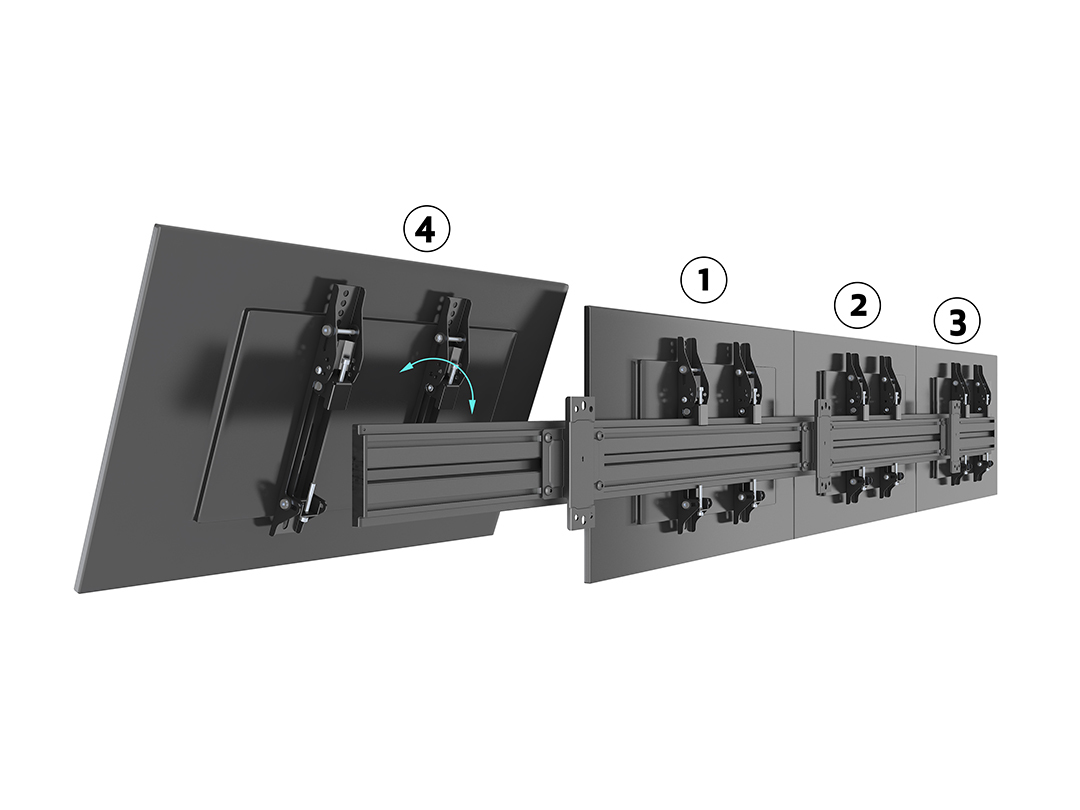

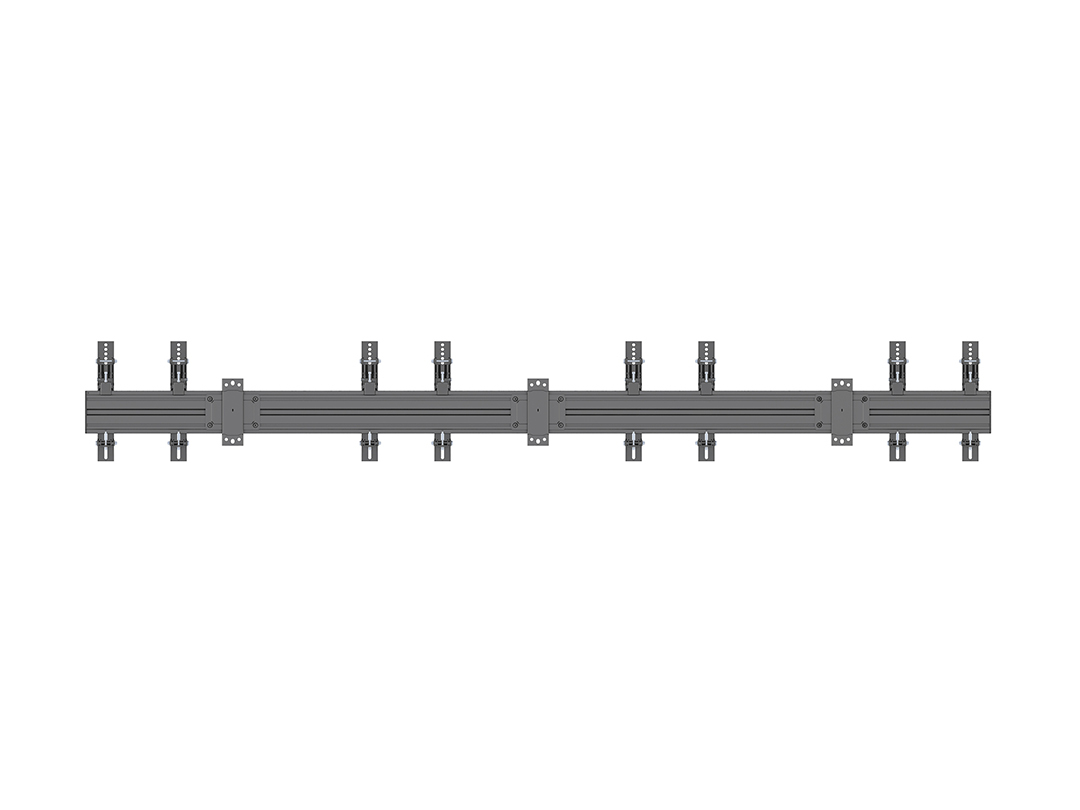

M Menu Board Wall Mount Pro MBW4X1U VESA 300
Introduction
Multibrackets M Menu Board Wall Mount Pro MBW4X1U VESA 300 is our innovative - ready to be installed Single-Display Wallmount.
The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Menu Board Wall Mount Pro MBW4X1U VESA 300 is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.
With its modular construction installers have vast possibilities to change, create, update and reconfigure its design if ideas change over time, then Pro Series can follow.
Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.
The Pro Series possibilities to extend aluminum rail change brackets and add details by individual choice is vast so that one can tailor each mount to its location and function.
The Pro Series includes hardware so that a basic installation should not be a hassle.

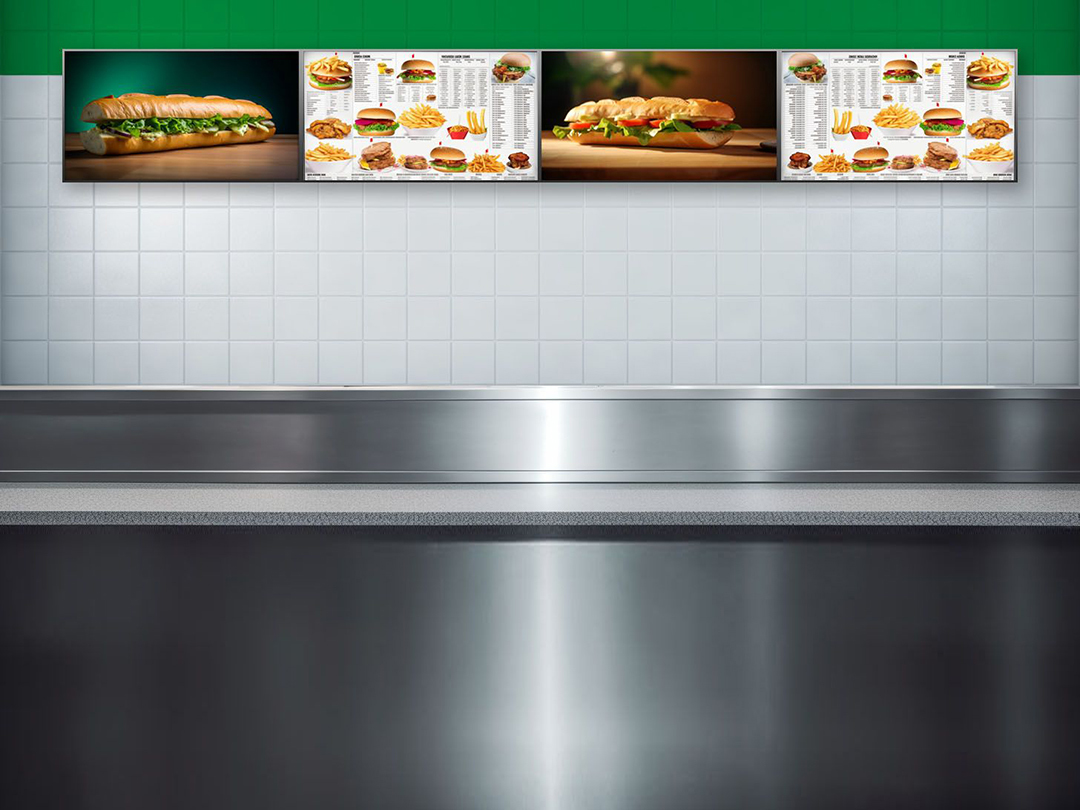

Multibrackets Pro Series Public Wallmounts is ideal for any large screen digital signage wallmount application such as videowalls, menuboards and more.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 50 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum weight capacity | 200 kg |
| Number of displays supported | 4 |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 300 x 300 mm |
| Maximum screen size | 127 cm (50") |
| Ergonomics | |

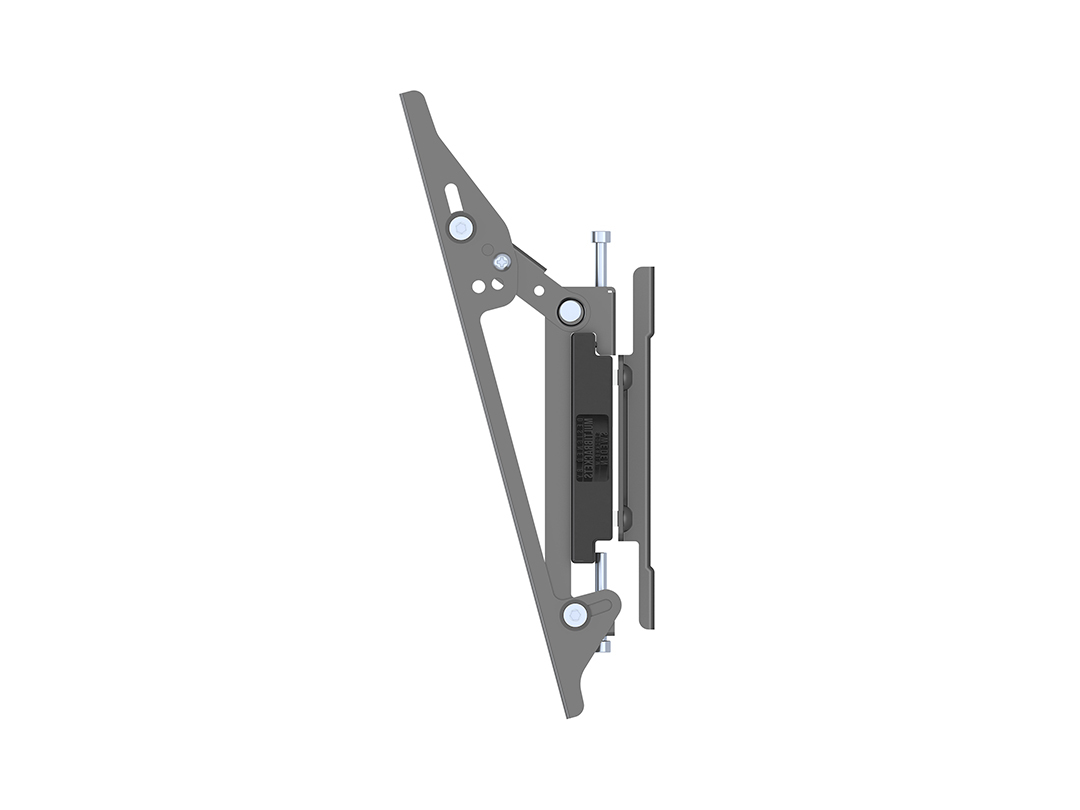

| Tilt angle range | -6 - 15° |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Design | |
| Housing material | Aluminium, Steel |
| Compatible products | Samsung LH32QMRBBGCXEN / LH43QMBEPGCXEN / LH50QMBEBGCXEN LG 32SM5J-B / 43UH5J-H / 49UH5J-H |
| Product colour | Black |
| Weight & dimensions | |
| Width | 1045 mm |
| Depth | 150 mm |
| Height | 160 mm |
| Weight | 18 kg |
| Aluminium content weight | 8.6 kg |
| Steel content weight | 18 kg |
| Other metals content weight | 0 g |
| Package weight | 19 kg |
| Packaging data | |
| Package weight | 19 kg |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Mounting kit | Yes |
| Technical details | |
| Number of displays supported | 4 |
| Mounting type | Wall |
| Compatible products | Samsung LH32QMRBBGCXEN / LH43QMBEPGCXEN / LH50QMBEBGCXEN LG 32SM5J-B / 43UH5J-H / 49UH5J-H |
| Orientation | Landscape/Portrait |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Plastic packaging weight | 60 g |
| Paper/cardboard packaging weight | 950 g |
| Metal packaging weight | 0 g |
