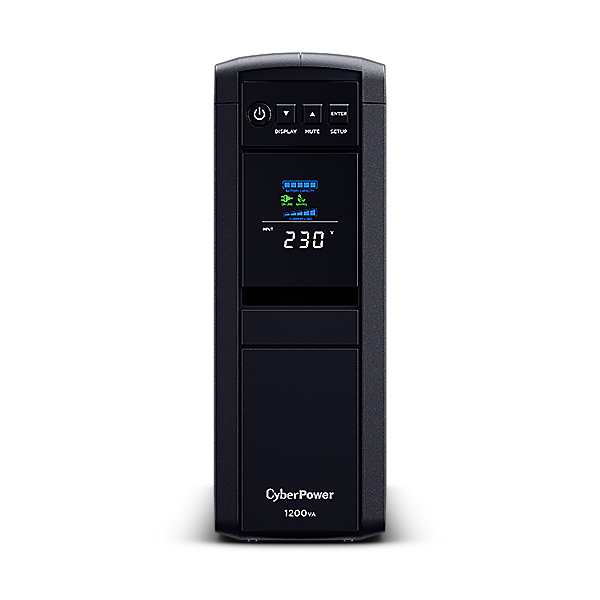

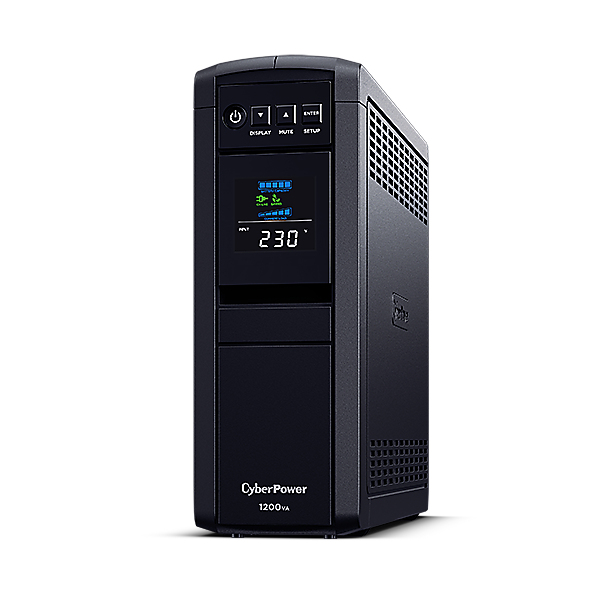

EU Product - CyberPower CP1200EIPFCLCD Line-Interactive USV - (Offline) UPS - 1,200 W

Introduction

CyberPower CP1200EIPFCLCD. UPS topology: Line-Interactive, Output power capacity: 1.2 kVA, Output power: 720 W. Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s), Cabling technology: 10/100/1000Base-T(X). Typical backup time at full load: 3.1 min, Typical backup time at half load: 11.4 min, Battery recharge time: 8 h. Form factor: Tower, Product colour: Black, Cable length: 1.83 m. Certification: RoHS

Specifications

Power
Output power	720 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Maximum current	10 A
Output power capacity	1.2 kVA

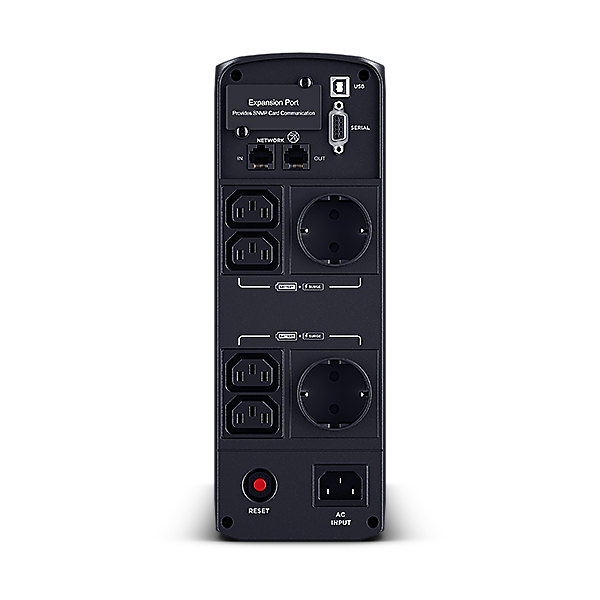

Ports & interfaces
Cable length	1.83 m
USB port	Yes
Cabling technology	10/100/1000Base-T(X)
AC outlets quantity	6 AC outlet(s)
Power plug	C14 coupler
USB 2.0 ports quantity	1
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	2
Performance
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Yes
EMI/RFI noise filtering	Yes
Surge protection	Yes
Power protection features	Overload
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Country of origin	China
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Output power	720 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Maximum current	10 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Power protection features	Overload
Audible alarm(s)	Yes
Output power capacity	1.2 kVA
Input frequency	50/60 Hz
Battery
Number of batteries supported	1
Battery recharge time	8 h
Typical backup time at half load	11.4 min
Typical backup time at full load	3.1 min
Design
Country of origin	China
Form factor	Tower
LED indicators	Yes
Product colour	Black
Cooling type	Passive
Certification	RoHS
Cable length	1.83 m
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Output frequency	50/60 Hz
Harmonized System (HS) code	8504408590
Certificates
Certification	RoHS
Cooling
Cooling type	Passive
Weight & dimensions
Package width	195 mm
Package depth	466 mm
Package height	370 mm
Weight	10 kg
Width	100 mm
Package weight	11.6 kg
Height	280 mm
Depth	355 mm
Packaging data
Package width	195 mm
Package depth	466 mm
Package height	370 mm
Package weight	11.6 kg
Logistics data
Country of origin	China
Harmonized System (HS) code	8504408590
