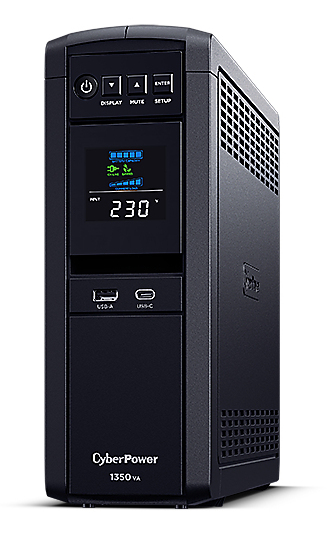

EU Product - PFC Sinewave CP1350EPFCLCD - (Offline) UPS - 1,350 W
Introduction
Backup PFC Sinewave Series for Mac.
Designed for new Mac Pro with additional USB ports on front to recharge mobile equipments.
Specifications
| Power | |
|---|---|
| Output power | 810 W |
| Input operation voltage (min) | 165 V |
| Input operation voltage (max) | 265 V |
| Maximum current | 10 A |
| Efficiency | 98.5% |
| Output power capacity | 1.35 kVA |
| Performance | |
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| LED indicators | Yes |
| EMI/RFI noise filtering | Yes |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone |
| Power protection features | Overload |
| Noise level | 35 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Country of origin | China |
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Output power | 810 W |
| Input operation voltage (min) | 165 V |
| Input operation voltage (max) | 265 V |
| Maximum current | 10 A |
| Efficiency | 98.5% |
| EMI/RFI noise filtering | Yes |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone |
| Power protection features | Overload |
| Noise level | 35 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 1.35 kVA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Number of type F outputs | 6 |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | Type F |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 3 |
| Serial ports quantity | 1 |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Number of batteries supported | 2 |
| Battery voltage | 12 V |
| Battery capacity | 8.5 Ah |
| Battery recharge time | 8 h |
| Typical backup time at half load | 10 min |
| Typical backup time at full load | 4 min |
| Design | |
| Country of origin | China |
| Form factor | Tower |
| LED indicators | Yes |
| Product colour | Black |
| Cooling type | Passive |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Harmonized System (HS) code | 8504408590 |
| Compliance certificates | RoHS |
| Certificates | |
| Compliance certificates | RoHS |
| Cooling | |
| Cooling type | Passive |
| Weight & dimensions | |
| Package width | 195 mm |
| Package depth | 466 mm |
| Package height | 370 mm |
| Weight | 10.9 kg |
| Width | 100 mm |
| Package weight | 11.6 kg |
| Height | 265 mm |
| Depth | 370 mm |
| Packaging data | |
| Package width | 195 mm |
| Package depth | 466 mm |
| Package height | 370 mm |
| Package weight | 11.6 kg |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 8504408590 |
| Other features | |
| Nominal output voltage | 230 V |
