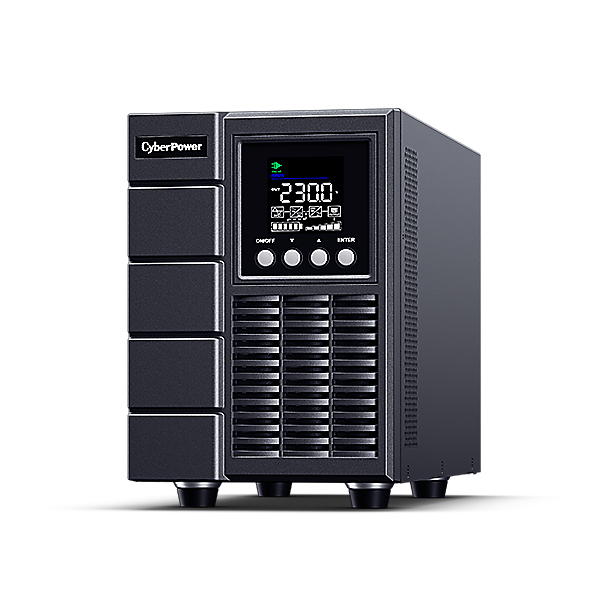

EU Product - CyberPower USV Online OLS A Tower OLS2000EA-DE - (Offline) UPS - 2,000 W

Introduction

CyberPower OLS2000EA-DE is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.

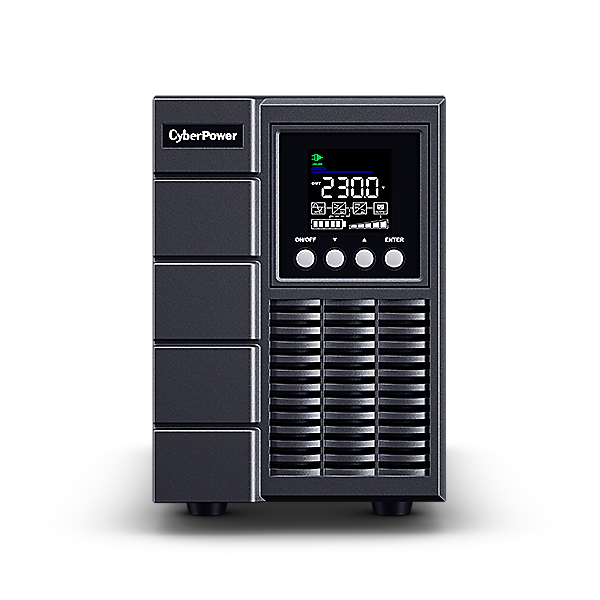

The UPS is designed with color LCD panel for users to monitor power system and configure settings easily. This model is generator compatible and also adopts ECO mode to conserve power. The product can be connected to Emergency Power Off (EPO) switch, which allows users to shut off UPS immediately during emergency. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users.

Specifications

Power
Input power factor	0.99
Output power	1800 W
Input operation voltage (min)	200 V
Input operation voltage (max)	300 V
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Surge energy rating	345 J
Maximum current	9 A
Power factor	0.9
Output voltage Total Harmonic Distortion (THD)	5%
Crest factor	3:1
Output power capacity	2 kVA
Charging current	1.5 A
Efficiency (ECO mode)	95%

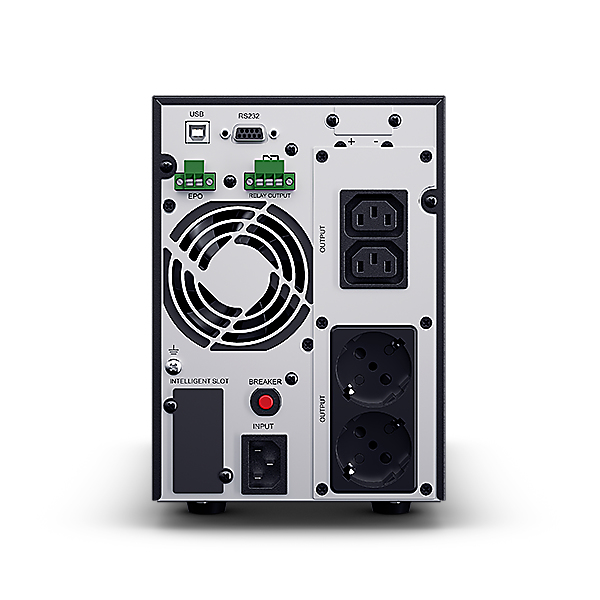

Ports & interfaces
Cable length	1.5 m
USB port	Yes
AC outlets quantity	4 AC outlet(s)
AC outlet types	C13 coupler
Performance
Audible alarm modes	Battery replacement, Fault, Low battery alarm, Overload alarm
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Response time	0 ms
EMI/RFI noise filtering	Yes
Surge protection	Yes
Power protection features	Overload
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Country of origin	China
Audible alarm modes	Battery replacement, Fault, Low battery alarm, Overload alarm
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Input power factor	0.99
Response time	0 ms
Output power	1800 W
Input operation voltage (min)	200 V
Input operation voltage (max)	300 V
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Surge energy rating	345 J
Maximum current	9 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Power protection features	Overload
Power factor	0.9
Output voltage Total Harmonic Distortion (THD)	5%
Crest factor	3:1
Audible alarm(s)	Yes
Output power capacity	2 kVA
Efficiency (ECO mode)	95%
Input frequency	50/60 Hz
Charging current	1.5 A
Battery
Number of batteries supported	3
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	4 h
Typical backup time at half load	13.1 min
Typical backup time at full load	3.8 min
Charging current	1.5 A
Design
Country of origin	China
Form factor	Tower
Product colour	Beige
Certification	RoHS
Cable length	1.5 m
Built-in fan	Yes
Housing material	Metal
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	20 - 90%
Storage relative humidity (H-H)	10 - 90%
Operating altitude	0 - 1500 m
Non-operating altitude	0 - 1500 m
Technical details
Output frequency	50/60 Hz
Harmonized System (HS) code	8504408590
Certificates
Certification	RoHS
Packaging content
Cables included	USB cable
Cooling
Built-in fan	Yes
Weight & dimensions
Package width	241 mm
Package depth	510 mm
Package height	313 mm
Weight	17.4 kg
Width	151 mm
Package weight	19.8 kg
Height	225 mm
Depth	394 mm
Packaging data
Cables included	USB cable
Package width	241 mm
Package depth	510 mm
Package height	313 mm
Package weight	19.8 kg
Logistics data
Country of origin	China
Harmonized System (HS) code	8504408590
