EU Product - UT800EIG Line-Interactive - (Offline) UPS - 800 W

Introduction

CyberPower UT800EIG guarantees power protection for computers, POS systems, networking equipment, and storage devices. The product adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilized AC power output. The patented GreenPower UPS™ Bypass design helps UPS achieve ultra-low power consumption to reduce energy costs while lowering UPS operating temperature, which extends its battery lifespan.

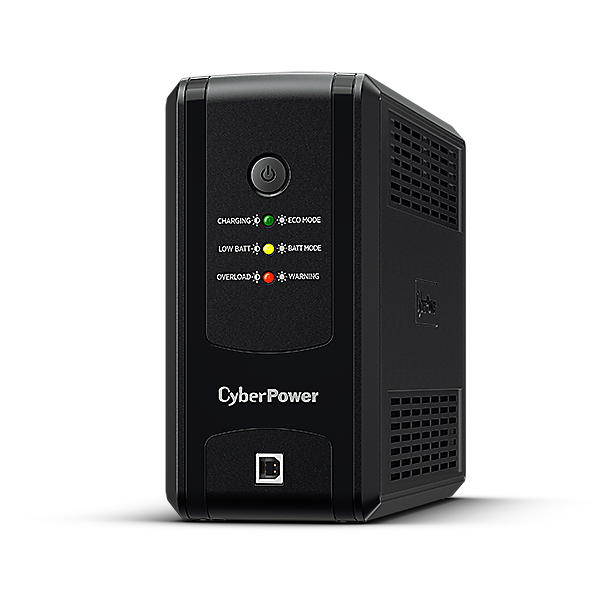

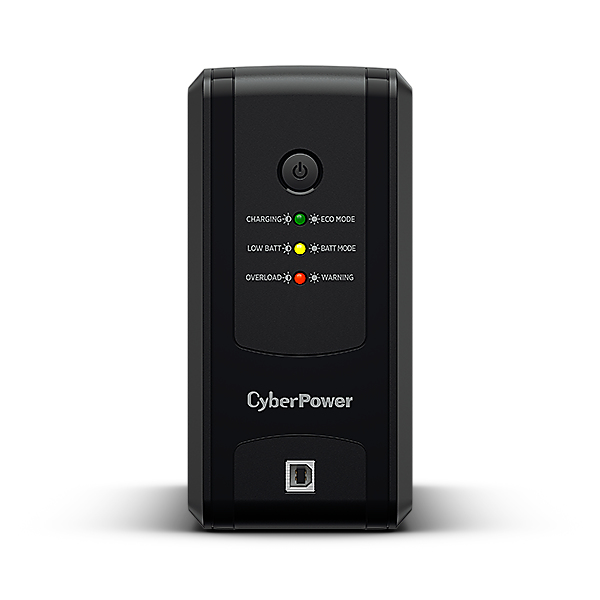

The LED indicator shows the utility, battery and operating status of the UPS. It is also compatible with generators to extend power continuity. Other features include overload protection, EMI filter and configurable alarm to safeguard your devices. Its tower design allows users to place it easily on desks or other tight spaces.

Specifications

Power
Output power	450 W
Input operation voltage (min)	165 V
Input operation voltage (max)	290 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Surge energy rating	150 J
Maximum current	3.47 A
Output power capacity	0.8 kVA
Ports & interfaces
Cable length	1.2 m
USB port	Yes
Cabling technology	10/100/1000Base-T(X)

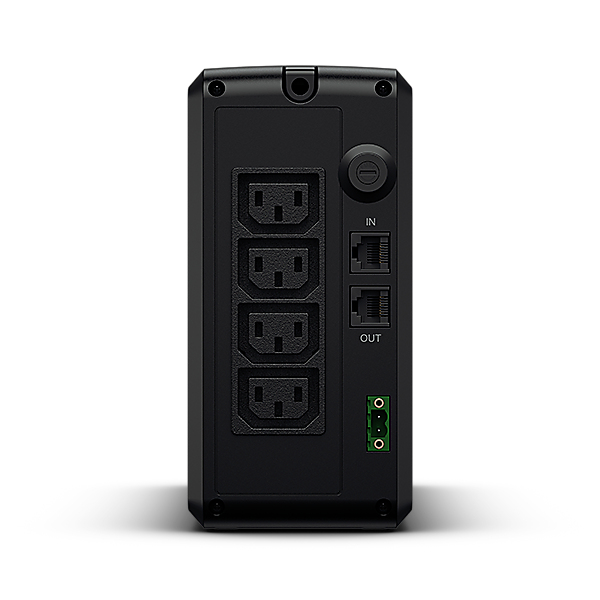

AC outlets quantity	4 AC outlet(s)
AC outlet types	C13 coupler
USB 2.0 ports quantity	1
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
Performance
UPS topology	Line-Interactive
Response time	4 ms
LED indicators	Yes
Power protection features	Overload
Features
Output frequency	50/60 Hz
Country of origin	China
UPS topology	Line-Interactive
Response time	4 ms
Output power	450 W
Input operation voltage (min)	165 V
Input operation voltage (max)	290 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Surge energy rating	150 J
Maximum current	3.47 A
Power protection features	Overload
Output power capacity	0.8 kVA
Input frequency	50 Hz
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	6 h
Design
Country of origin	China
Form factor	Tower
LED indicators	Yes
Product colour	Black
Certification	RoHS
Cable length	1.2 m
Housing material	Plastic
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Technical details
Output frequency	50/60 Hz
Harmonized System (HS) code	8504408590
Certificates
Certification	RoHS
Packaging content
Cables included	USB cable
Weight & dimensions
Package width	109 mm
Package depth	315 mm
Package height	229 mm
Weight	4.2 kg
Width	84 mm
Package weight	4.47 kg
Height	174 mm
Depth	280 mm
Packaging data
Cables included	USB cable
Package width	109 mm
Package depth	315 mm
Package height	229 mm
Package weight	4.47 kg
Logistics data
Country of origin	China
Harmonized System (HS) code	8504408590
