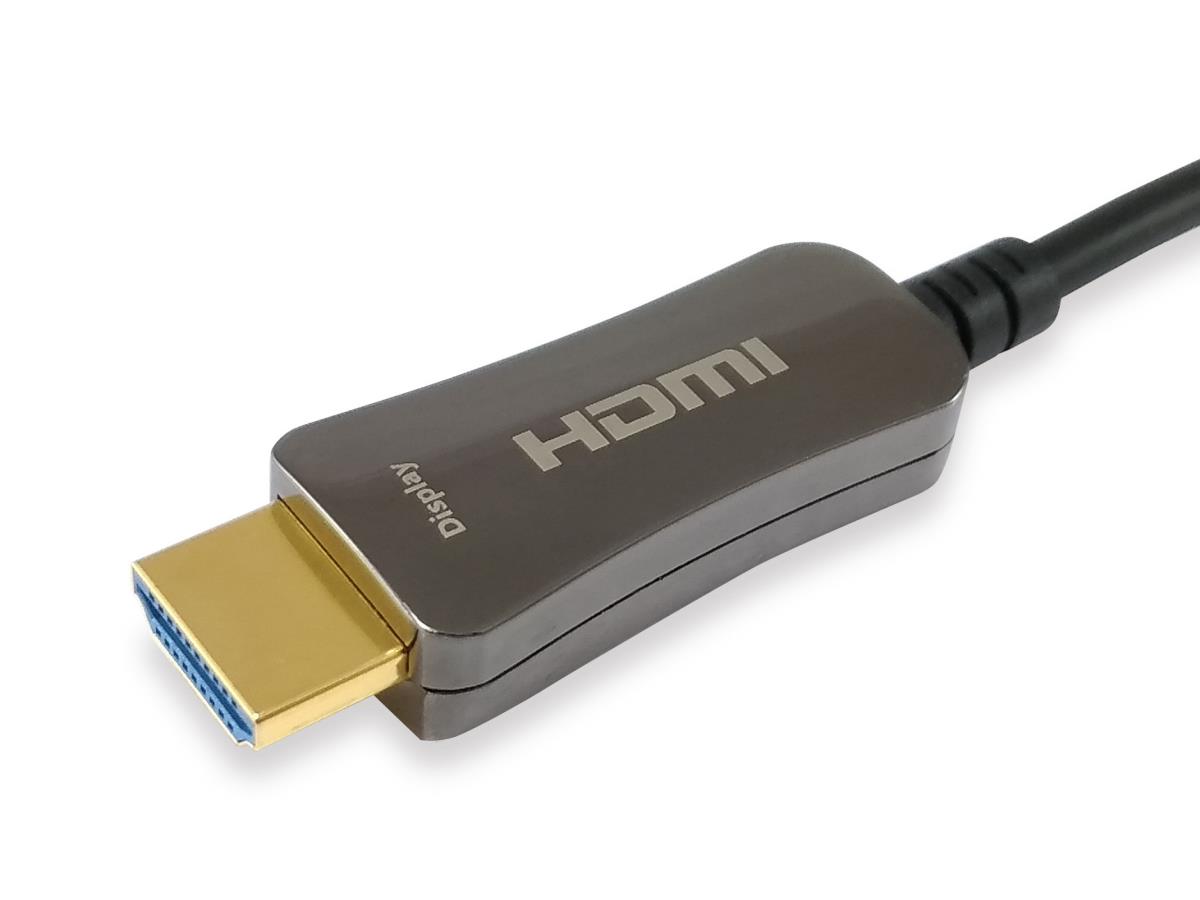

EU Product - HDMI HS Ethernet 2.0 18Gb AOC 4K/60Hz 50.00m schwarz
Introduction
The Equip 11943x series Active Optical Cable (AOC) is a cabling technology that accepts the same electrical inputs as a traditional copper cable but uses optical fibre between the connectors to extend HDMI signals with zero loss or latency. Our hybrid cable design consists of optical fibres and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibres, while the low frequency control signals are transmitted through the copper wires. The range of active optical leads give you up to 100m of distance without a drop of signal quality or the requirement of a separate power supply.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 240 Hz |
| HDMI Ethernet channel | Yes |
| Product colour | Black |
| Cable length | 50 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Copper |
| HDMI version | 2.0 |
| Bandwidth | 18000 MB/s |
| 3D | Yes |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160 |
| HDCP | Yes |
| Plug and Play | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Cable jacket material | Polyvinyl chloride (PVC) |
| HDCP version | 2.2 |
| Cable type | Round cable |
| Quantity per pack | 1 pc(s) |
| Sustainability | |
| Sustainability compliance | Yes |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 1.46 kg |
| Package weight | 1.6 kg |
| Package width | 265 mm |
| Package depth | 53 mm |
| Package height | 265 mm |
| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Packaging data | |
| Package weight | 1.6 kg |
| Package width | 265 mm |
| Package depth | 53 mm |
| Package height | 265 mm |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Country of origin | China |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Other features | |
| Country of origin | China |
| Logistics data | |
| Country of origin | China |
| Master (outer) case gross weight | 16.8 kg |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 480 mm |
