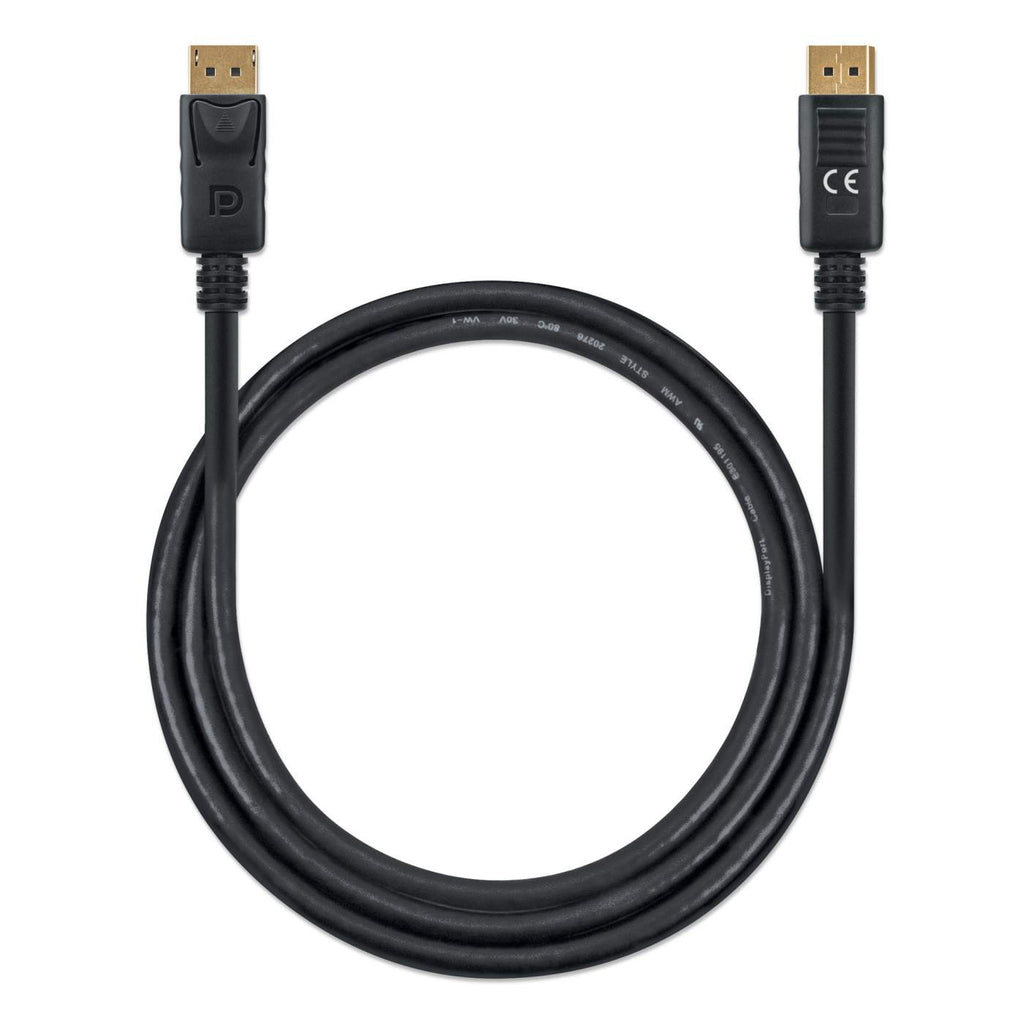

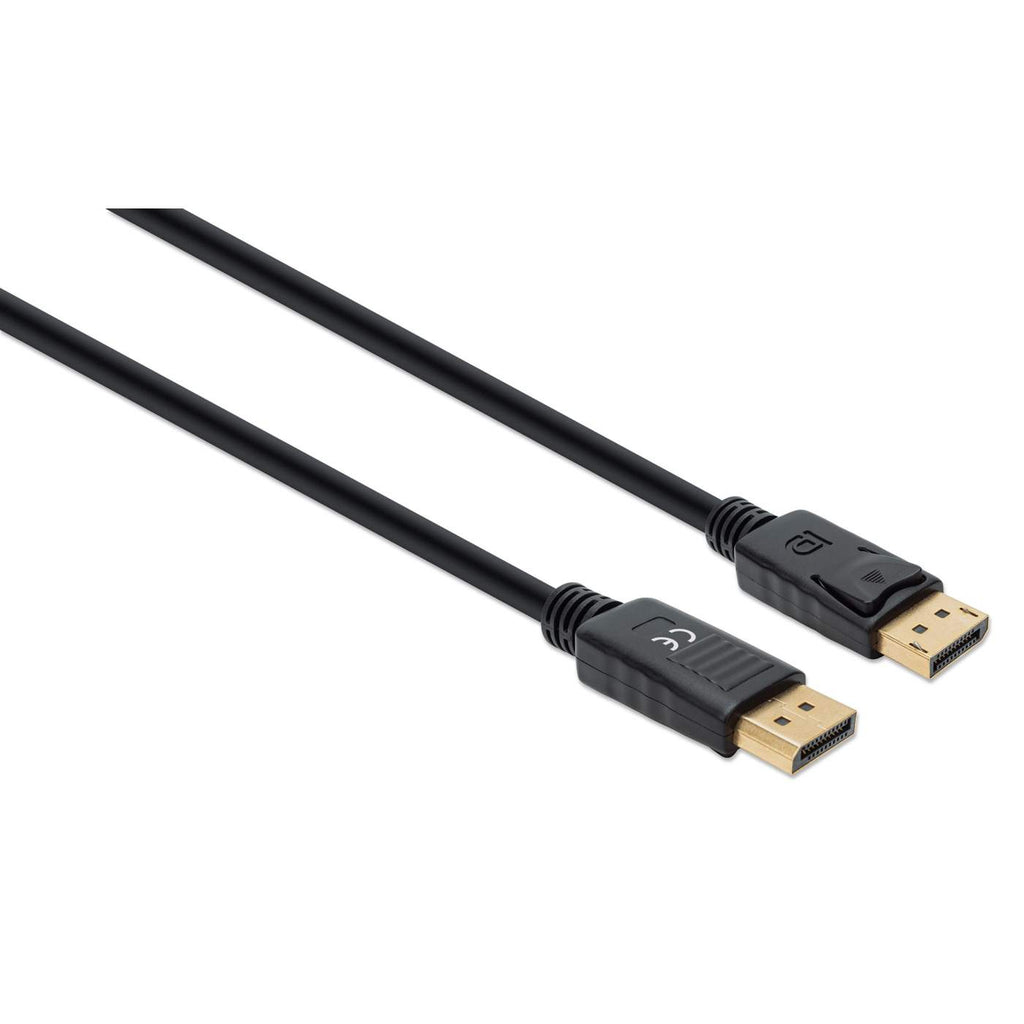

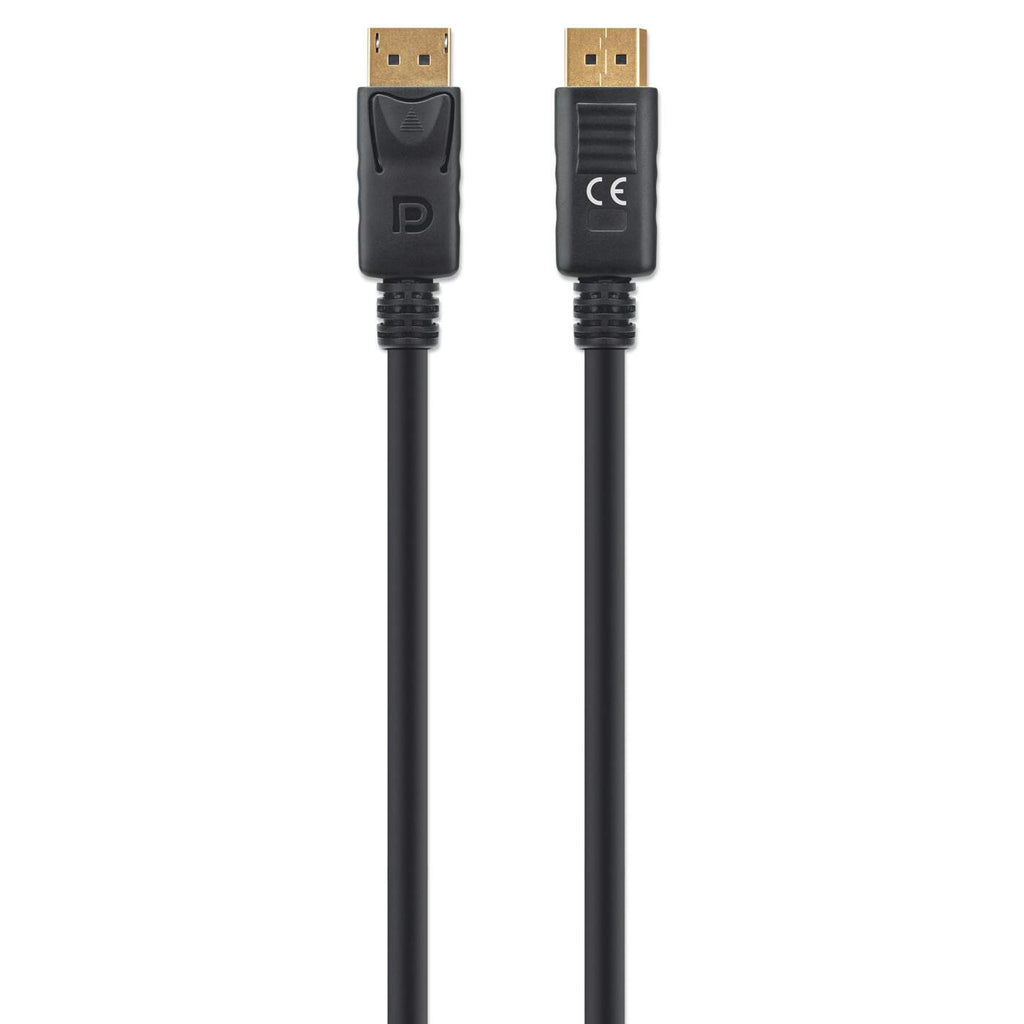

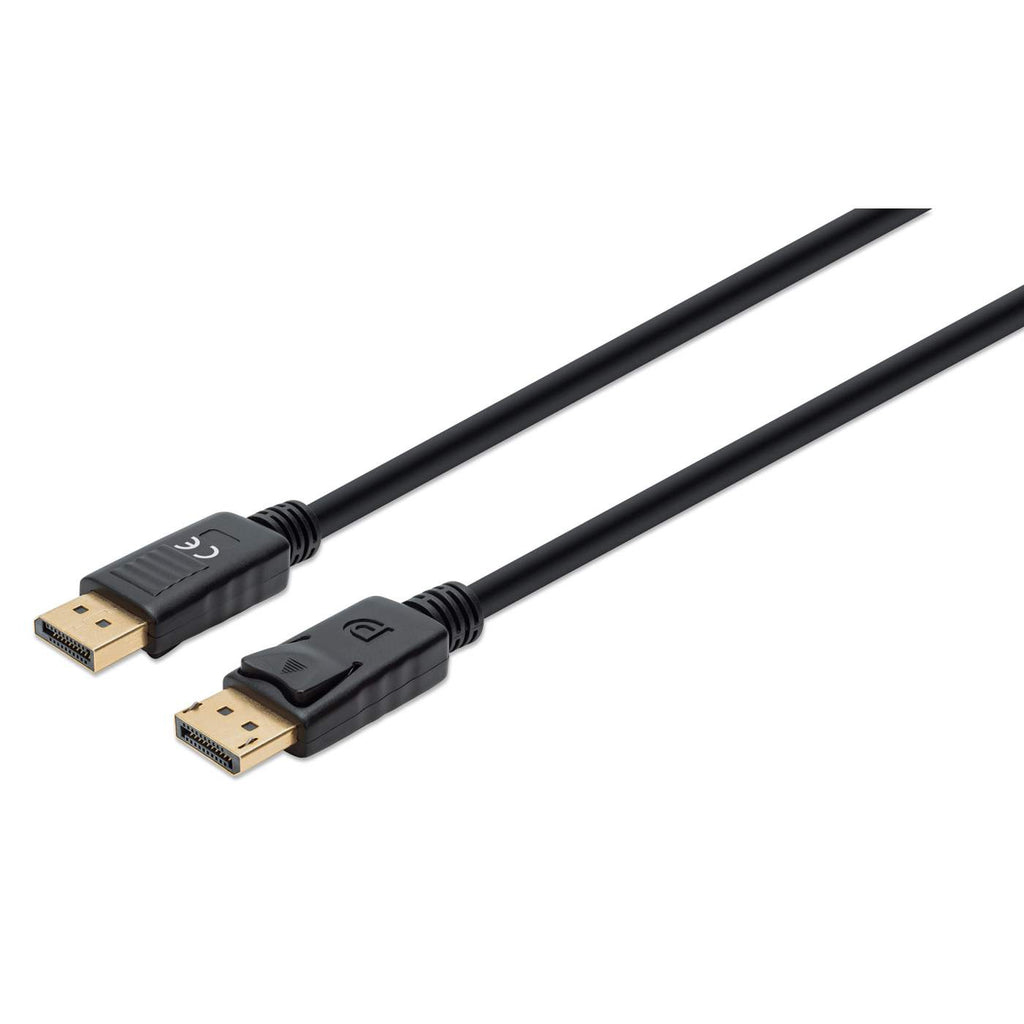

DISPLAYPORT CABLE 1M 8K/60HZ-
Introduction
DisplayPort Cable featuring future-proof 8K@60Hz for high-end gaming and AV applications
The Manhattan DisplayPort Monitor Cable makes you ready for even the most demanding graphic challenges in gaming, digital signage and other high-end AV applications. Its superior DisplayPort 1.4 standard delivers images in brilliant 8K (7680 x 4320) at rapid 60 Hz or 4K UHD at blazing fast 120 Hz with HDR for perfect contrast and colors. The triple shielding and gold-plated contacts provide maximum conductivity as well as crisp, clear signal transmissions with zero EMI interference.
Specifications
| Features | |
|---|---|
| Cable shielding | Aluminum mylar foil |
| Product colour | Black |
| Cable length | 1 m |

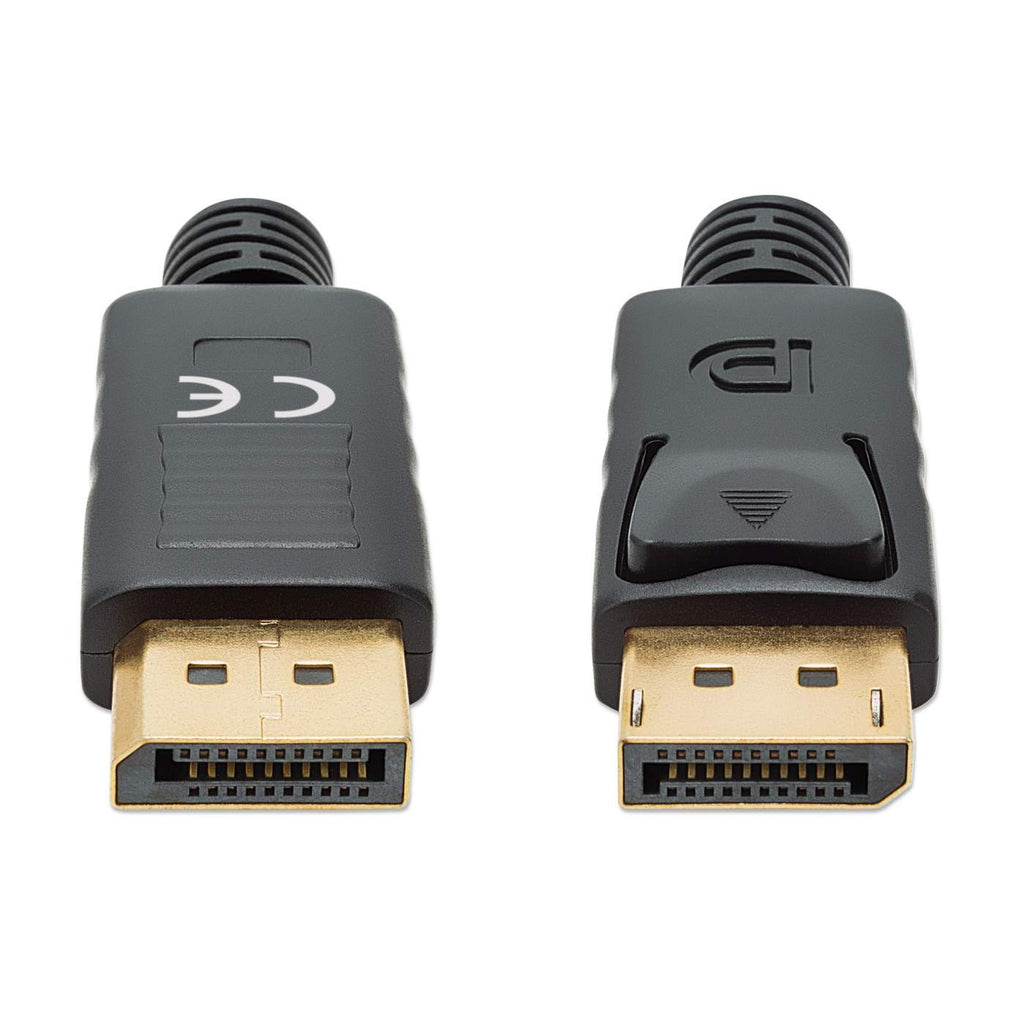

| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Magnetically shielded | Yes |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Certification | CE RoHS |
| Maximum refresh rate | 240 Hz |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Certificates | |
| Certification | CE RoHS |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 69 g |
| Packaging data | |
| Weight | 69 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
