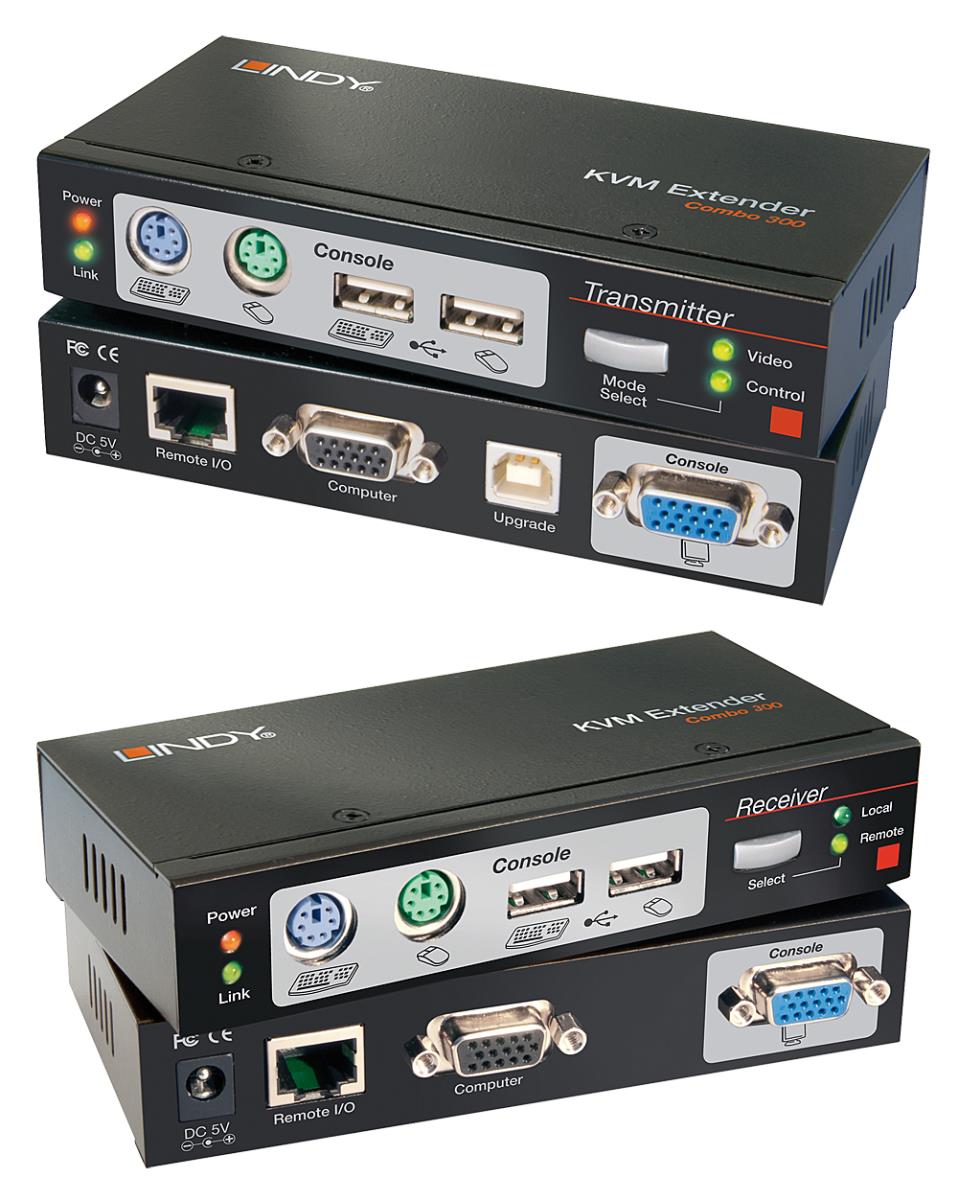

KVM EXTENDER COMBO
Introduction
The Lindy KVM Extender Combo allows your USB keyboard/mouse and VGA monitor to be connected up to 300m away from your USB equipped computer using standard CAT5 or higher cable. A separate workstation can be connected to the remote receiver allowing the operator to switch between local and remote PCs.
Specifications
| Ports & interfaces | |
|---|---|
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| Audio connections | No |
| PS/2 ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum resolution | 1920 x 1080 pixels |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| On Screen Display (OSD) | Yes |
| LED indicators | Yes |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| LED indicators | Yes |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | Yes |
| Power | |
| External power adapter | Yes |
| Input voltage | 5 V |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Packaging content | |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
